Zehntner Marking RetroreflectionZRM 6020 RLVehicle-mounted retroreflectometer for safe and efficient continuous measurements Vehicle-mounted with accurate 300 measurements per second Handheld precision at up to 150 km/h (93 mph) Industrial grade touchscreen tablet Applications:Continuous mea ...Read more

Zehntner Marking Retroreflection
ZDR 6020 RL

  • Description

Zehntner Marking Retroreflection
ZRM 6020 RL

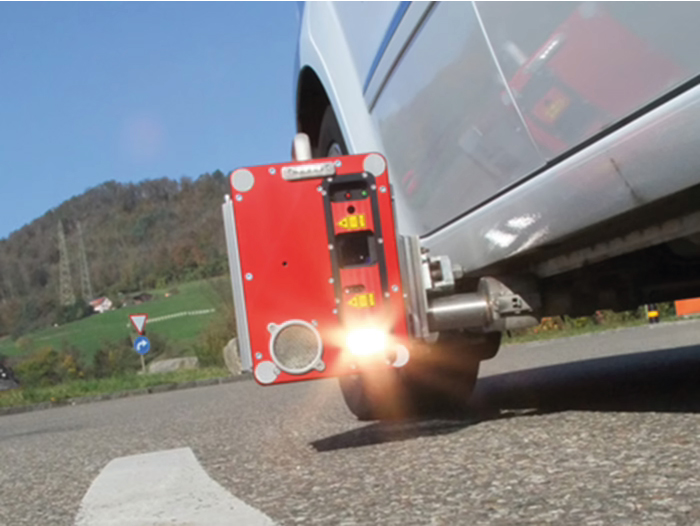

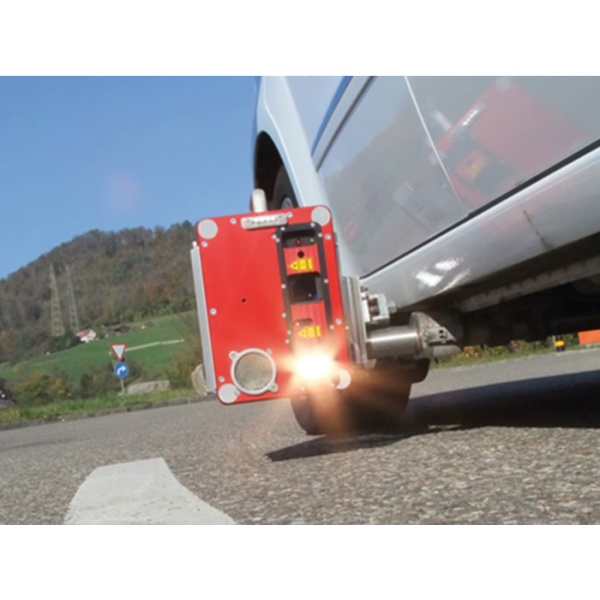

Vehicle-mounted retroreflectometer for safe and efficient continuous measurements

  • Vehicle-mounted with accurate 300 measurements per second
  • Handheld precision at up to 150 km/h (93 mph)
  • Industrial grade touchscreen tablet

Applications:
Continuous measurements of the night visibility (RL) / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

Technical Specifications:

 Model Number  ZRM 6010 RL
 Technology  Integrated camera for road surveillance with 10m (32.81 ft) picture sequence
 Measuring Resolution  Data recording with 300 measurements per second
 Display  11.6 in. touchscreen tablet with installed ZDR 6020 RetroGrabber software and microphone
 Memory  1 GB internal flash memory
 Measurements  Measuring area (WxL) - ≥1000 mm x 880 mm (≥39.4“ x 34.65“)
 Measuring distance in front of the measuring head - 6 m (19.7 ft)
 Measuring speed - max. 150 km/h (93.21 mph)
 Measuring Range  RL: 0 - 4‘000 mcd•m-2•lx-1
 Profiled Markings: ≈20 mm (0.79")
 Measuring Accuracy  Handheld precision at up to 150 km/h (93 mph)
 Observation Angle  EN 1436: 2.29°
 ASTM E 1710: 1.05°
 Calibration Accuracy  EN 1436: 1.24°
 ASTM E1710: 88.76°
 Illumination Angle  EN 1436: 1.24°
 ASTM E 1710: 88.76°
 Reporting software  Includes mapping and data analysis software MappingTools
 Weight
  Measuring Head: 10.5 kg (23.1 lbs)
 Operating Temperature  0°C to 55°C (32°F to 131°F)
 Special Features  Languages available: German, English, Spanish, French Italian,  Russian, Chinese, Korean
