Zehntner Marking Retroreflection
ZRM 6010 RL

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

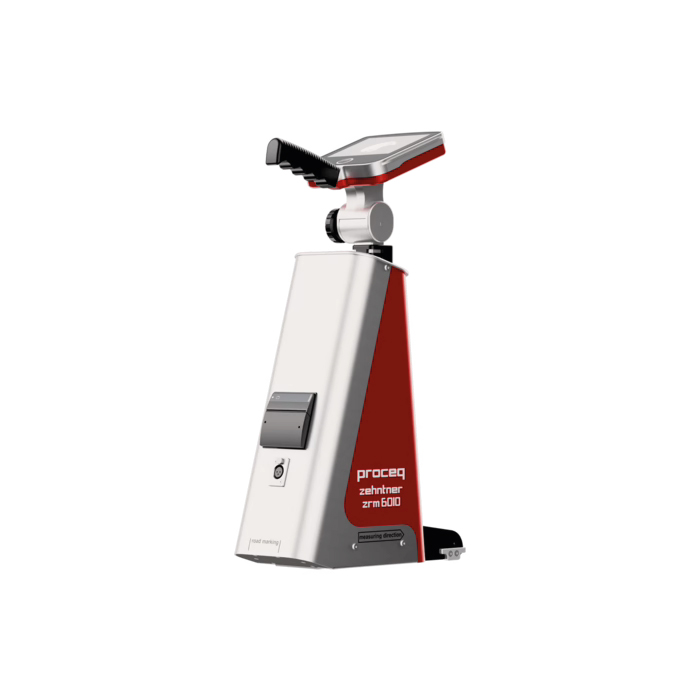

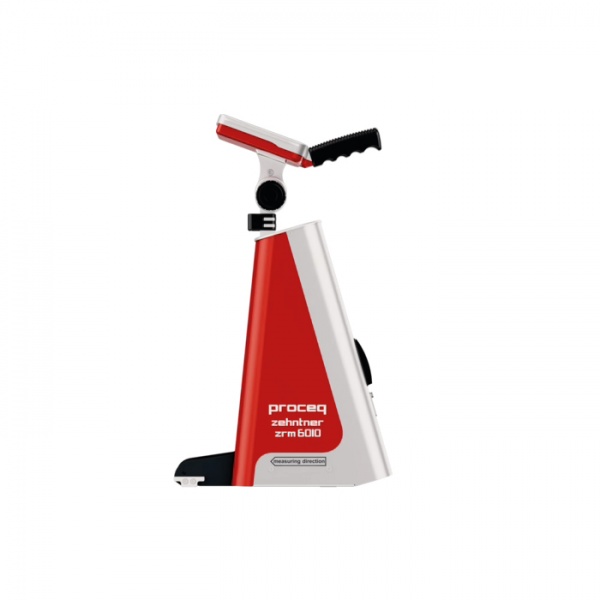

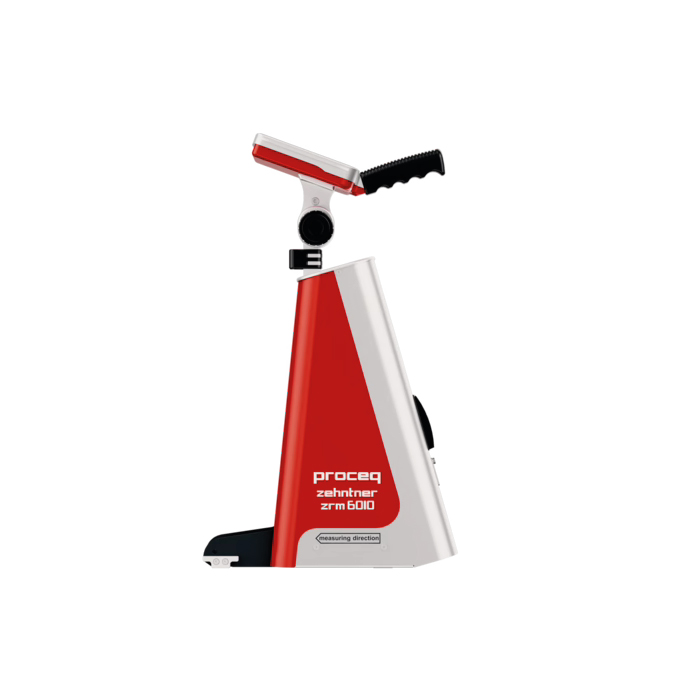

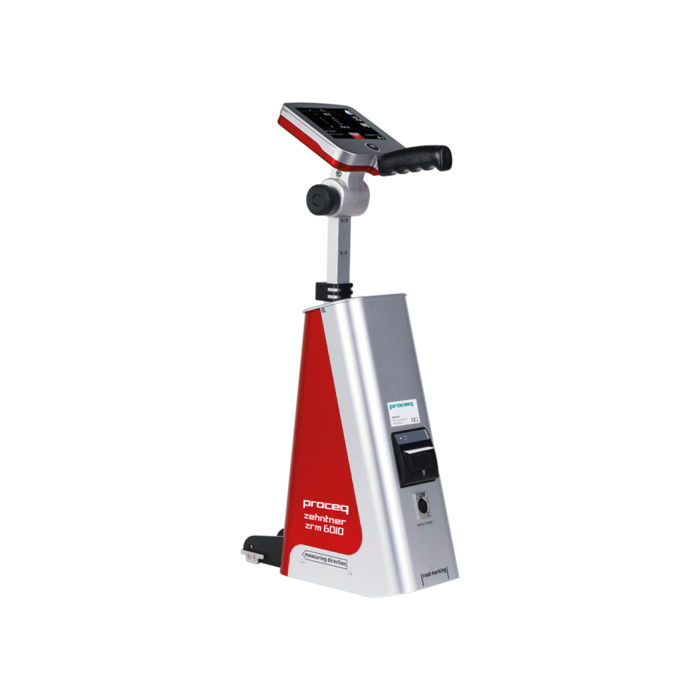

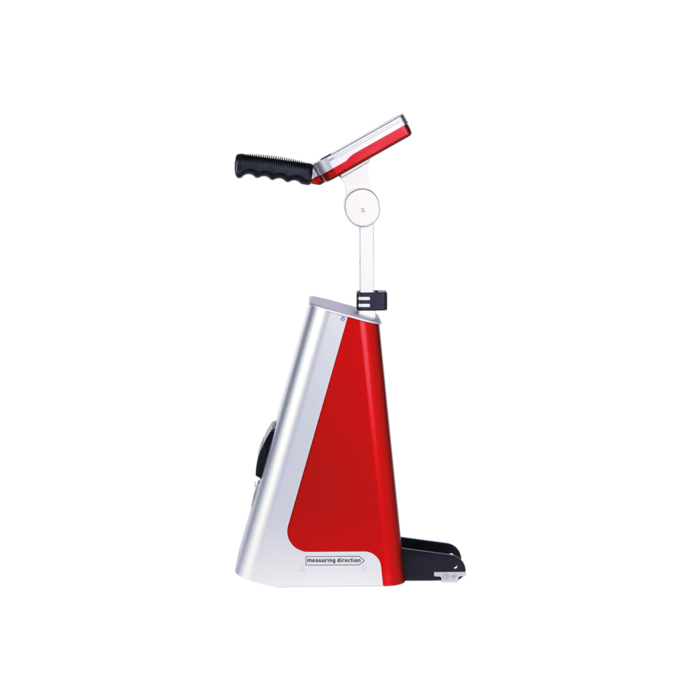

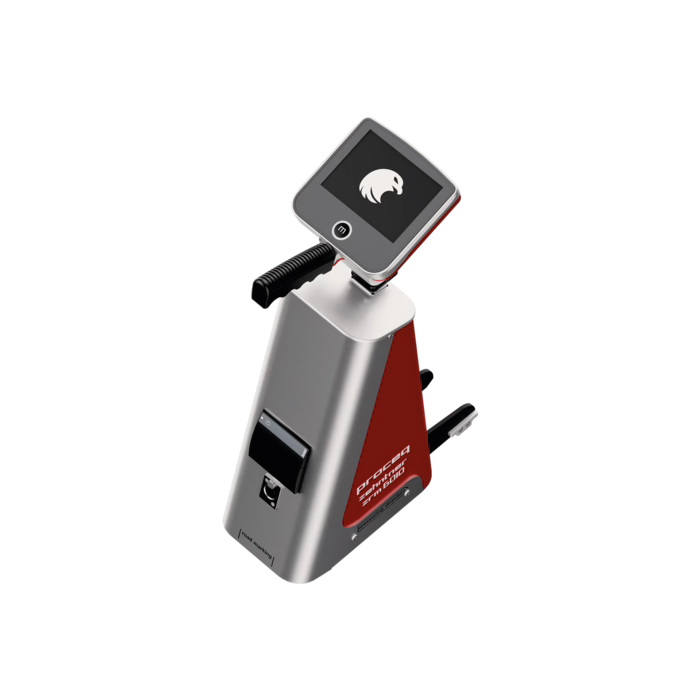

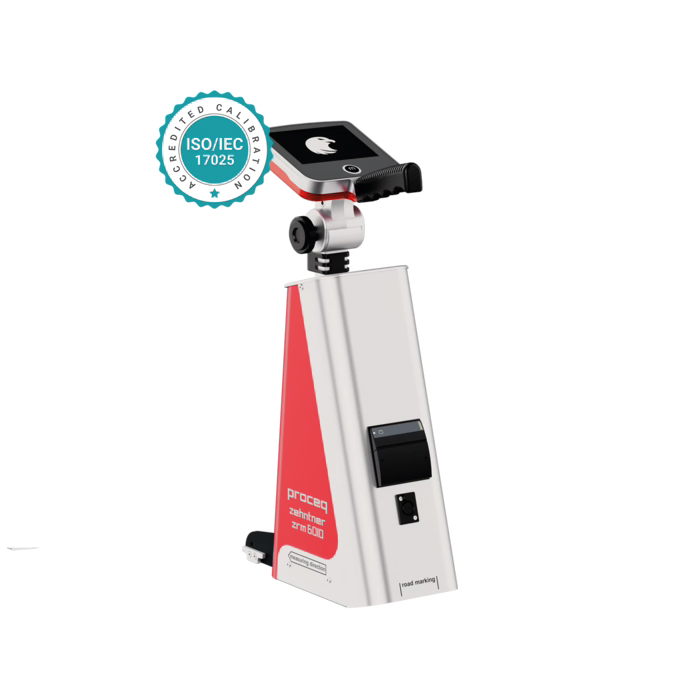

Zehntner Marking Retroreflection
ZRM 6010 RL
Night visibility. Continuous wetting and rain conditions.

Superior ergonomics, class-defining portability, and intuitive software
Intelligent electronics monitor the environment and adjust to stray light
Ultrafast and precise geolocation and high resolution images

Applications:

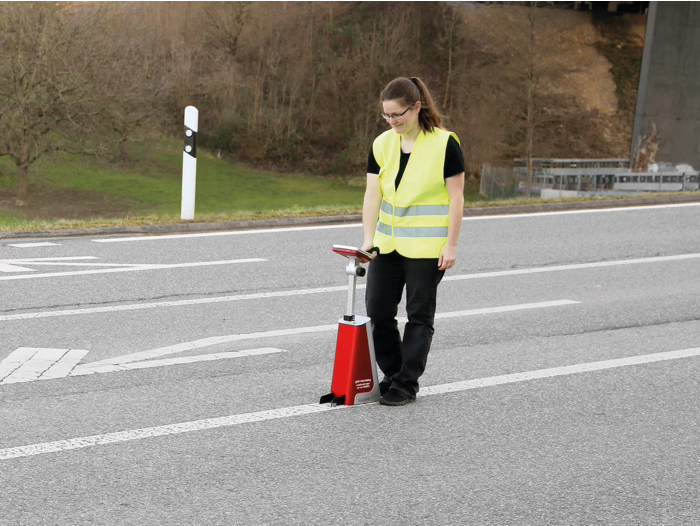

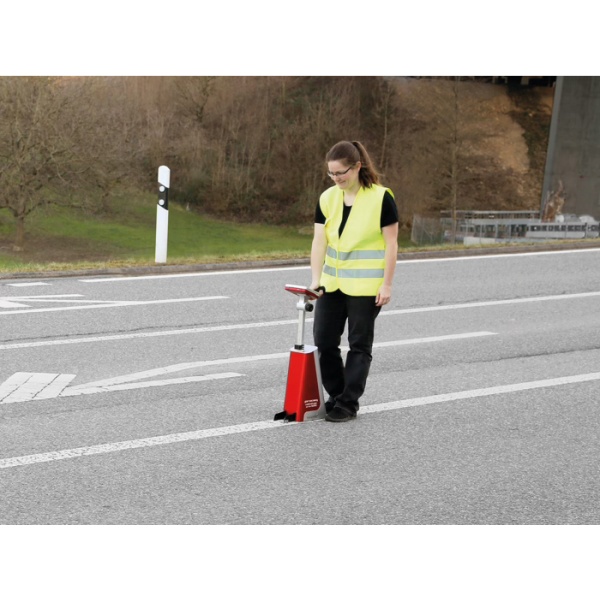

Determination of night visibility (RL) of road and airport markings / Measurement of RL under standard conditions of continuous wetting and conditions of rain using a rain simulator / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

Technical Specifications:

Model Number	ZRM 6010 RL
Technology	GPS, internal printer
Display	Touchscreen 5.7" color TFT (LCD), LED backlight, VGA resolution
Memory	1 GB internal flash memory
Measurement Modes	RL dry (night visibility) RL wet (night visibility) RL continuous wetting (night visibility) °C/°F (ambient temperature) rH % (relative humidity)
Measuring Area	(WxL): 52mm x 489mm (2.05" x 19.25")
Measuring Range	RL: 0 - 4’000 mcd•m-2•lx-1
Measuring Accuracy	Repeatability ± 2 %
Observation Angle	EN 1436: 2.29° ASTM E1710: 1.05°
Calibration Accuracy	EN 1436: 1.24° ASTM E1710: 88.76°
Illumination Angle	EN 1436: 1.24° ASTM E1710: 88.76°
Reporting software	Includes mapping and data analysis software MappingTools
Weight	6.4kg (14.11 lbs)
Operating Temperature	0°C to +50°C (32°F to 122°F), non condensing
