Standard: EN 14769, ASTM D6521, AASHTO R28
Product Description

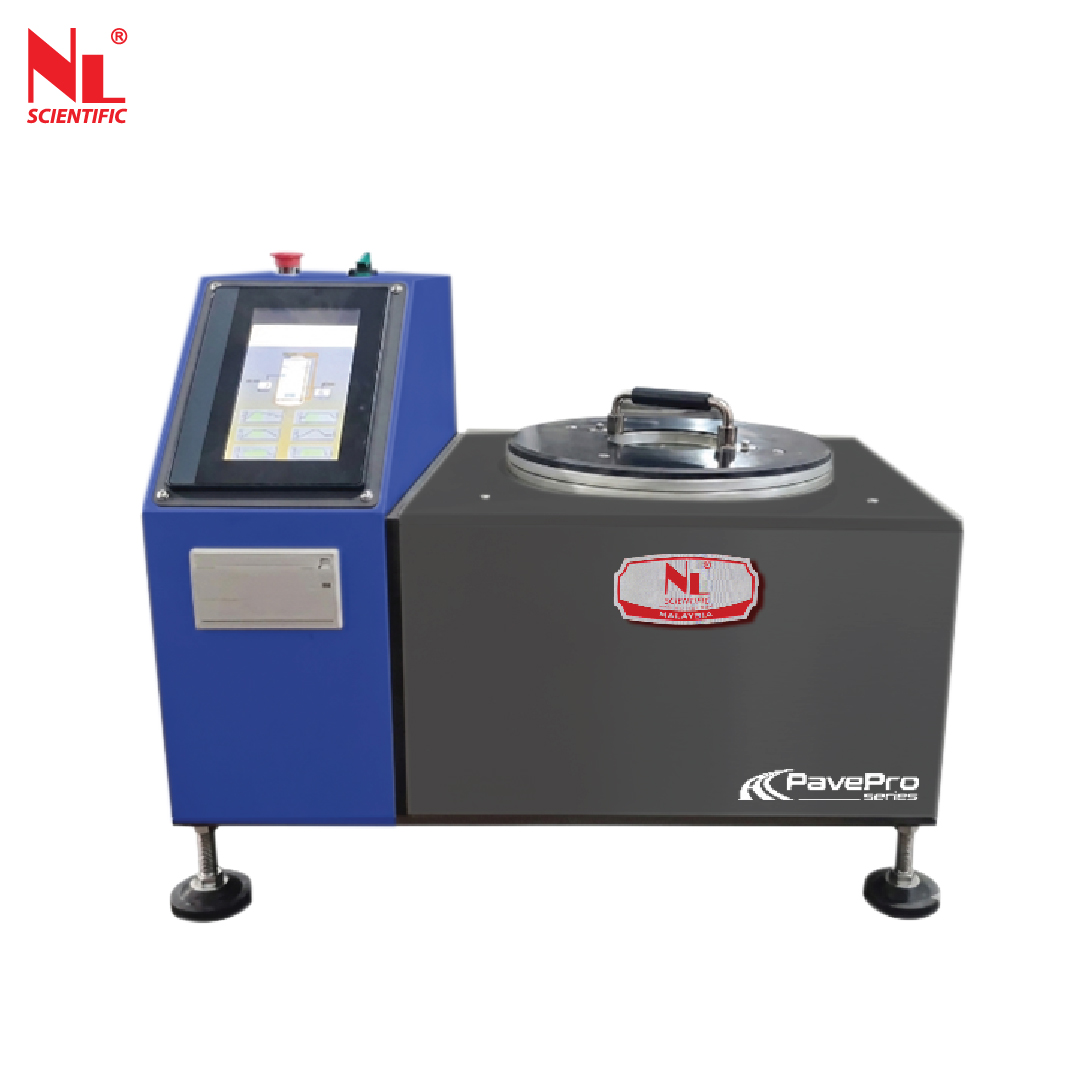

The NL PavePro Vacuum Degassing Oven (VDO) utilizes advanced vacuum generator technology to remove air bubbles from asphalt binders and materials following pressure aging. This system ensures sample integrity for subsequent testing by maintaining a precise negative pressure environment while monitoring temperature and pressure in real-time.
Designed for efficiency and durability, the unit features a 7-inch touchscreen for curve tracking and a glass viewing window for process observation. Housed in an easy-to-clean stainless steel cabinet, it supports automatic data printing and USB export, ensuring full compliance with international standards.
Features of Vacuum Degassing Oven (VDO)
- Integrated 7-inch HD Touchscreen Interface — Provides high-definition control and real-time synchronization of internal vessel pressure and temperature parameters.
- Dynamic Process Visualization — Displays comprehensive real-time data trends, including Temperature-vs-Time and Pressure-vs-Time analytical curves.
- Compliance Monitoring & Deviation Tracking — Features real-time monitoring of temperature and pressure variances to ensure strict adherence to the latest regulatory testing protocols.
- High-Frequency Data Acquisition — Logs critical data at 5-second intervals with seamless export functionality via USB in Excel-compatible formats.
- Automated Report Generation — Configured to automatically print a complete data summary and process report immediately upon test completion.
- Integrated Inspection Port — Designed with a high-durability viewing window to facilitate real-time visual monitoring, streamlined operation, and maintenance accessibility.
- Industrial-Grade Stainless Steel Construction — The chassis is fabricated from premium stainless steel with a specialized protective finish, combining a professional aesthetic with superior corrosion resistance and long-term durability.
Technical Specifications:
| Model Number |
NL PV / P5 |
| Operating Temperature Range |
Room temperature – 200 °C |
| Preheating Time |
10 – 30 min |
| Vacuum Time |
10 min |
| Operating Pressure |
15 + 2.5 kPa |
| Pressure Control |
High-frequency Solenoid Valve |
| Vacuum Supply |
Pressure: 0.7 MPa
Flow Rate: 0.05 L/min (Air Pump) |
| Test Temperature |
170°C + 5°C |
| Product Dimension |
550 (W) x 350 (D) x 450 (H) mm |
| Approx. Weight |
72 kg |
| Power |
220~240 V, 1.2 kW, 1 Ph, 50/60 Hz |
*1 Copy of Manual Instruction
Unit Consists Of:
| Model Number |
Parts Description |
Qty |
| NL PV / P5 – P1 |
Sample Container Ø 70 x 45 mm (4 Units) |
1set |
| NL PV / P5 – P2 |
Vacuum Pump |
1no. |
