Standard: EN 14769, ASTM D6521, AASHTO R28
Product Description

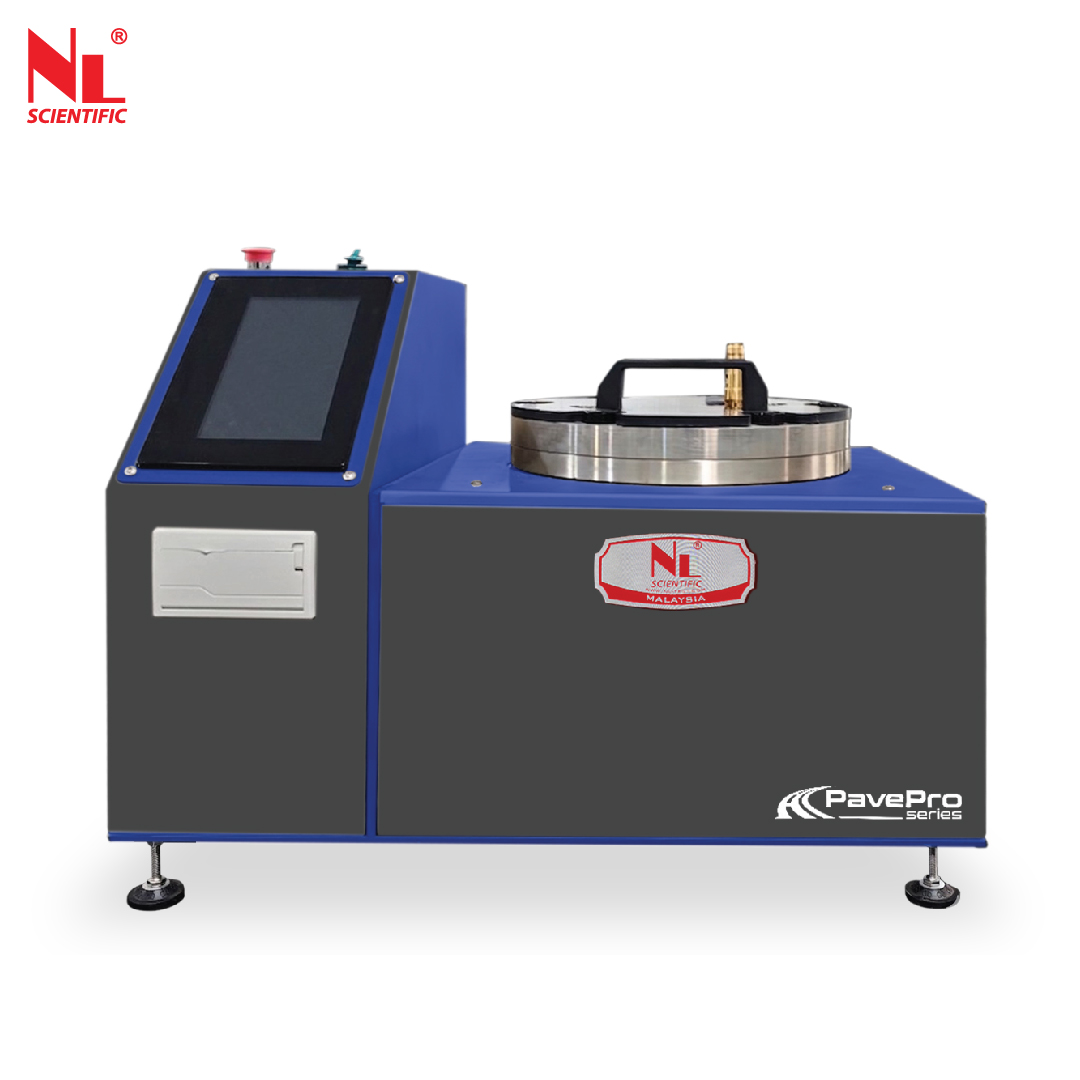

The NL PavePro Pressure Aging Vessel (PAV) simulates the long-term oxidative aging of asphalt binders caused by climate and traffic loading over a pavement's service life. By subjecting bitumen samples to controlled temperature and pressure, it evaluates the anti-oxidation capacity of different materials and provides aged specimens for essential performance testing.
Designed for standard laboratory benchtops, this compact unit features a high-definition touchscreen for real-time monitoring of aging cycles and error data. It integrates advanced safety protocols, including over-pressure relief and thermal protection, to ensure operator safety while meeting rigorous international standards.
Features of Pressure Aging Vessel (PAV)
- 7-inch HD Touchscreen Controller — Enables real-time monitoring of internal chamber pressure and temperature.
- Dynamic Data Visualization — Displays real-time temperature-time and pressure-time curves throughout the aging process.
- Compliance Monitoring — Provides real-time tracking of temperature and pressure deviation durations.
- Integrated Safety Interlocks — Features temperature and pressure linkage control to prevent overheating during the pressurization phase.
- High-Frequency Data Logging — Records data every 5 seconds; supports data export via USB in Excel format.
- Automated Reporting — Capable of automatically printing comprehensive process data upon test completion.
- Advanced Safety Protection — Equipped with over-temperature protection, over-pressure protection, and high-pressure relief systems to ensure operator safety during high-heat and high-pressure conditions.
- Intelligent Diagnostics — Includes overload protection and fault pre-warning systems with audible buzzers and digital error code displays.
- Premium Construction — The cabinet is constructed from high-grade stainless steel with specialized finishing for a professional aesthetic, ease of cleaning, and long-term durability.
Technical Specifications:
| Model Number |
NL PV / P4 |
| Operating Temp. Range |
90°C – 110°C |
| Temp. Resolution & Accuracy |
0.1°C & ±1°C |
| Preheat Time |
40 - 60 mins |
| Operating Pressure |
2.1 ± 0.1 MPa |
| Pressure Control Accuracy |
± 0.02 MPa |
| Pressure Sensor Range |
0 – 3 MPa |
| Pressure Sensor Accuracy |
± 0.5% (0.015 MPa) |
| Air Compressor Required |
> 3 MPa |
| Safety Relief Pressure |
> 2.5 MPa |
| Product Dimension |
550 (W) x 350 (D) x 450 (H) mm |
| Approx. Weight |
72 kg |
| Power |
220~240 V, 0.8 kW, 50/60 Hz |
*1 Copy of Manual Instruction
Unit Consists Of:
| Model Number |
Parts Description |
Qty |
| NL PV / P4 – P1 |

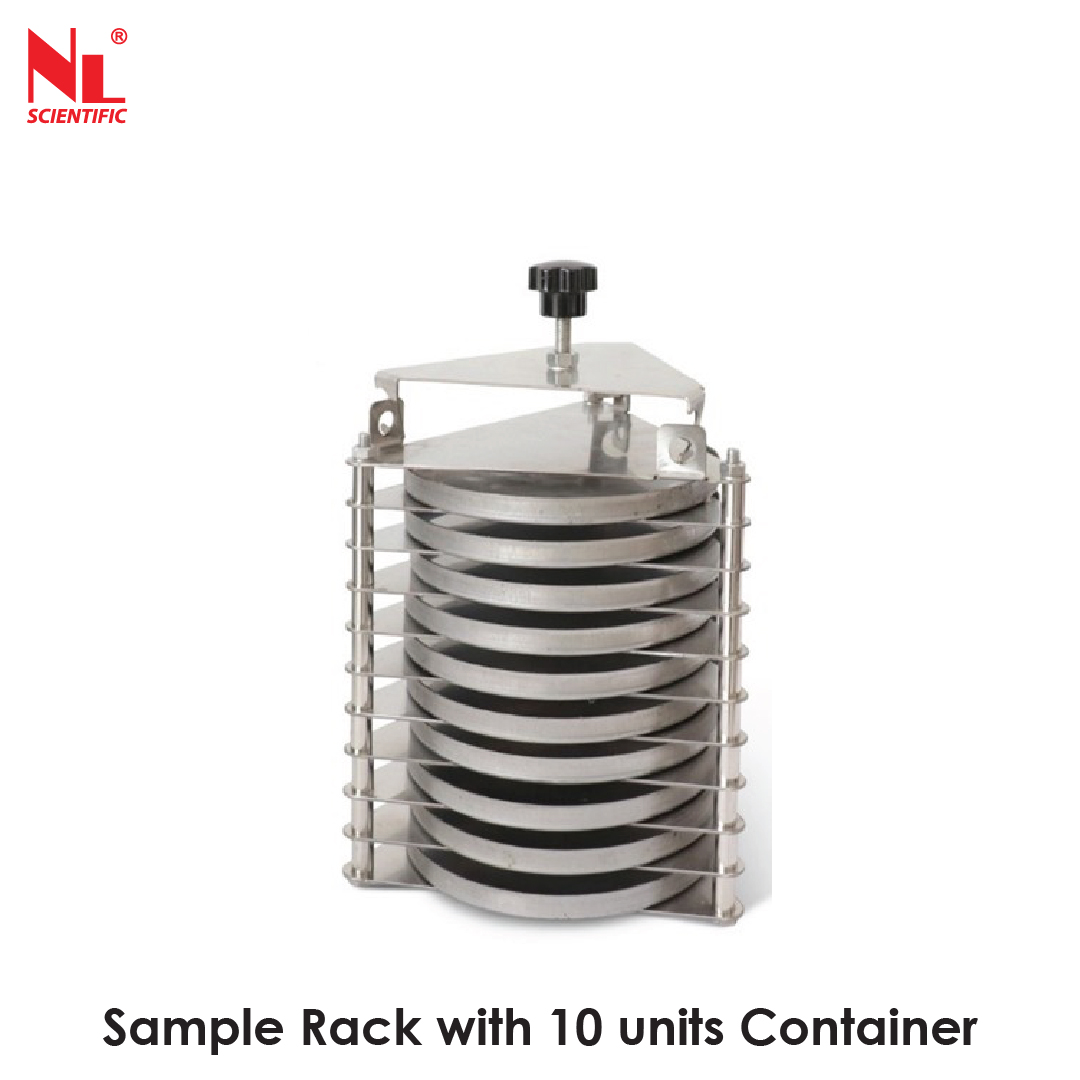

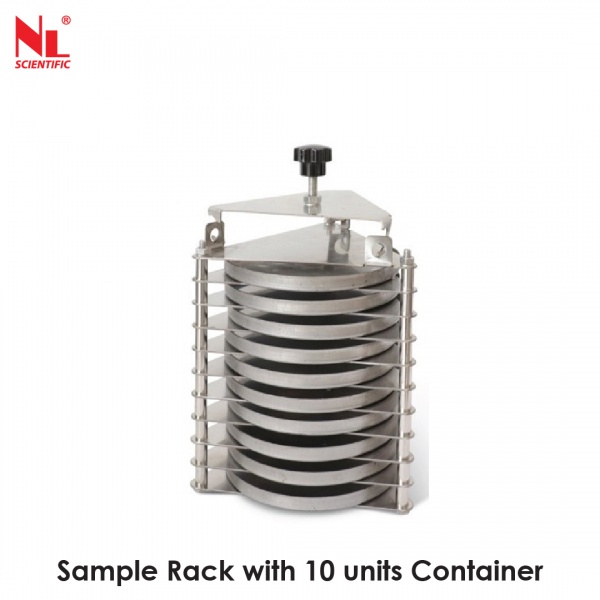

Sample Rack with 10 units Container |
1set |
Optional Accessories:
| Model Number |
Accessories Description |
NL PV / P4 – A1
|
High Pressure Reducing Valve
|
| NL PV / P4 – A2 |
High Pressure Hose (3m) |
| NL PV / P4 – A3 |
Mini Air Compressor |
