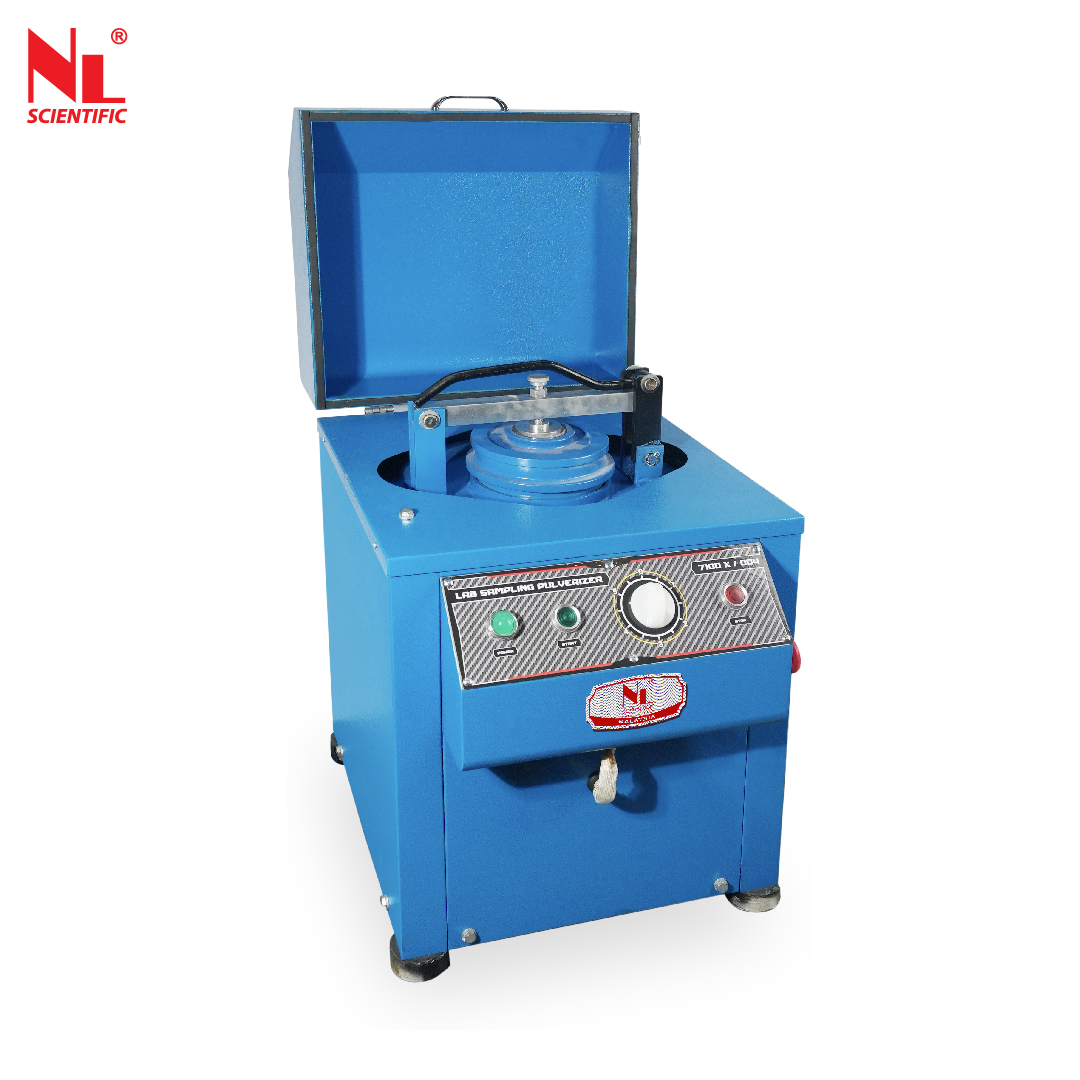

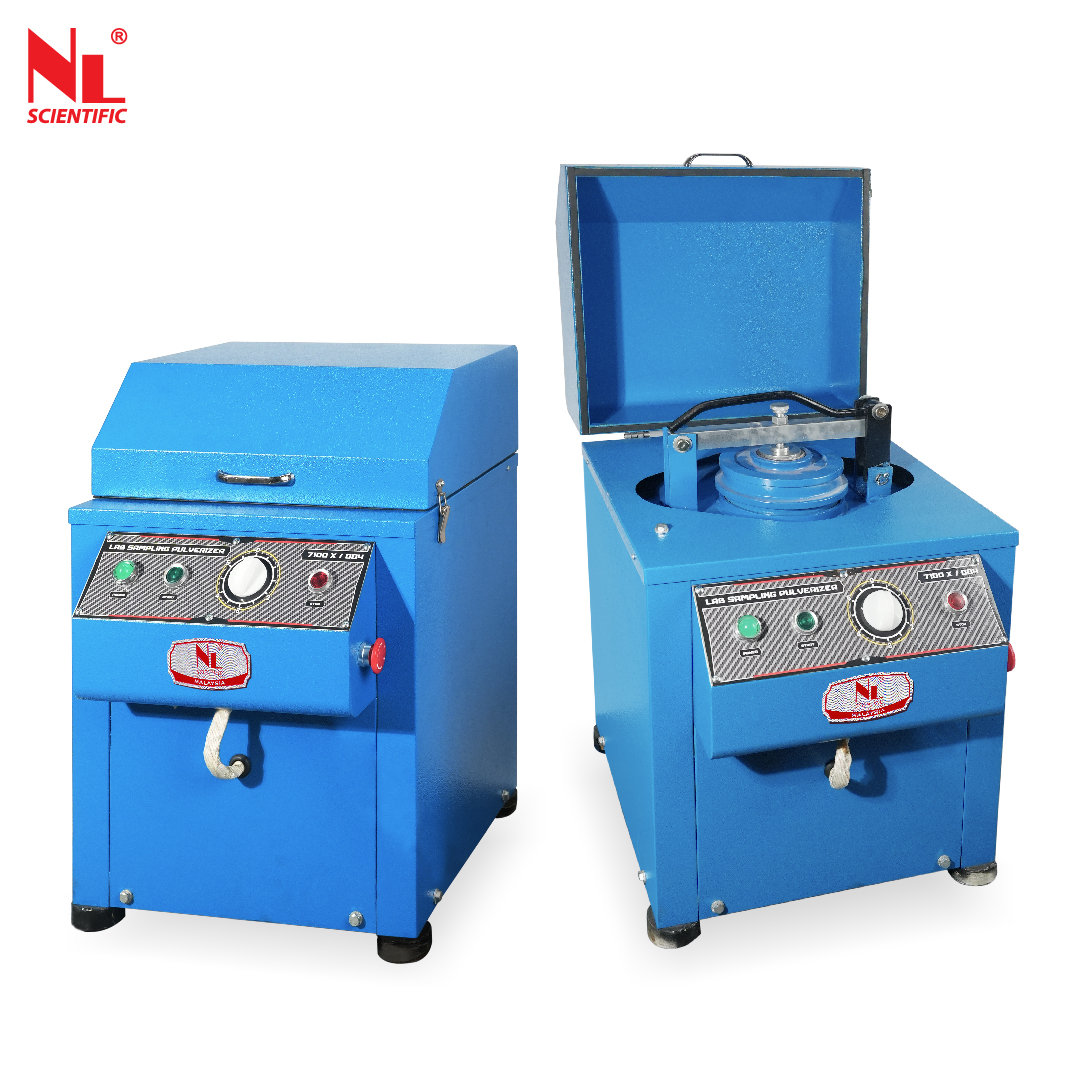

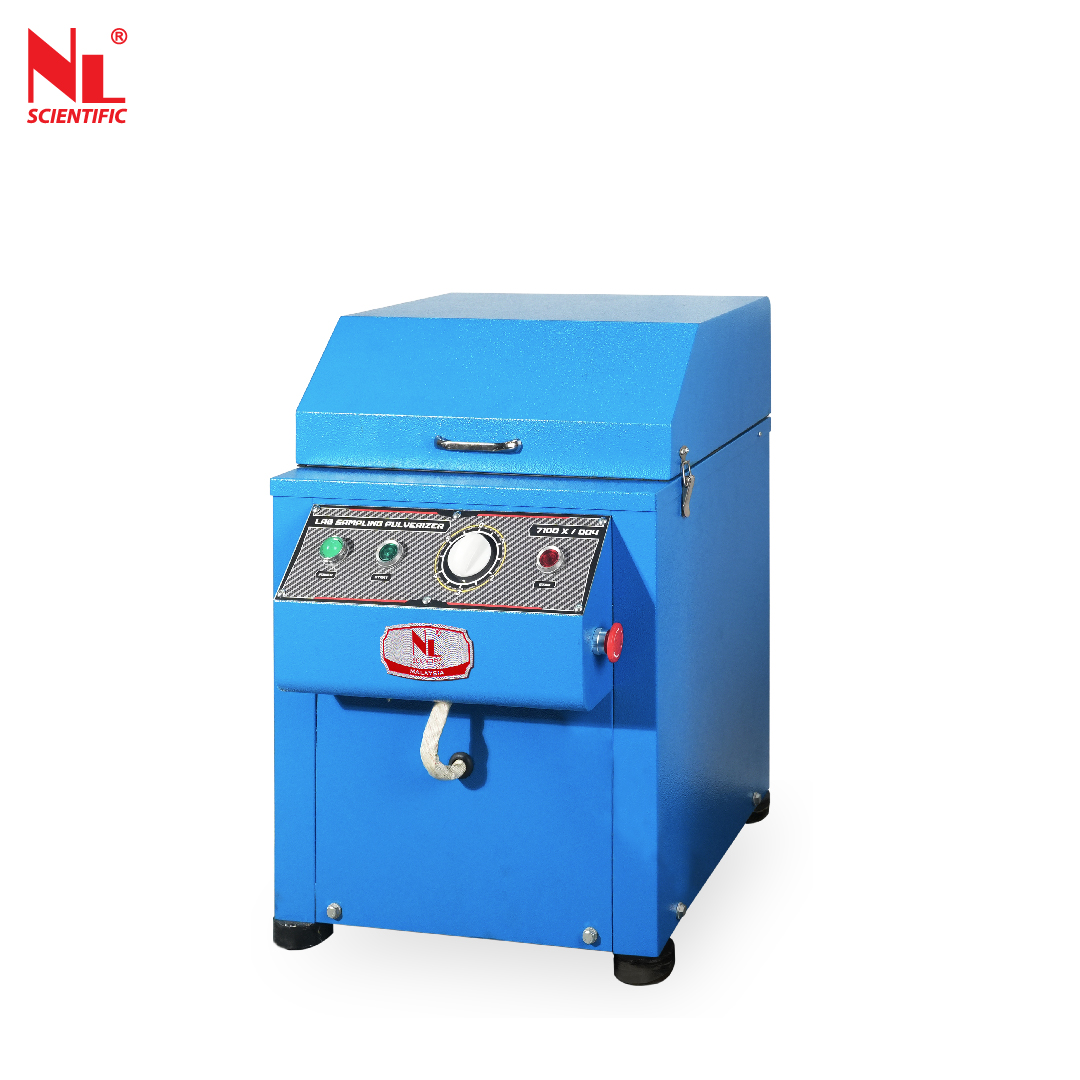

Lab Sampling Pulverizer (Single Bowl & 3 Bowls)
NL 7100 X / 004 & 005

  • Description

Sample Pulverized

The sealed pulveriser / sample splitters is a small lab grinding machine for grinding the ore / material samples into powder, which has been widely used in the laboratory of the geology, mining, metallurgy, coal, power, chemistry and building industries, for the none pollution sample testing. The sealed pulveriser gets an "automatic dust proof" and a "pot anti-loose" device, which provide the machine advatages of low noise, no dust, and easy operation. The machine adapt high frequency vibrating grinding method to make the power fine and event, no need screening and shrinking, prevent sample mixing. At the same time, this machine gets a simple structure, small volume, no need install and adjusting. Could be used in any location, it's one of the best sampling machines for laboratory use.



Technical Specifications :

 Model Number  NL 7100 X / 004  NL 7100 X / 005
 Max. Feeding Size  ≤ 13 mm  ≤ 13 mm
 Weight of Charge  < 100 grams  < 100 grams x 3 Cells0.075 - 0.175 mm
 Discharge Granularity  0.075 - 0.175 mm  0.075 - 0.175 mm
 Pulverizing Duration  2 - 5 min  2 - 5 min
 Dimension (mm)  460 (L) x 550 (W) x 680 (H)  483 (L) x 550 (W) x 672 (H)
 Packing Dimension (mm)   660 (L) x 750 (W) x 880 (H)
  690 (L) x 750 (W) x 880 (H)
 Approx. Weight  85 kg  105 kg
 Power  380~415 V, 1.5 kW, 3 Ph, 50/60 Hz, 3.8 A

Unit Consists of:

  Model Number  Qty
 NL 7100 X / 001 - P001 - Grinding Bowl c/w Ring & Puck 1 set  3 sets
