Multi Channel Data Logger (8 Channel)
NL 7080 X / 001

  • Description

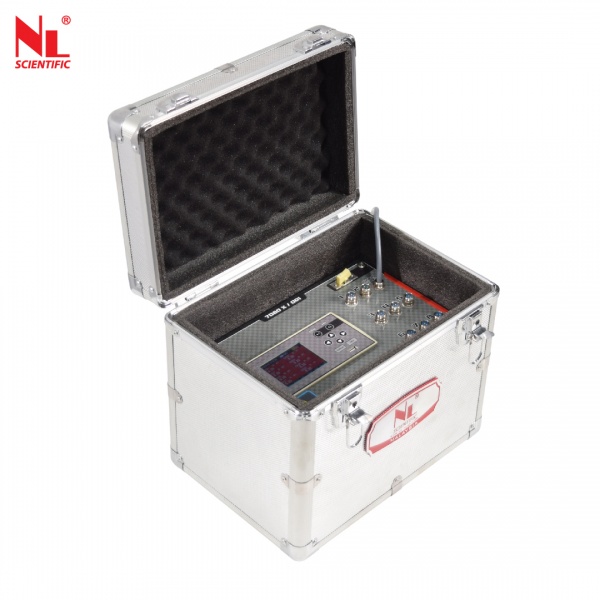

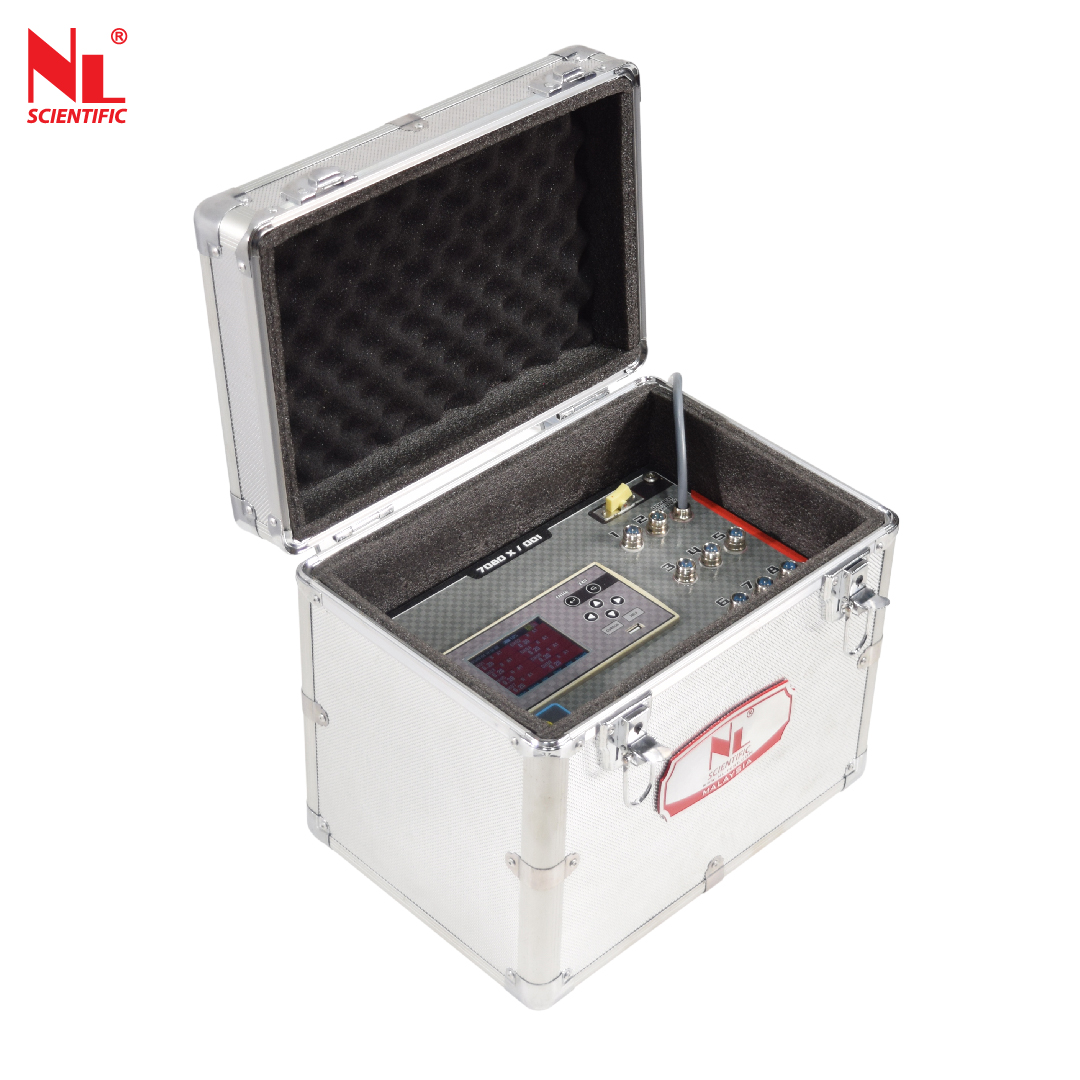

Multi Channel Data Logger (8 Channel)

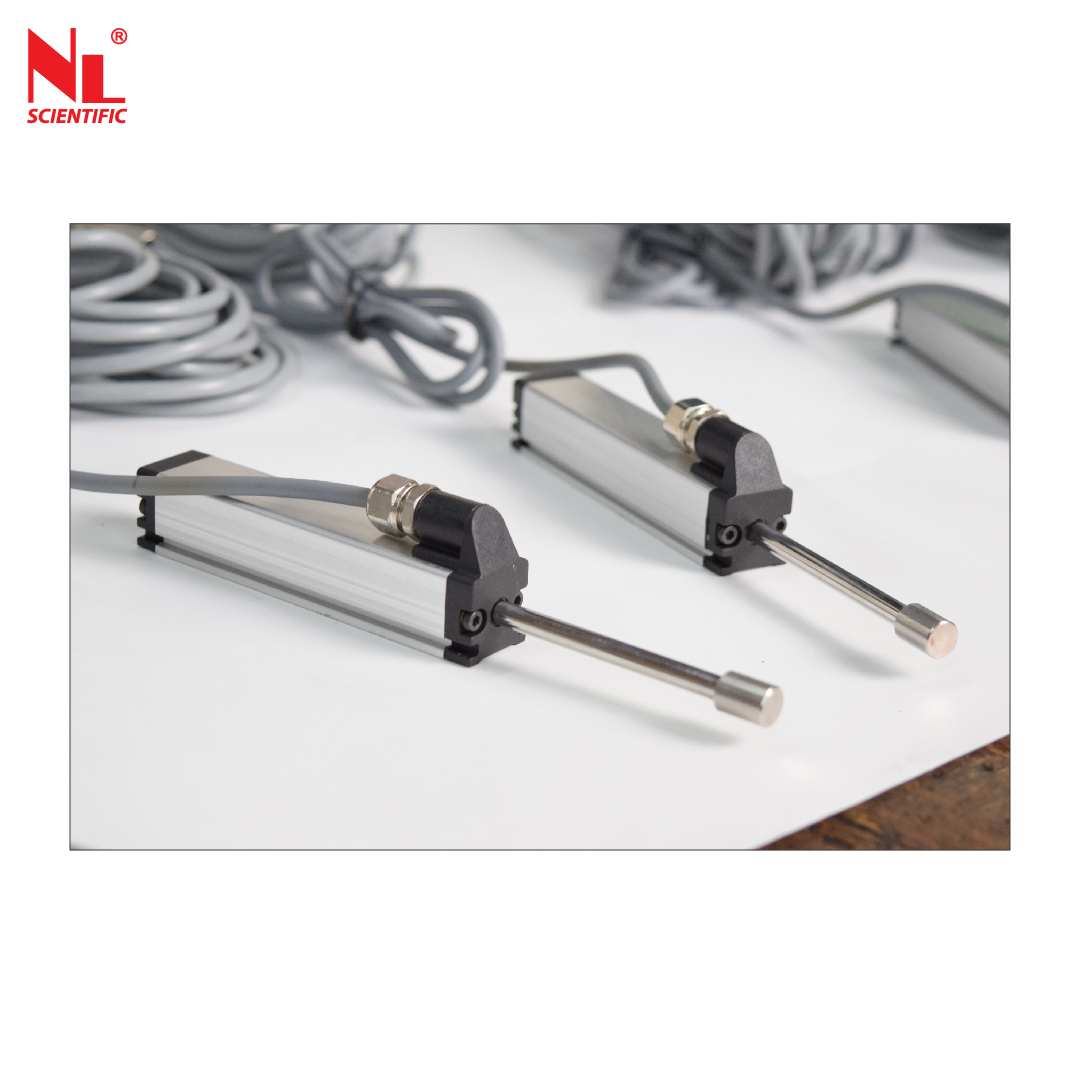

The Multi Channel Data Logger is a high-precision, versatile data acquisition system designed for industrial, laboratory, and research applications. It enables real-time monitoring, recording, and analysis of displacement, position, and other critical parameters using Linear Variable Differential Transformers (LVDTs).

Key Features:
- Multi-Channel Input – Supports multiple LVDT sensors simultaneously for comprehensive data logging.
- High Accuracy & Resolution – Ensures precise measurements with minimal signal noise.
- Real-Time Data Acquisition – Captures and logs data in real-time for detailed analysis.
- User-Friendly Interface – Intuitive touchscreen or PC-based software for easy operation.



Technical Specifications :

 Model Number    NL 7080 X / 001
 Insulation Resistance  ≥100 MΩ (Based on 500V DC MEGA)
 Insulation Strength  2000V AC (Test Condition: 50/60 Hz, 1 minute)
 Anti-Interference  IEC61000-4-2 (ESD), level III
 IEC61000-4-4 (Electrical Fast Transient Burst), level III
 IEC61000-4-5 (surge), level III
 Working Temperature  -20ºC~-50ºC; avoid direct sunlight; temp change rate less than 10ºC/h
 Working Humidity  20% ~ -80% RH (for temp between 5 and 40ºC),
 10% ~ -50% RH (for temp between 40 and 50ºC), no condensation

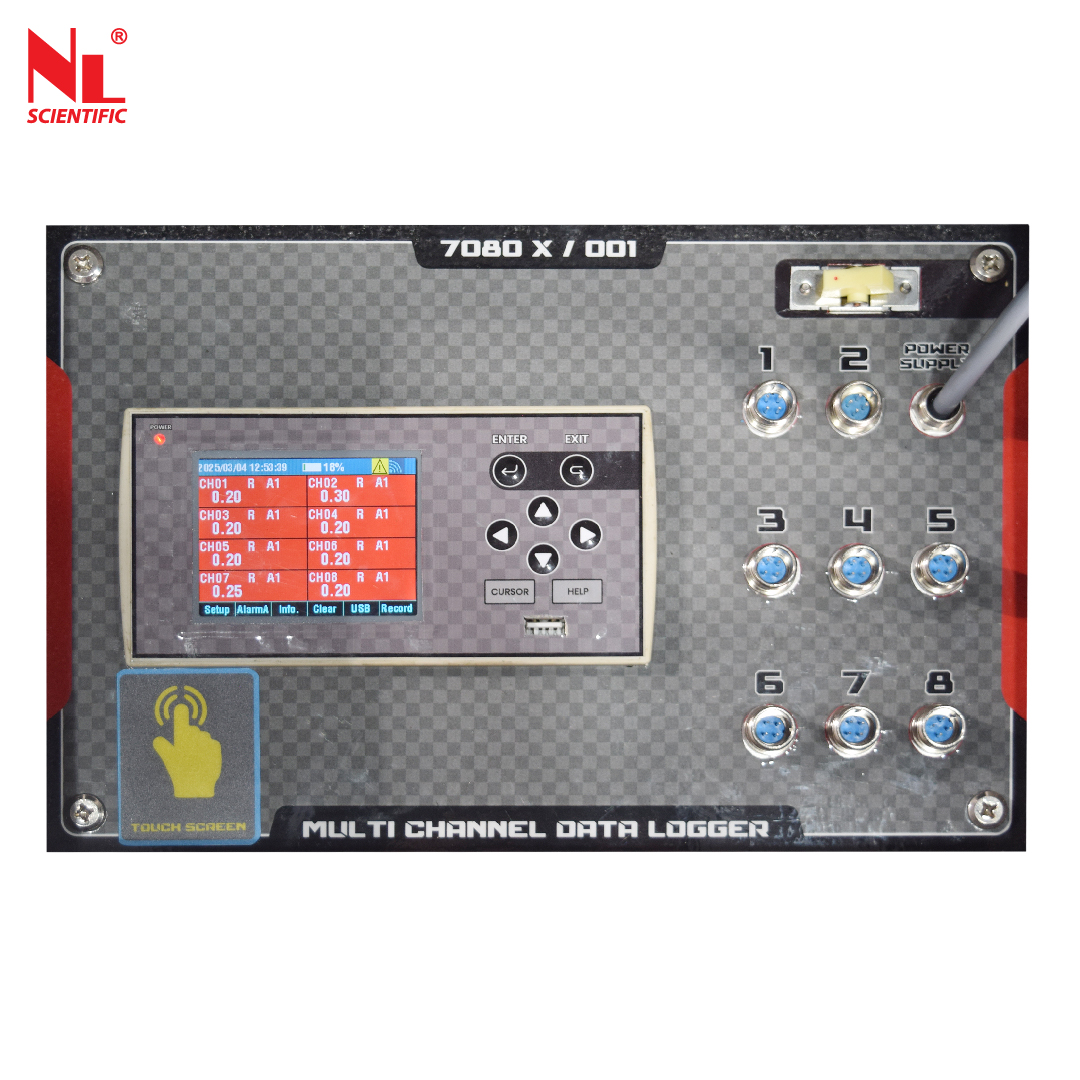

 Screen  3.2-inch TFT Color LCD Display (320 x 240)
 Brightness  Adjustable between 70%~100%
 Internal Storage  64 Mbit
 Data Export  USB (Device), USB 1.1 / 2.0 (Protocol), Max. Capacity 32GB
 Number of Input Channels  Two channel boards (16 input channels) are supported
 Measuring Rate  0.1s
 Accuracy  ± 0.2% F.S
 Power  180 ~ 240 V AC 50/60 Hz, 20VA (including optional functions)

*1 Copy of Instruction Manual
