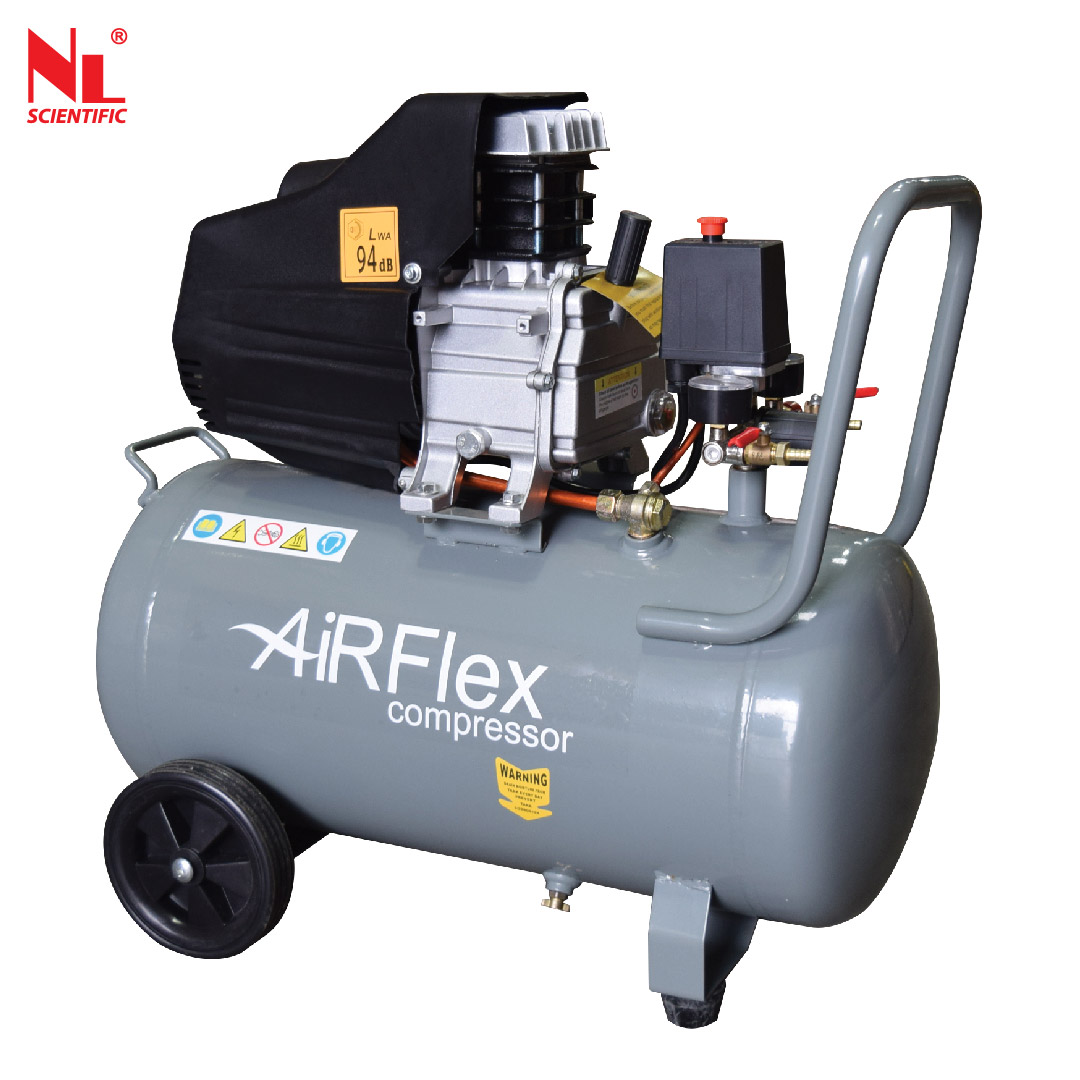

Mini Air Compressor
NL 7009 X / 003


  • Description

Air Compressors & Accessories



Technical Specifications :

 Model Number    NL 7009 X / 003
 Dimension (mm)  750 (L) x 350 (W) x 650 (H)
 Tank Capacity  50 L
 Volume  0.08 m3 / min
 Working Pressure     2.10 kg / cm²
 Horse Power  3 hp
 Design Pressure  1.0 MPa
 Testing Pressure  1.5 MPa
 Working Pressure  0.8 MPa
 Approx. Weight  21 kg
 Power  220 V, 50 / 60 Hz, 1.1 KW, 5 A
 Displacement  118 LPM, 4.17 CFM
 Free Air Delivery  58 LPM, 2.05 CFM
