Standard: BS EN 10002-1, ISO 7500-1, ASTM A370
Tensile & Compression

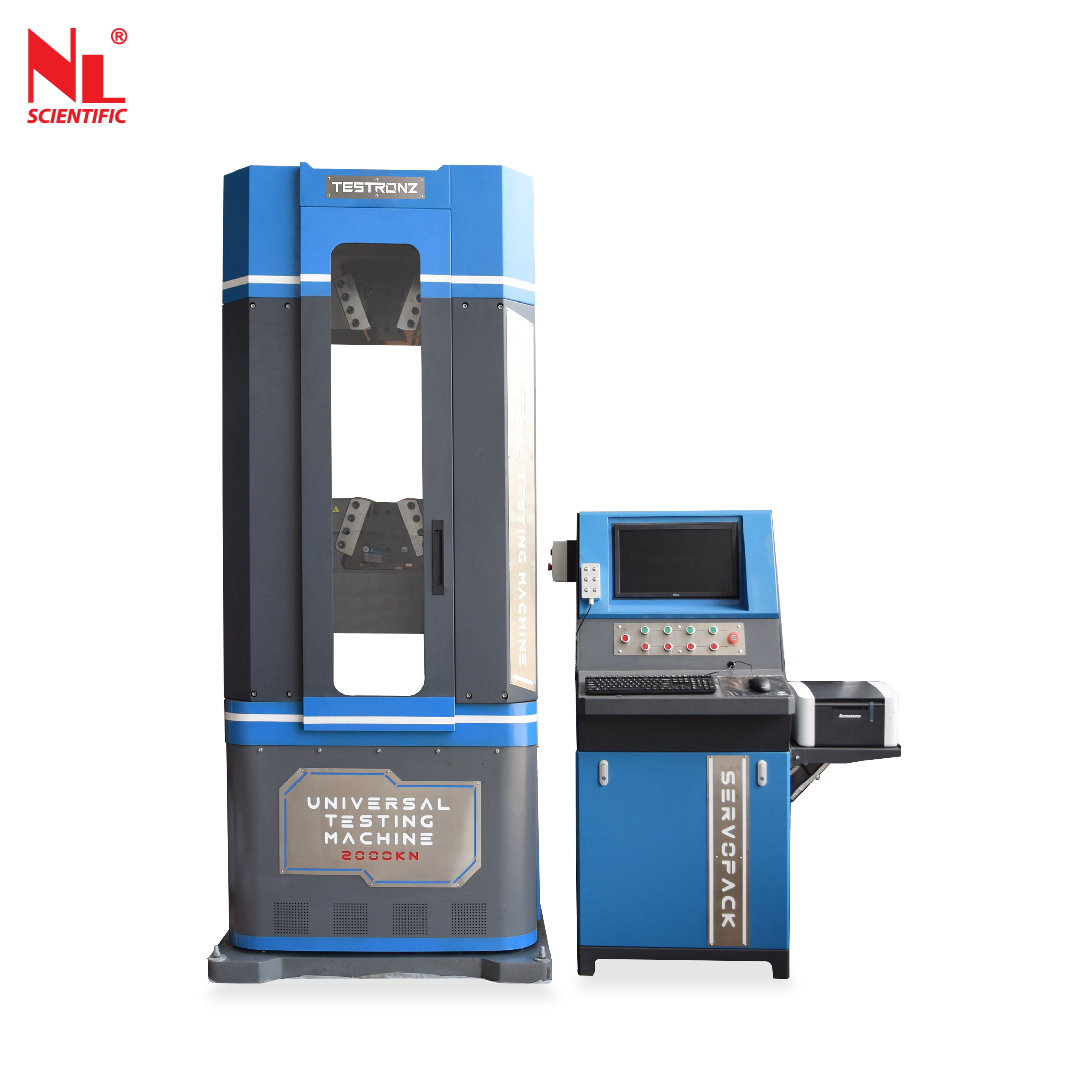

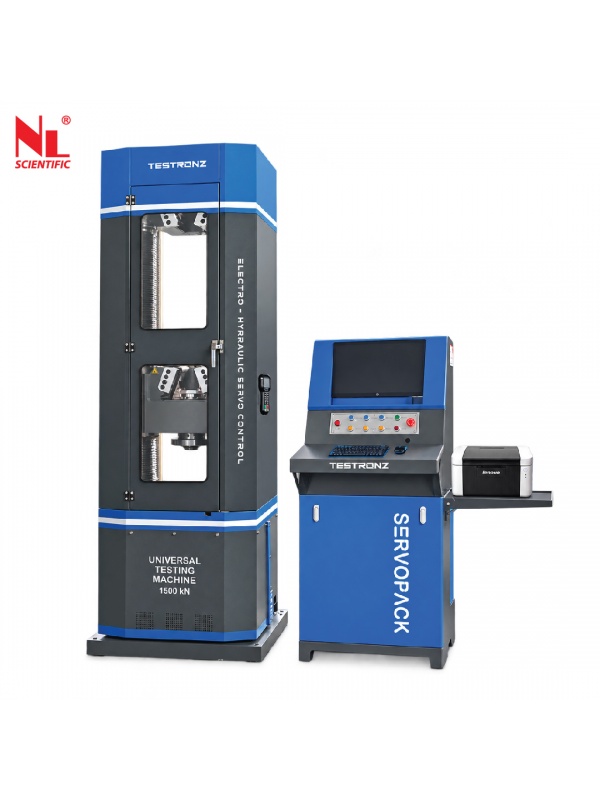

Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
Universal Testing Machine 2000kN Servo-Hydraulic used for the mechanics property test such as the tensile, bending, compression, etc to various metallic and non-metallic materials. The testers have been developed according to BS EN 10002-1, ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and electronic measurement. It can automatically process the test result for statistical purposes and print default or user-defined test reports.
Universal Testing Machine 2000kN uses the micro-computer automatic data collection and processing, real-time display of the test data and curves. It has functions such as unlimited storage of test results in the computer, printing the test results and curves, processing the batch test result report, managing the database, and so on. It also has a network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation, etc.
Universal Testing Machine 2000kN has features such as high precision, advantageous performance, high reliability, convenient operation, etc.
Operation Display of Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
Computer Screen Display unit with the following functions
- Test force display
- Break detection
- Full auto test range switching function
- Auto return function
- Peak / Break value display function
- Test conditions
Safety Features of Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
The system includes the following safety features
- Emergency stop switch
- Overload limit
- Ram-stroke limit
- Hydraulic pump motor over-current & overheating protection
- Leak / over current protection
- Automatic stop control
- Safety Guard
Control & Data Processing Software of Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
- User-friendly & easy due to clear and brief operation – operation interface
- Automatically save the test conditions & results

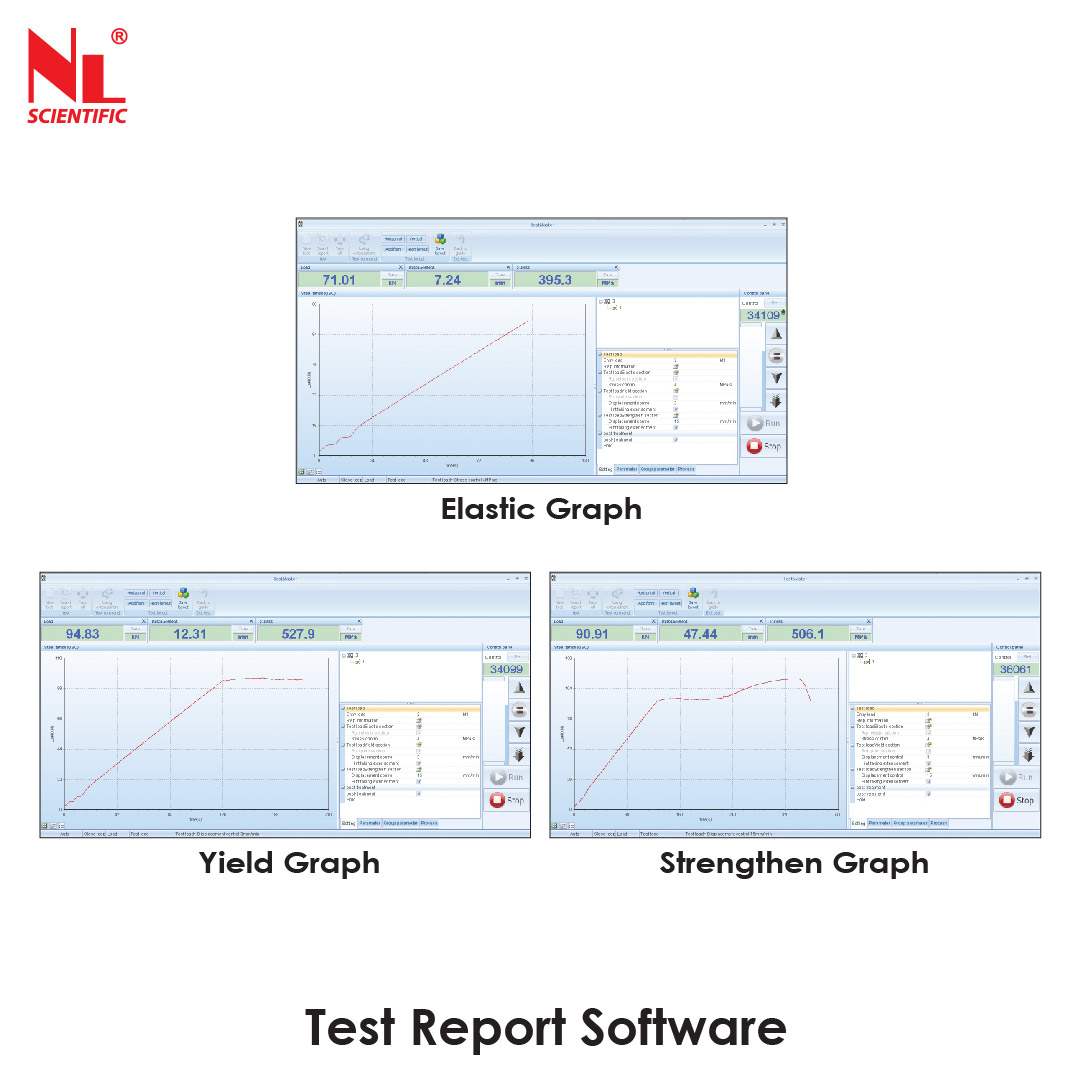

- User define test curves including Stress / Strain, Force / Elongation, and Strength / Time to suit various requirement
- Individual or combined display test curves on the same screen to compare with other several data at the same time
- Compatible with Microsoft Excel by import or export function
- The base of testing with digital sample break detection, auto ranging, auto-calibration, quick tare & auto return facilities
- Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
- Tension, Compression, Shear, Cycling & Creep Test facilities
- User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
- Advanced protection features with software setting or / & hardware switch upper & lower limit setting
- Operation fully controlled by computer
- USB communication system & ethernet

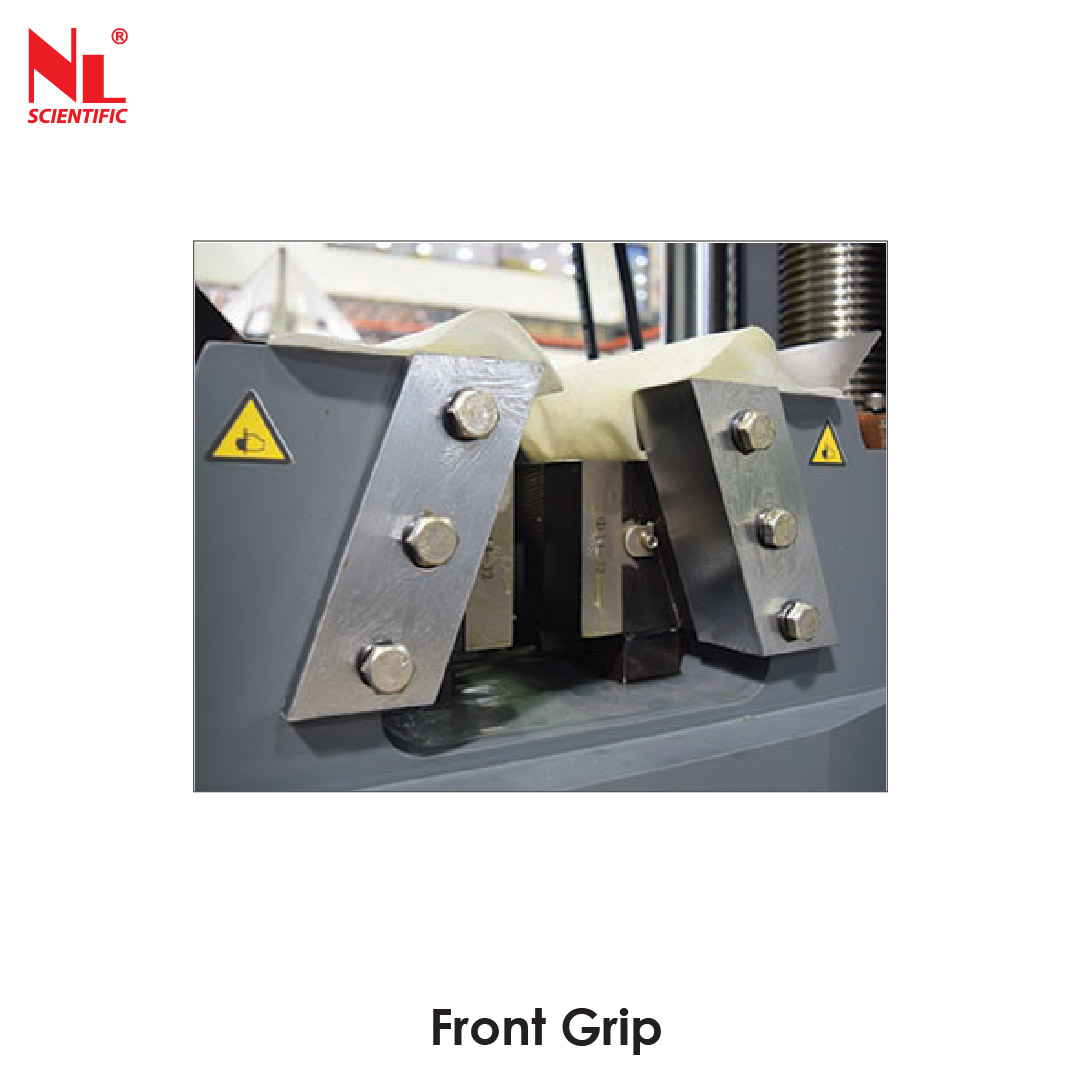

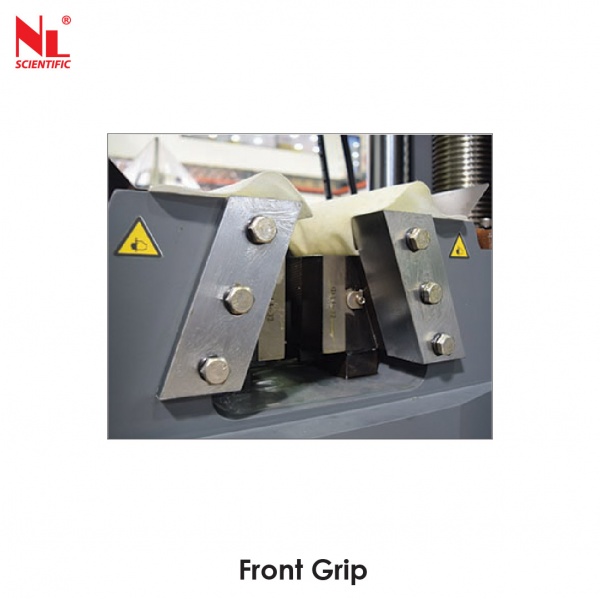

- Grips & fixtures for tension, compression, flexural, shear & product testing are available
- Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
- The report sheet consists of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength, etc
- Force display unit: kN, N, tons, & mN
- Stress display unit: GPa, Mpa, Pa, psi, N/sq.mm, Kg/sq.mm & Tons/sq.inch
- User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc
Technical Specifications of Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
| Model Number |
TT 6KSX / 016 |
| Max. Test Capacity |
2000 kN |
| Machine Class |
Class 1 |
| Relative Error of Indicated Value |
±1% |
| Effective Measurement Range |
1% - 100 % F S (Full Range without binning) |
| Deformation Measurement Range |
1% - 100 % F S |
| Relative Error of Deformation Indication |
±1% |
| Relative Error of Displacement Indication |
±1% |
| Displacement Resolution |
0.001 mm |
| Relative Error of Stress Rate Control |
±2% |
| Relative Error of Displacement Rate Control |
±1% |
| Strain Rate Control Adjustment Range |
0.00025/s / 0.0025/s |
| Relative Error of Strain Rate Control |
±2% |
| Force, Deformation, & Displacement Retention Control |
0.3% - 100% F S |
| Relative Error of Force, Deformation & Displacement Retention Control |
≤1% |
| Girder Lifting Speed |
350 mm / min |
| Max. Compression Space |
650 mm |
| Max. Tensile Space |
800 mm |
| Effective Distance Between 2 Column |
590 mm |
| Piston Stroke |
250 mm |
| Test Speed |
Max. 100 mm/min |
| Round Specimen Size |
Ø20 - Ø70 mm |
| Flat Specimen Size |
Max. 50 mm Thick |
| Size of Compression Platen |
240 mm x 240 mm |
| Dimension (Frame) |
1200(L) x 900(W) x 2940(H) mm |
| Dimension ( Control Console) |
790(L) x 730(W) x 1600(H) mm |
| Power |
380~415V, 3ph, 4kW,8.1A, 50/60 Hz |
| Weight (Control Console) |
300 kg |
| Weight ( Frame) |
6000 kg |
Unit Standard Accessories
| Model Number |
Accessories Description |
Qty |
| TT 6KSX / 016 – P001 |

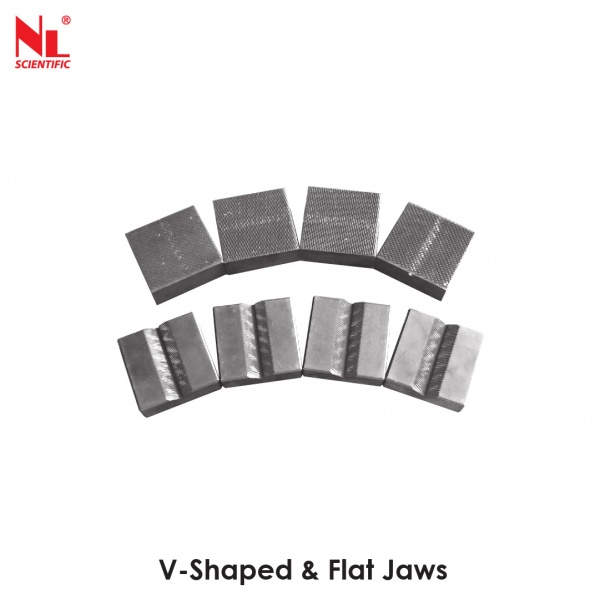

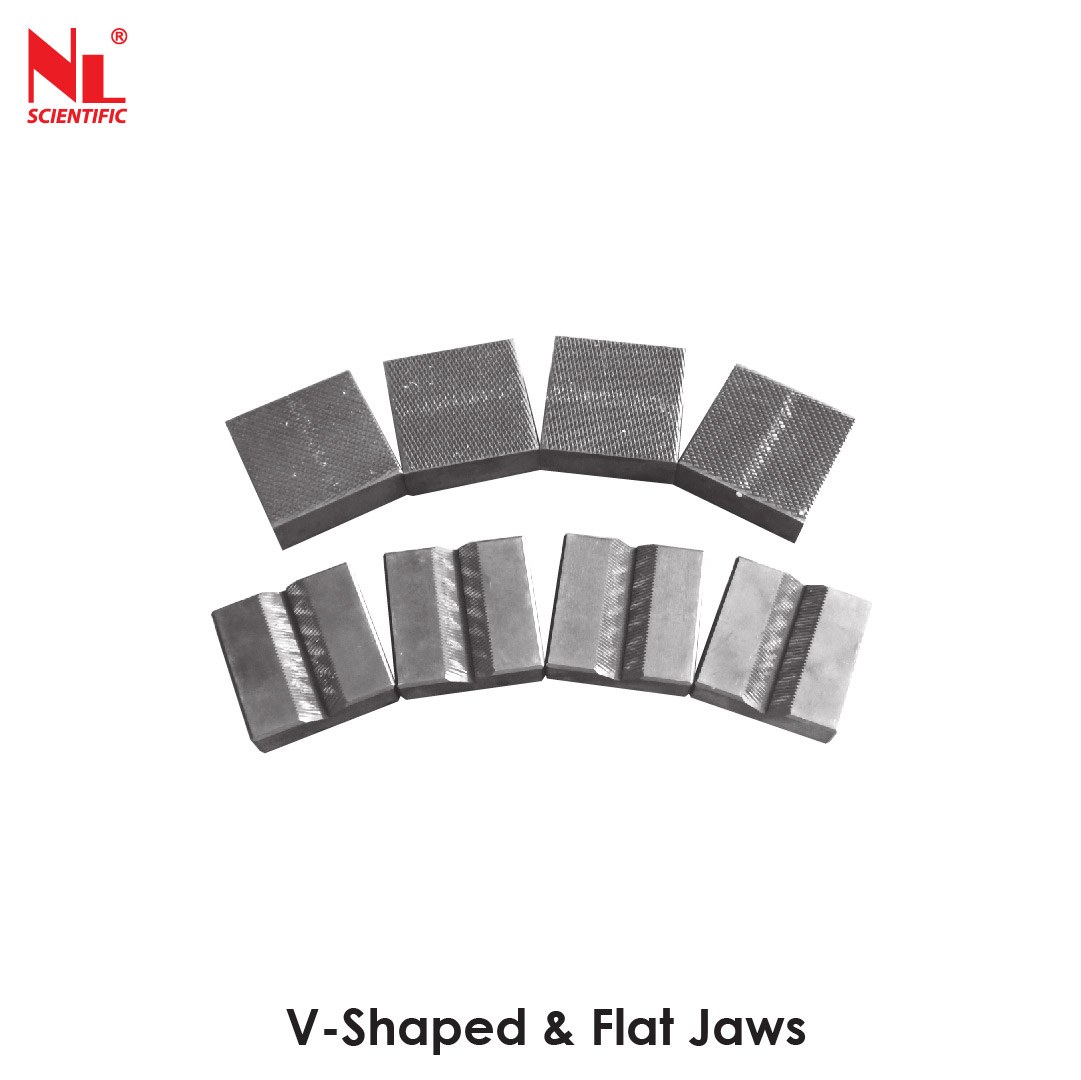

Flat Specimen Jaw Set (0~Ø50 mm Thick) |
1set |
| TT 6KSX / 016 – P002 |
Round Specimen Jaw Set A (Ø20~Ø50 mm) |
1set |
| TT 6KSX / 016 – P003 |
Round Specimen Jaw Set B (Ø50~Ø70 mm) |
1set |
| TT NL 6KSX / 016 – P004 |

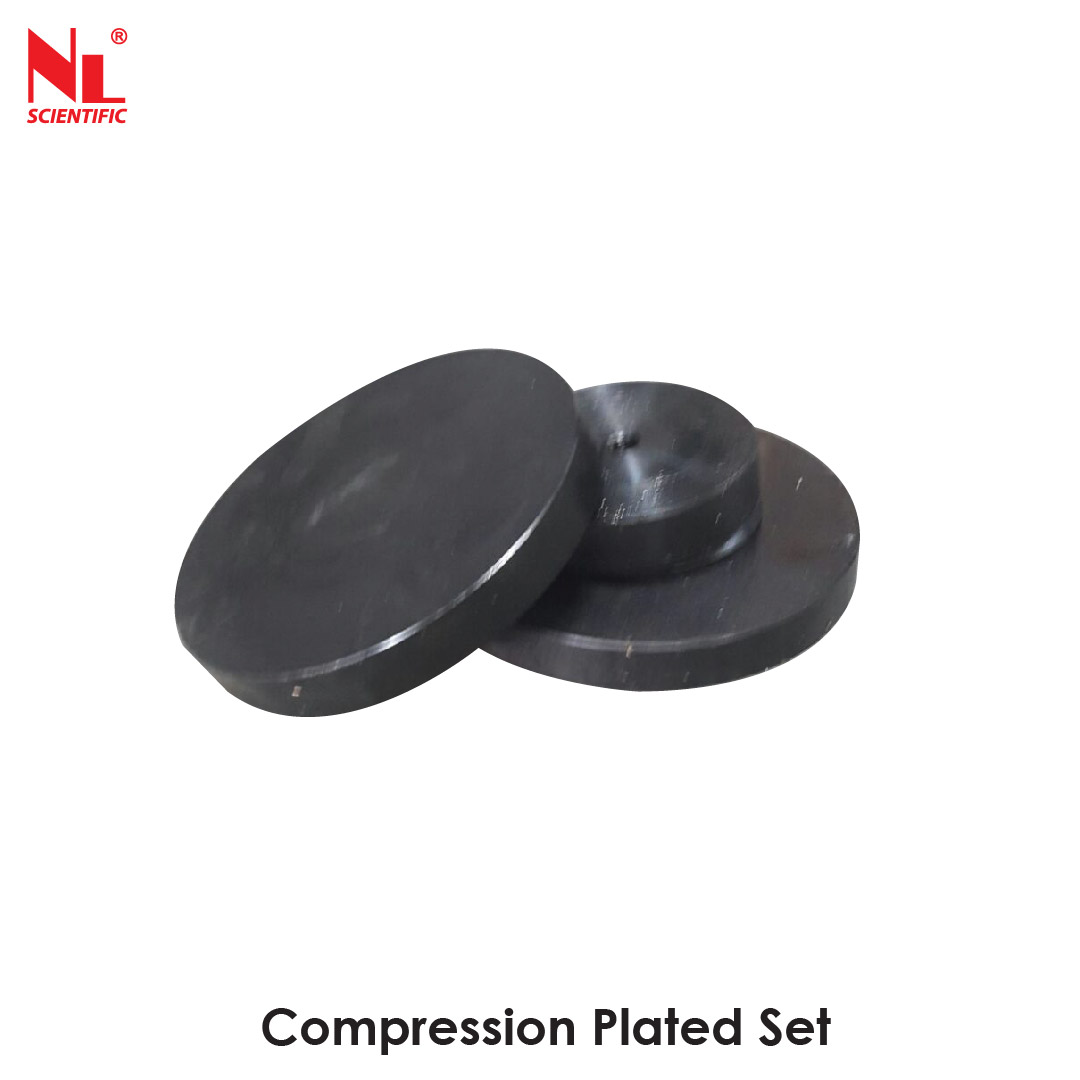

Compression Platen Set |
1set |
| TT 6000 X / 016 – P006 |

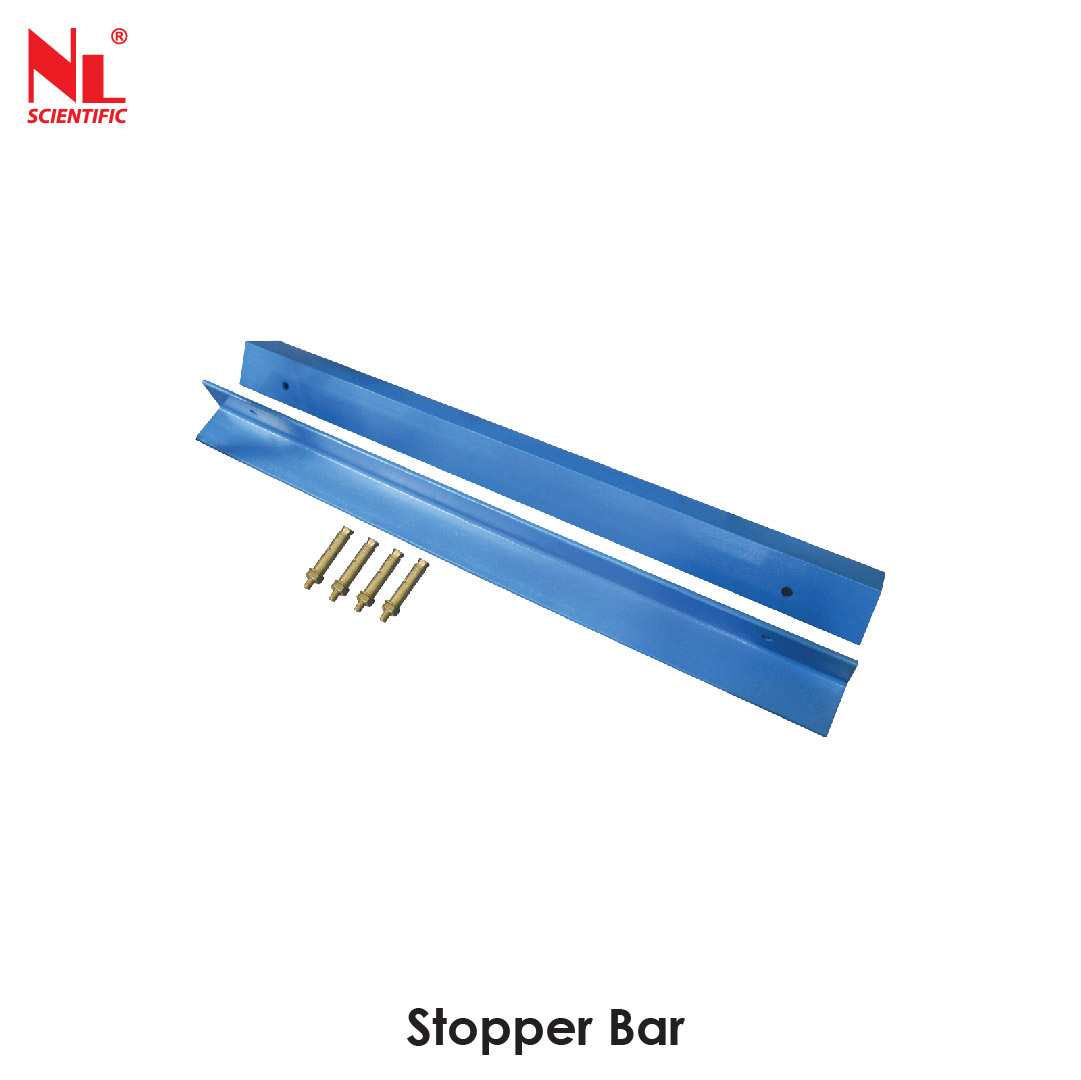

Footing Stopper Bar c/w Wall Plug (2 Bars & 4 Plugs) |
1set |
| TT CP – 200 |

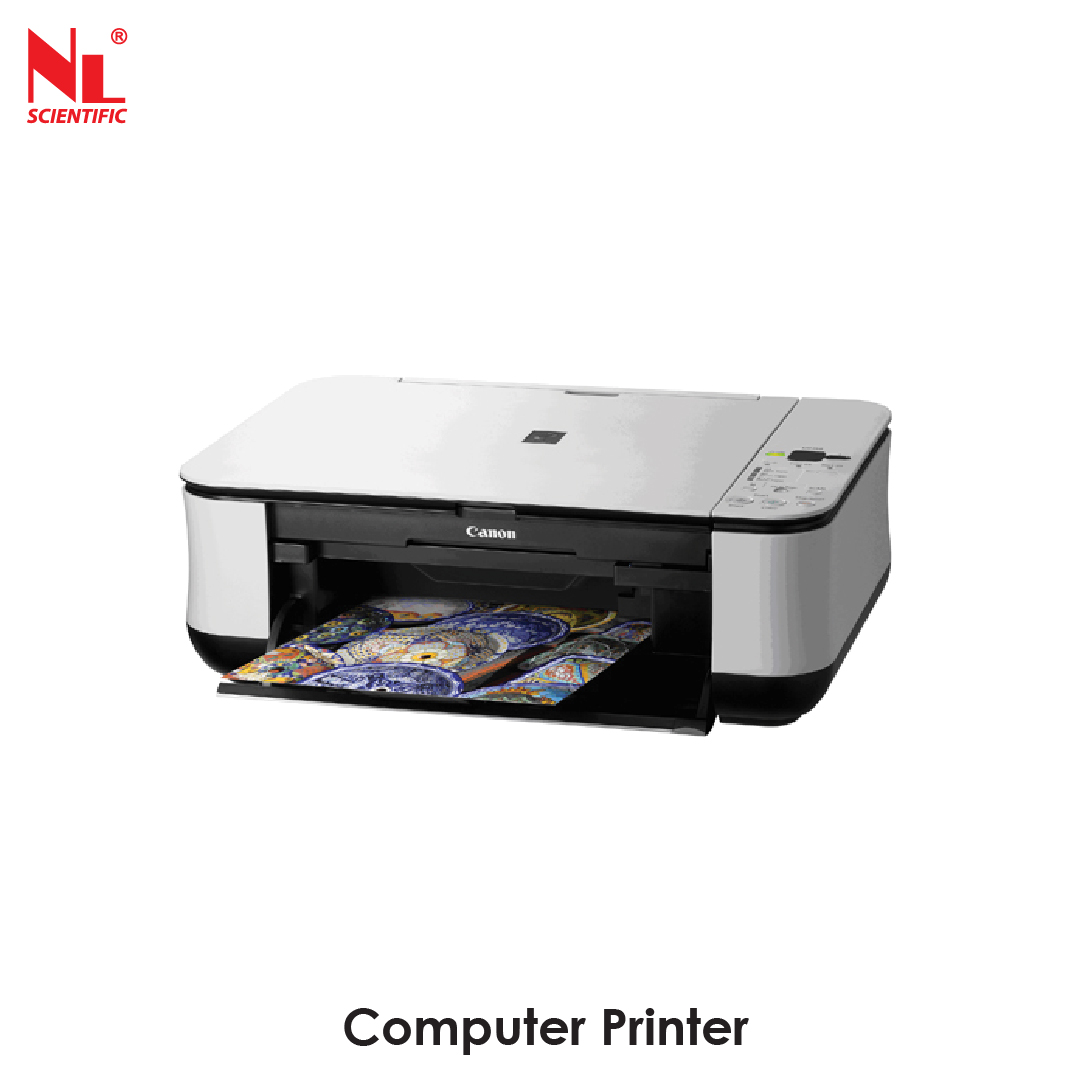

Computer Printer |
1unit |
| TT SVP – 4.0 |
Servopack Console Control Unit with Built-in Computer and Pre-Installed with TestMaster Software |
1unit |
Optional Accessories
| Model Number |
Accessories Description |

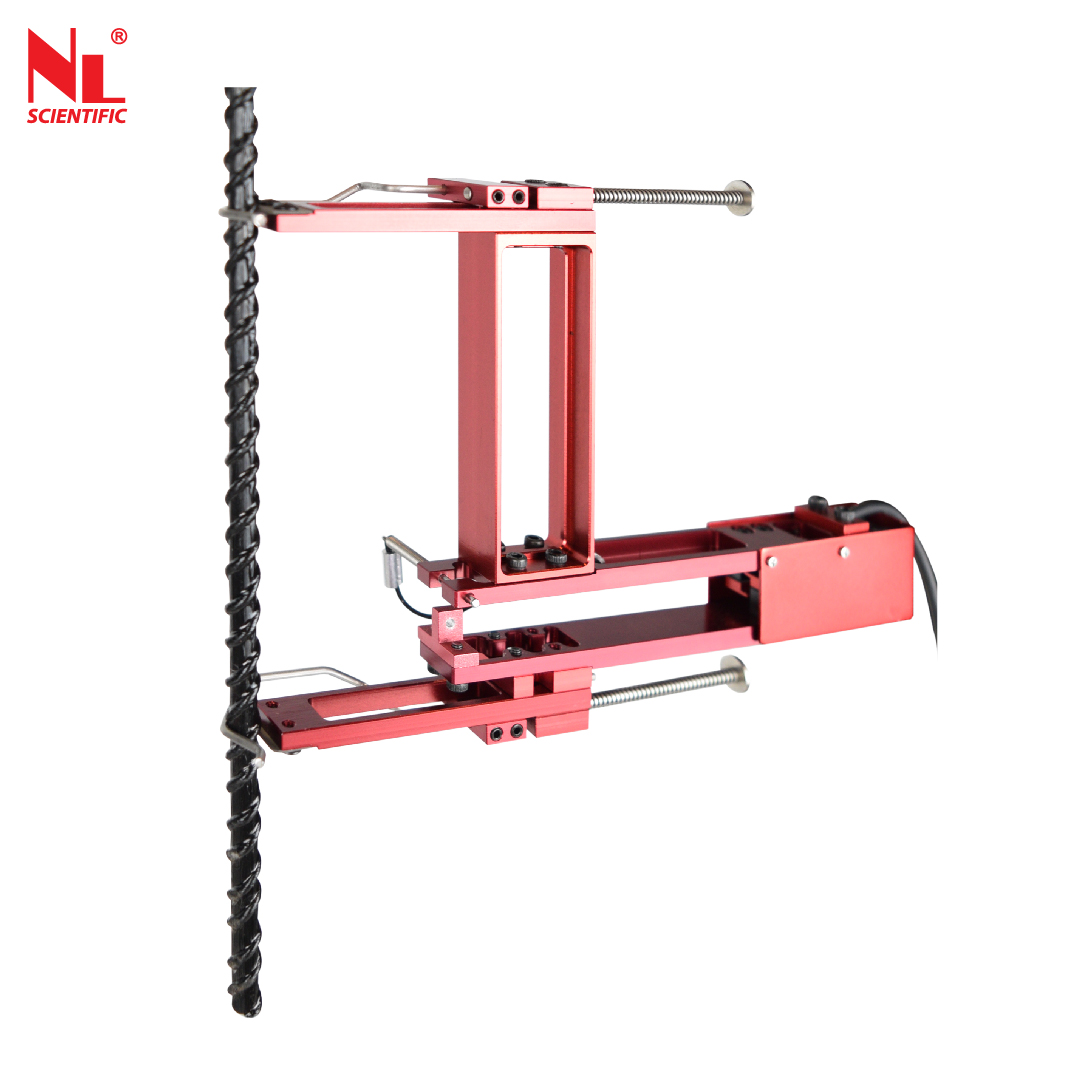

| TT AEX – 25/10 |
Axial Electronic Extensometer (GL25 / D10) |
| TT AEX – 50/25 |
Axial Electronic Extensometer (GL50 / D25) |
| TT AEX – 100/25 |
Axial Electronic Extensometer (GL100 / D25) |

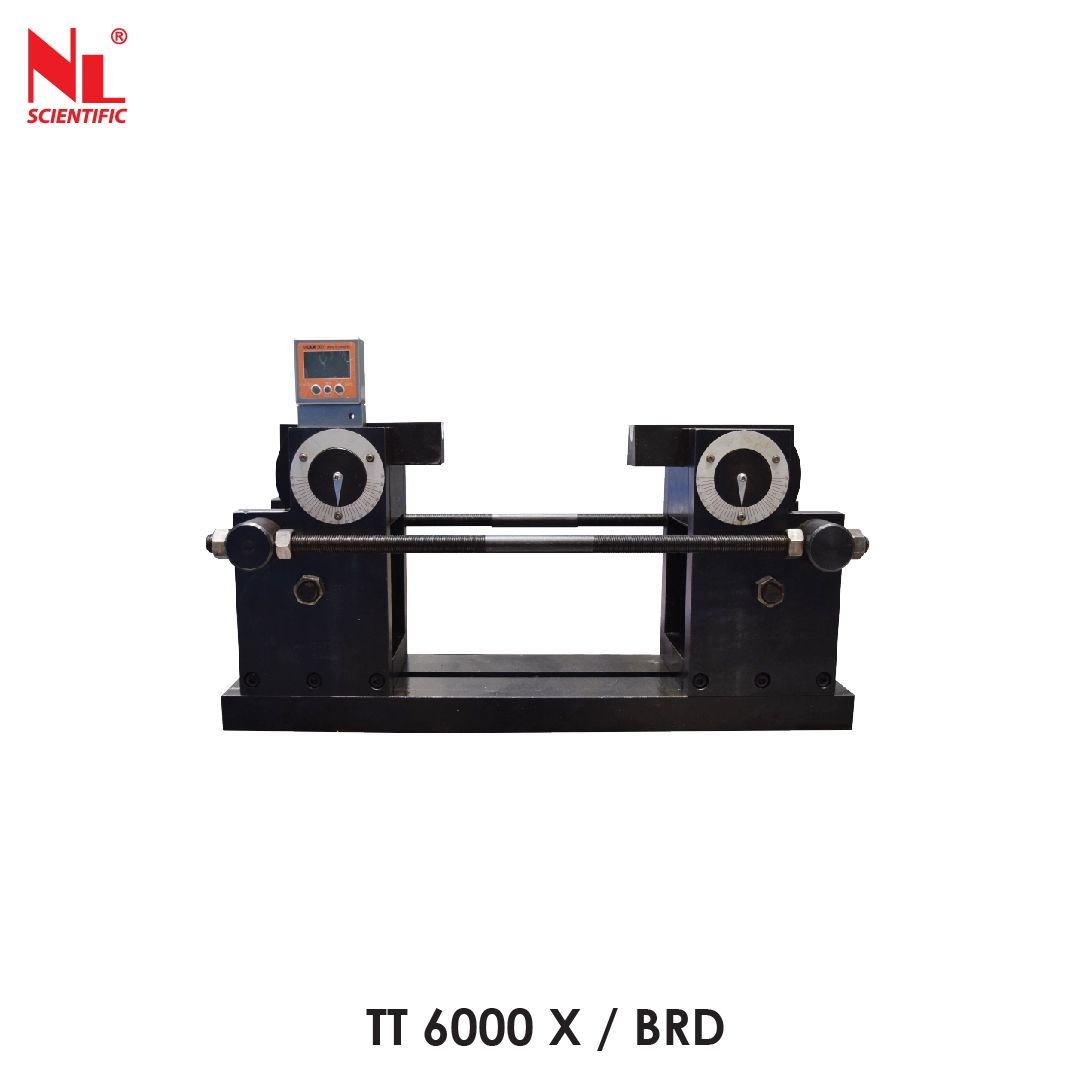

| TT 6000 X / BRD |
Bend & Re-bend Device |

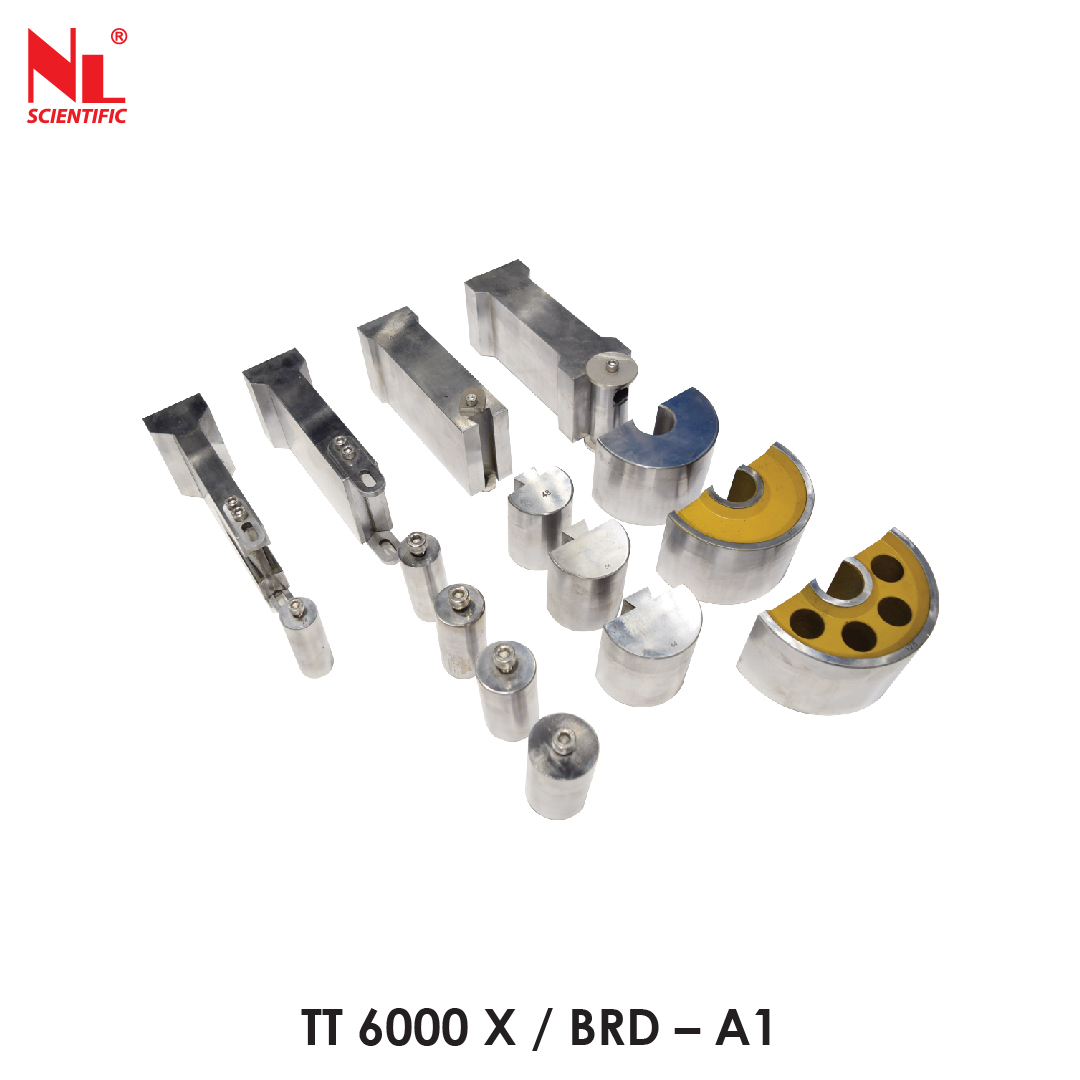

| TT 6000 X / BRD – A1 |
Bending Holder & Mandrel Set |
Standard: BS EN 10002-1, ISO 7500-1, ASTM A370
- BS EN 10002-1: This standard specifies the method for tensile testing of metallic materials and defines terms used in the context of tensile testing.
- ISO 7500-1: This International Organization for Standardization (ISO) standard specifies the calibration and verification of the force-measuring systems used in tension/compression testing machines.
- ASTM A370: Published by ASTM International, this standard covers the mechanical testing of steel products.
Test Procedure of Universal Testing Machine 2000kN Electro-Hydraulic Servo Control
1. Setup: Adhere to manufacturer instructions for assembling the UTM on a stable surface. Ensure safety features like emergency stops and guards are in place.
2. Calibration: Calibrate the UTM following ISO 7500-1 standards to guarantee precise measurements.
3. Sample Preparation: Prepare the specimen in accordance with testing requirements, ensuring it's free from defects.
4. Loading: Securely position the specimen between the UTM's grips or fixtures, ensuring proper alignment.
5. Test Parameters: Input relevant test details (e.g., test type, speed, control) into the UTM's interface.
6. Test Execution: Initiate the test and monitor the UTM for any irregularities. Allow the UTM to apply force to the specimen until failure or as required.
7. Data Collection: Let the UTM gather data during the test, including load, displacement, and time.
8. Analysis: Analyze collected data to determine mechanical properties such as tensile strength and modulus of elasticity.
9. Reporting: Document test results and any observations, adhering to ASTM A370 guidelines. Include graphs and tables if needed.
10. Cleanup and Maintenance: Safely remove the specimen from the UTM and power down the machine. Clean and maintain the UTM per manufacturer instructions for optimal performance and longevity.
