Standard: BS EN 10002-1, BS 5896, ISO 7500-1, ASTM A370, ASTM A1061/A
Tensile & Compression

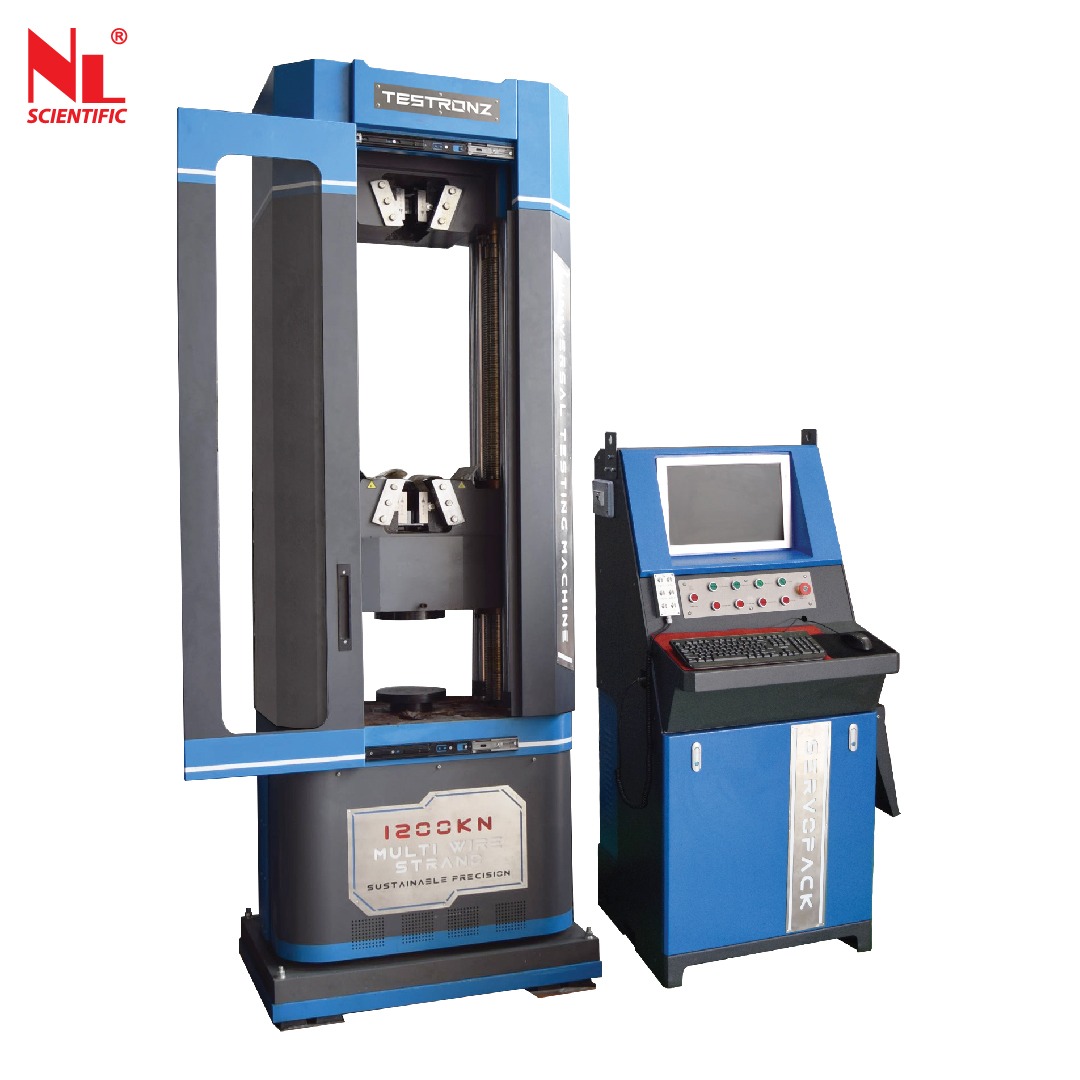

This TT 6000 Series UTM used for the mechanics property test such as the tensile, bending, compression and flexural to various materials such as rebar, wire strand, bolts & nuts, concrete cylinder, concrete beam and hollow block. The testers have been developed according to BS EN 10002-1, ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and electronic measurement. It can automatically process the test result for statistical purpose and print default or user-defined test report.

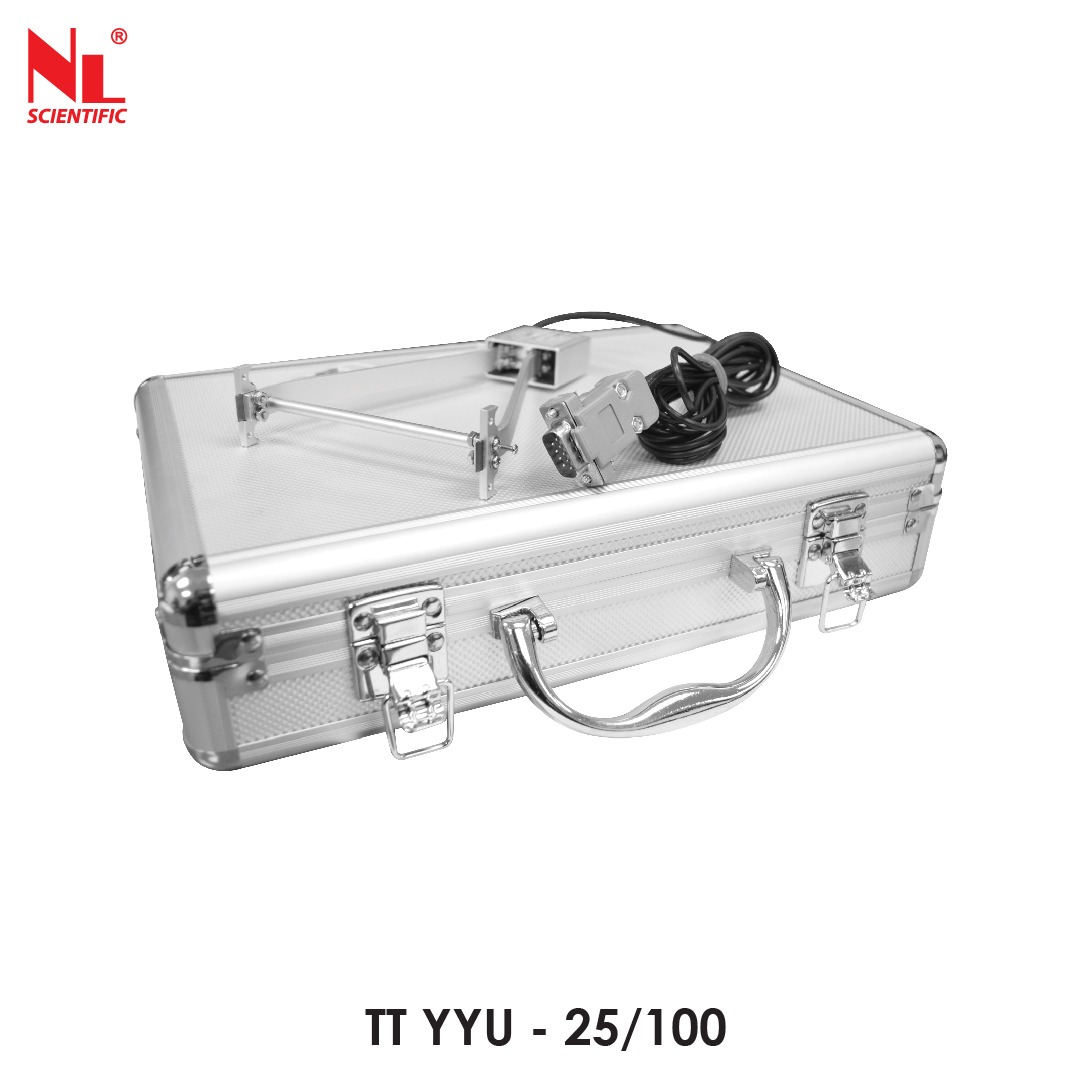

TT 6000 Series UTM use the micro-computer automatic data collection and processing, real time display of the test data and curves. It has the functions such as unlimited storage of test result in the computer, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc.
TT 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient operation and etc.
OPERATION DISPLAY
Computer Screen Display unit with the following functions
*Test force display
*Break detection
*Full auto test range switching function
*Auto return function
*Peak / Break value display function
*Test conditions
SAFETY FEATURES
The system include with the followings safety features
*Emergency stop switch
*Overload limit
*Ram-stroke limit
*Hydraulic pump motor over-current & over heating protection
*Leak / over current protection
*Automatic stop control
*Safety Guard
CONTROL & DATA PROCESSING SOFTWARE
*User friendly & easily due to clear and brief operation – operation interface
*Automatically save the test conditions & results
*User define test curves including : Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
*Individual or combine display test curves on the same screen to compare with other several data at the same time
*Compatible with Microsoft Excel by import or export function
*Base of testing with digital sample break detection, auto ranging, auto calibration, quick tare & auto return facilities
*Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
*Tension, Compression, Shear, Cycling & Creep Test facilities

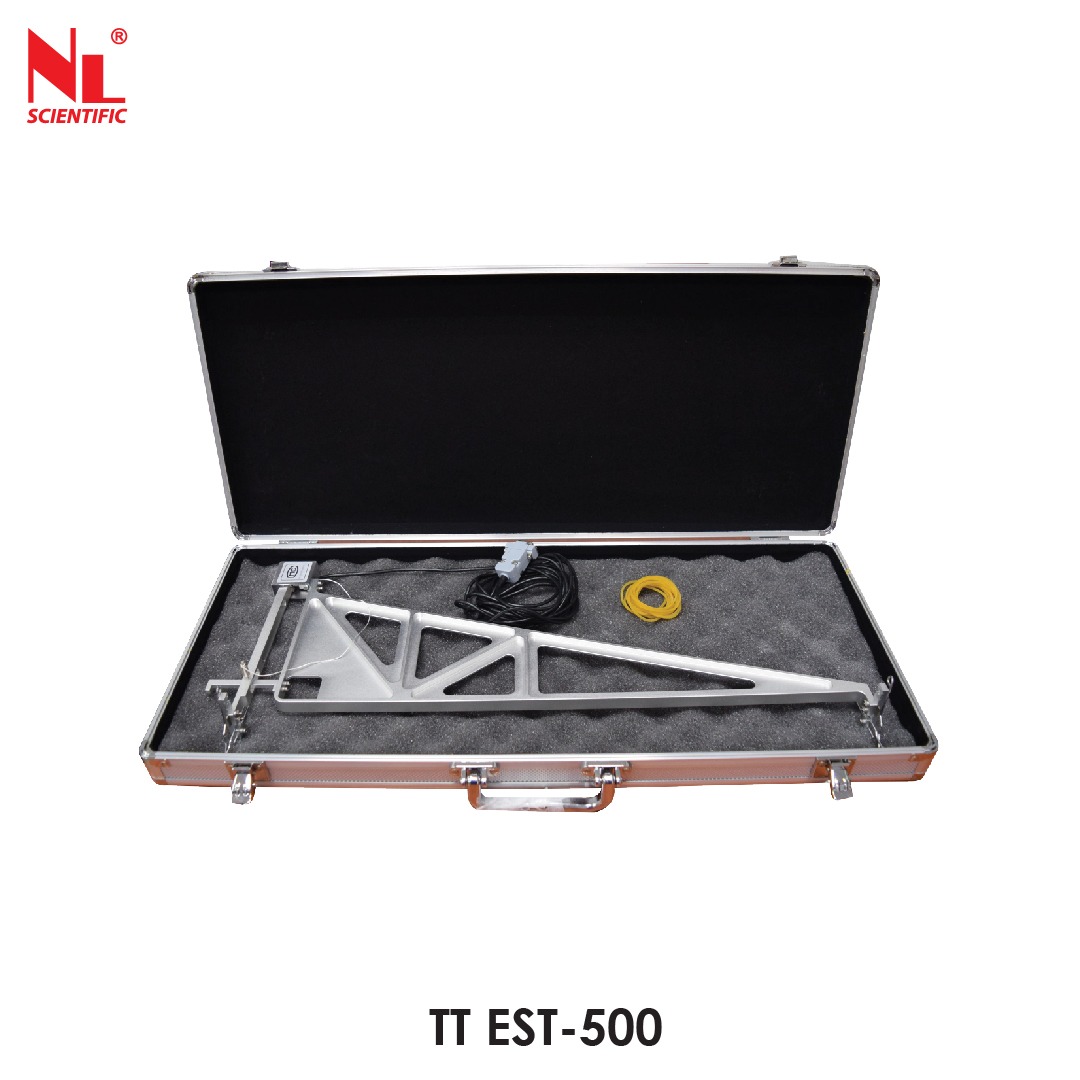

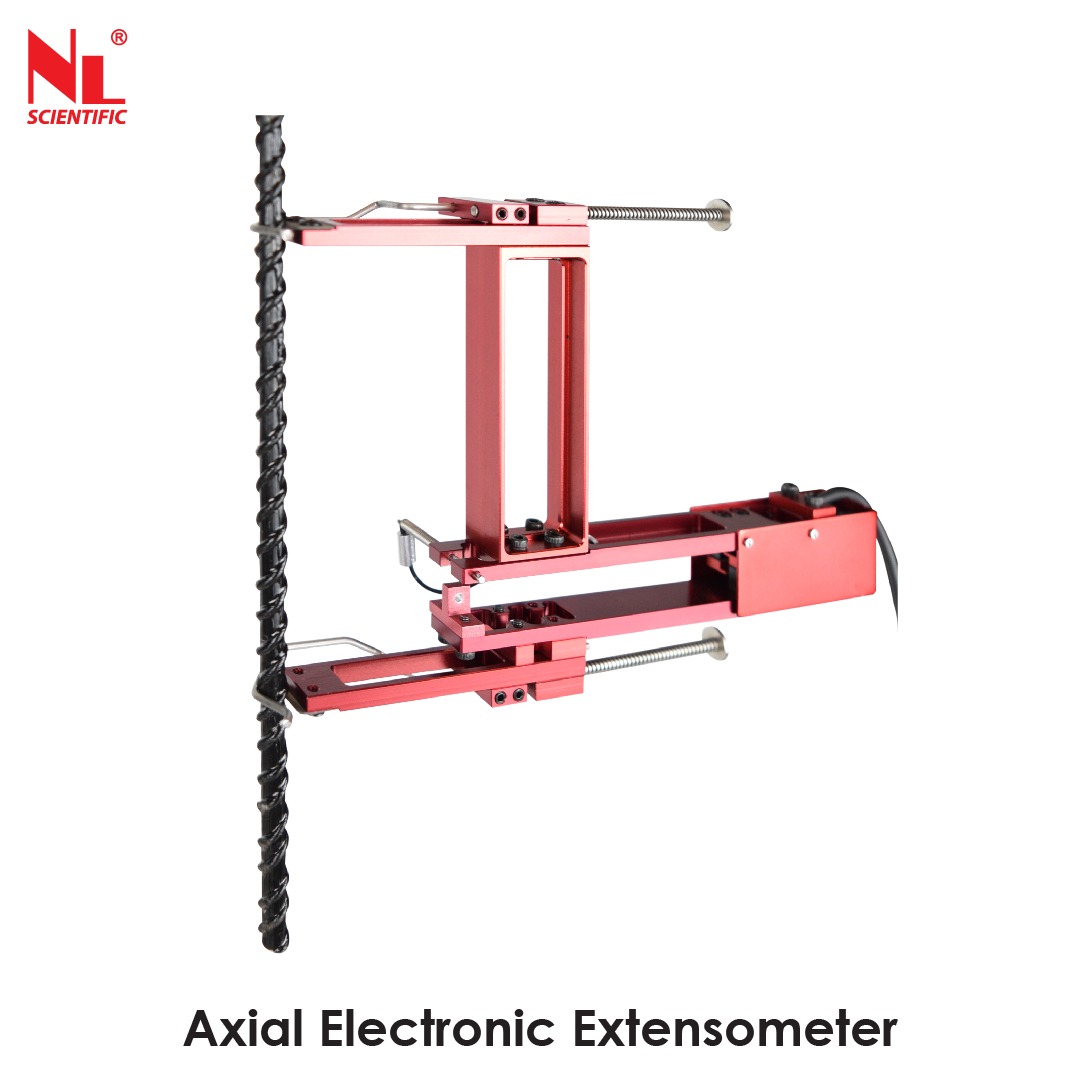

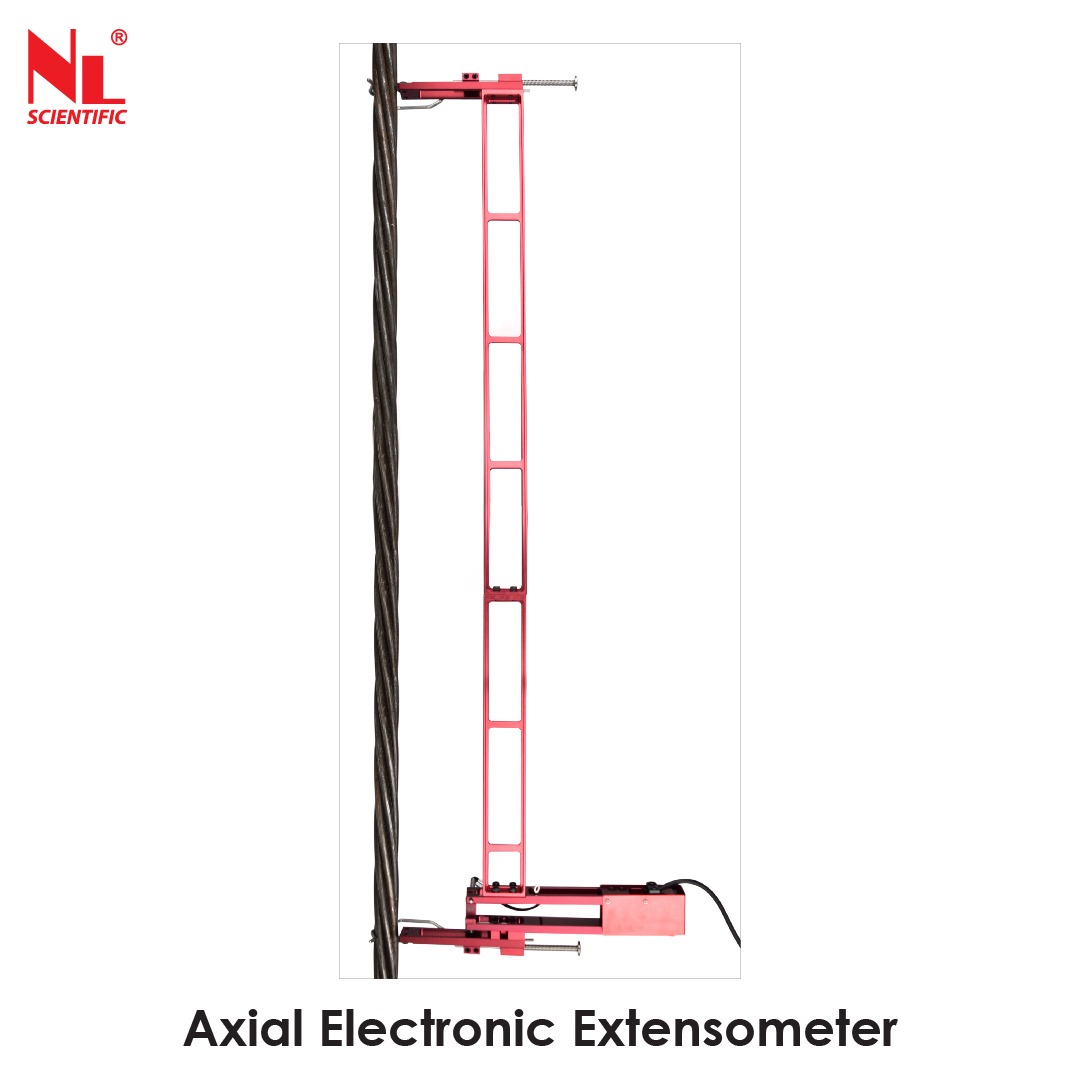

*User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
*Advanced protection features with software setting or / & hardware switch upper & lower limit setting
*Operation fully control by computer
*USB communication system & ethernet

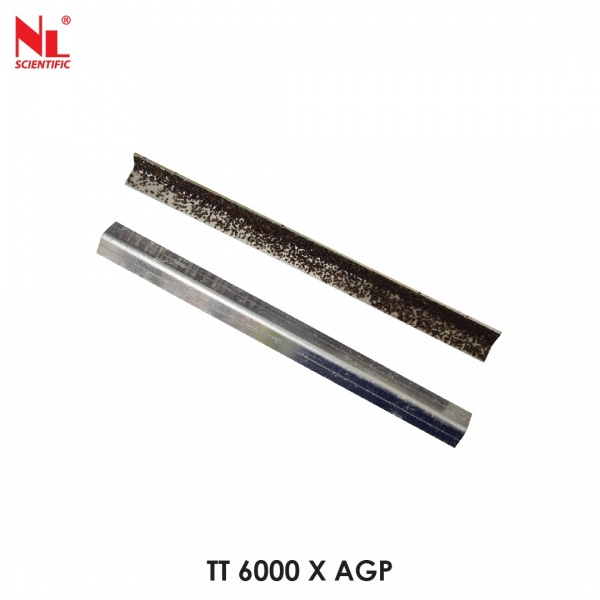

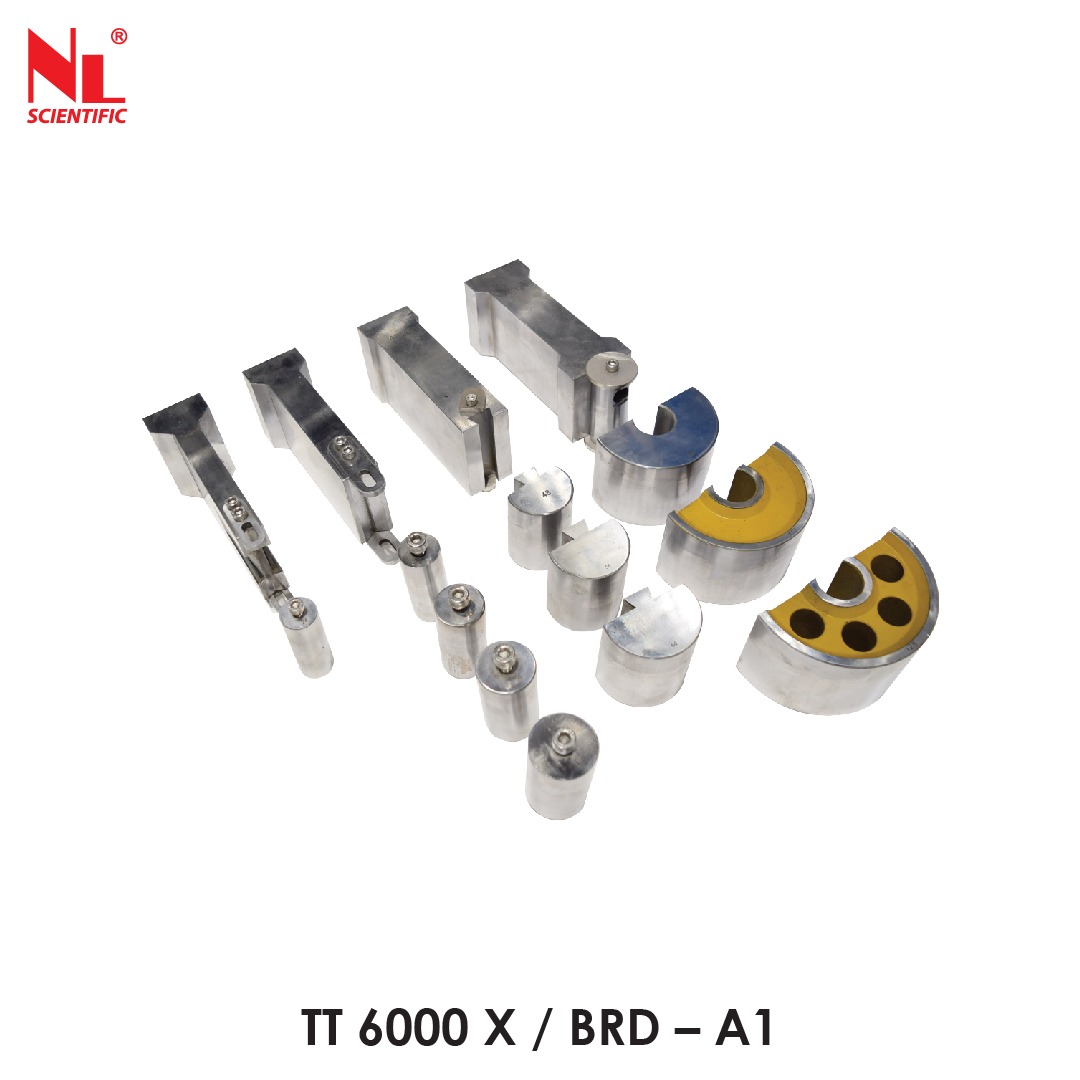

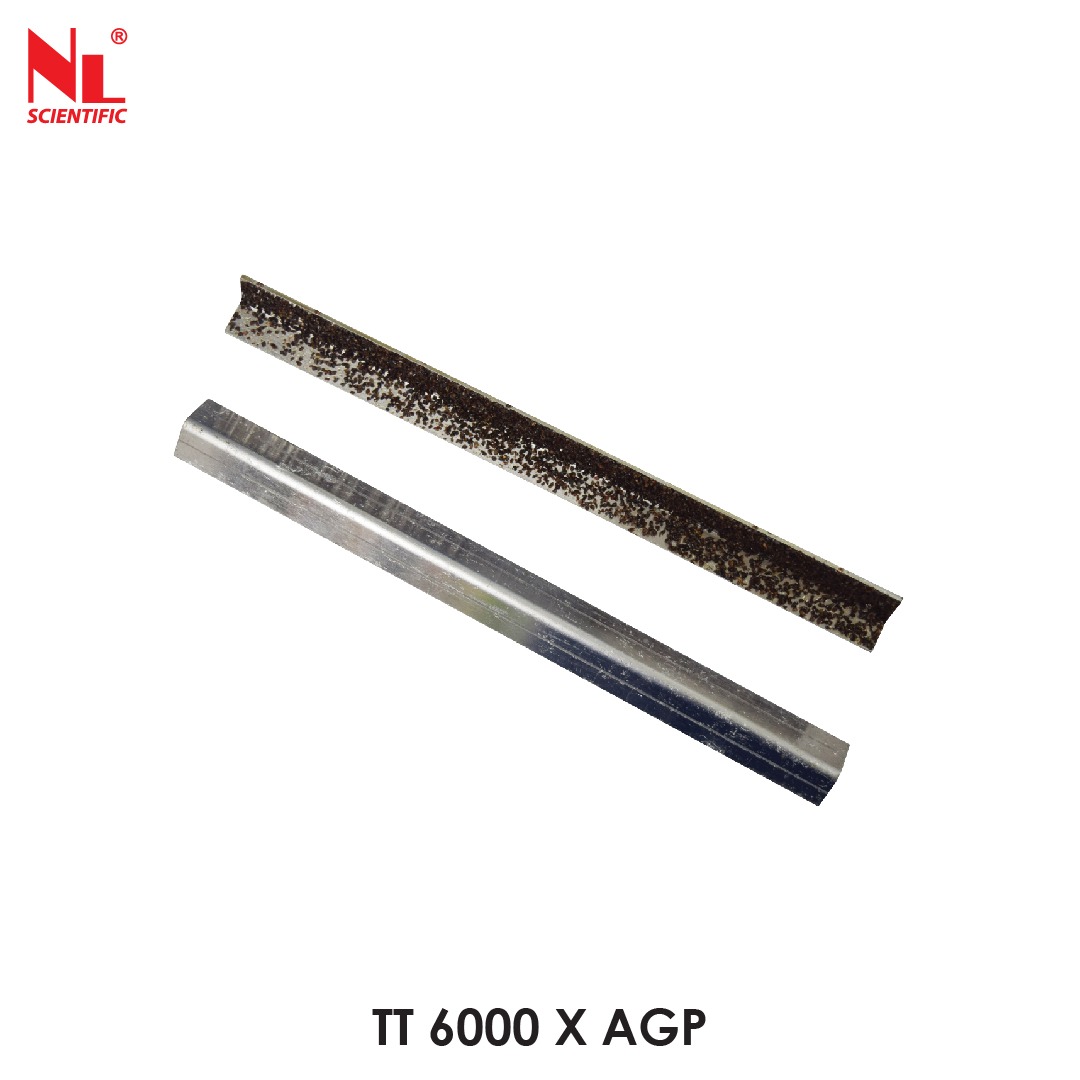

*Grips & fixtures for tension, compression, flexural, shear & products testing available
*Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
*Report sheet consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
*Force display unit : kN, N, tons, & mN
*Stress display unit : GPa, Mpa, Pa, psi, N/sq.mm, Kg/sq.mm & Tons/sq.inch
*User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc
UNIQUE FEATURE :
*Over size prestressed 4 column with twin screw
*High toughness fragment safety guard with transparence sliding door
*High precision load cell ram

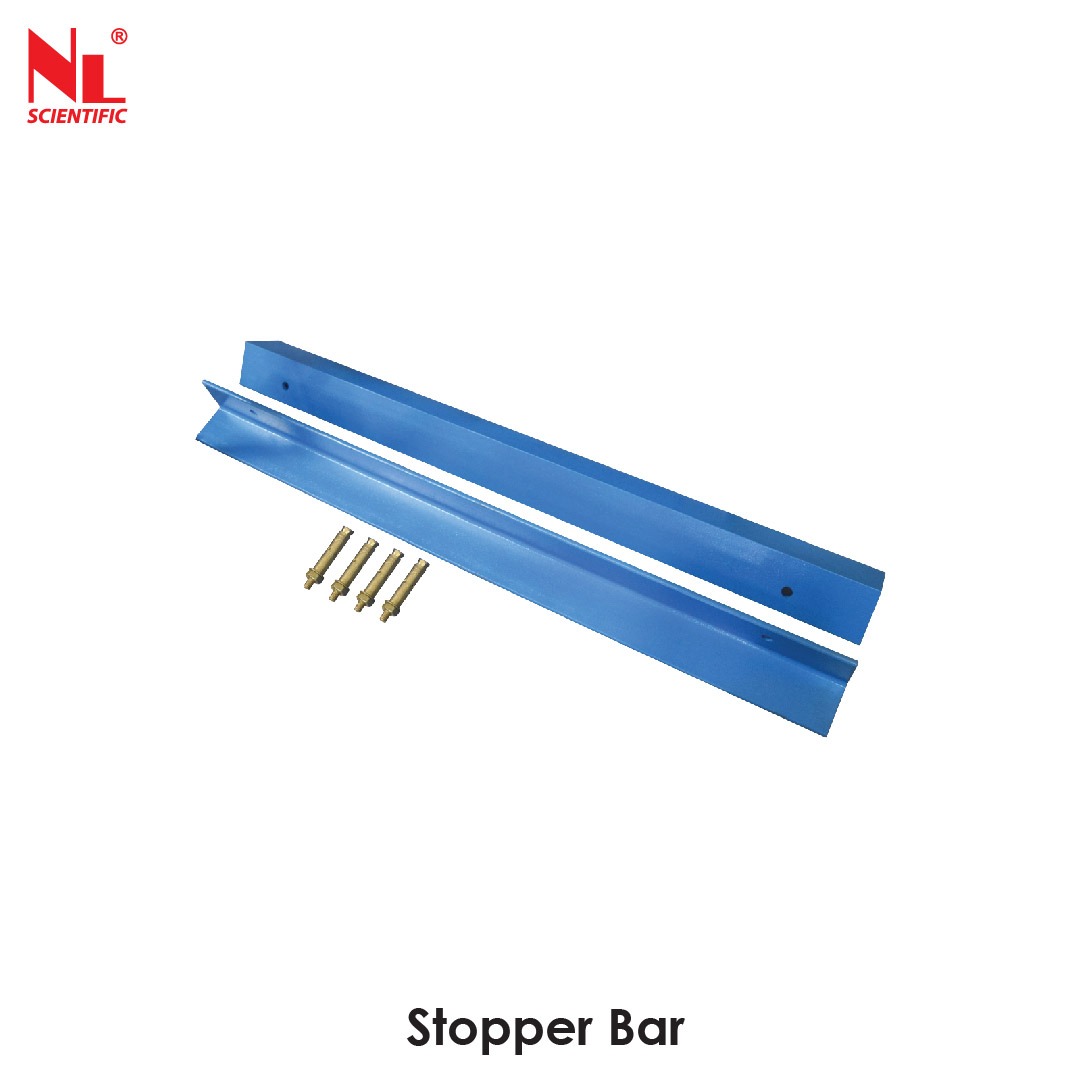

*Built-in shock absorbing system on base mounting
*Console Control Unit
Technical Specifications :
| Model Number |
TT 6000 X / 029 |
| Load Capacity |
1200 kN |
| Machine Class |
Class 1 |
| Load Accuracy |
±1% |
| Displacement Resolution |
0.001 mm |
| Piston Stroke |
200 mm |
| Max. Cross Head Speed |
240 mm/min |
| Test Speed |
100 mm/min |
| Wire Strand Size |
Ø8 - Ø18 mm |
| Round Specimen Size |
Ø14 - Ø45 mm |

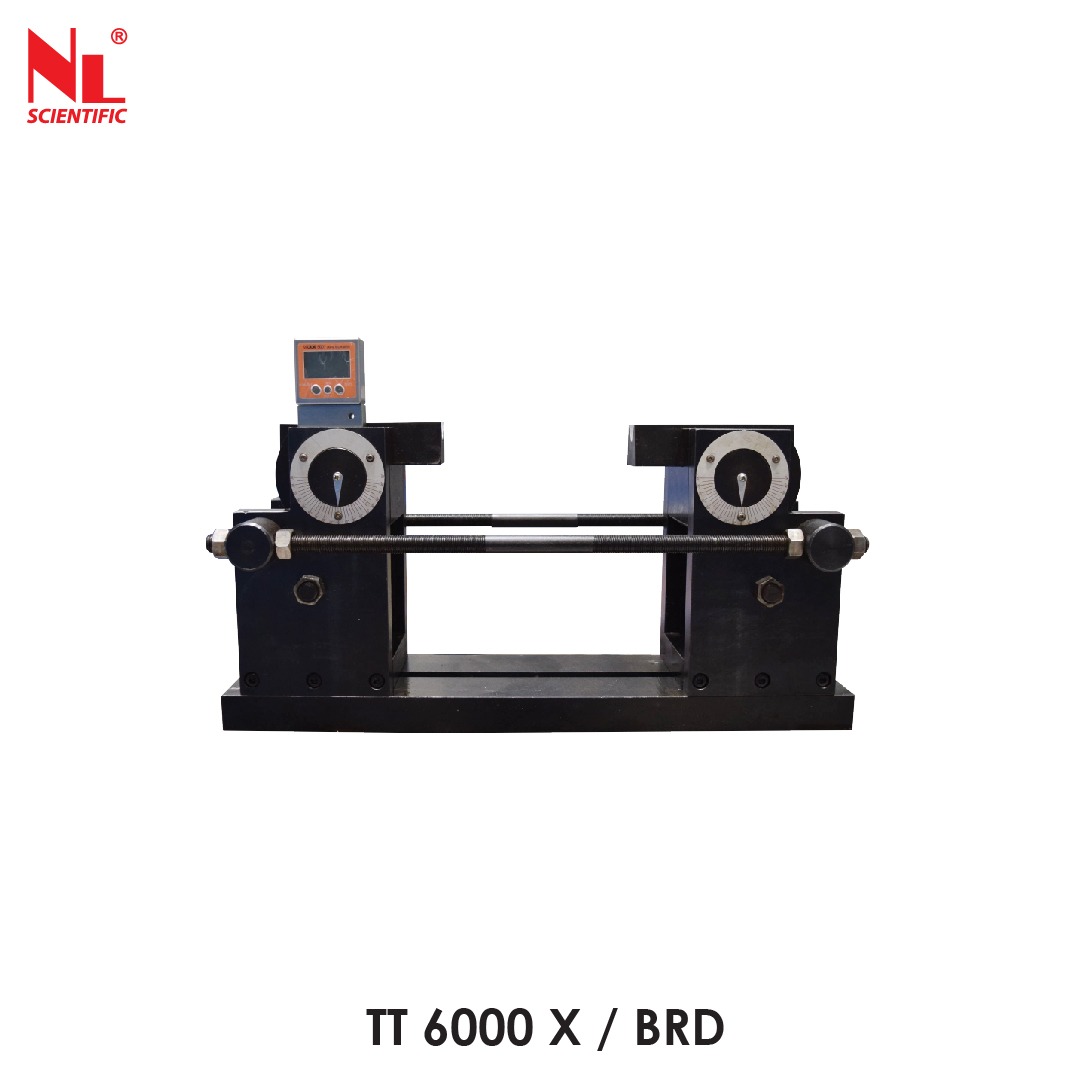

| Max. Distance of Bending Test |
300 mm |
| Load Frame :- |
| - Max. Bearing Deformation |
≤ 0.45 mm |
| - Coaxility |
< 0.03 mm |
| - Cylinder Layout |
Lower Type |
| - Max. Bearing Capacity of Oil Cylinder |
1500 kN |
| - Cylinder Linearity |
|
| Ellipticity |
≤ 0.015 mm |
| Verticality |
≤ 0.03 mm |
| Roughness |
≤ Ra 0.4 μm |
| Oil Sources :- |
| - Pump ; |
|
| Flow |
6.26 l/min |
| Pressure |
20.4 Mpa |
| - Transducer ; |
|
| Sensitivity Coefficient |
2 mv/v |
| Nonlinear |
0.2% FS |
| Repeatability |
0.05% |
| Force Measuring Range |
12 - 1200 kN |
| Relative Error of Test Force Indication |
± 1% |
| Force Resolution |
1/300000 FS |
| Displacement Resolution |
1/300000 FS |
| Displacement Indication Error |
≤ ± 0.5mm |
| Deformation Resolution |
1/300000 FS |
| Deformation Resolution Error |
≤ ± 0.5% |
| Equal Rate Control Range of Test Force |
0.1 - 4% FS |
| Displacement Constant Rate Control Range |
0.5 - 90 mm/min |
| Strain Constant Rate Control Range |
0.00007 - 0.0025/s |
| Speed Control Accuracy Error |
≤ ± 1% of Set Value |
| Max. Distance Between Upper & Lower Pressure Plates |
980 |
| Paralleslism of Upper & Lower Pressing Plates |
≤ 0.01 mm |
| Flatness of Pressing Plate |
< 0.016 mm |
| Hardness of Pressing Plate |
> 55 HRC |
| Surface Roughness of Pressing Plate |
< 0.8 μm |
| Maximum Distance Between Stretching Jaws |
1090 mm |
| Effective Distance Between Columns |
680 mm |
| Clamping Width of Flat Specimen |
≤ 100 mm |
| Clamping Thickness of Flat Specimen |
0 - 40 mm |
| Clamping Dia. of Round Specimen |
15 - 60 mm |
| Dimension Of Upper & Lower Pressing Plates |
240 x 240 mm |
| Dimension (Load Frame) |
950 (L) x 700 (W) x 2810 (H) mm |
| Dimension (Control Console) |
1100 x 750 x 900 mm |
| Power |
220 V, 1Ph, 50 / 60 Hz |
| Weight (Control Console) |
300 kg |
| Weight (Frame) |
4550 kg |
