Unbonded Capping Retainers
NL 4000 X / 002

  • Description

Standard: ASTM C1231, AASHTO T22, T851

Unbonded Capping Pad

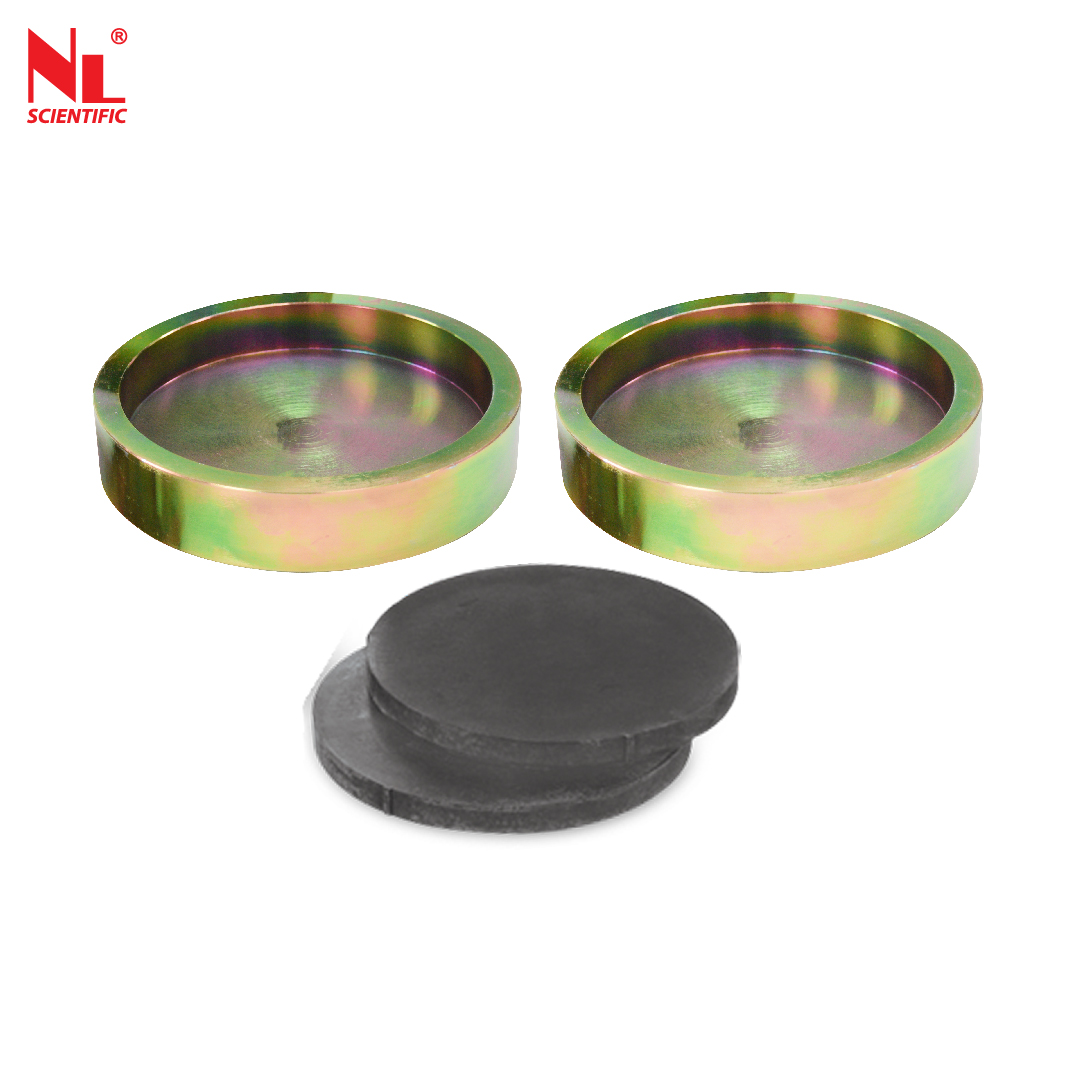

Used as alternative method to the sulfur hot capping of concrete cylinder specimens. Two steel capping retainer are applied on cylinder top & bottom surface & two neoprene pads are place between specimen & retainer disc.



Technical Specifications :

 Model Number  Parts Description
 NL 4000 X / 002 A 011   Capping Retainer For 4” & 100 mm Dia. Cylinder (Set of 2)
 NL 4000 X / 002 A 012   Capping Retainer For 6” & 150 mm Dia. Cylinder (Set of 2)
 NL 4000 X / 002 A 013   Capping Neoprene Pad 60 Shore A For 4” & 100 mm Dia. Cylinder (Set of 2)
 NL 4000 X / 002 A 014   Capping Neoprene Pad 70 Shore A For 4” & 100 mm Dia. Cylinder (Set of 2)
 NL 4000 X / 002 A 015   Capping Neoprene Pad 60 Shore A For 6” & 150 mm Dia. Cylinder (Set of 2)
 NL 4000 X / 002 A 016   Capping Neoprene Pad 70 Shore A For 6” & 150 mm Dia. Cylinder (Set of 2)
