Concrete Testing Equipments

Product Range

Standard: EN 12390-6, ASTM C496 Splitting Tensile Test To perform tests on cylindrical specimens of various diameter. The resulting orthogonal tensile force causes the specimen to fail in tension. Technical Specifications : Model Number NL 4012 X / 001 Applicable Specimen ...Read more

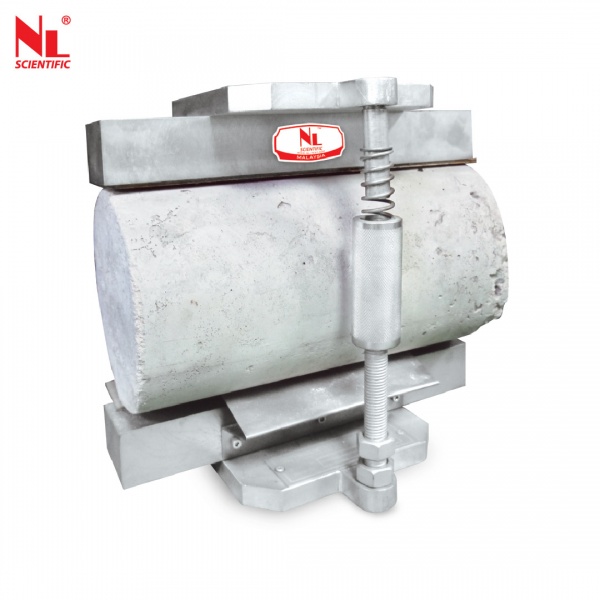

Splitting Tensile Device
NL 4012 X / 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12390-6, ASTM C496

Splitting Tensile Test

To perform tests on cylindrical specimens of various diameter. The resulting orthogonal tensile force causes the specimen to fail in tension.

Technical Specifications :

Model Number	NL 4012 X / 001
Applicable Specimen Size	Inch	mm
	4” x 8” Lg.	100 x 200 Lg.
	6” x 12” Lg.	150 x 300 Lg.
Packing Size	350 (L) x 250 (W) x 280 (H) mm
Approx. Weight	18 kg

Set Consists Of :

Model Number	Parts Description	Qty
NL 4012 X / 001 – P 001	Top Loading Plate	1no.
NL 4012 X / 001 – P 002	Packer Base with Spring Guide	1no.

Optional Accessories :

Model Number	Accessories Description

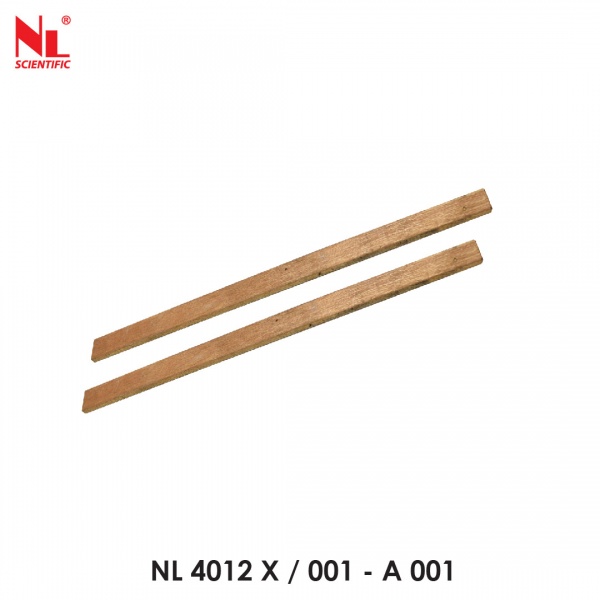

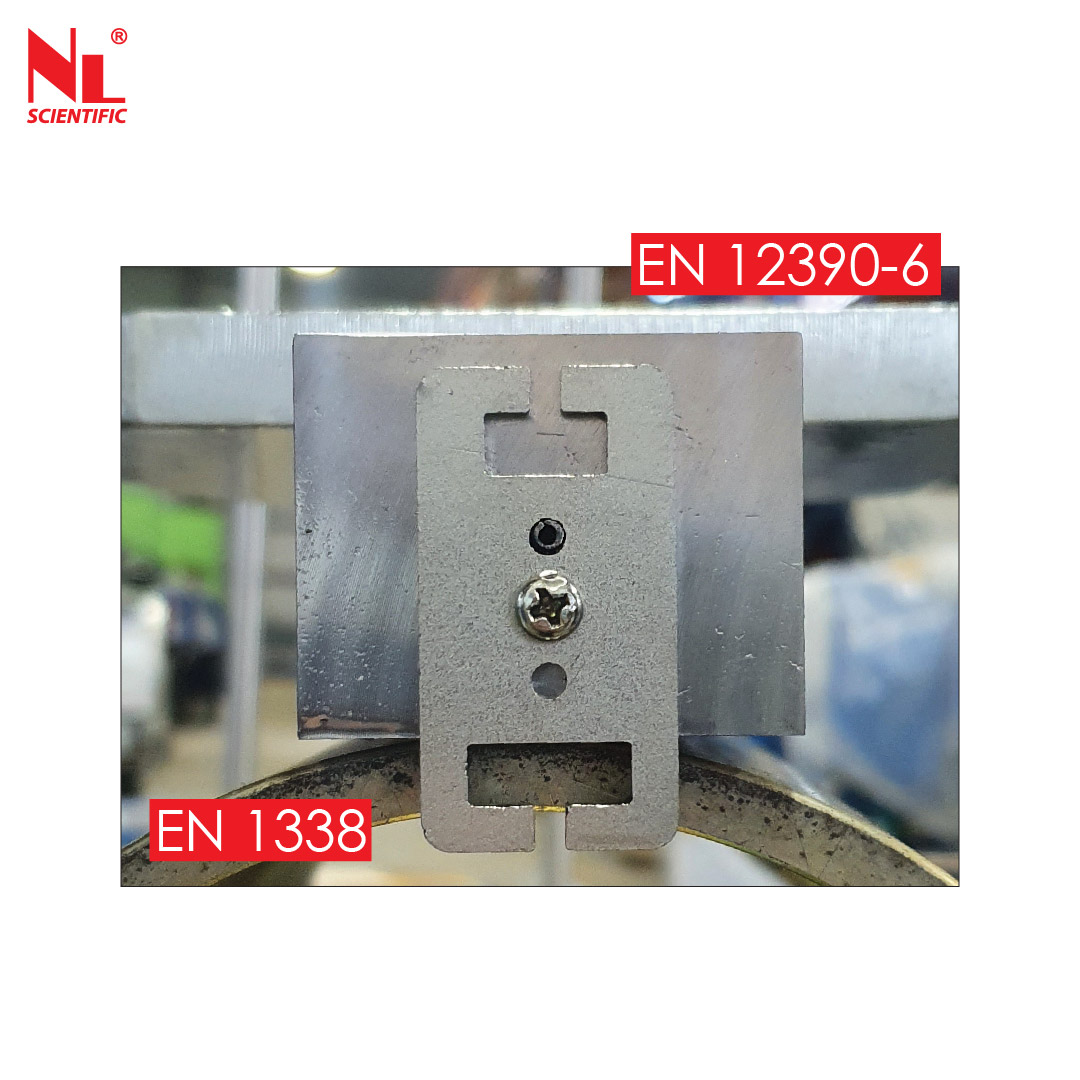

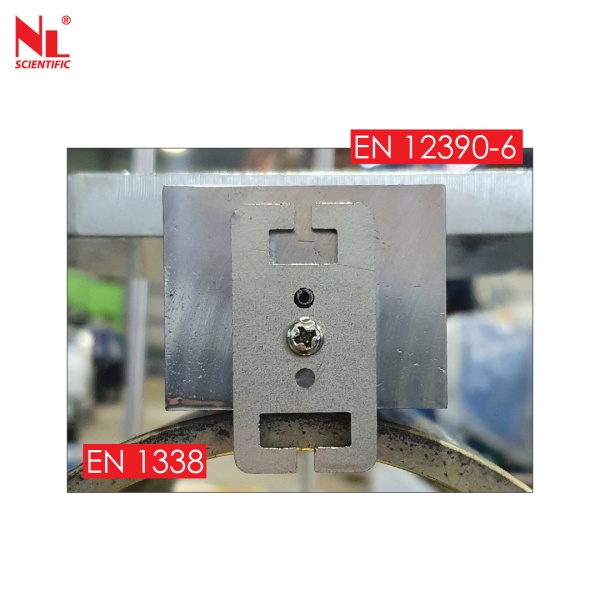

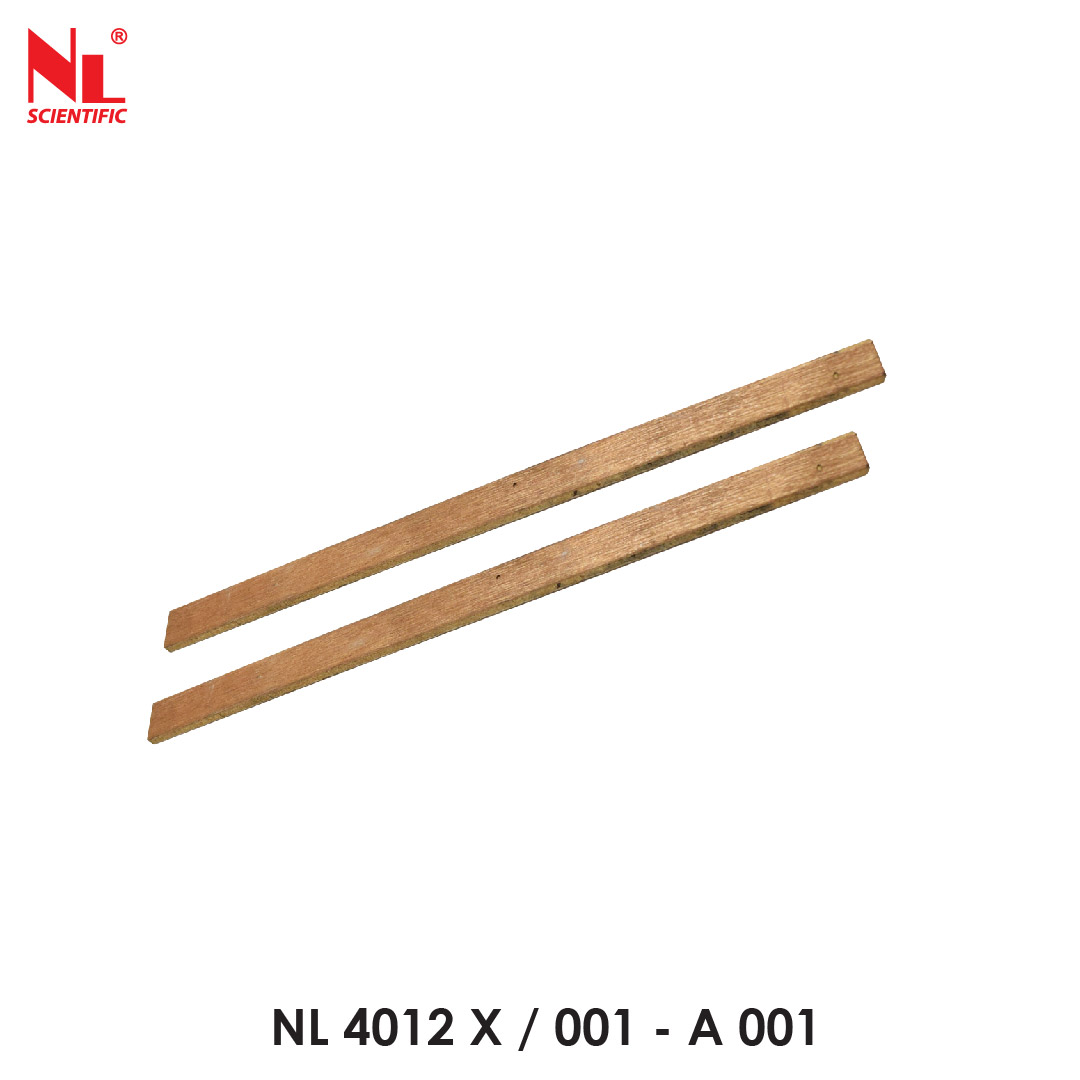

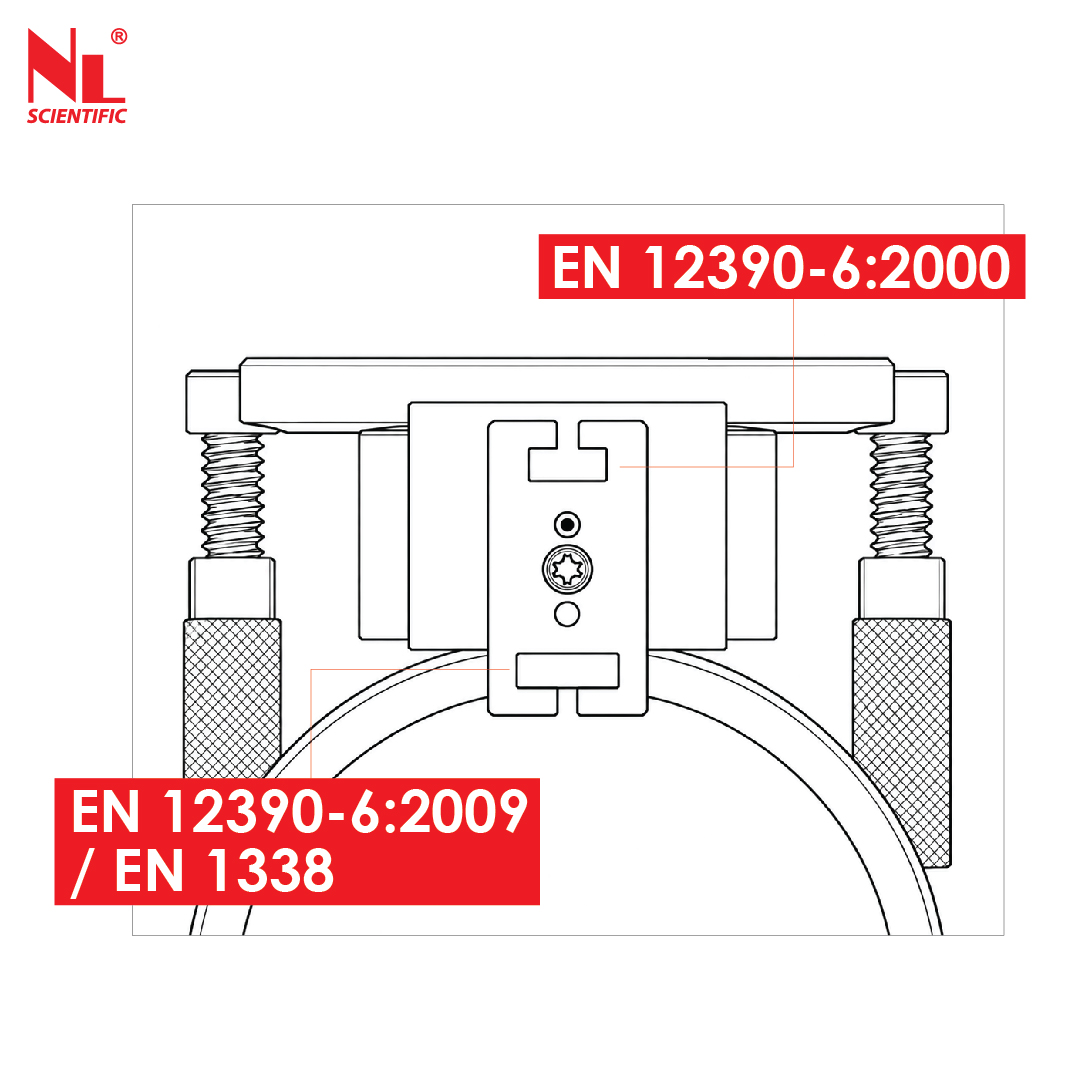

NL 4012 X / 001 – A 001	Packing Strips 4 x 10 x 350 mm (EN 12390-6:2000) (100 pcs / pack)
NL 4012 X / 001 – A 002	Packing Strips 4 x 15 x 350 mm (EN 12390-6:2009 / EN 1338) (100 pcs / pack)
