Standard: ASTM C151/C490, AASHTO T 107 Expansion Of Portland Cement Autoclave Apparatus is used to determine the stability of cement in high-pressure steam environments. This equipment is suitable for testing silicate, slag silicate, pozzolanic, fly ash and other types of cement that may experienc ...Read more

Autoclave Apparatus (Touch Screen Version)
NL 3021 X / 002

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: ASTM C151/C490, AASHTO T 107

Expansion Of Portland Cement

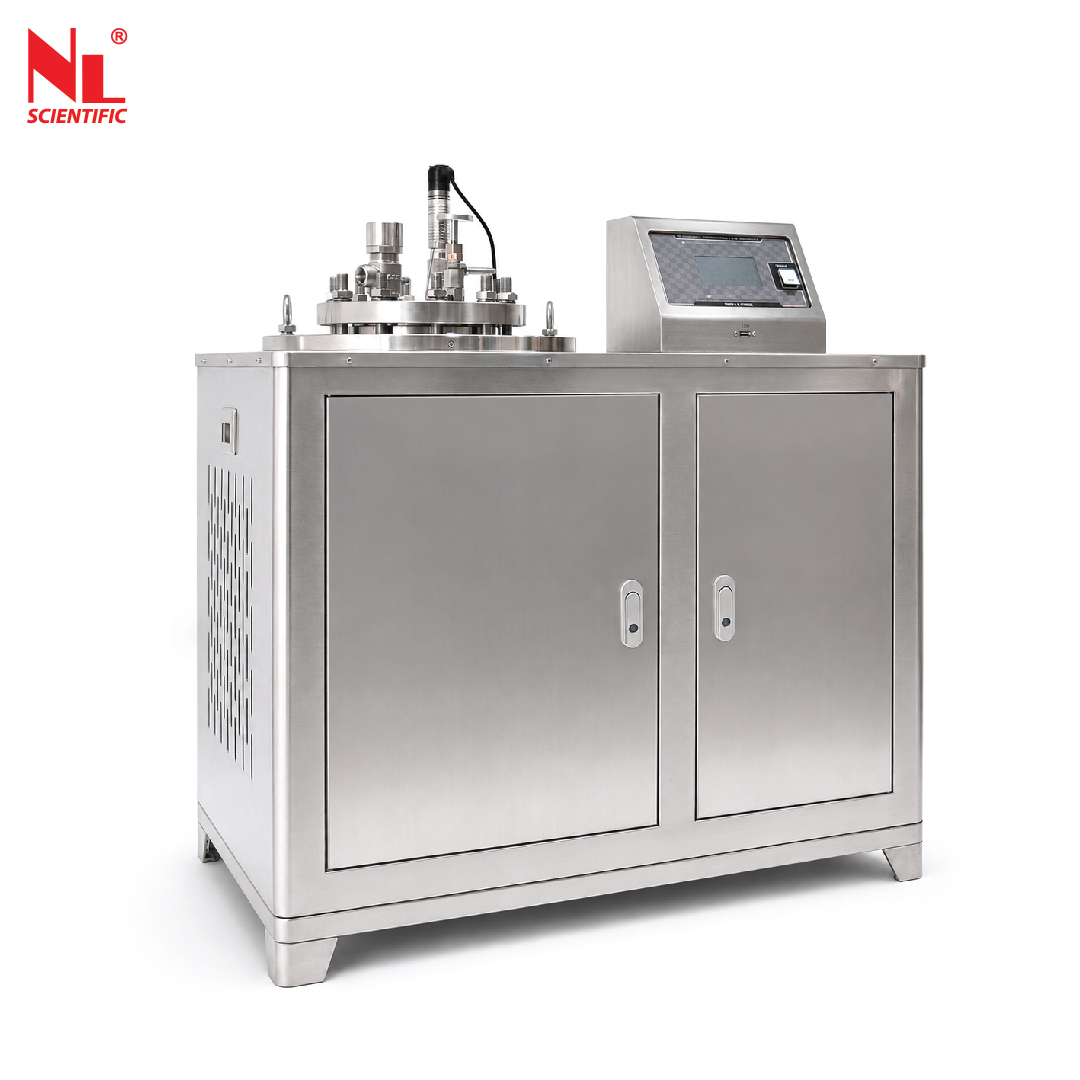

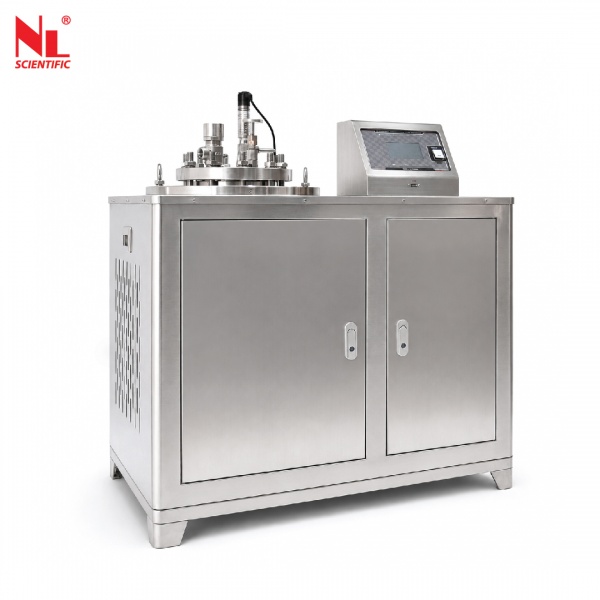

Autoclave Apparatus is used to determine the stability of cement in high-pressure steam environments. This equipment is suitable for testing silicate, slag silicate, pozzolanic, fly ash and other types of cement that may experience uneven volume changes due to the hydration of magnesium silicate.

Features :-

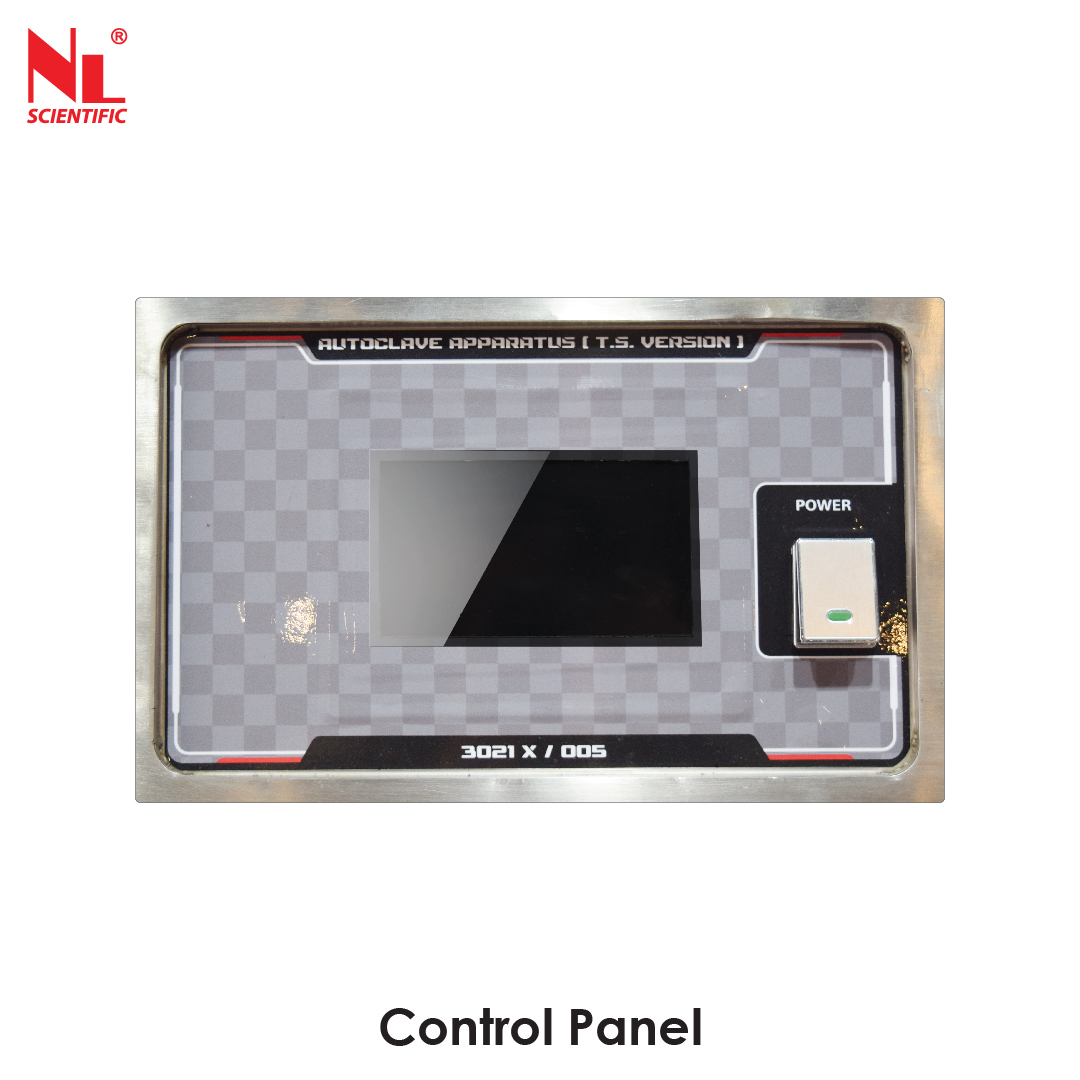

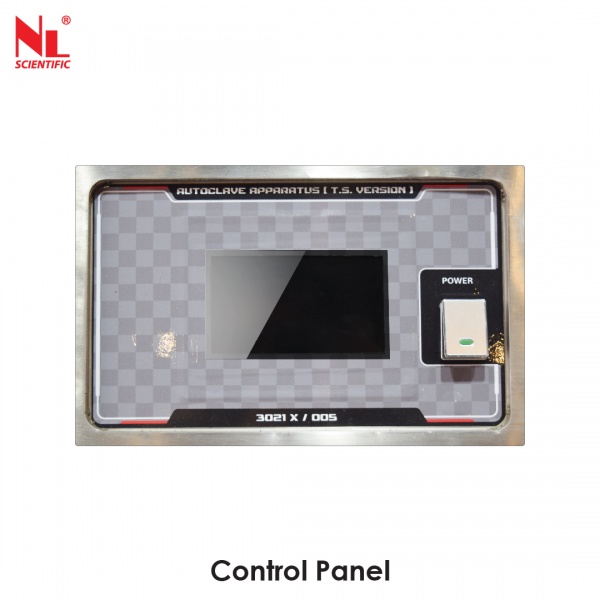

- 4.3-inch touch screen control, built-in operating system.
- Made of all stainless steel, resistant to oxidation and corrosion.
- High-temperature pressure sensors with PID control for process, fully automated software.
- PLC collects pressure & controls the cooling fan.
- PT100 temperature sensor.
- USB one-click automatic upgrade.

Technical Specifications:

Model Number	NL 3021 X / 002
Max. Working Pressure	2.5 MPa
Pressure Range	2.0 ± 0.1 MPa
Chamber Volume	≥ 8.5 L
Temperature Range	Room temperature to 220 °C
Holding & Cooling Time	0~99 hours
Control Method	Touch Screen + PLC Control
Pressurization Time	(0~2 ± 0.1 MPa; room temp~215.7 ± 1.3 °C) : ≈ 60 min
Dimension	880 (L) x 540 (W) x 1225 (H) mm
Approx. Weight	107 kg
Input Voltage	220~240 V, 2.2 kW
