Materials Grinding

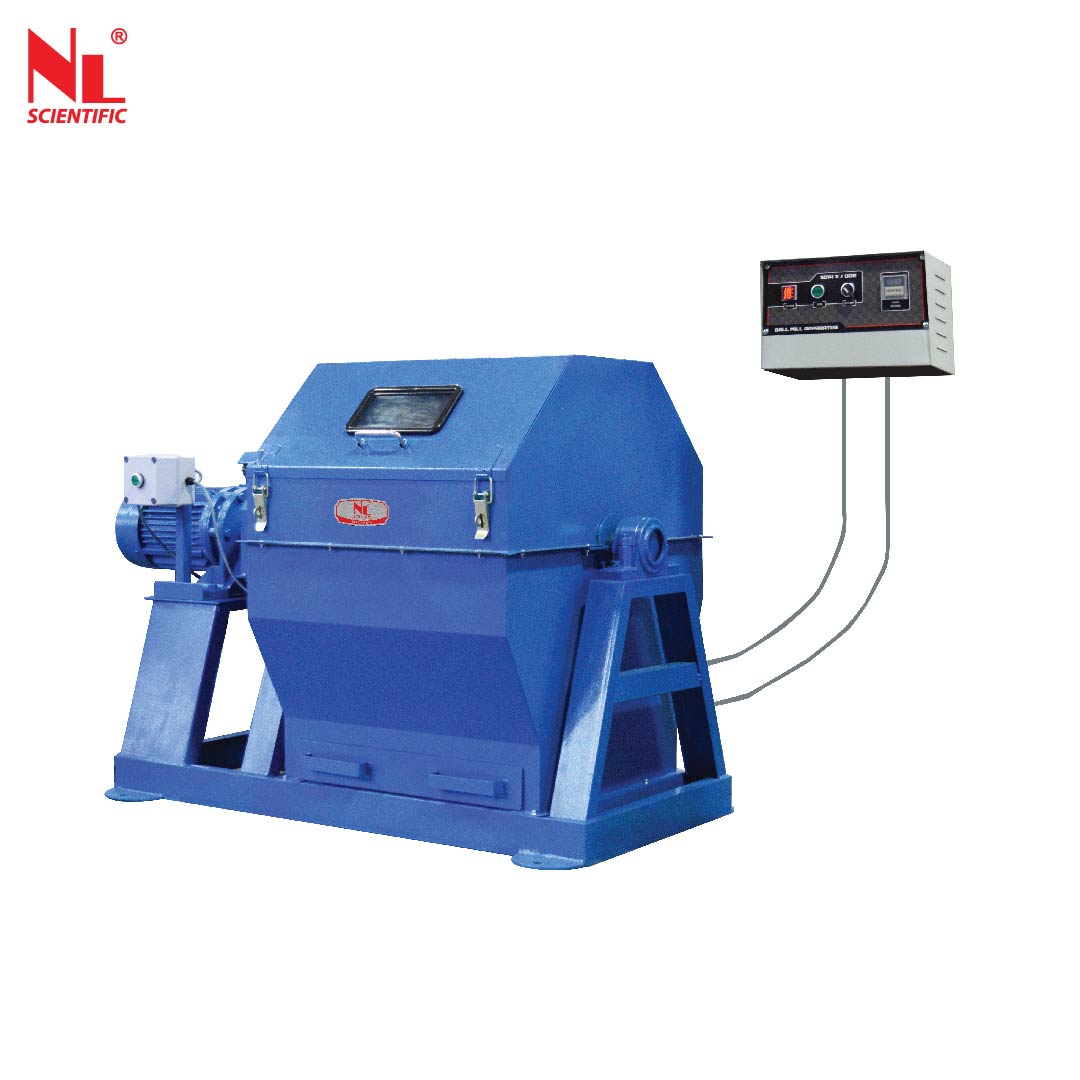

A cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw material & etc. The drum rotate around a horizontal axis.
Technical Specifications:
Model Number |
NL 3014 X / 002 |
Drum Capacity |
100 kg |
Drum Rotation Speed |
48 ~ 57 rpm |
Particle Size |
< 7 mm |
Particle Load |
5 kg |
Grinding Period |
30 min/each cycle |
Dimension (mm) |
1430(L) x 750(W) x 960(H) |
Approx. Weight |
235 kg |
Power |
380~415 V, 3 Ph, 2.2 kW, 5 A, 50/60 Hz |
