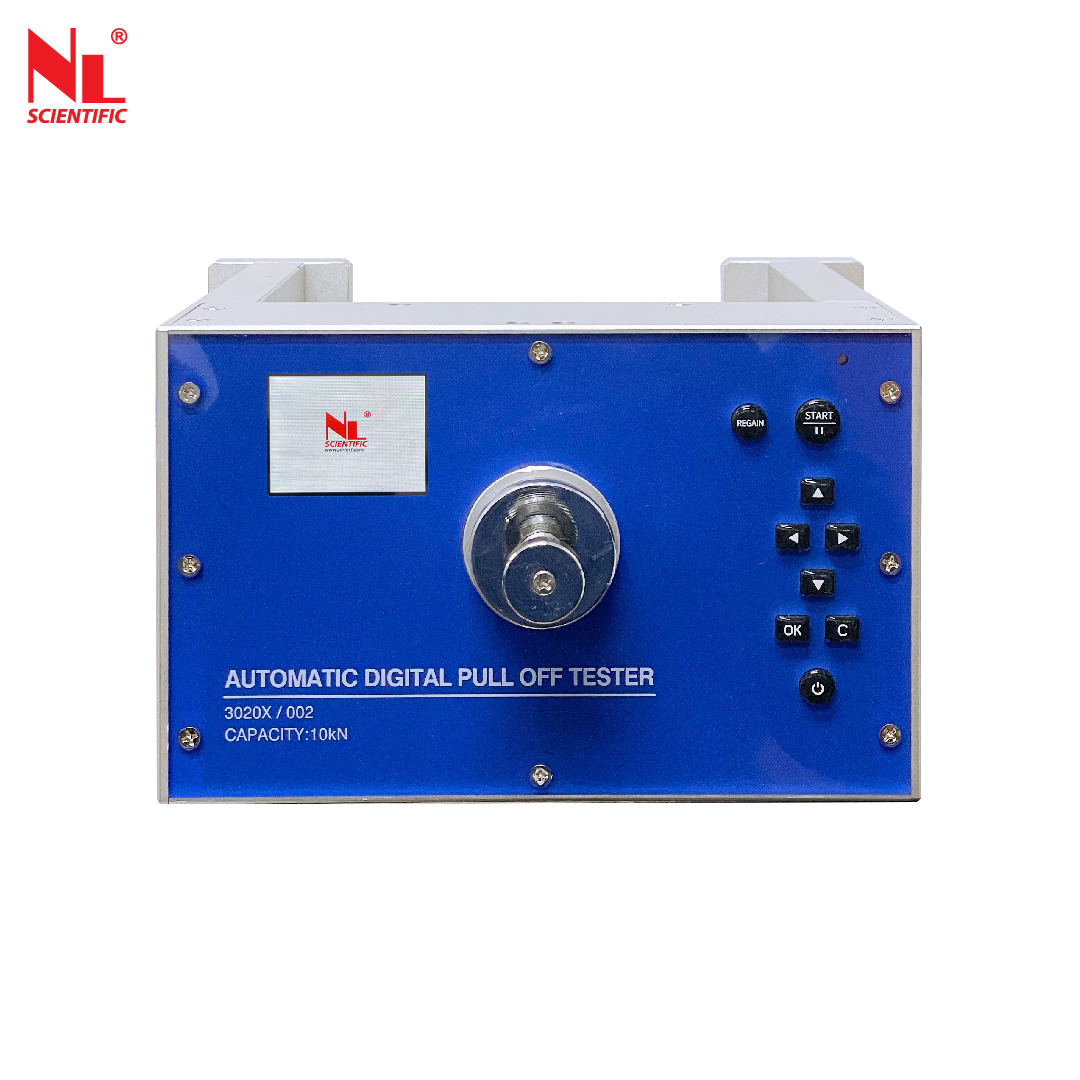

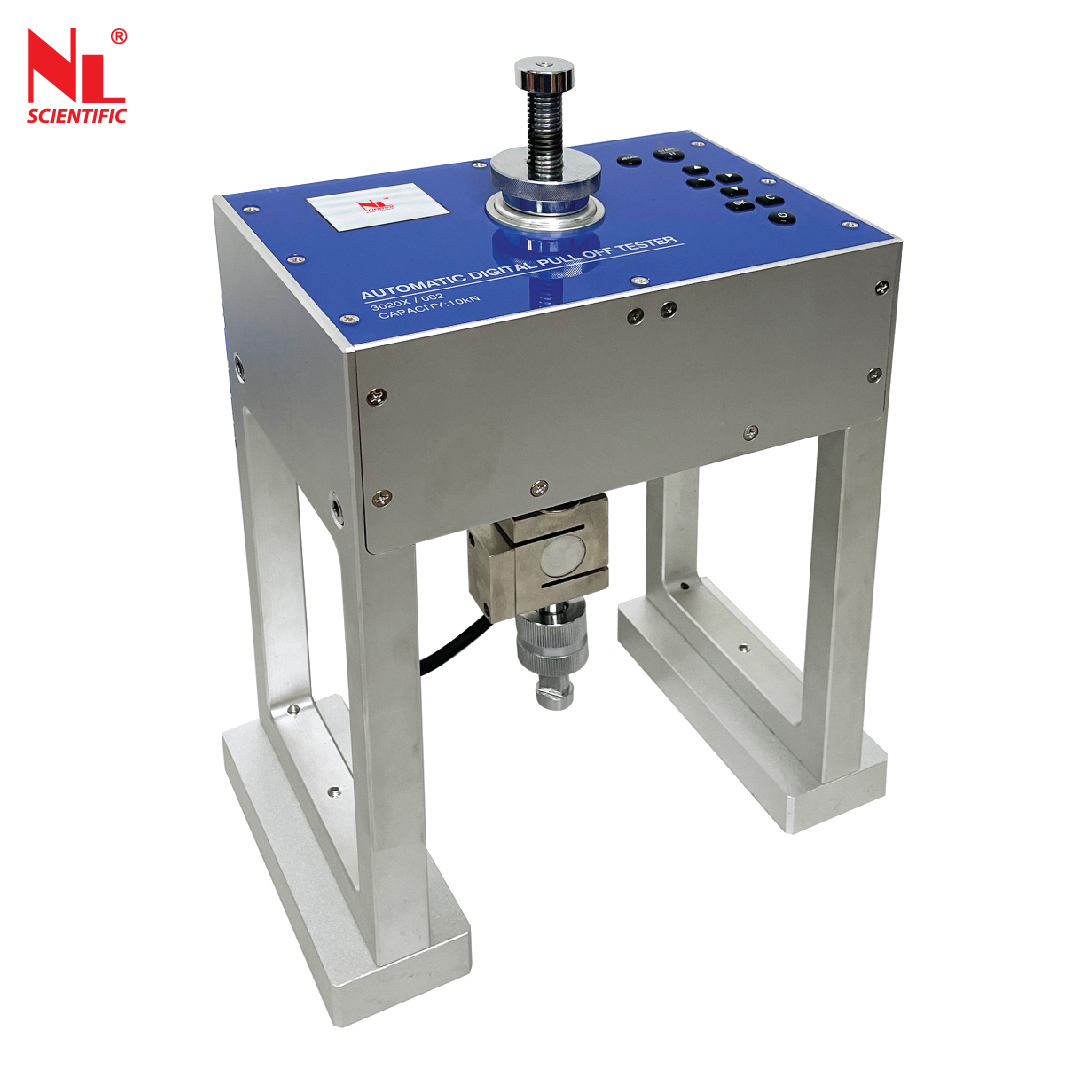

Automatic Digital Pull Off Tester 10kN
NL 3020 X / 002


  • Description

Standard: EN 1542, EN 1348, EN 1015-12



Strength Evaluation

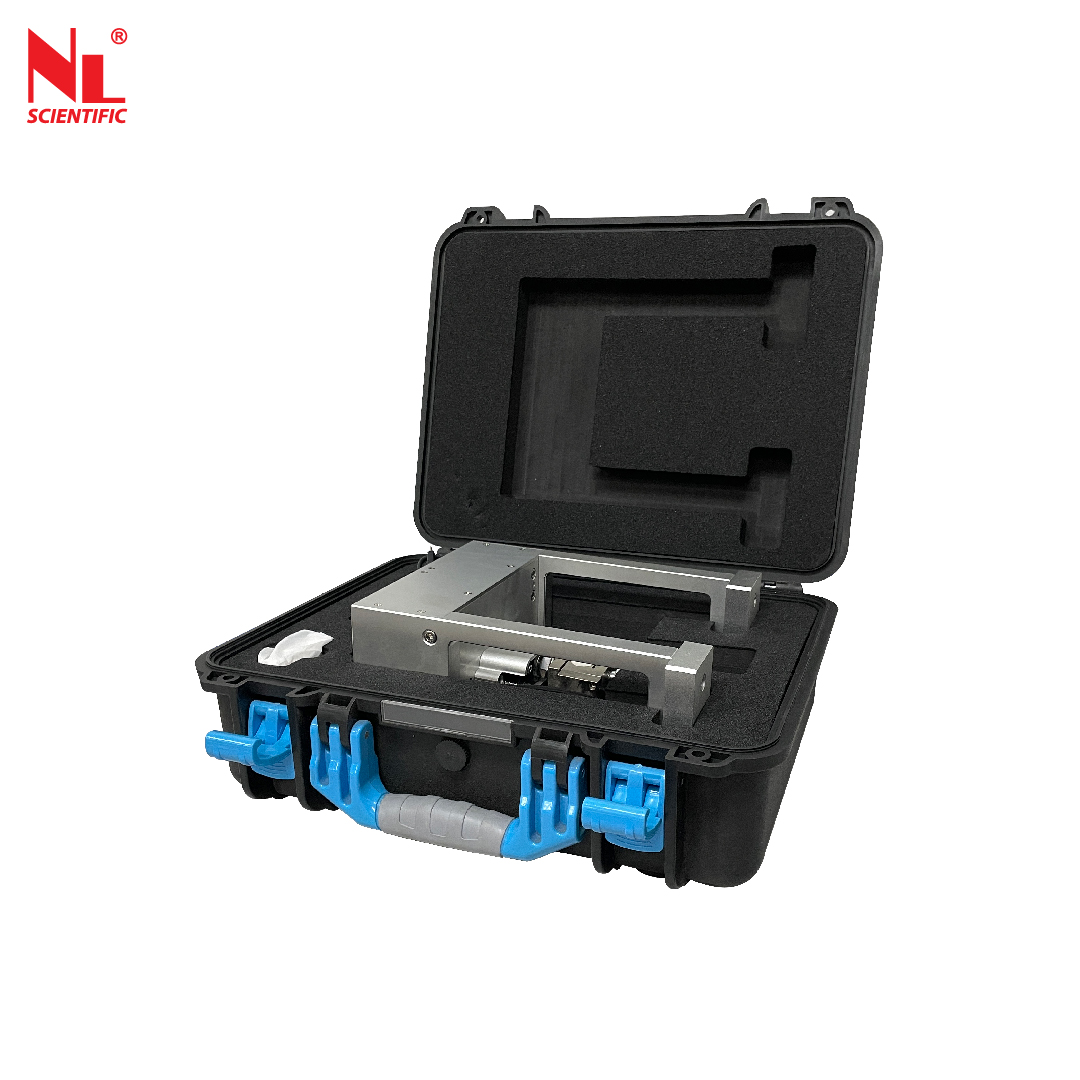

Used to determine the bonding strength of concrete overlay adhesion. Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal. It tests at any measuring point on the component, without requiring specimen preparation. However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding. Supplied complete with carry case. Accessories to be ORDER SEPARATELY.



Technical Specifications:

 Model Number    NL 3020 X / 002
 Max. Load Capacity  10 X 0.001 kN sensitivity
 Accuracy & Repeatability  ≤1.0% F.S
 Piston Travel  30 mm
 LED Display  42 x 32 mm
 Bracket Span Distance  133 mm
 Data Memory  2000 Test Result
 Display Unit  kN or MPa
 Loading Speed  5 ± 1mm/min
 Tester Weight  5.9 kg
 Tester Dimension (mm)  235(L) X 125(W) X 3000(H)
 Total Weight (with Case)  9.5 kg
 Case Dimension (mm)  440(L) X 360(W) X 170(H)
 Power  220~240V, 1Ph (Main Supplied for Charger)
