Mortar Mixer 7 Litres
Mortar Mixer 7 LitresStir Bar
Mortar Mixer, 7 Litres Mortar Mixer is used to prepare cement mortar for strength determination as specified in the standard. Mortar mixers consist of a large container with a capacity of 7 liters where the ingredients of the mortar, such as cement, sand, and water, are combined and mixed thoroughl ...Read more

Mortar Mixer, 7 Litres, High Speed
NL 3032 X / 002


  • Description

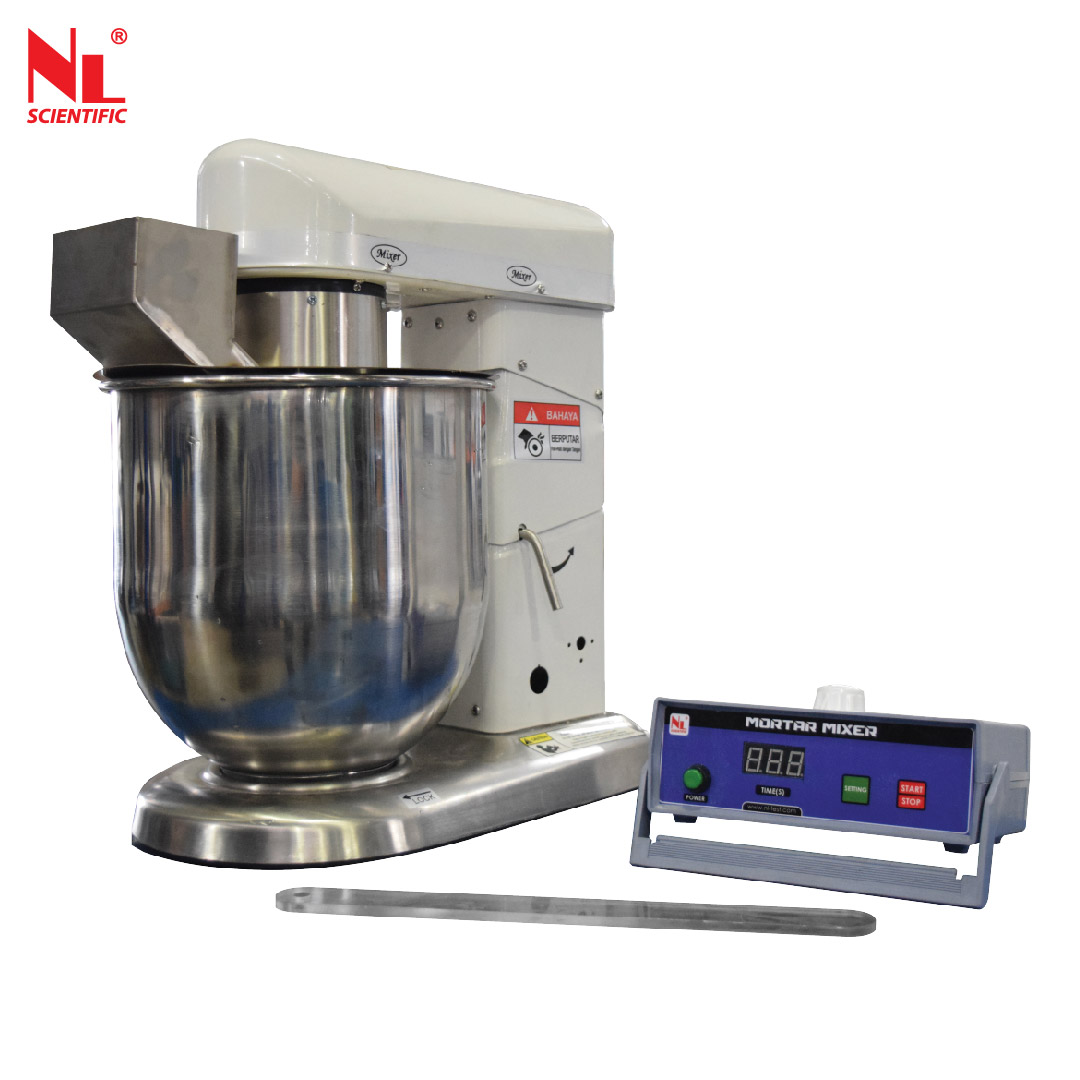

Mortar Mixer, 7 Litres

Mortar Mixer is used to prepare cement mortar for strength determination as specified in the standard. Mortar mixers consist of a large container with a capacity of 7 liters where the ingredients of the mortar, such as cement, sand, and water, are combined and mixed thoroughly to achieve the desired consistency. These mixers can be powered by electricity and operate at high speeds to ensure thorough and consistent mixing, resulting in homogeneous mixtures suitable for various construction applications. The purpose of the High-Speed Mortar Mixer is to streamline the mixing process, improve mixing uniformity, and facilitate the preparation of high-quality mortar or similar construction materials.

Features of Mortar Mixer, 7 Litres

  • Designed for blending dry materials like cement, mortar, and grout with water or additives efficiently.
  • Operates at high speeds for thorough and consistent blending, ensuring uniform mixtures.
  • Ideal for construction sites, labs, and material testing, ensuring precise mixing for desired results.

Test procedure of Mortar Mixer, 7 Litres

  1. Preparation: Start by accurately measuring the required quantities of dry materials, such as cement, mortar, or grout, and any liquid additives like water or bonding agents. Ensure the mixer is clean and ready for use.
  2. Loading: Carefully load the measured dry materials into the mixing drum of the mortar mixer. Add the liquid additives according to the predetermined mix ratio, ensuring thorough incorporation with the dry ingredients.
  3. Mixing: Once the materials are loaded, securely close the mixing drum lid. Start the mixer and operate it at the specified high-speed setting. Allow the mixer to run for the designated mixing duration, ensuring thorough blending and a uniform mixture.
  4. Monitoring: Throughout the mixing process, periodically check the consistency and uniformity of the mixture. Visually inspect for even distribution and absence of clumps or unmixed material.
  5. Completion: Stop the mixer when the mixing duration is complete or when a uniform mixture is achieved. Open the mixing drum carefully and inspect the mixture to confirm its uniformity and consistency.
  6. Testing (Optional): If needed, take samples for further testing or analysis. This may include assessing compressive strength or conducting slump tests to evaluate workability.
  7. Cleaning: After use, thoroughly clean the mixer to remove any remaining material and prevent cross-contamination. Ensure all residues are removed from the mixing drum and associated components.

Technical Specifications of Mortar Mixer, 7 Litres

 Model Number    NL 3032 X / 002
 Bowl Capacity  7 Litres
 Stirring Speeds  1000-3000±50 r/min
 Stirring Line Speeds    15 m/s
 Mixing Capacity  5 to 7 litres
 Dimension (mm)  420 (L) x 270 (W) x 450 (H)
 Approx. Weight  45 kg
 Power  220 V, 500 W, 50/60 Hz, 16 A, 1Ph

Unit Consists:

 Model Number  Parts Description  Qty
 NL 3032 X / 001 - P001   Mixing Bowl 7 L  1no.
 NL 3032 X / 001 - P002   Portable Control Unit  1unit.

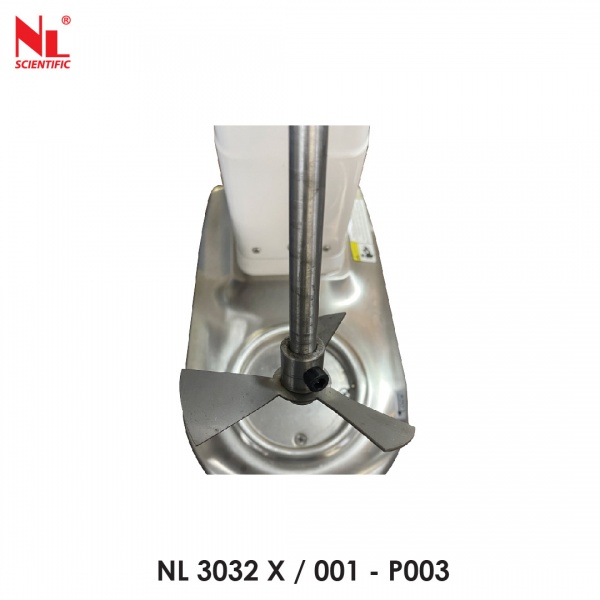

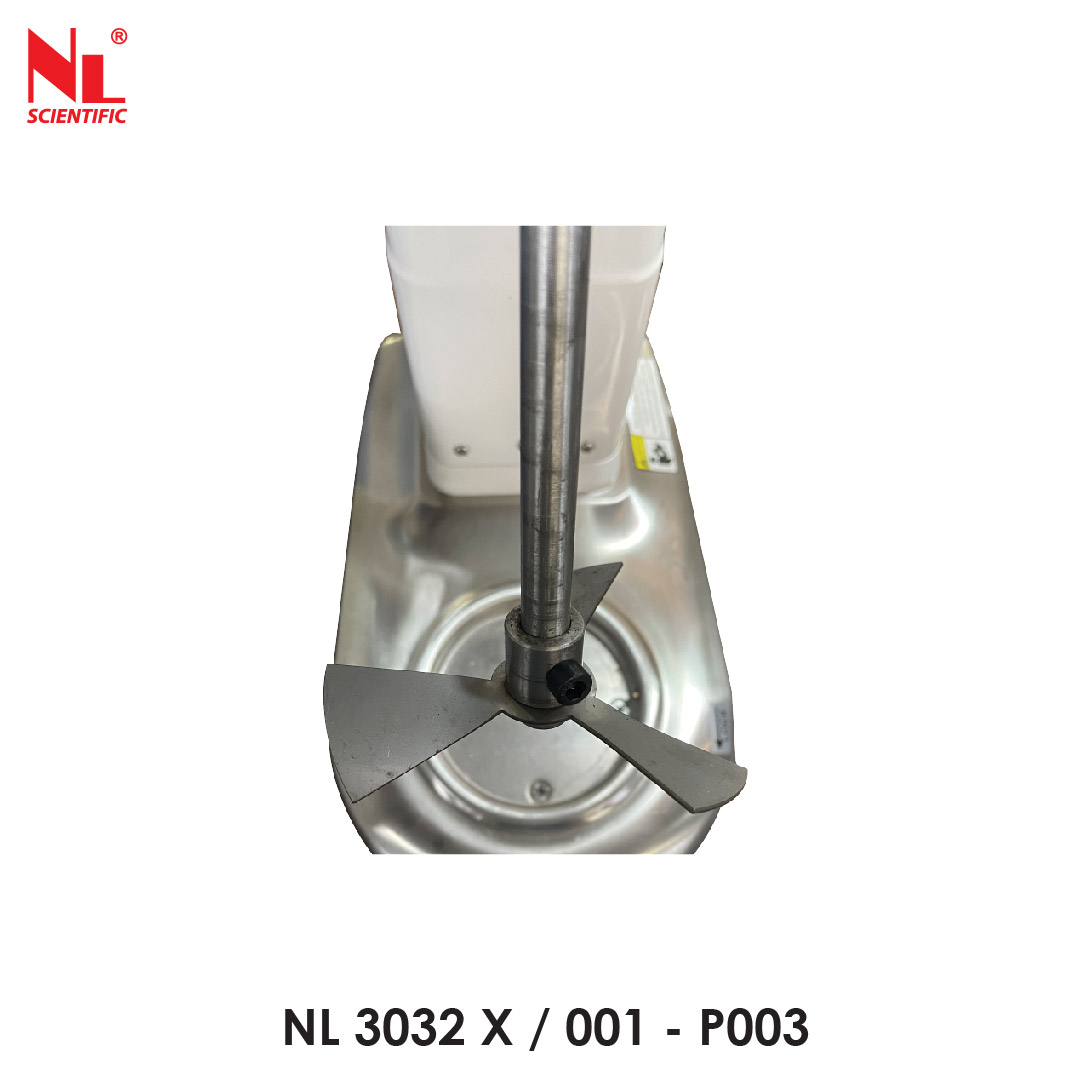

 NL 3032 X / 001 - P003  Stir Bar  1no.
