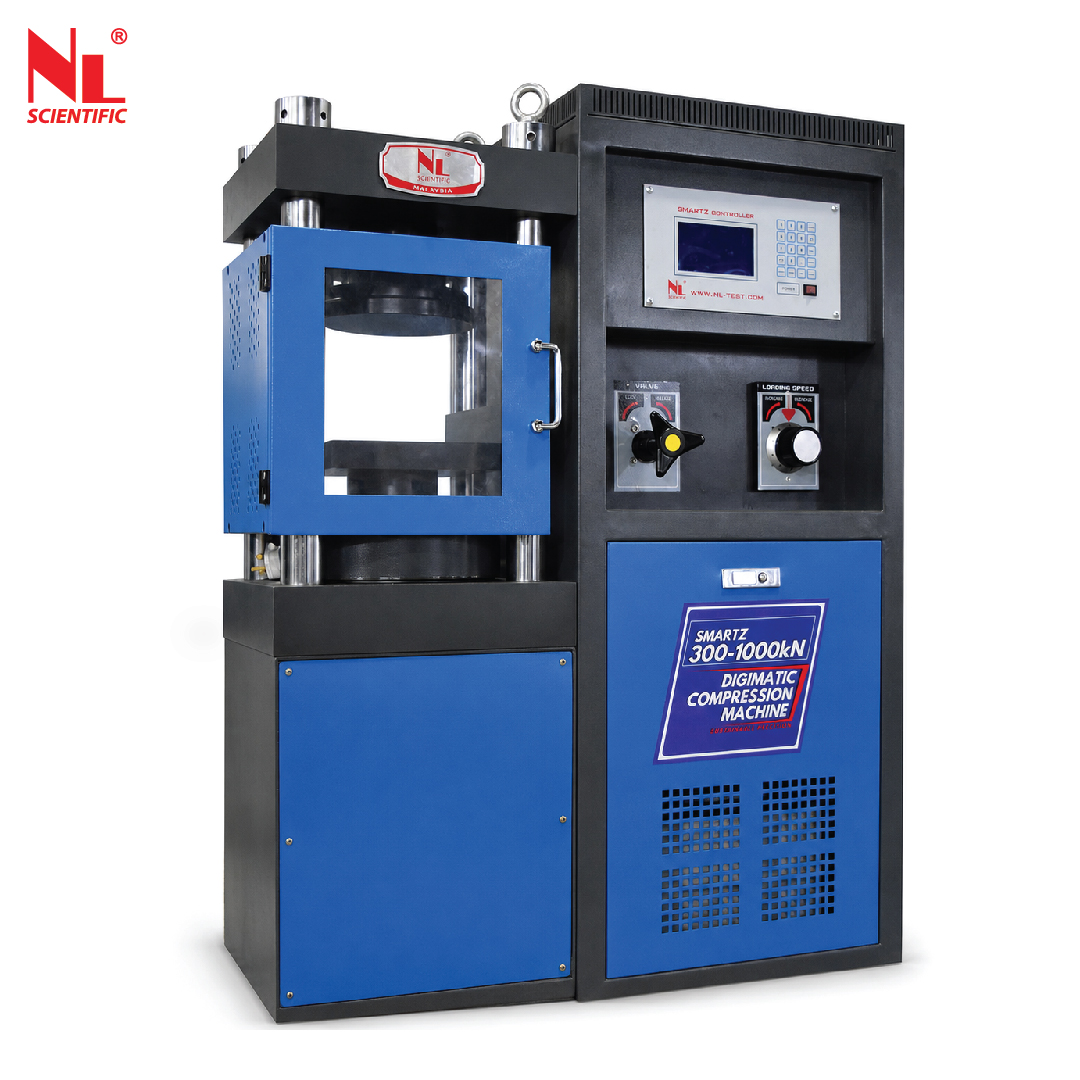

Digimatic Compression Machine (Low Strength) 300 - 1000kN
NL 3029 X / 003

Standard: EN 12390-3,EN 1338,EN 196-1/AASHTO T22/ASTM C39

 Low Strength Compression

This semi-automatic compression machine special designed for specimen such as low strength concrete, brick, mortar and etc. User can request any maximum compression force (Between 300 to 1000 kN).

Unique Feature :-
- Front and side safety enclosed.
- Loading speed control knob.
- Grade 1.0 compression accuracy.
- 5 elements injection hydraulic pump.
- High tensile pre-stress 4 column frame.
- Rapid approach system for time saving.

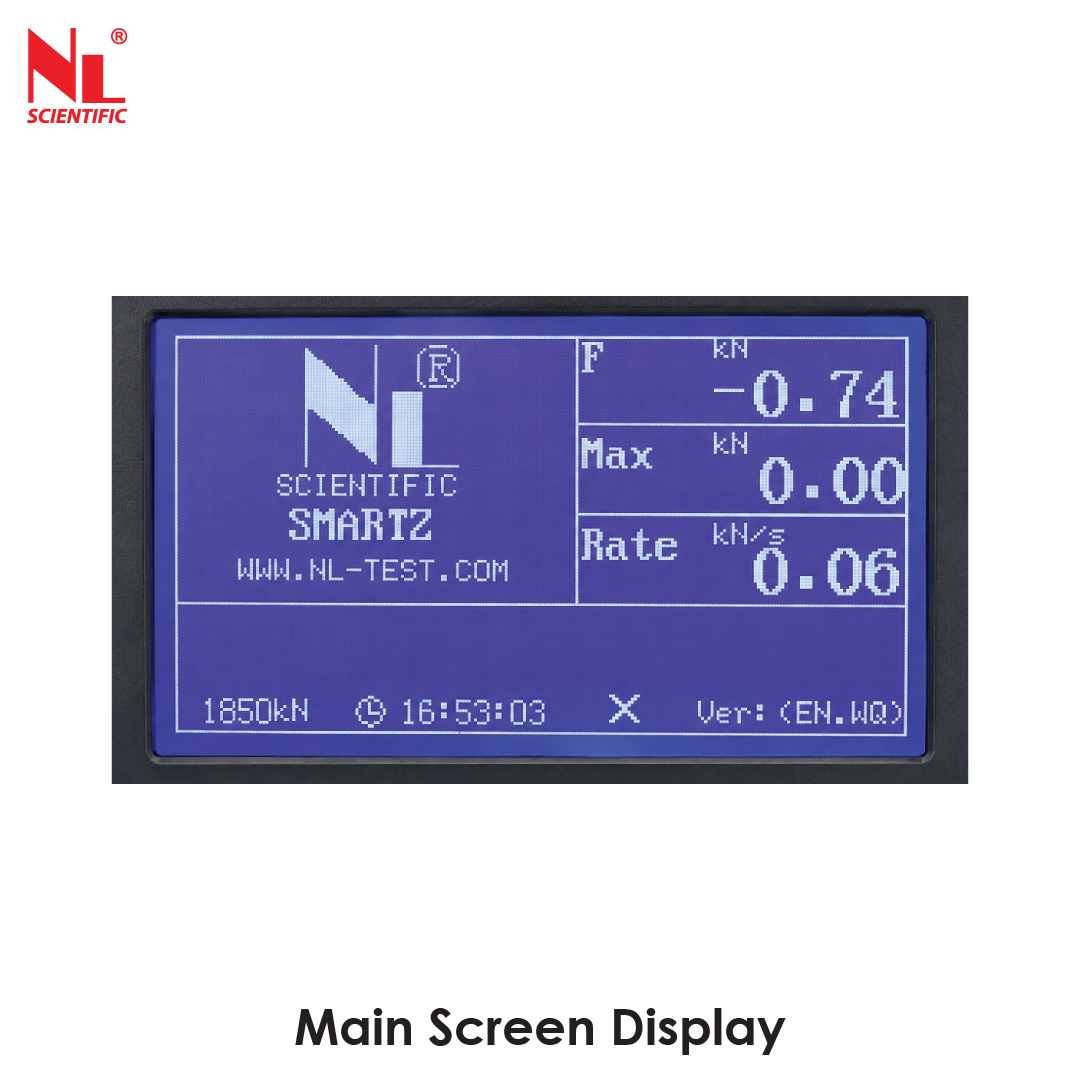

Digimatic multi function controller :-
-Force value in kN & Mpa

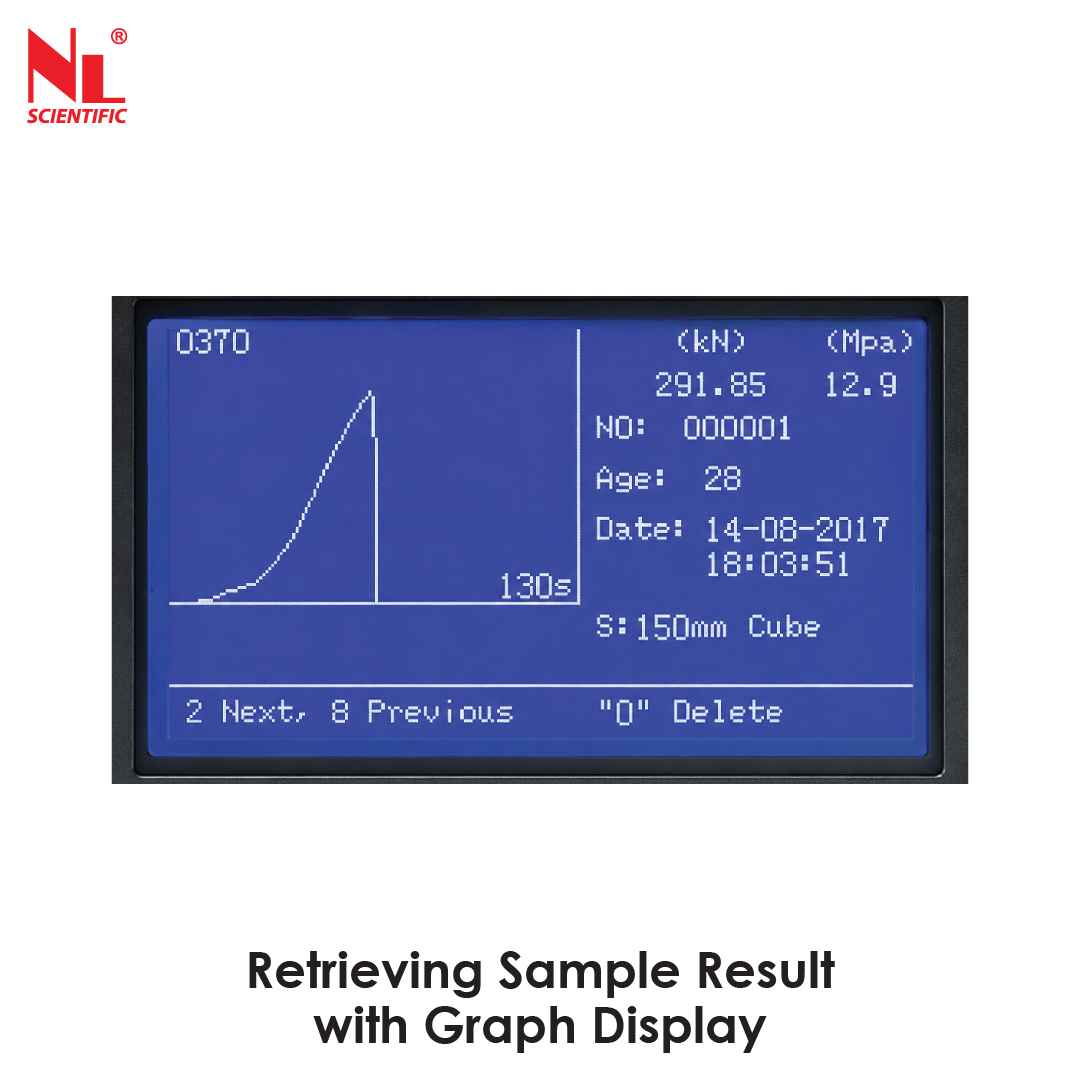

-Max. force hold facility with real time force vs time graph display
-Multiple testing program can be selected
-Auto result saving up to 450 specimen

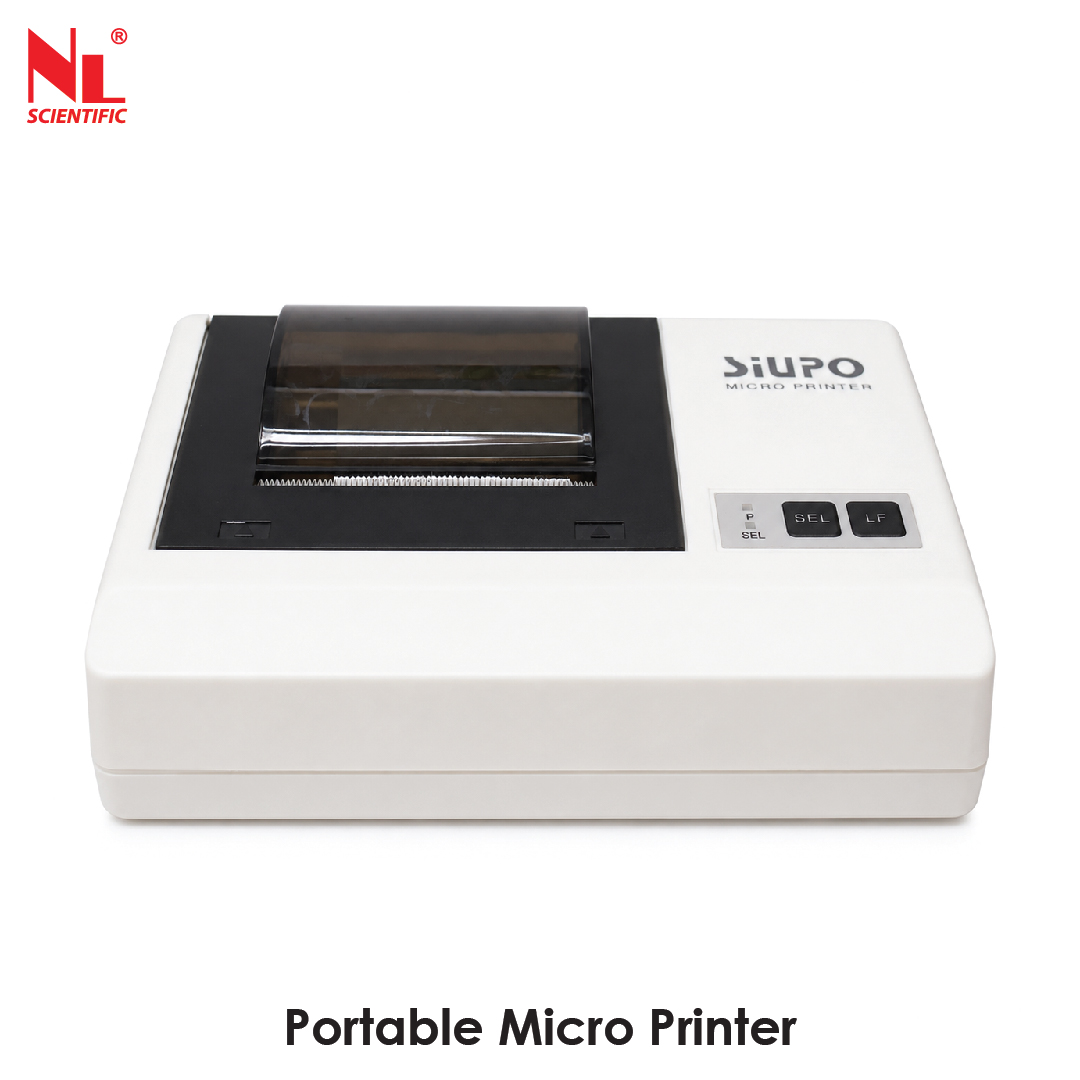

-RS 232 port for instant result printing (Mini printer c/w cable NEED order separately)
-115 x 65 mm high resolution LED screen

Technical Specifications:

Set Consists Of:

*1 Copy of Manual Instruction

Optional Accessories :
