Cement & Mortar Testing Equipments

Product Range

Materials Grinding A cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw material & etc. The drum rotate around a horizontal axis. Technical Specifications: Model Number NL 3014 X / 001 Drum Capacity 150 Litres Drum Rotatio ...Read more

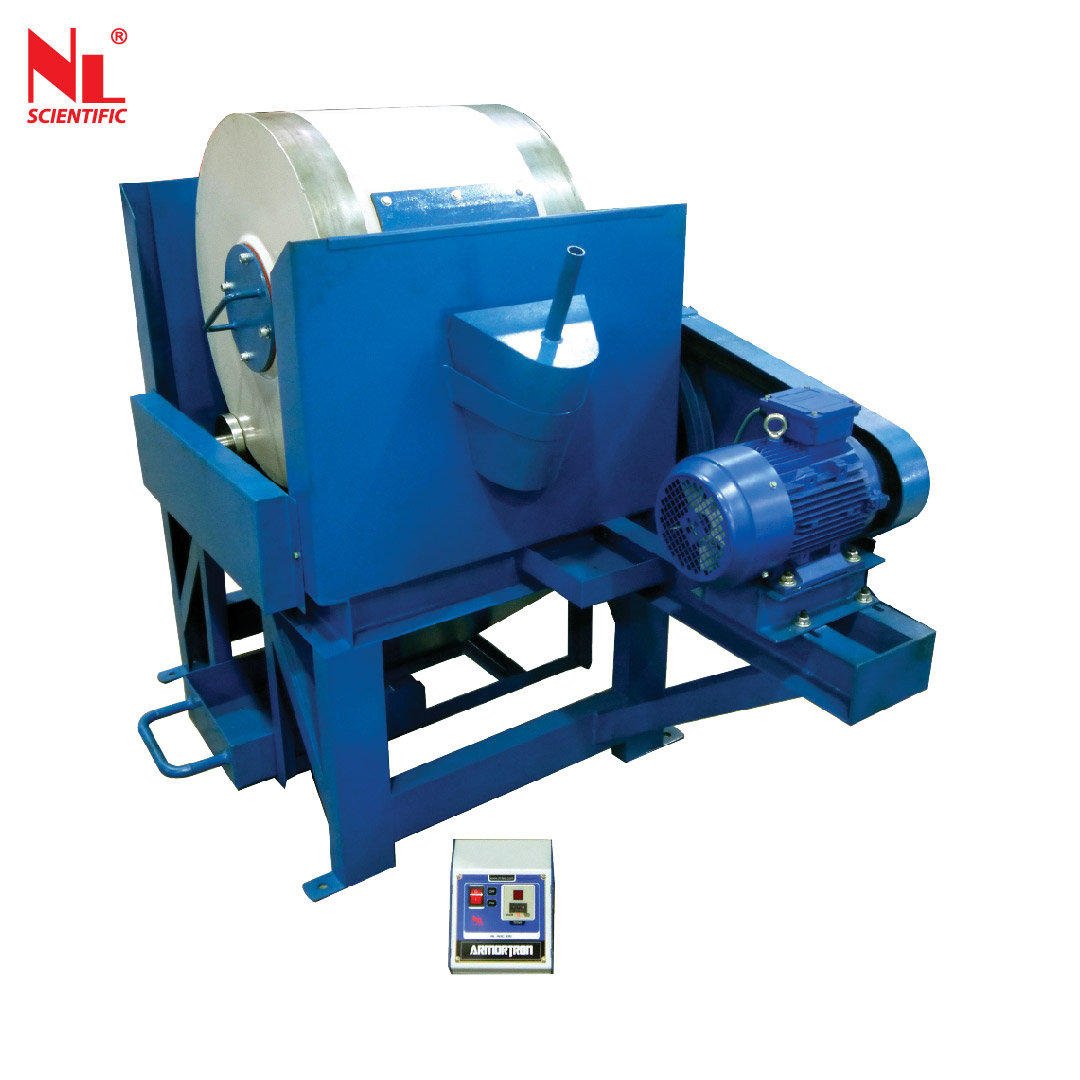

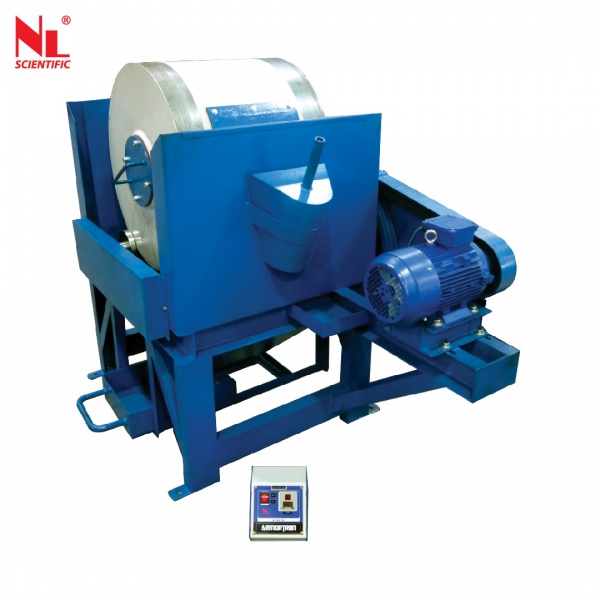

Ball Mill Apparatus
NL 3014 X / 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Materials Grinding

A cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw material & etc. The drum rotate around a horizontal axis.

Technical Specifications:

Model Number	NL 3014 X / 001
Drum Capacity	150 Litres
Drum Rotation Speed	37 - 39 r.p.m.
Dimension (mm)	1500 (L) x 860 (W) x 1275 (H)
Approx. Weight	520 kg
Power	2.2 KW, 415 V, 3 Hp, 3 ph, 46 A
