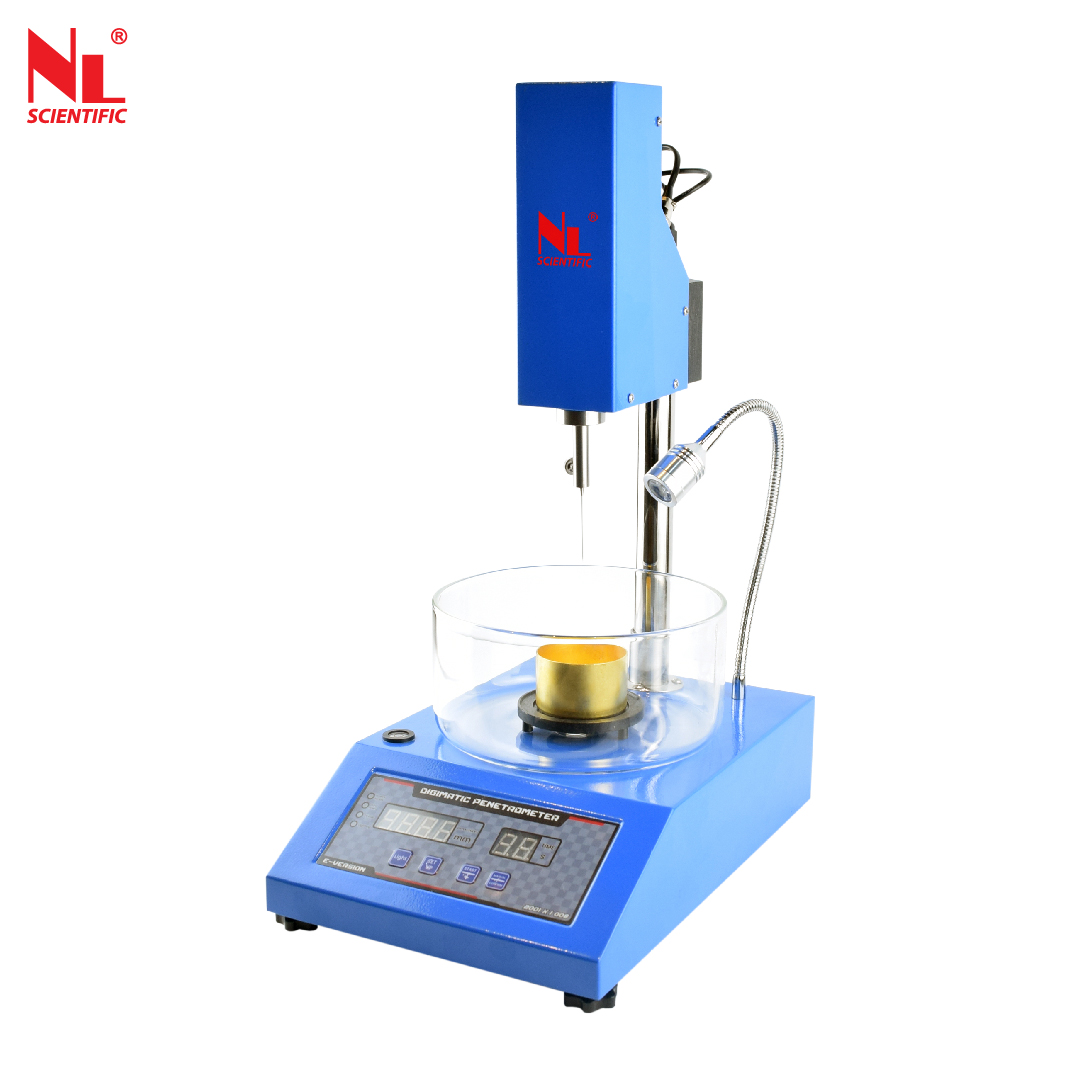

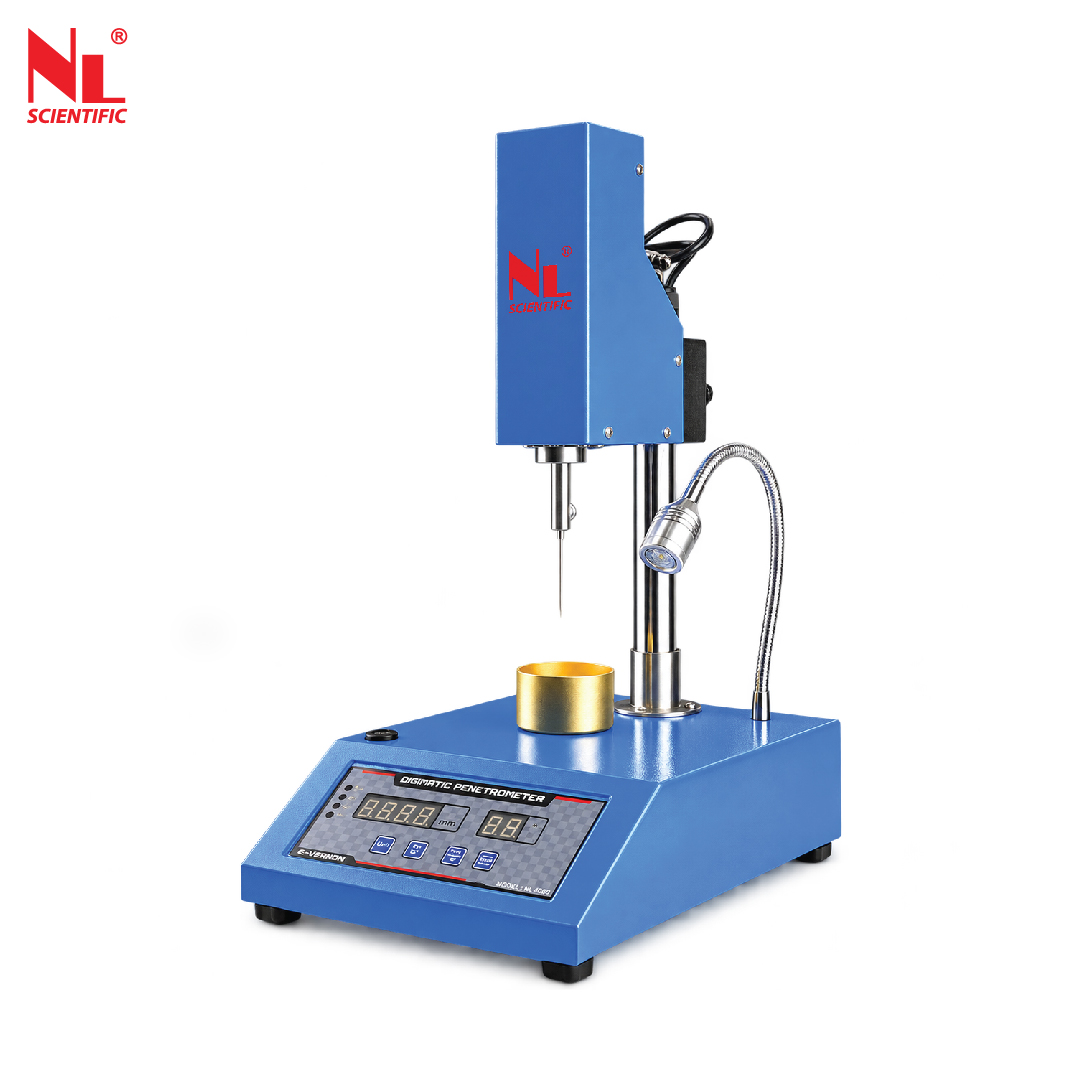

Advance Digital Penetrometer
NL 2001 X / 007




  • Description

Standard: EN 1426, ASTM D5,AASHTO T49

Penetration of Bituminous Materials

NL upgraded version FULLY AUTOMATIC apparatus to determine the consistency of sample from the depth penetration thru penetration needle under standard load condition.

FEATURES:-
*Light weight with compact design
*Automated record penetration result
*High accuracy using measuring transducer
*Enable auto or manual test operation
*LED lighting stand
*Levelling bubble & vertical fine adjustable knob
*Large LED screen with multiple control keypad
*Multiple function communication port
*Selectable penetration timing 5S,15S,30S & 60 S

Optional Unique Features:-
*Enable connected to mini printer for instant result with average test result
*Enable to test in various weather condition by adding transfer disc and heating element

Technical Specifications:

 Model Number  NL 2001 X / 007
 Penetration Depth & Displayed Unit  40 x 0.01 mm
 Product Dimension (mm)  310 (L) x 210 (W) x 450 (H)
 Packing Dimension (mm)  330 (L) x 230 (W) x 510 (H)
 Approx. Product Weight  6.5 kg
 Approx. Packing Weight  7.5 kg
 Power  220 V, 1 ph, 50 / 60 Hz
