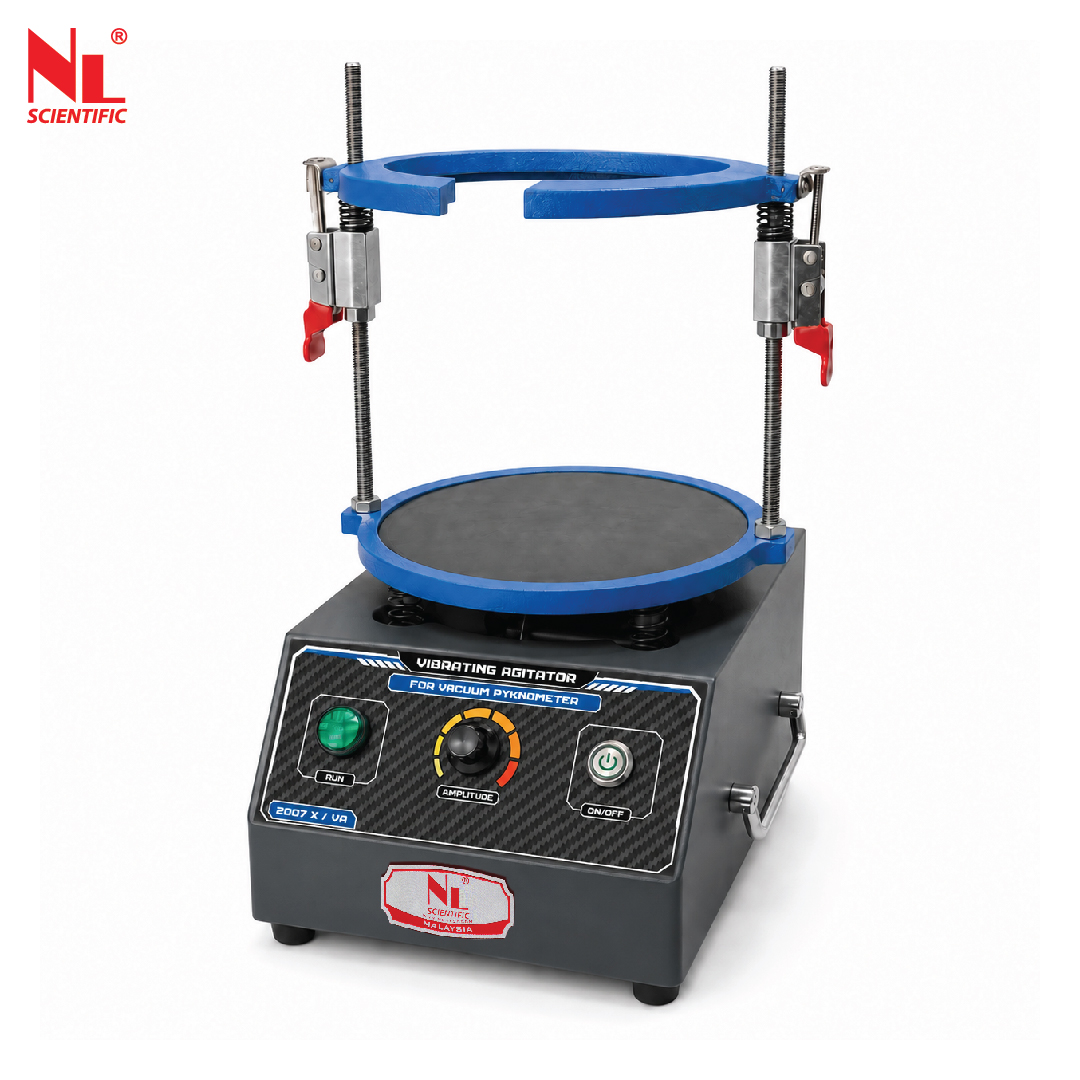

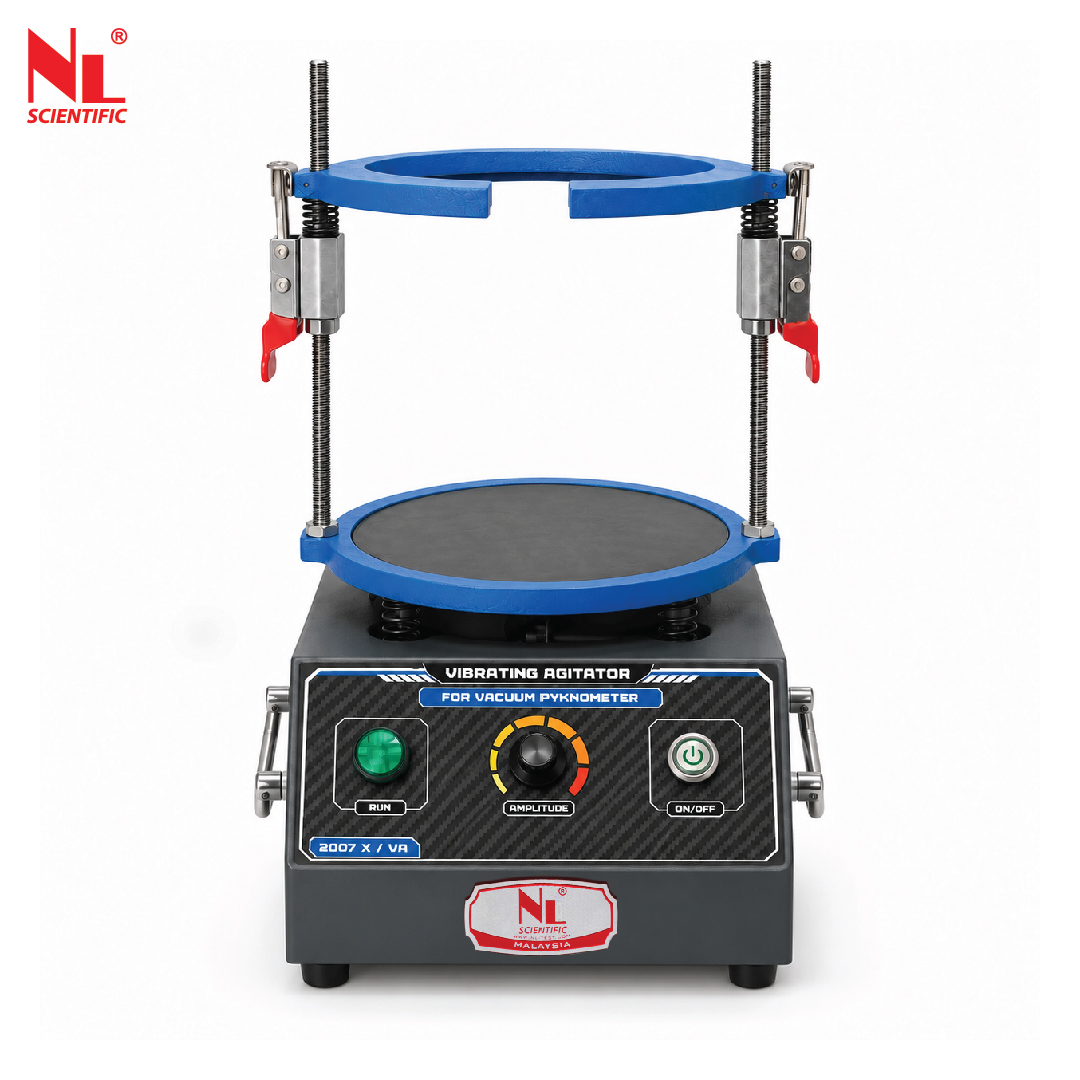

Vibrating Agitator for Vacuum Pycnometer
NL 2007 X / VA

  • Description

Determination of Maximum Density

Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. It can also be used for the calculation of the percent air voids in compacted bituminous mixtures & the amount of bitumen absorbed by the aggregates.



 Technical Specifications:

 Model Number  NL 2007 X / VA
 Amplitude  Multi Level (Adjustable)
 Product Dimension  300 (L) x 300 (W) x 470 (H) mm
 Packing Dimension  500 (L) x 500 (W) x 670 (H) mm
 Approx. Weight  9.2 kg
 Packing Weight  20 kg
 Power  220~240 V, 60 W, 1 Ph, 50/60 Hz, 5 A, 0.08 Hp



Set Consists Of:

 Model Number  Parts Description
 NL 1015 X / 018 – P 001  Vertical Pole c/w Quick Adjustable Clamp
 NL 1015 X / 018 – P 002  Clamping Ring
 NL 1015 X / 006 – P 003  Round Rubber Pad
