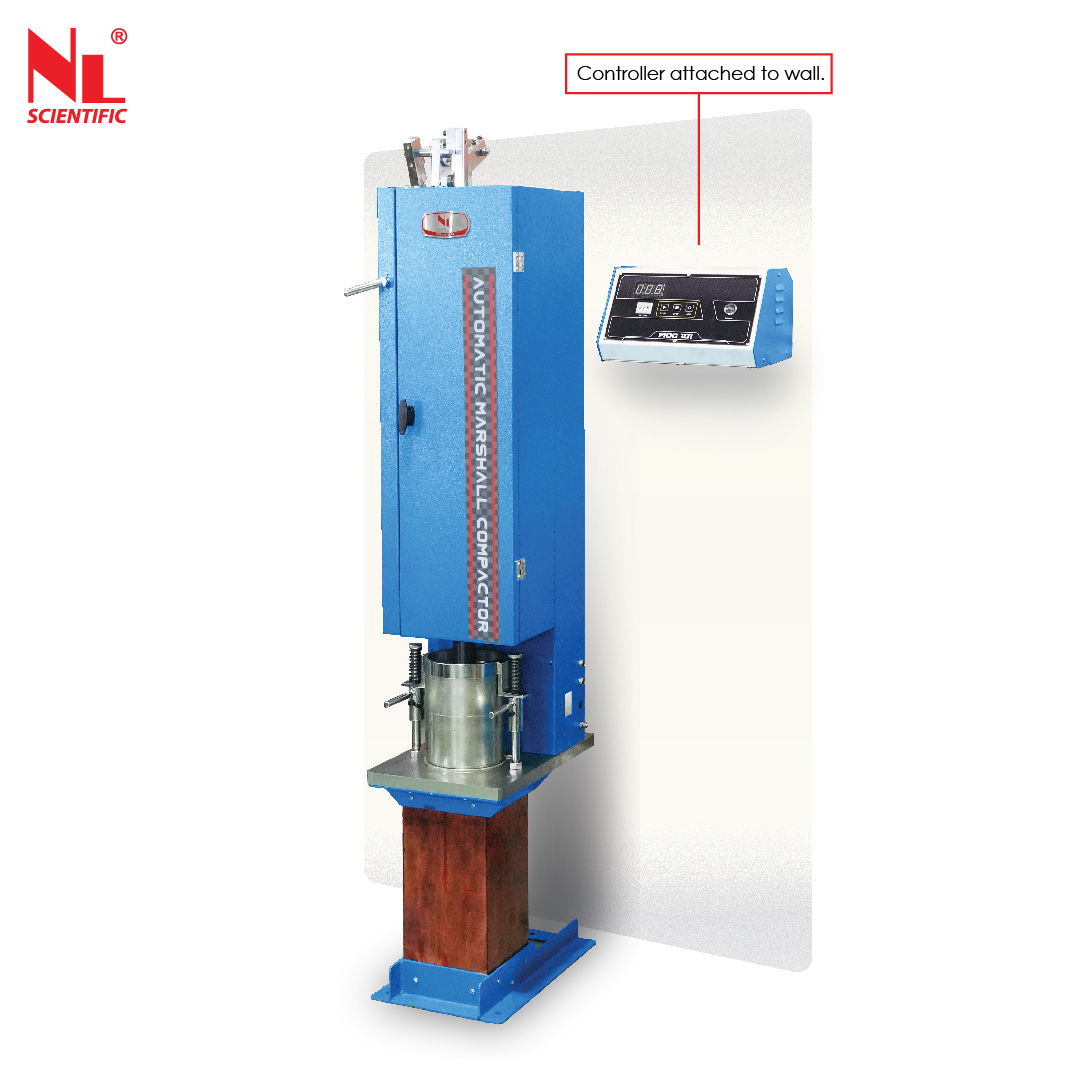

Automatic Marshall Compactor 4" & 6" Diameter (ASTM)
NL 2000 X / 010N

  • Description

Standard: ASTM D6926/D5581, AASTHO T245

Automatic Compactability

This ruggedly constructed apparatus automatically compacts the Marshall specimens 4” & 6” diameter, and stops after the preset number of blows has been completed on the separate automatic digital display counter.

The trip mechanism is structured so that the sliding hammer falls at the same height at every blow. The mould is stationary and the hammer has flat-foot.



Technical Specifications:

 Model Number  NL 2000 X / 010N
 Weight of Hammer  10.2 kg
 Free Fall Height  457.2 mm
 Blow Rate  55 - 60 Blow / min
 Product Dimension  360 (L) x 585 (W) x 1780 (H) mm
 Packing Dimension  380 (L) x 685 (W) x 1980 (H) mm
 Product Weight  160 kg
 Packing Weight  175 kg
 Power  220~240 V, 375 W, 1 Ph, 50/60 Hz, 2.5 A, 0.5 Hp

*1 Copy of Manual Instruction
