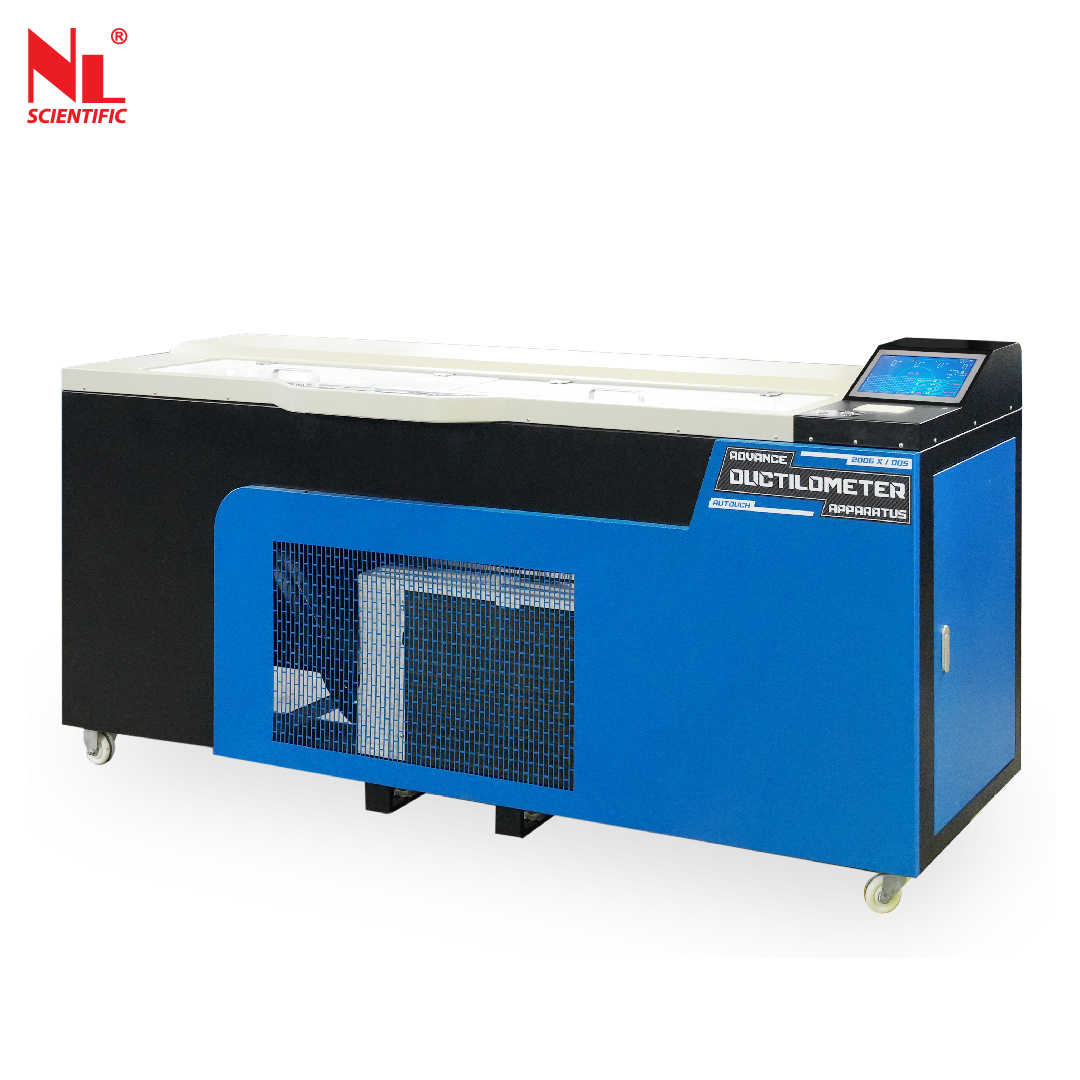

Advance Ductilometer Apparatus (Autouch)
NL 2006 X / 005

  • Description

Standard: EN 13398, EN 13589, ASTM D113, ASTM D6084, AASHTO T51

Ductility Tester

Latest upgraded product for determine the bituminous ductility. By measuring the elongation before breaking when two end of briquettes specimen are pull apart at a specified speed and temperature. Supplied WITHOUT briquettes moulds.
MOULD NEED TO ORDER SEPARATELY.

FEATURES:-
* Double speed setting for elongation movement.
* Using double ball screw with servo motor for uniform movement.

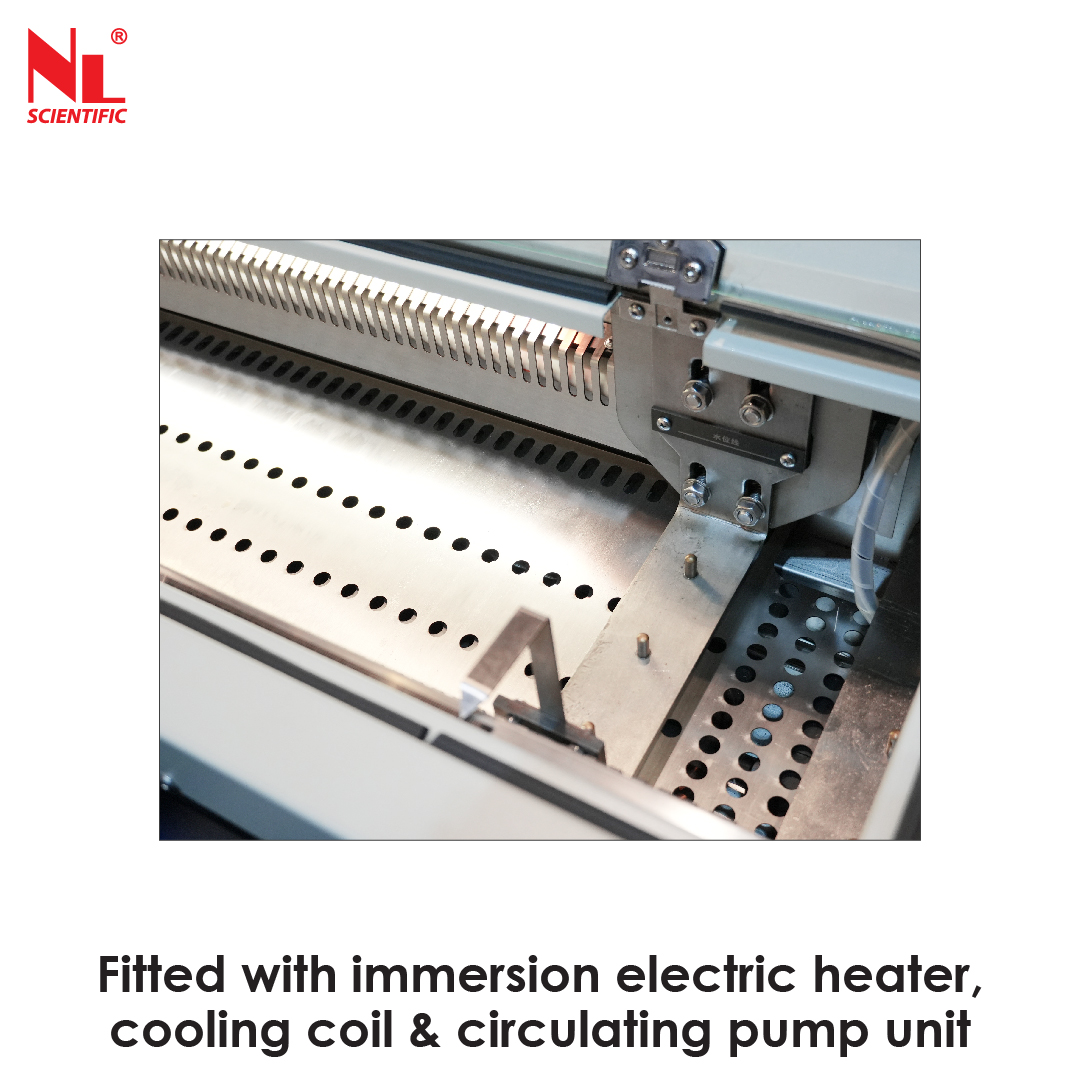

* Fitted with immersion electric heater, cooling coil & circulating pump unit.

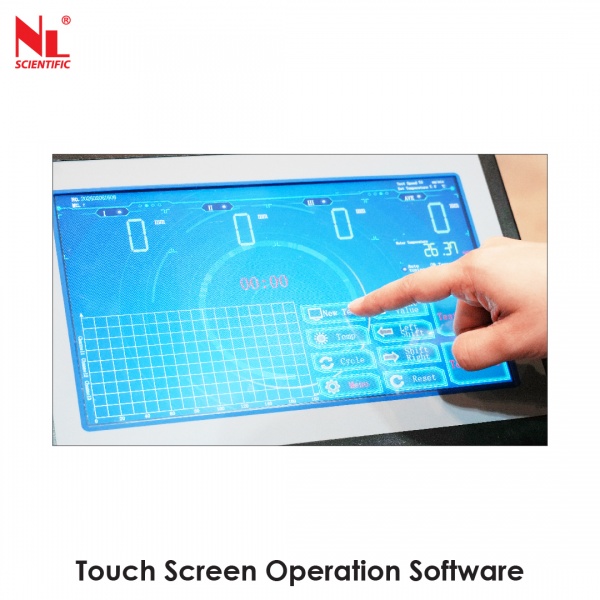

* Advanced touch-screen software for easy operation and real-time control.

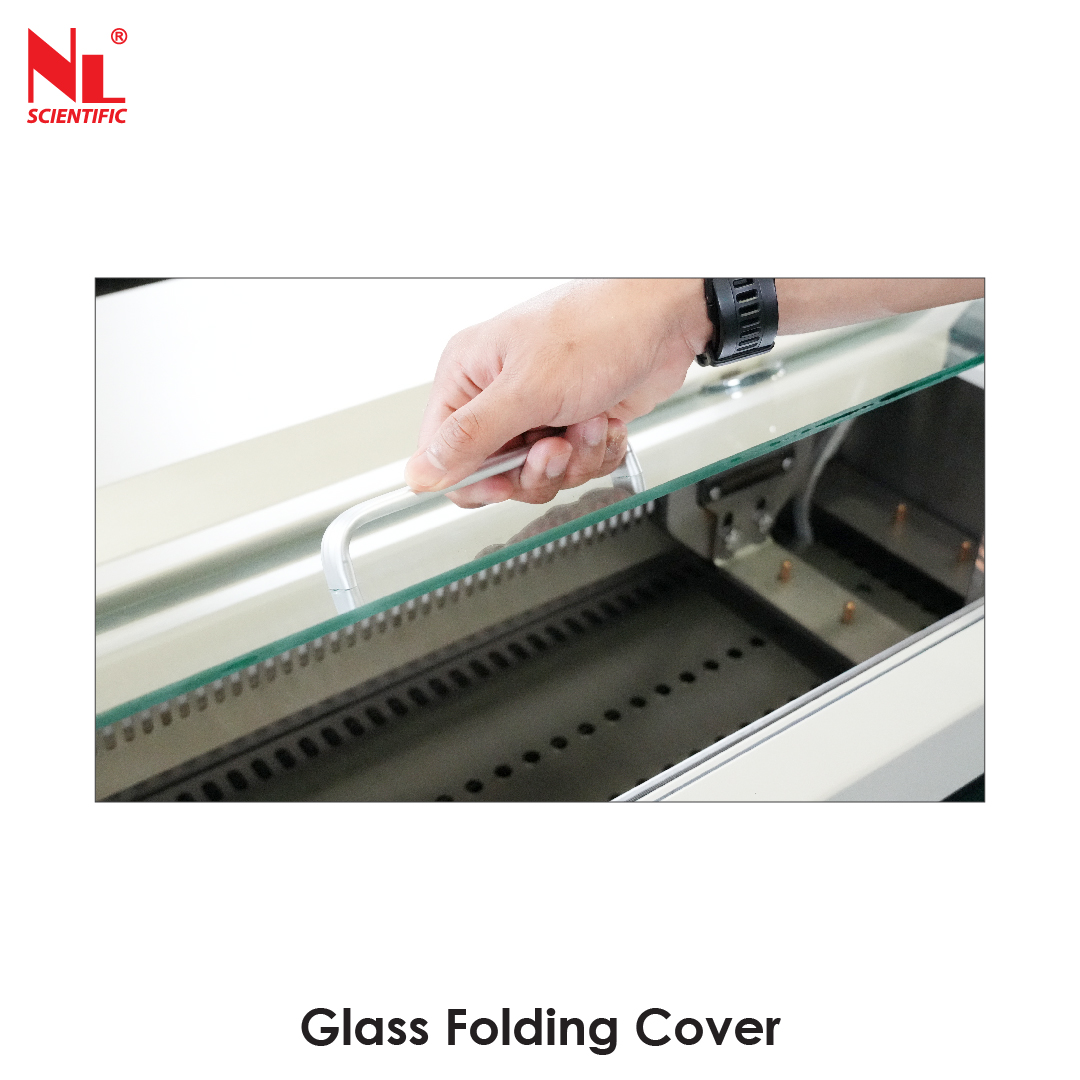

* Tank Glass Cover upgraded to mechanism folding cover.

Technical Specifications:

 Model Number  NL 2006 X / 005

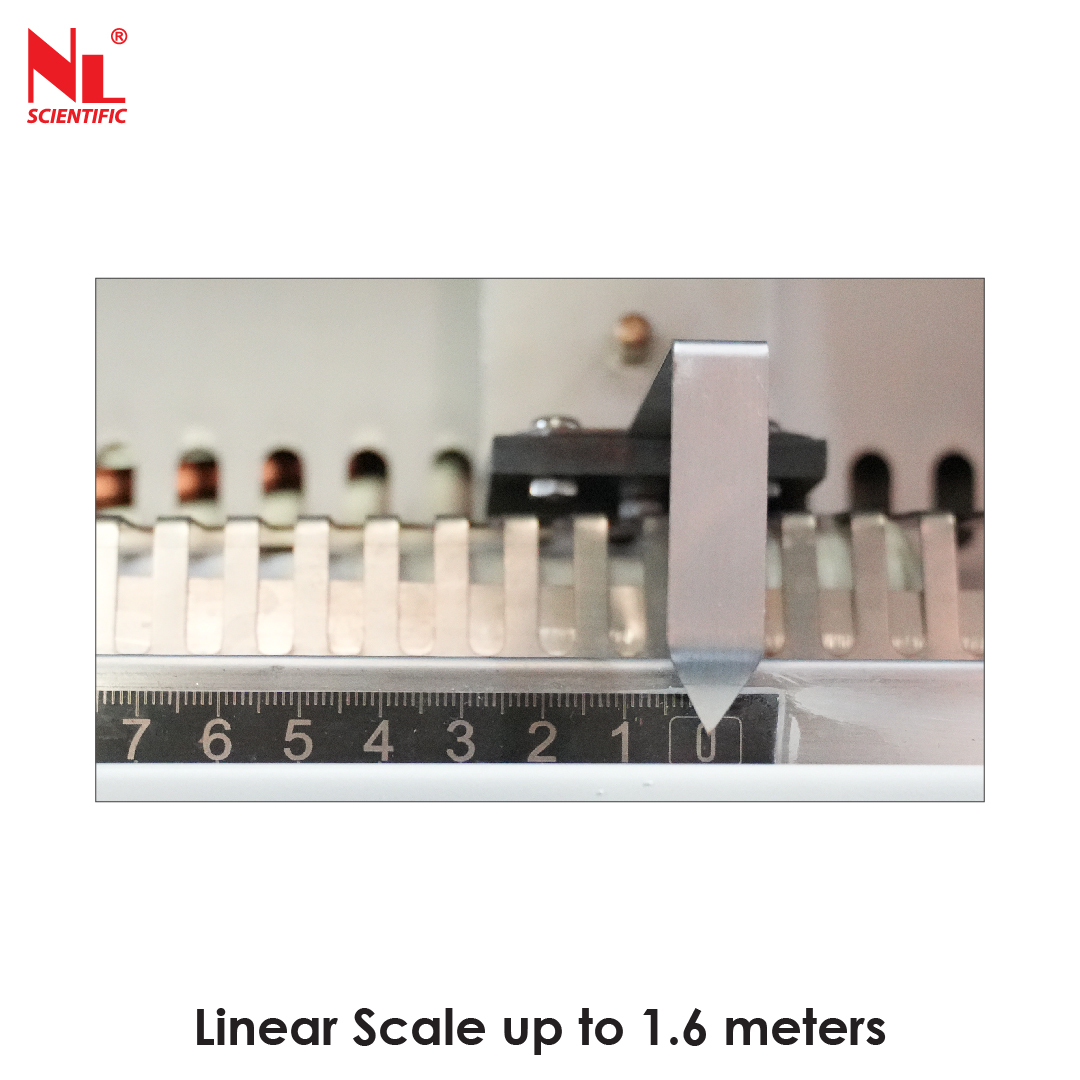

 Max. Carriage Displacement  1600 mm
 Displacement Accuracy  0.1 mm
 Temperature Range  0 - 60°C
 Temperature Accuracy  ±0.1°C
 Test Speed Selection  10, 50, 10 - 100 mm/min (Customizable)
 Cooling Power  1.2 kW
 Heating Power  4.0 kW
 Nos. of Specimen Carriage  Max 3 nos.
 Product Dimension (mm)  2330 (L) x 620 (W) x 1010 (H)
 Packing Dimension (mm)  2460 (L) x 785 (W) x 1200 (H)
 Product / Packing Weight  188 kg / 291 kg
 Power`  220~240 V, 5.75 kW, 1 Ph, 50/60 Hz, 25 A, 0.8 Hp

Unit Consist Of:

 Model Number  Parts Description Qty
 NL 2006 X / 003 – P 001  Handheld Distance Remote Control 1 no.

*1 Copy of Manual Instruction

Optional Accessories

 Model Number  Accessories Description

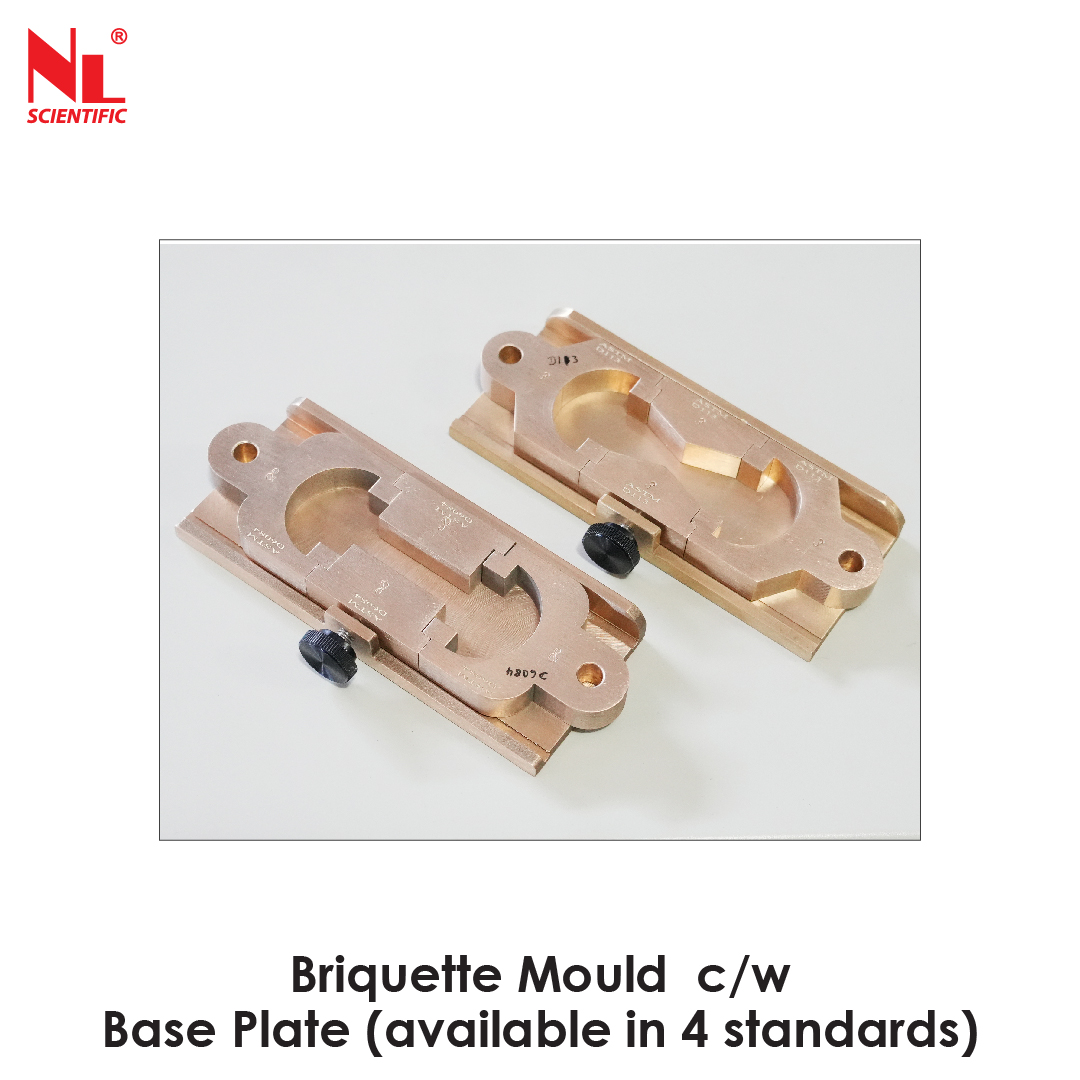

 NL 2006 X / 002 – A 001  Briquette Mould c/w Base Plate (ASTM D113)
 NL 2006 X / 002 – A 002  Briquette Mould c/w Base Plate (ASTM D6084)
 NL 2006 X / 002 – A 003  Briquette Mould c/w Base Plate (EN 13398)
 NL 2006 X / 002 – A 004  Briquette Mould c/w Base Plate (EN 13589)
 NL UTP  Universal Thermo Printer
 NL TPR - 57  Thermo Paper Roll 57mm x 31 mm Dia. (5 rolls / pack)
