Standard: ASTM D2196, ASTM D4402, EN 13302, AASHTO T316 Viscosity of Liquid This equipment used to measure the absolute viscosity of Newtonian liquid and the apparent relative viscosity of non Newtonian liquid. It can be widely used in oil, paint, plastic, medicine, food, coating, glue, viscometer ...Read more

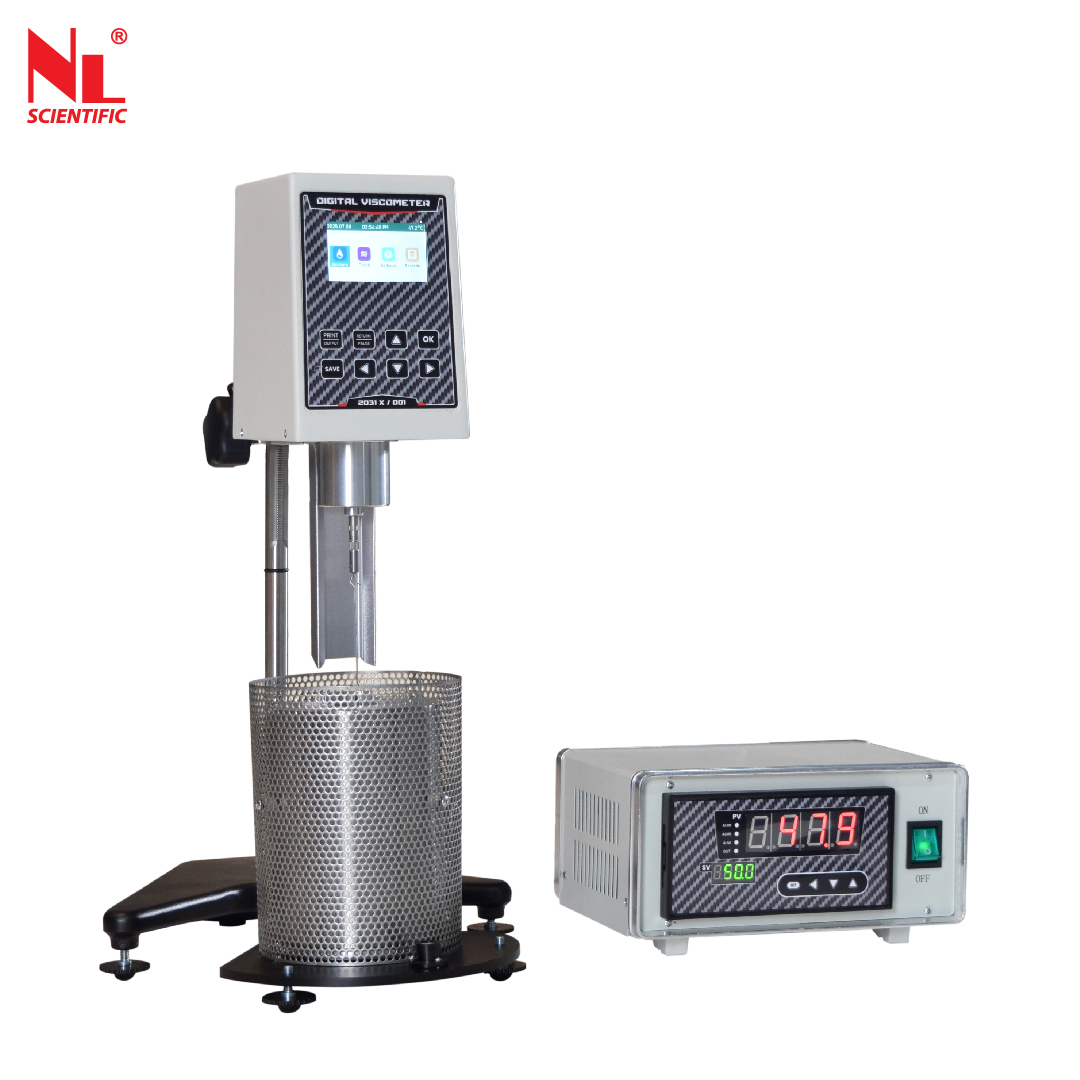

Digimatic Viscometer
NL 2031 X / 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: ASTM D2196, ASTM D4402, EN 13302, AASHTO T316

Viscosity of Liquid

This equipment used to measure the absolute viscosity of Newtonian liquid and the apparent relative viscosity of non Newtonian liquid. It can be widely used in oil, paint, plastic, medicine, food, coating, glue, viscometer, resin, solder paste, red glue, asphalt and other chemical raw materials. It can also display shear rate and shear stress. The viscosity value display changes continuously, and there is an alarm sound when it exceeds the measurement range. The heater adopts temperature control with uniform heating and good thermal stability.

Technical Specifications:

Model Number	NL 2031 X / 001
Viscocity Range	5 - 10 million mPa.s (milipascal second)
Accuracy	± 1.0%
Repeatability	± 0.2%

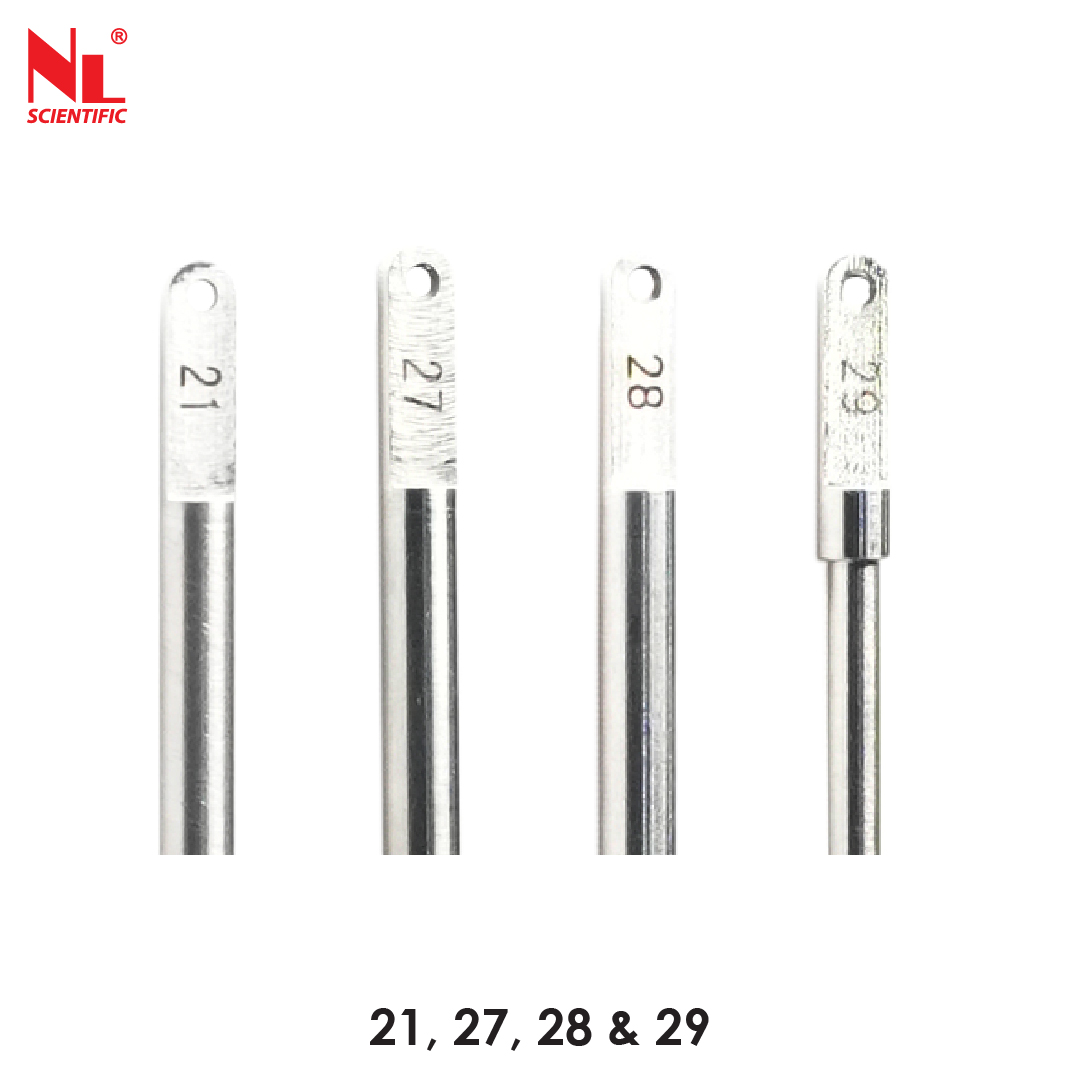

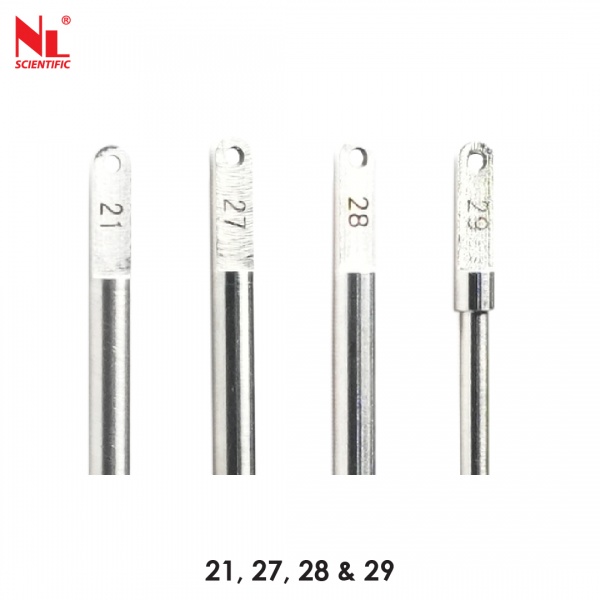

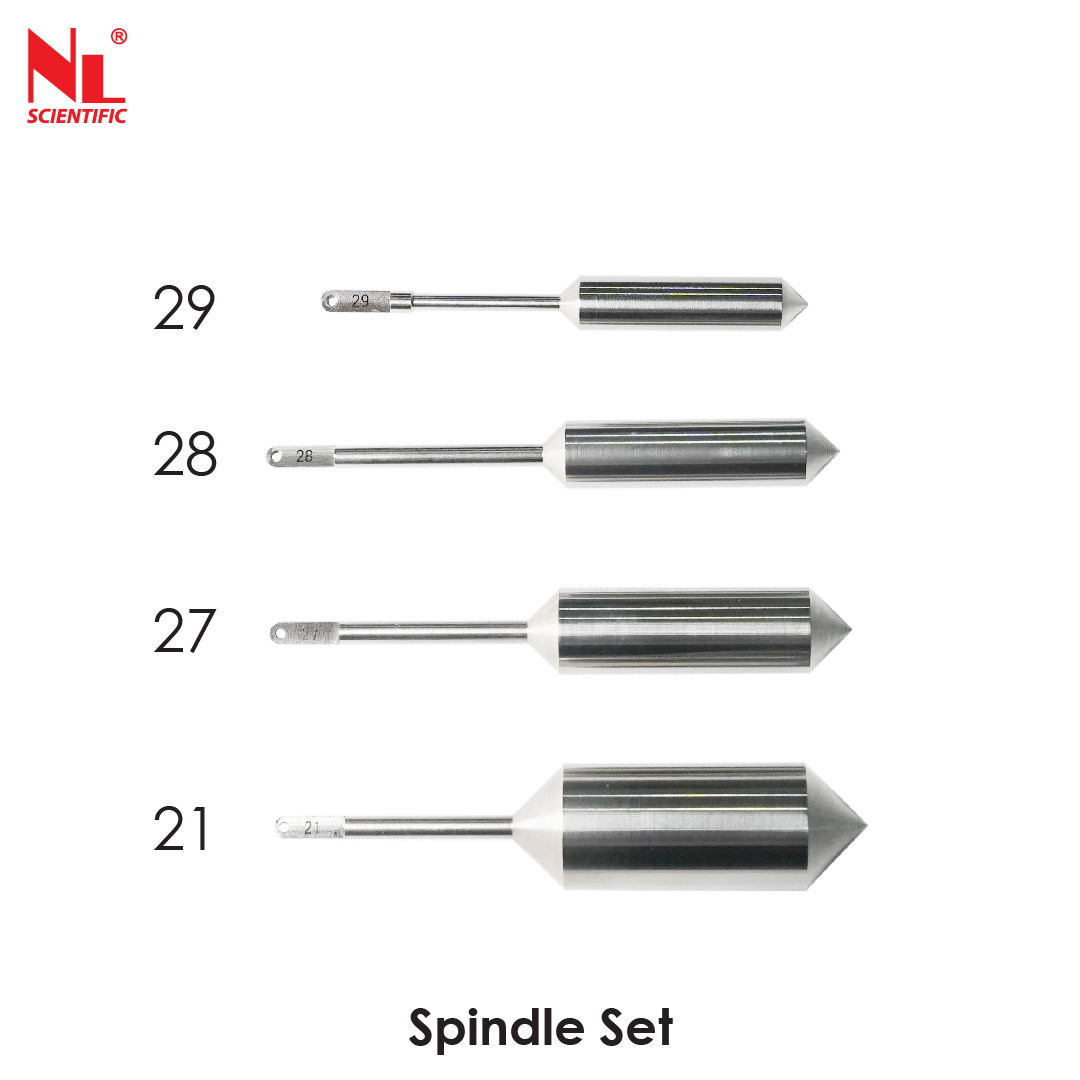

Spindle Set	21, 27, 28 & 29
Rotation Speed	0.1 - 200 RPM
Sample Volume	10 - 20 ml
Temperature Control	10 - 300°C @ ±0.1°C
Product Dimension	290 (L) x 240 (W) x 580 (H) mm
Approx. Weight	9.7 kg
Power Supply	220~240 V, 1 Ph, 50/60 Hz

*1 Copy of Manual Instruction
