Vacuum Pyknometer
NL 2007 X




  • Description

Standard: EN 12697-5, EN 13108, ASTM D2041, AASHTO T209 & T283

Determination of Maximum Density

Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. It can also be used for the calculation of the percent air voids in compacted bituminous mixtures & the amount of bitumen absorbed by the aggregates. Three type capacity pyknometer for selection.





Technical Specifications:

 Model Number  Item Description

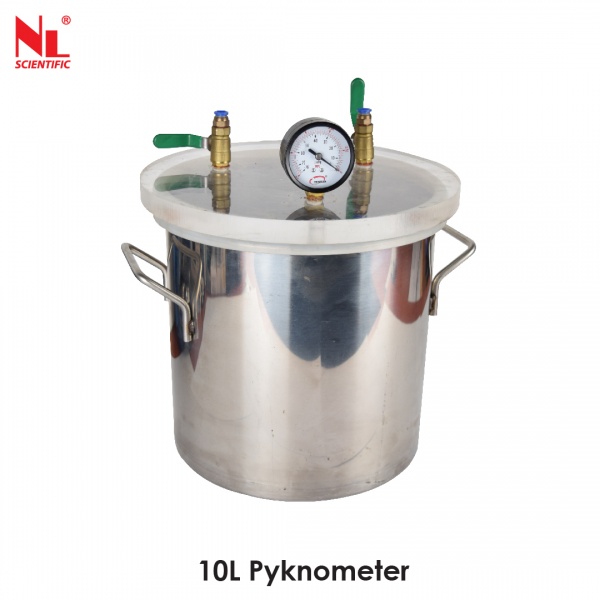

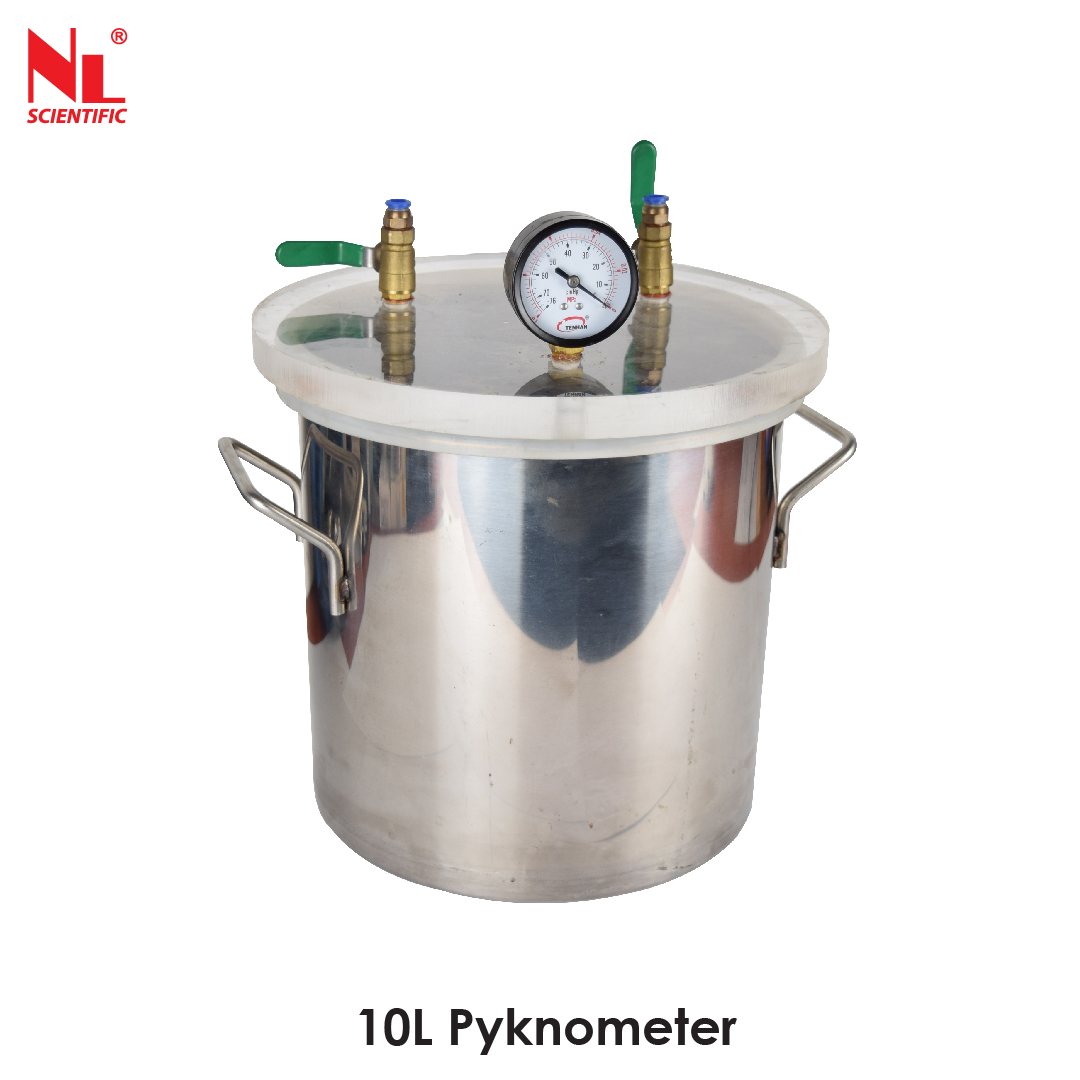

 NL 2007 SS / 001  Large Vacuum Pyknometer (10 Litres)
 Material : Stainless Steel Tank with Acrylic Cover
 Weight : 3.5 kg

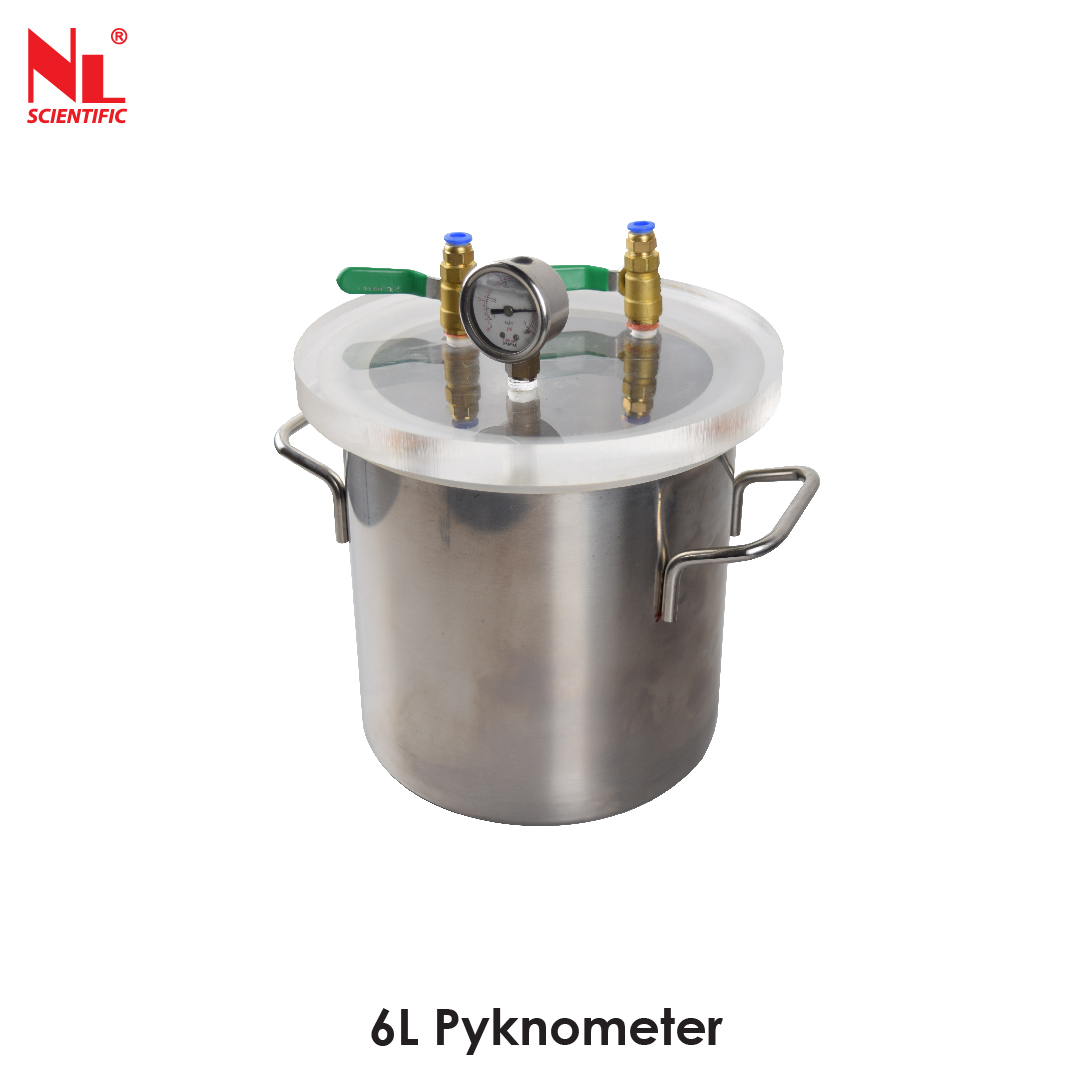

 NL 2007 SS / 002  Medium Vacuum Pyknometer (6 Litres)
 Material : Stainless Steel Tank with Acrylic Cover
 Weight : 2.6 kg

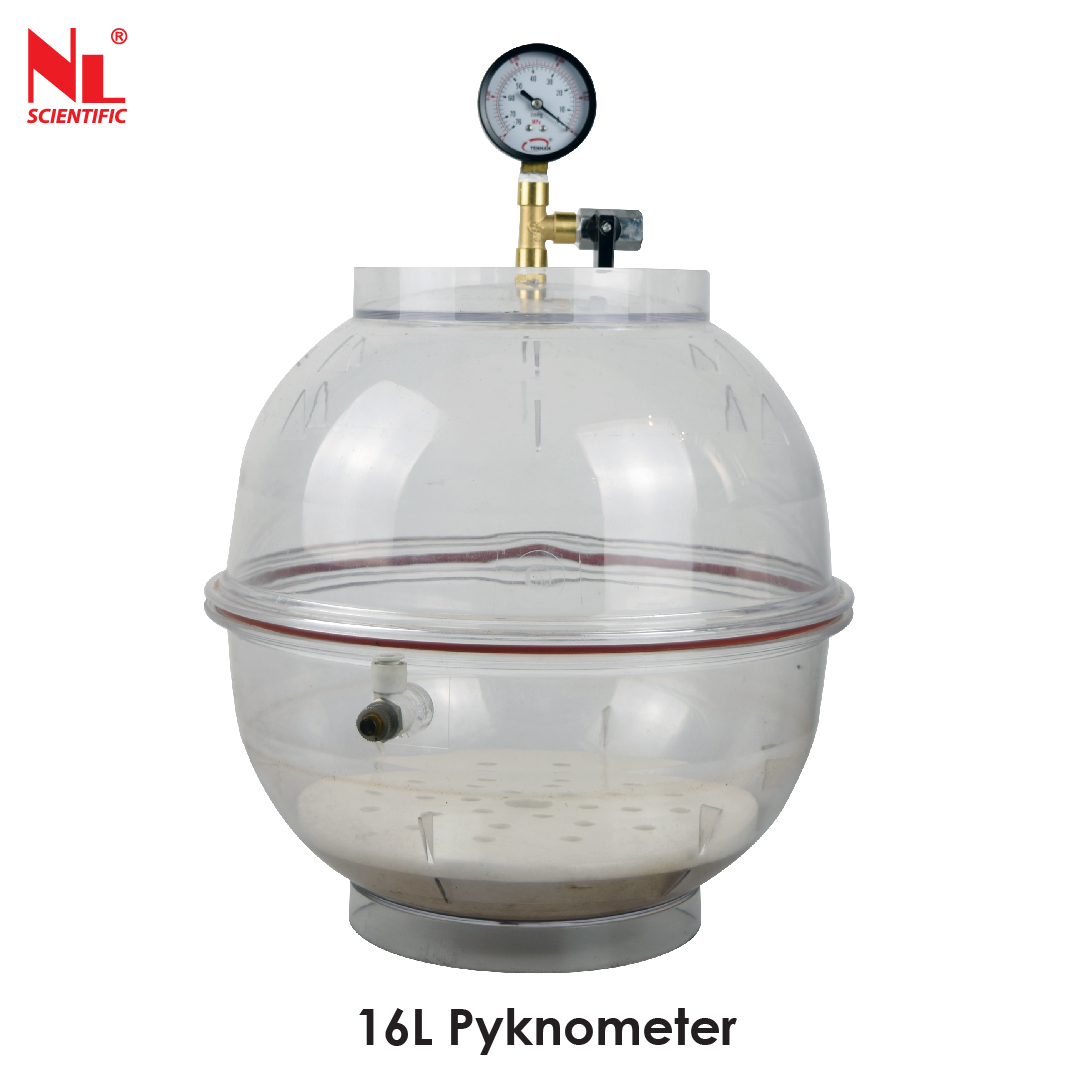

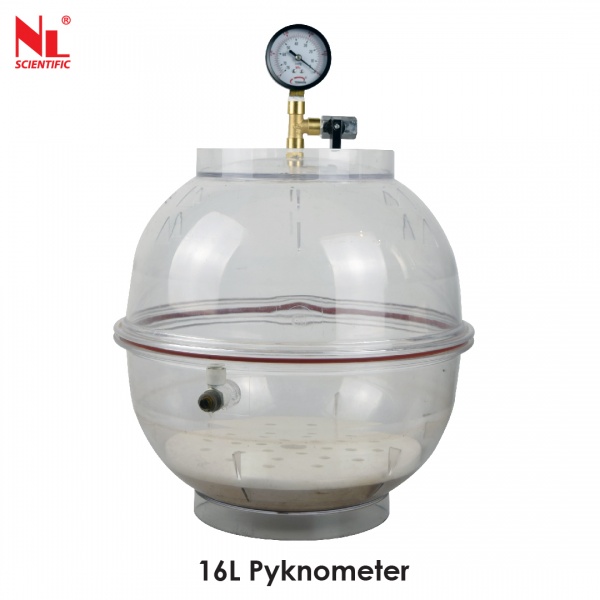

 NL 2007 AC / 001

 Large Vacuum Pyknometer c/w Clamping Bracket (16 Litres)
 Material : Transparent Plastic
 Weight : 2.2 kg   Dimension : Ø330 x 380mm (H)

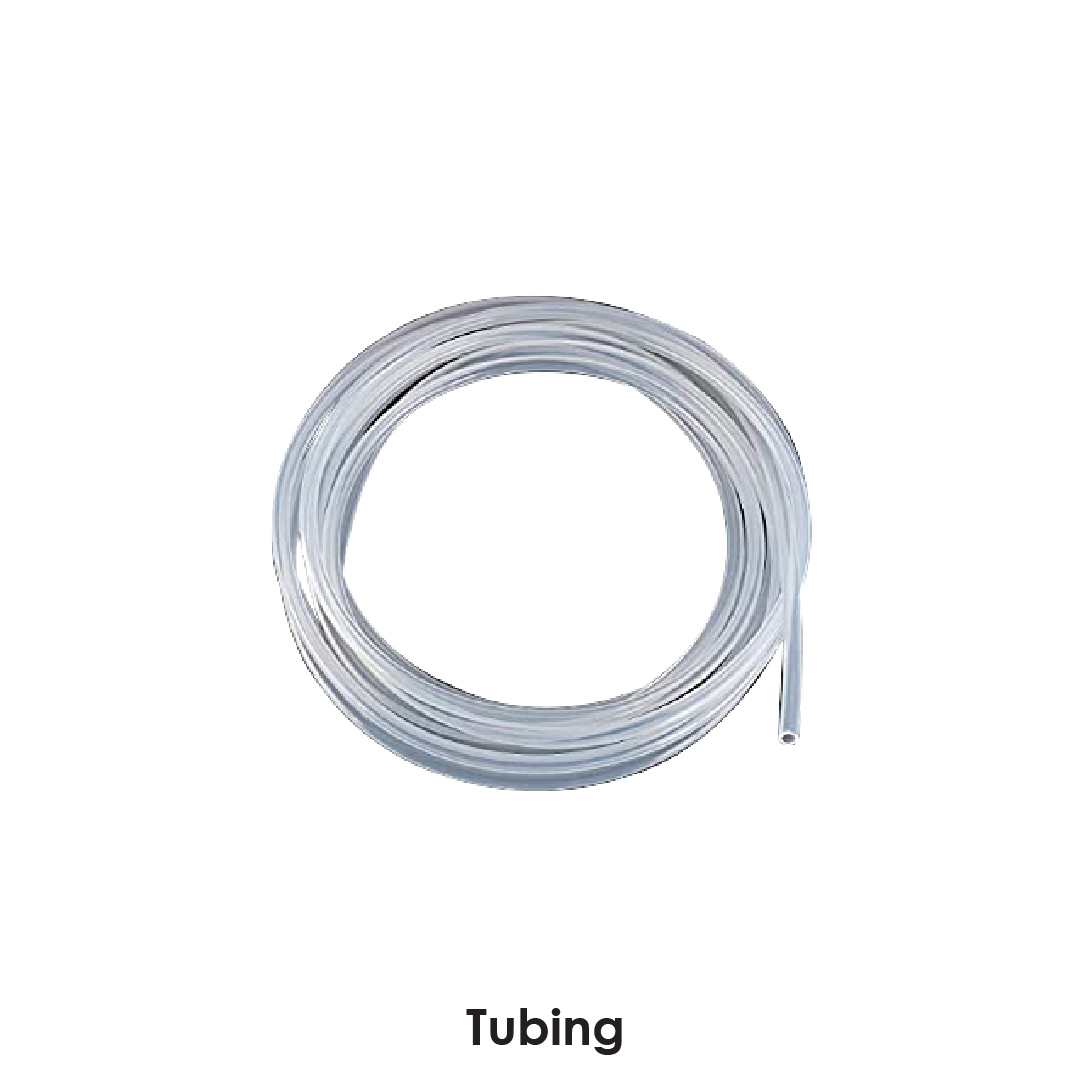

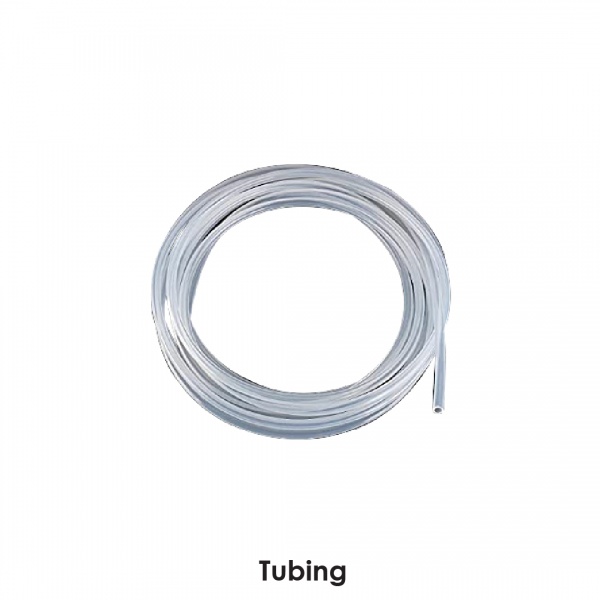

 NL 2007 X / 001 - P 002  Tubing for Vacuum (3 meters length)

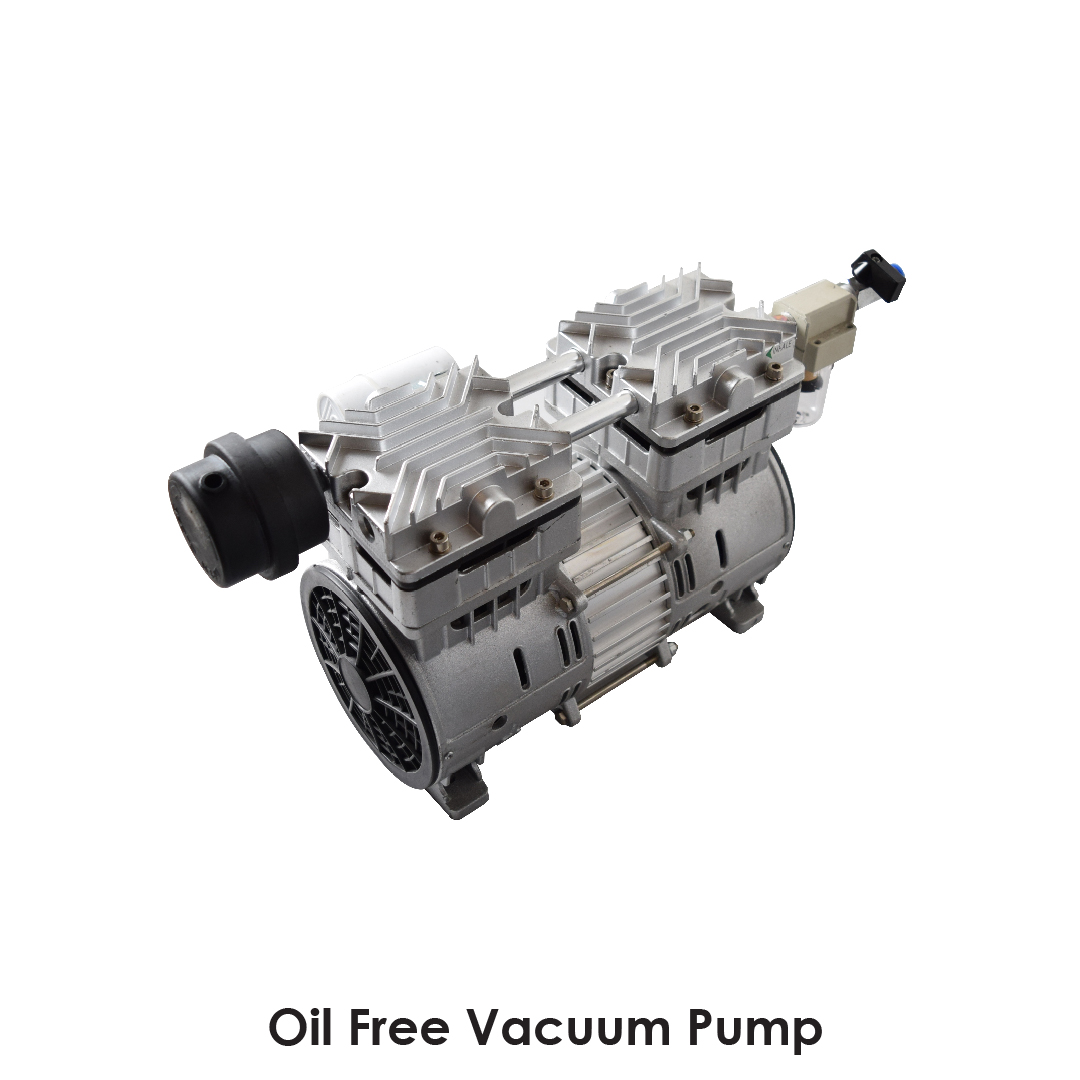

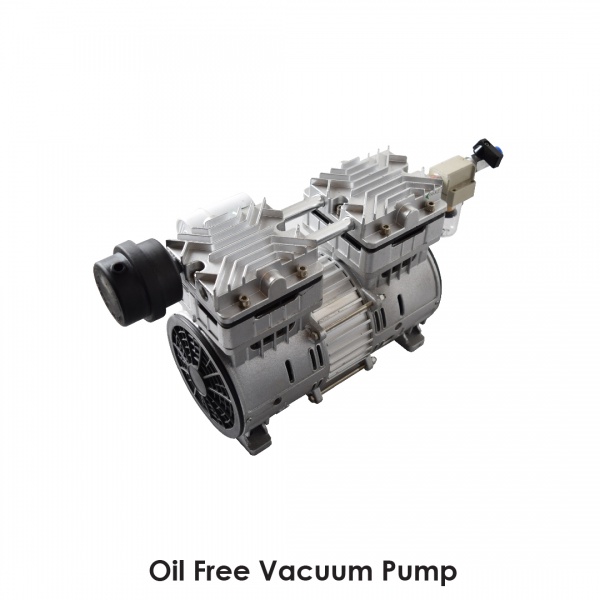

 NL 7022 X / 006  Oil Free Vacuum Pump c/w Regulator

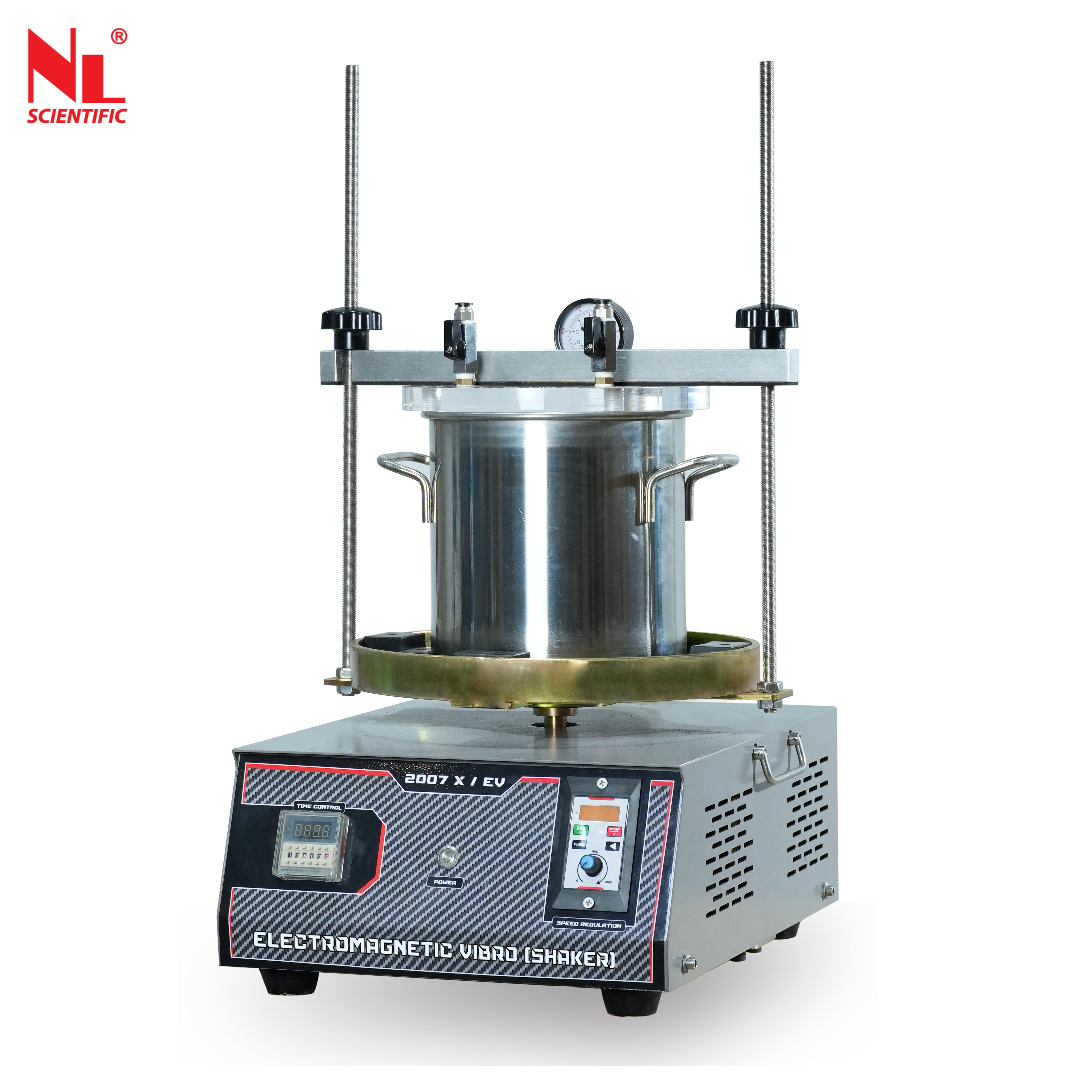

 NL 2007 X / EV  Product Dimension : 430 (L) x 390 (W) x 320 (H) mm
 Approx. Weight : 47 kg
 Power : 220 V, 1 ph , 50 / 60 Hz , 400 W
