Remove Specimens

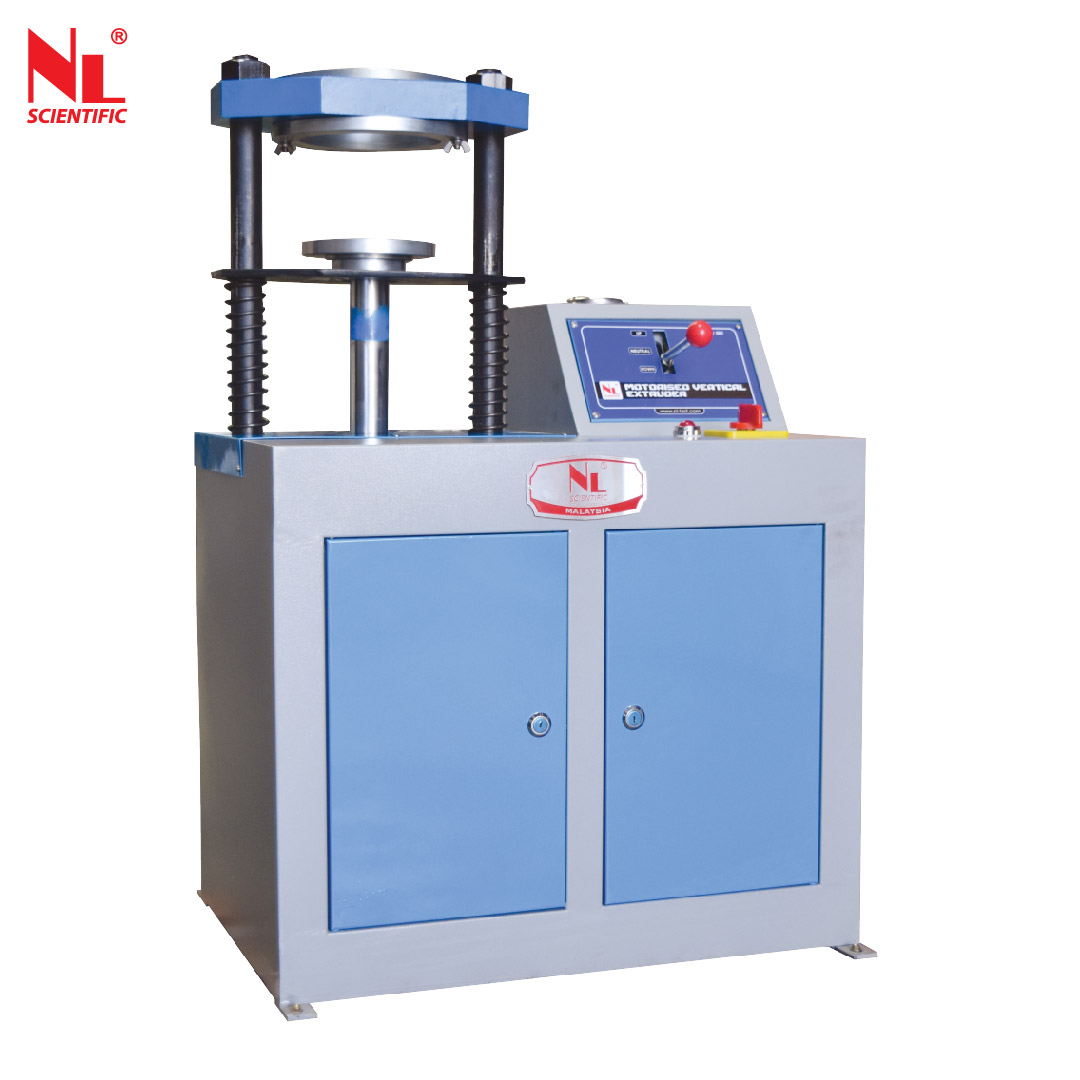

Used for a smooth and rapid extrusion of soil and asphalt specimen with minimum disturbance. The unit can extrude for CBR and Marshall sample. The extruded sample is held in place by a receiving table adjustable in height and easily lowered along side of the machine. The Motorized Vertical Extruder come complete with adaptor to extrude sample having diameter 100 mm and 150 mm.
Technical Specifications:
Model Number |
NL 2033 X / 001 |
Dimension (mm) |
430 (L) x 640 (W) x 960 (H) |
Extruder Speed |
70 mm/minute |
Reverse Speed |
140 mm/minute |
Maximum Extrude Length |
230 mm |
Power |
380 - 415 V, 3 ph, 50/60 Hz,150 Watt,1Hp |
Approx. Weight |
130 kg |
