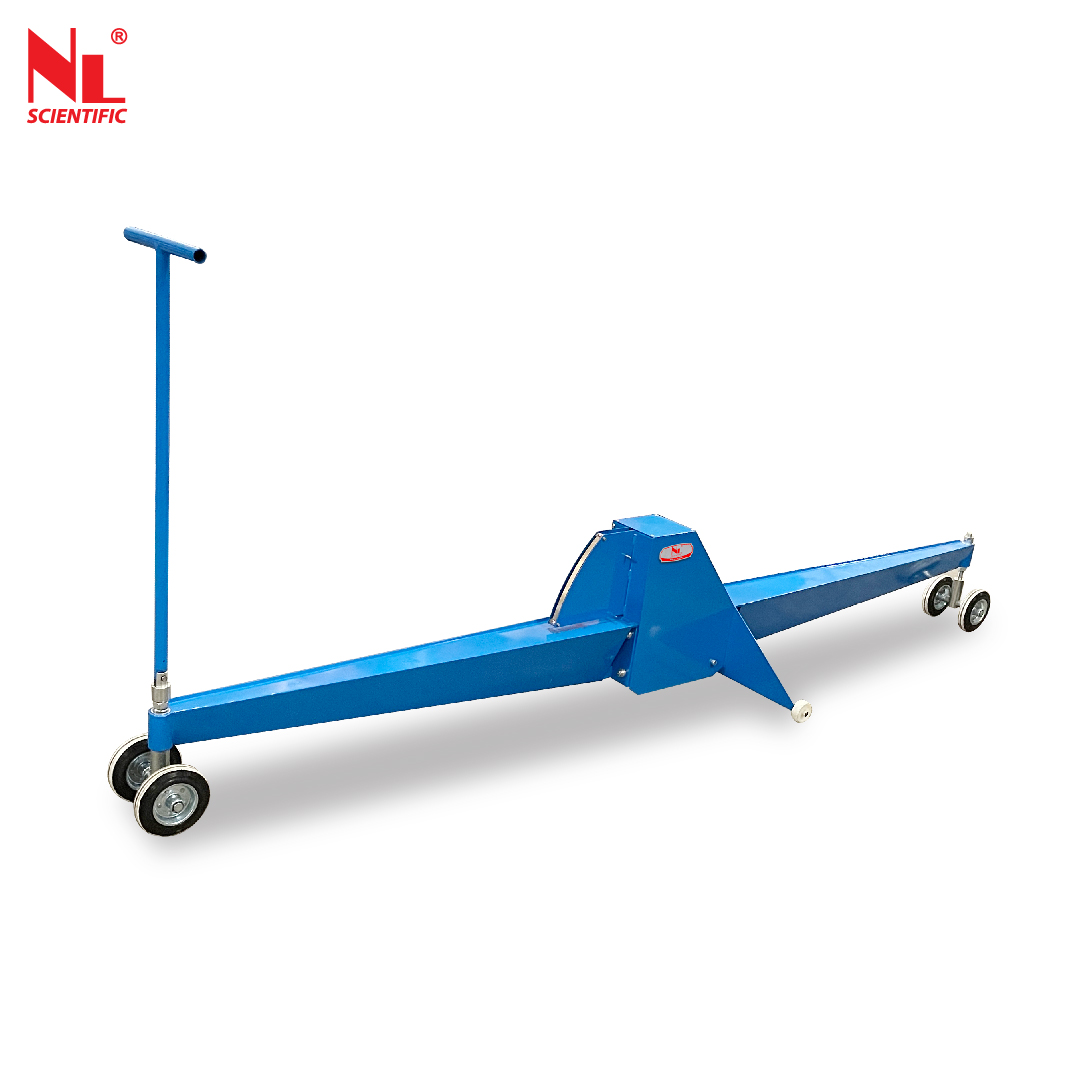

Travelling Beam Apparatus
NL 2018 X / 001

  • Description

Surface Irregularity

This apparatus is designed to measure road surface irregularities (such as bumps, depressions or unevenness) on both concrete and asphalt pavements. It consists of a rigid beam supported by two fixed wheels at the ends and a central measuring wheel that detects vertical deviations from a straight reference line between the endpoints. As the device moves along the pavement, the central wheel indicates any vertical displacement, providing data on surface smoothness.

Applications:
-Quality control in pavement construction.
-Post-construction compliance testing.
-Routine road maintenance assessments.



Technical Specifications:

 Model Number  NL 2018 X / 001
 Scalling  2 mm/div > for ±10 mm
 5 mm/div > for ±10 mm to ±25 mm
 Max. Vertical Deviation  ± 25 mm
 Beam  3 metre
 Dimension (mm)  3200 (L) x 780 (W) x 540 (H)
 Approx. Weight  53 kg

*1 Copy of Manual Instruction



HOW TO OPERATE VIDEO
