Standard: EN 12272-1 & BS 598-108   Spread Measure This simple equipment use to determine the rate of spread of binder on the surface of the road. The equipment consists of a metal 300 mm square tray, which can be lifted by means of four chains. The chains are attached to a balance and the ra ...Read more

Rate Of Spread
NL 2014 X / 001


  • Description

Standard: EN 12272-1 & BS 598-108



Spread Measure

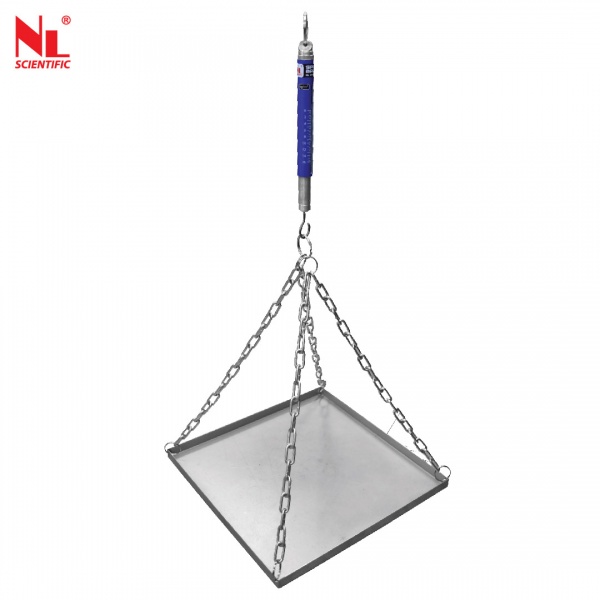

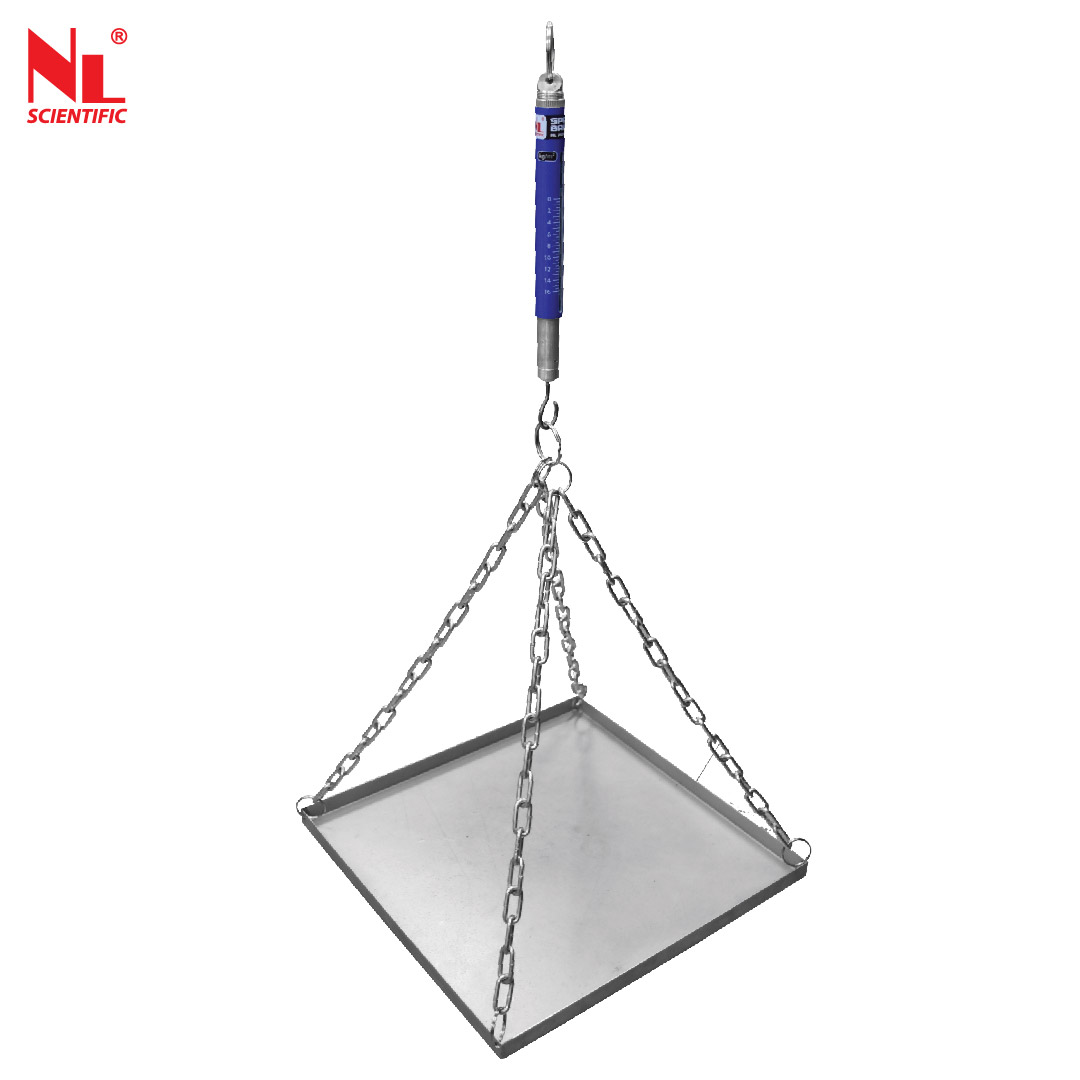

This simple equipment use to determine the rate of spread of binder on the surface of the road. The equipment consists of a metal 300 mm square tray, which can be lifted by means of four chains. The chains are attached to a balance and the rate of spread can be assessed by a balance.



Technical Specifications:

 Model Number  NL 2014 X / 001
 Dimension of Tray  300 (L) X 300 (W) X 25 (H) - Internal
 Strength Capacity  Up to 16 kg/m²
 Readability  0.5 kg/m²
 Max.Load  2.7 kg
 Approx.Weight  5.7 kg
