NL 2012 X / 005


  • Description

Standard: EN 1427, ASTM D36, AASHTO T53

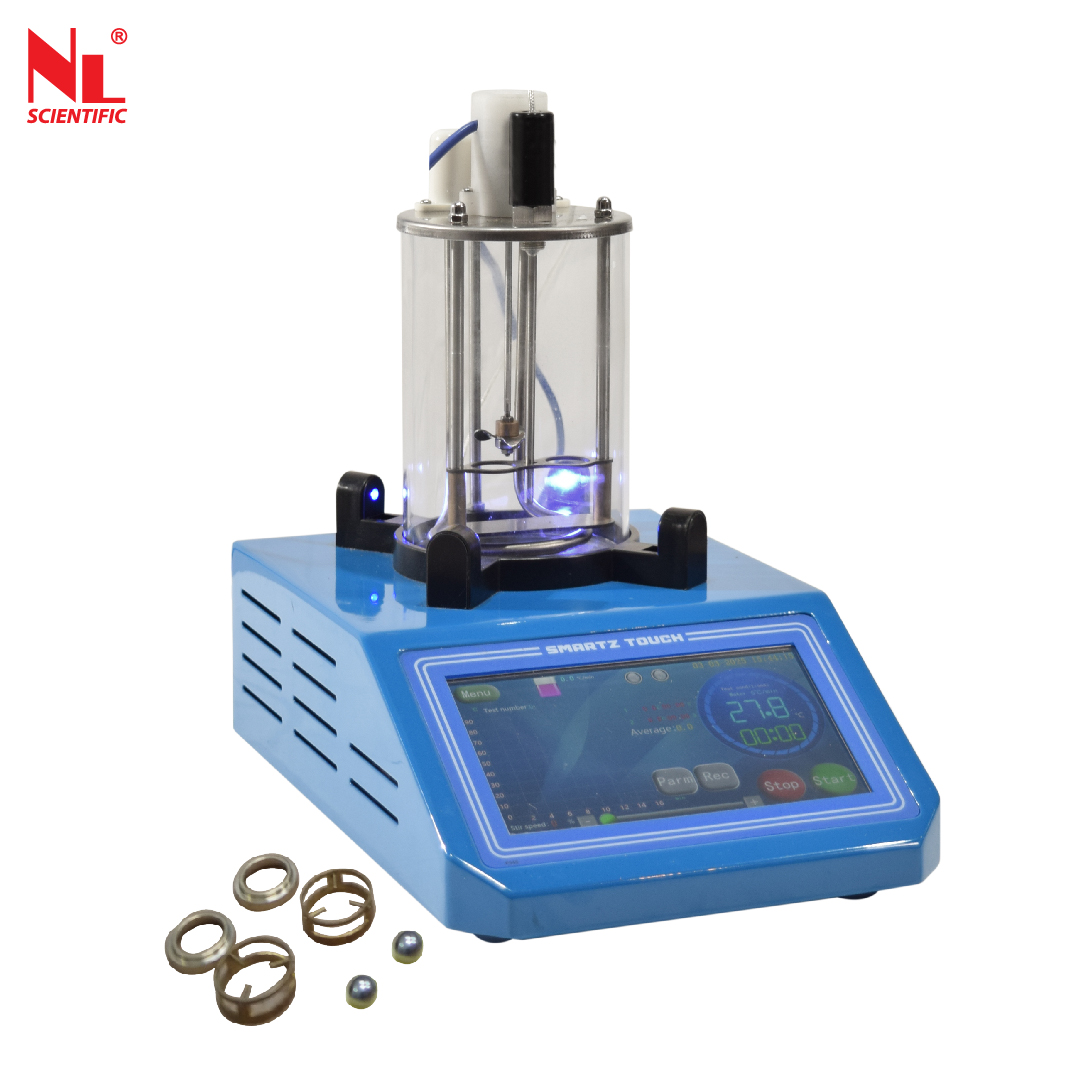

Softening Point Ring and Ball Point Apparatus, Advanced Automatic

The Softening Point Ring and Ball Point Apparatus, Advanced Automatic is essential for analyzing materials such as asphalt and bitumen, which are fundamental in road construction. By precisely measuring their softening point, this apparatus ensures the quality and durability of these materials. Equipped with electronic control and sensors. It streamlines the testing process, offering enhanced accuracy and efficiency. With features like programmable control, digital displays, and automatic data recording, it's an indispensable asset in laboratories dedicated to maintaining high standards in the asphalt and bitumen industry.

Features of Softening Point Ring and Ball Point Apparatus, Advanced Automatic

- Microprocessor.
- Automatic result capture for water or glycerol.
- Memory up to 50 tests.
- Adjustable stirring speed.

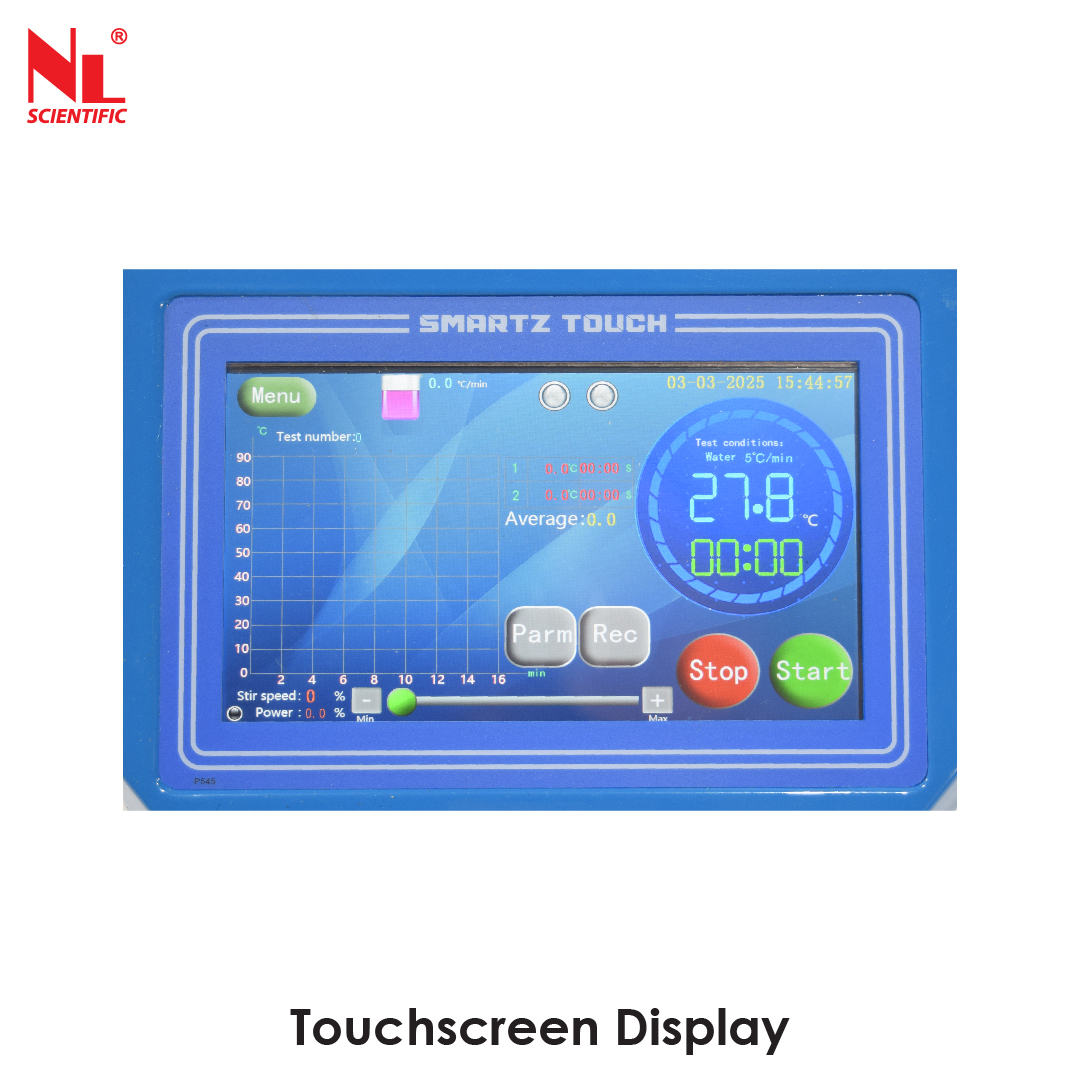

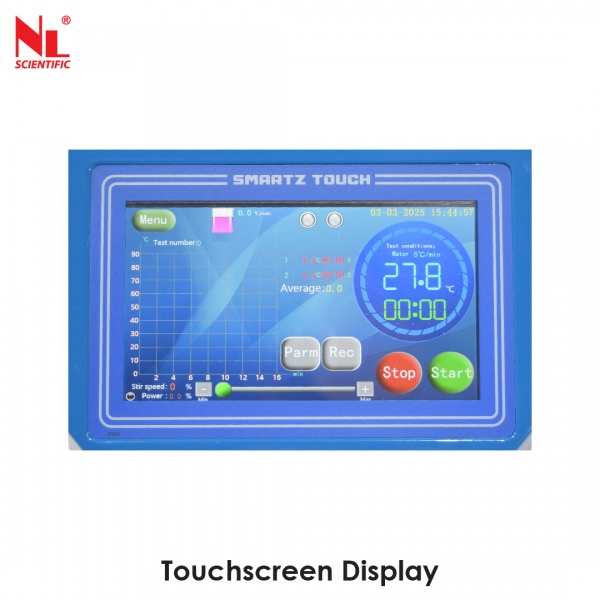

- Real time display of temperature and time.

Standard: EN 1427, ASTM D36, AASHTO T53

  • EN 1427

This European standard specifies the method for determining the softening point of bitumen. The softening point is a key property of bitumen used in road construction, as it indicates the temperature at which the bitumen becomes soft enough to deform under a load. EN 1427 provides the procedure for conducting the softening point test using various apparatus, which includes, the ring and the ball method. It helps in ensuring consistency and reliability when assessing the quality and performance of bituminous materials across European countries.

  • ASTM D36

This standard established by the American Society for Testing and Materials (ASTM), focuses on determining the softening point of bitumen or tar using the ring and ball bitumen. This method encompasses heating a bitumen sample and measuring the temperature at which it softens enough for a steel ball of specified dimensions to fall a predetermined distance through it. The bitumen's softening point is a key indicator of its response to temperature fluctuations, making it indispensable in road construction. Through ASTM D36, a consistent and standardized methodology for evaluating this parameter is established, ensuring reliability and comparability of bitumen evaluation across different project scopes and geographical areas. This standard serves as a cornerstone for engineers and technicians, aiding them in choosing the right bitumen grades tailored to varying road surfaces, climates, and traffic volumes, thereby enhancing the longevity and safety of road networks.

  • AASHTO T53

This standard is established under the guidance of the American Association of State Highway and Transportation Officials (AASHTO) and serves as a benchmark for determining the softening point of bitumen, a key element in road construction. Similar to ASTM D36 and EN 1427, this method utilizes the ring and ball apparatus to pinpoint the temperature at which bitumen softens. AASHTO T53 ensures consistent assessments of bitumen's temperature sensitivity, ensuring consistent quality and performance of road surfaces regardless of geographical location or environmental conditions.

Test Procedure of Softening Point Ring and Ball Point Apparatus, Advanced Automatic

  1. Preparation of Sample: A Bitumen sample should be prepared by molding it into a disc or cylinder of specified dimensions. Ensure the sample is free from any contaminants.
  2. Setup: Set up the Advance Automatic Softening Point Apparatus according to the manufacturer's instructions. This typically involves assembling the ring and ball components and ensuring proper alignment and calibration of the apparatus.
  3. Heating: Place the bitumen sample at the bottom of the apparatus and position the steel ball directly above it. Commence heating gradually, ensuring the temperature rises steadily and uniformly under controlled conditions.
  4. Observation: As the temperature rises, observe the bitumen sample closely. At the softening point, the bitumen will soften enough for the steel ball to start sinking through the sample under its own weight.
  5. Softening Point Determination: Record the temperature at which the steel ball penetrates through the bitumen sample, making contact with the base of the apparatus. This recorded temperature signifies the softening point of the bitumen.
  6. Cooling: Before removing the bitumen sample, allow the apparatus to cool down to room temperature after the determination of the softening point.
  7. Cleaning: Clean the apparatus thoroughly after use to remove any residual bitumen and to ensure accurate measurements for future tests.
  8. Data Recording: All relevant data should be recorded, including the temperature at which softening occurs and any observations made during the test.
  9. Verification: Double-check the obtained results by comparing them with relevant standards or specifications to confirm their accuracy and reliability.
  10. Reporting: Create a comprehensive report outlining the testing process, outcomes, and any notable observations or discrepancies noted throughout the experiment.

Technical Specifications:

 Model Number  NL 2012 X / 005
 Temperature Range  0 - 270°C
 Testing Range  5°C to 180°C
 Temperature Increase Timing  (5± 0.5)°C/min
 Timing Accuracy  1 second
 Timing  Setting Range  0 - 99 min , 99 seconds
 Dropping Distance  25.4 mm
 Product Dimension (mm)   280 (L) x 180 (W) x 295 (H)
 Carry Case Dimension (mm)  365 (L) x 240 (W) x 220 (H)
 Approx. Product Weight  4.5 kg
 Approx. Packing Weight  5 kg
 Power  220 V, 1 ph, 50 / 60 Hz, 800 W

Unit Consists Of:

 Model Number  Parts Description  Qty
 NL 2012 X / 001 – P 002  Brass Tapered Ring  2nos.
 NL 2012 X / 001 – P 003  Ball Centering Guide  2nos.
 NL 2012 X / 001 – P 004  Steel Ball 9.5 mm Dia.  2nos.
 NL 2012 X / 003 – P 001  Glass Beaker  1no
 NL 2012 X / 003 – P 001  3-Blades Propeller Set  1set

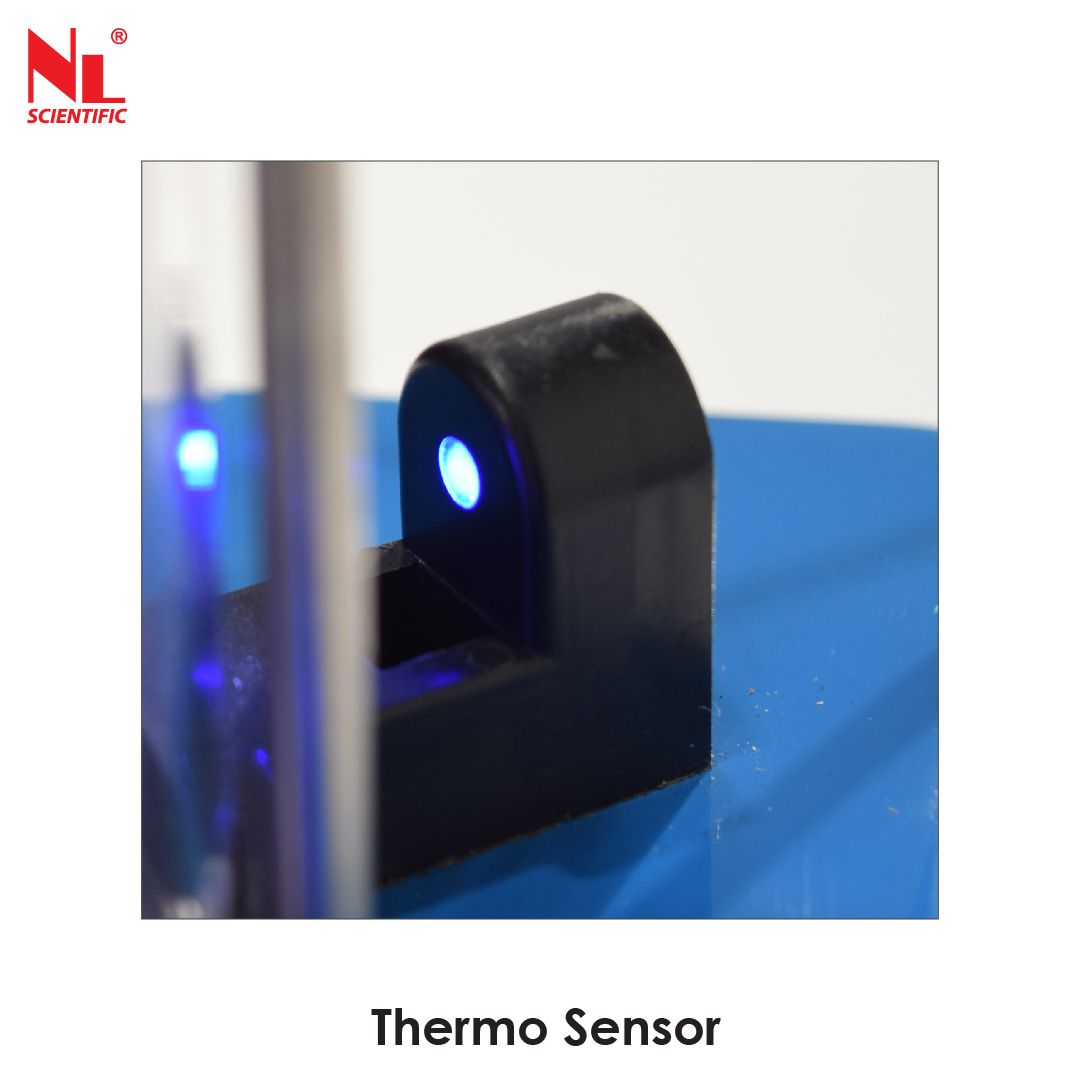

 NL 2012 X / 003 – P 003  Support Frame c/w Thermosensor & Heating Element  1set

Optional Accessories:

 Model Number  Accessories Description

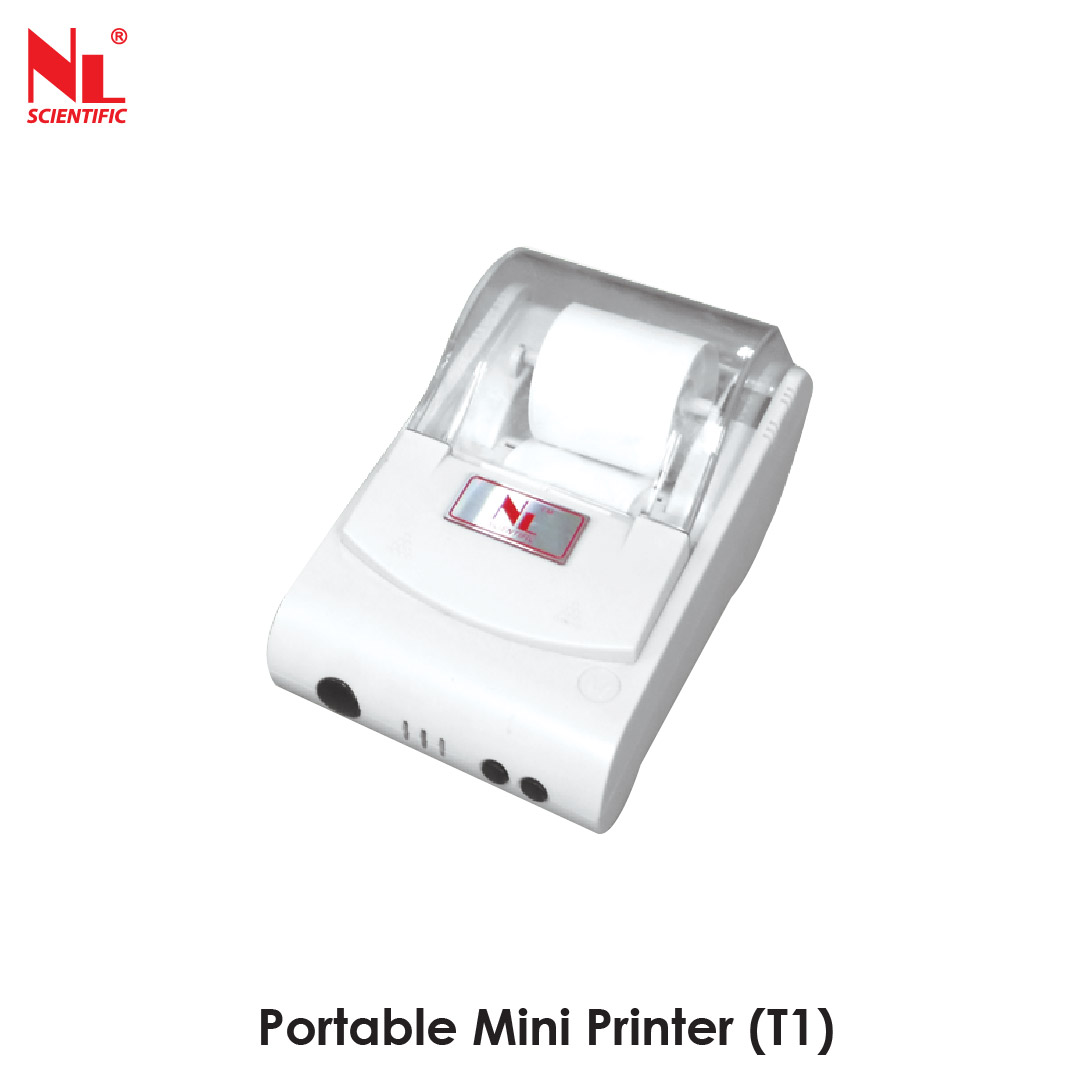

 WH-T1AZBO  Portable Mini Printer (T1)
 NL HWPR - 44  High White Paper Roll 44mm x 33mm Dia. (5rolls/pack)
 NL ERC - 05  Seamless Ribbon (Black)
