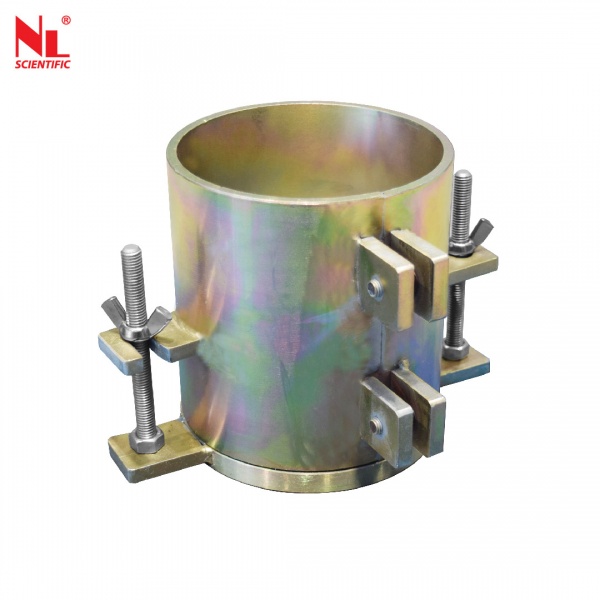

Percentage Refusal PRD Mould
NL 2009 X / 001

  • Description

Standard: EN 12697-32/BS 598:104



Compaction Mould

The mould are vertically split type, platen against corrosion. It used for determining the degree of compaction of bituminous pavement. Supplied without hammer,supporting frame and tamping foot which have to be order separately.



Technical Specifications:

 Model Number  NL 2009 X / 001
 Dimension  250 x Ø165 X 205 (H)
 Approx. Weight  9 kg



Optional Accessories:

 Model Number  Accessories Description  Weight

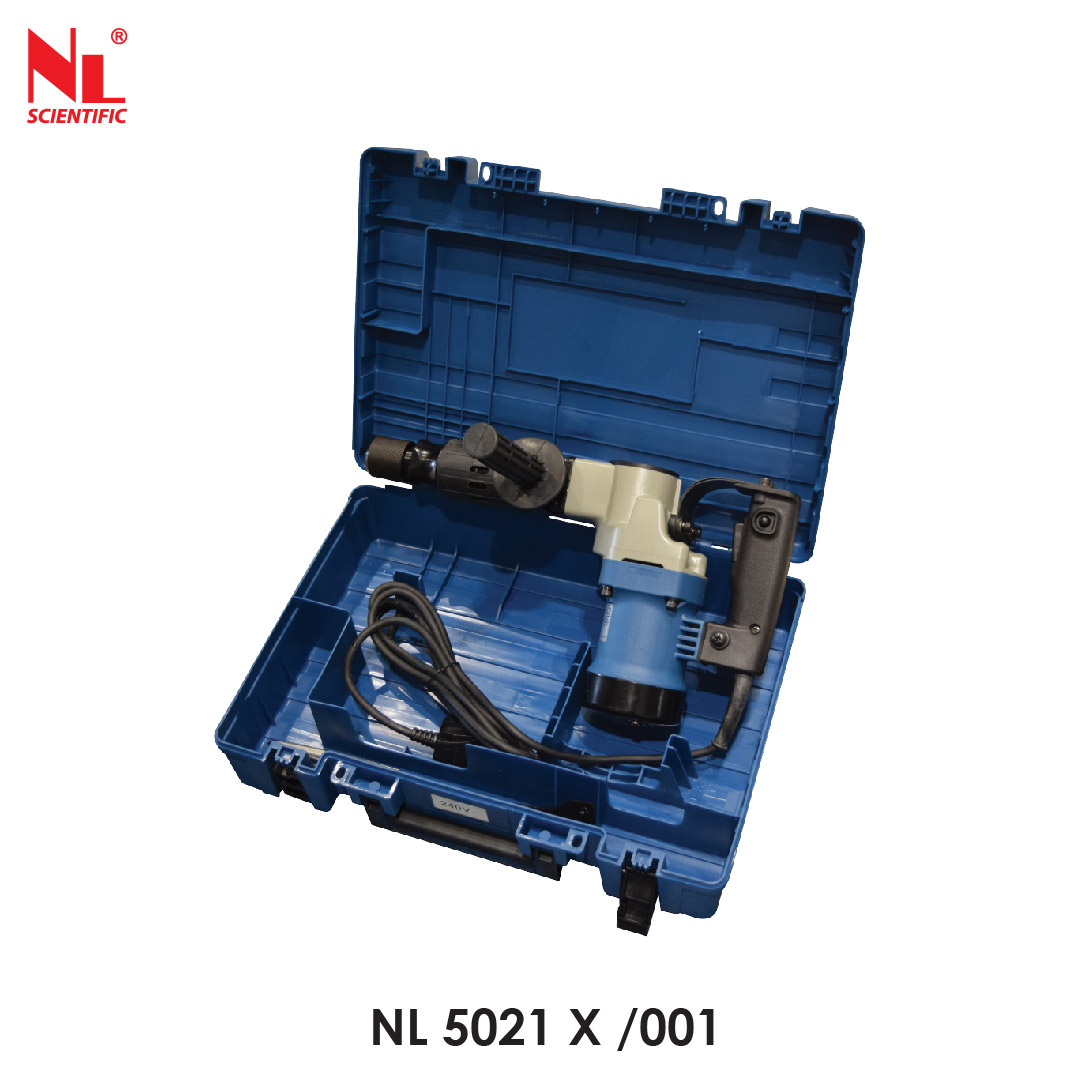

 NL 5021 X / 001  Vibrating Compaction Hammer  6.7 kg

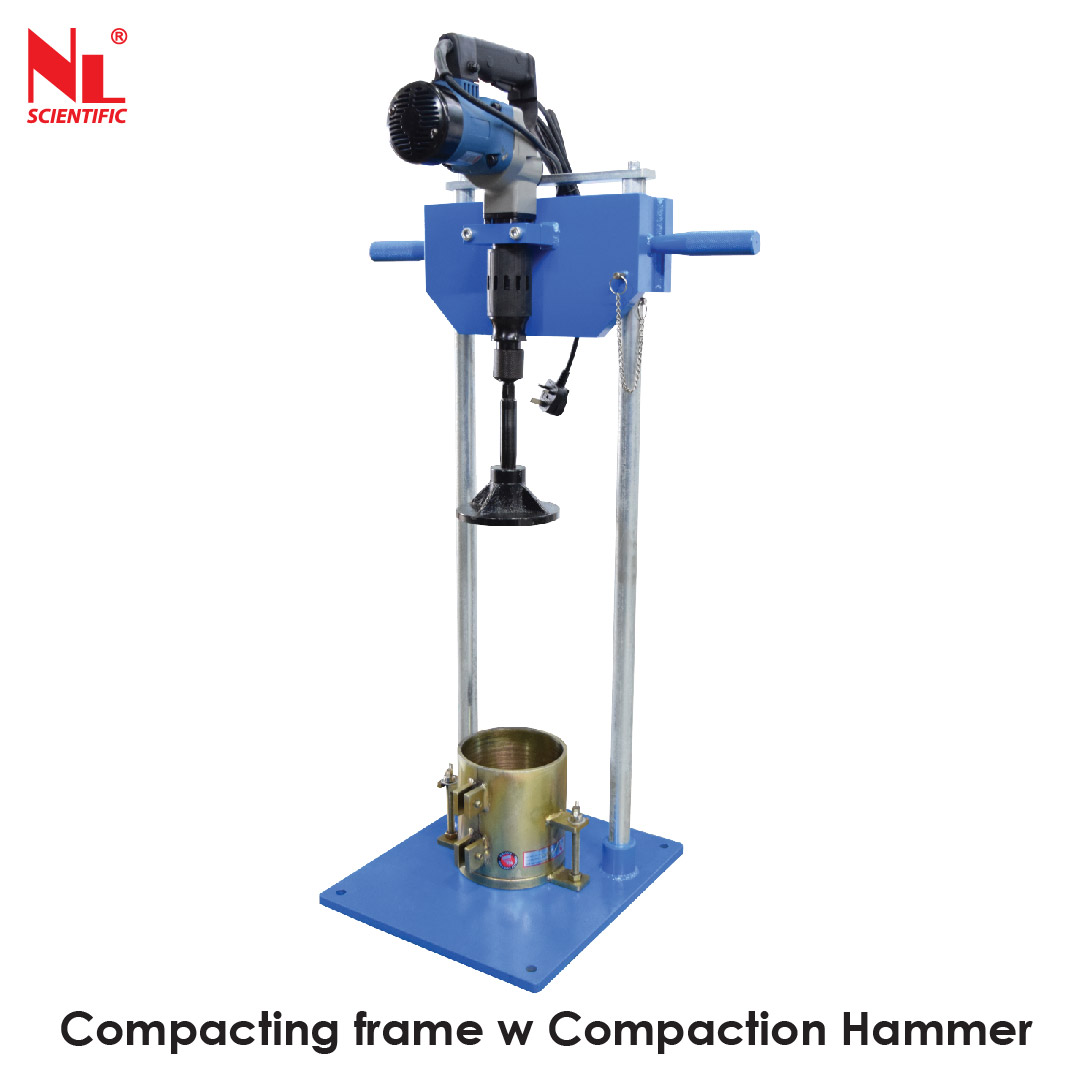

 NL 5021 X / 001 – A 001N  Supporting Frame  63 kg

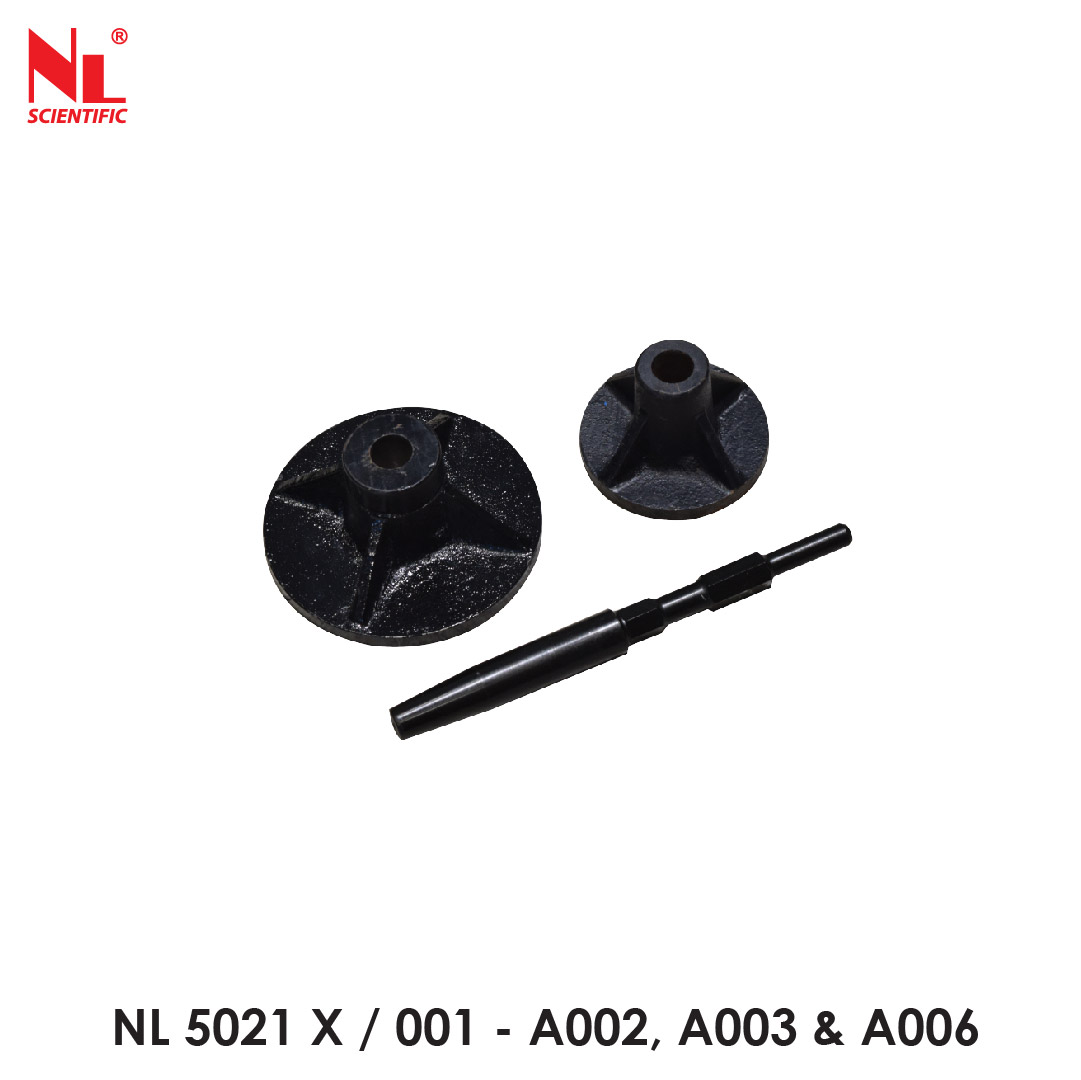

 NL 5021 X / 001 – A 002  Proctor Tamping Foot (Ø100mm)  1.2 kg
 NL 5021 X / 001 – A 003  Proctor, CBR & PRD Tamping
Foot Ø 145 mm		  2.3 kg
 NL 5021 X / 001 – A 006  Steel Shank 250 mm (L)  0.6 kg
