Aggregate & Rock Testing Equipments

Product Range

Standard: NF P18-577 Deval Abrasion Testing Machine is used to determine the abrasion resistance of aggregates under both dry and wet conditions. It features a rotating frame that supports two steel cylinders, complete with covers and a locking mechanism. The frame is motor-driven with an automatic ...Read more

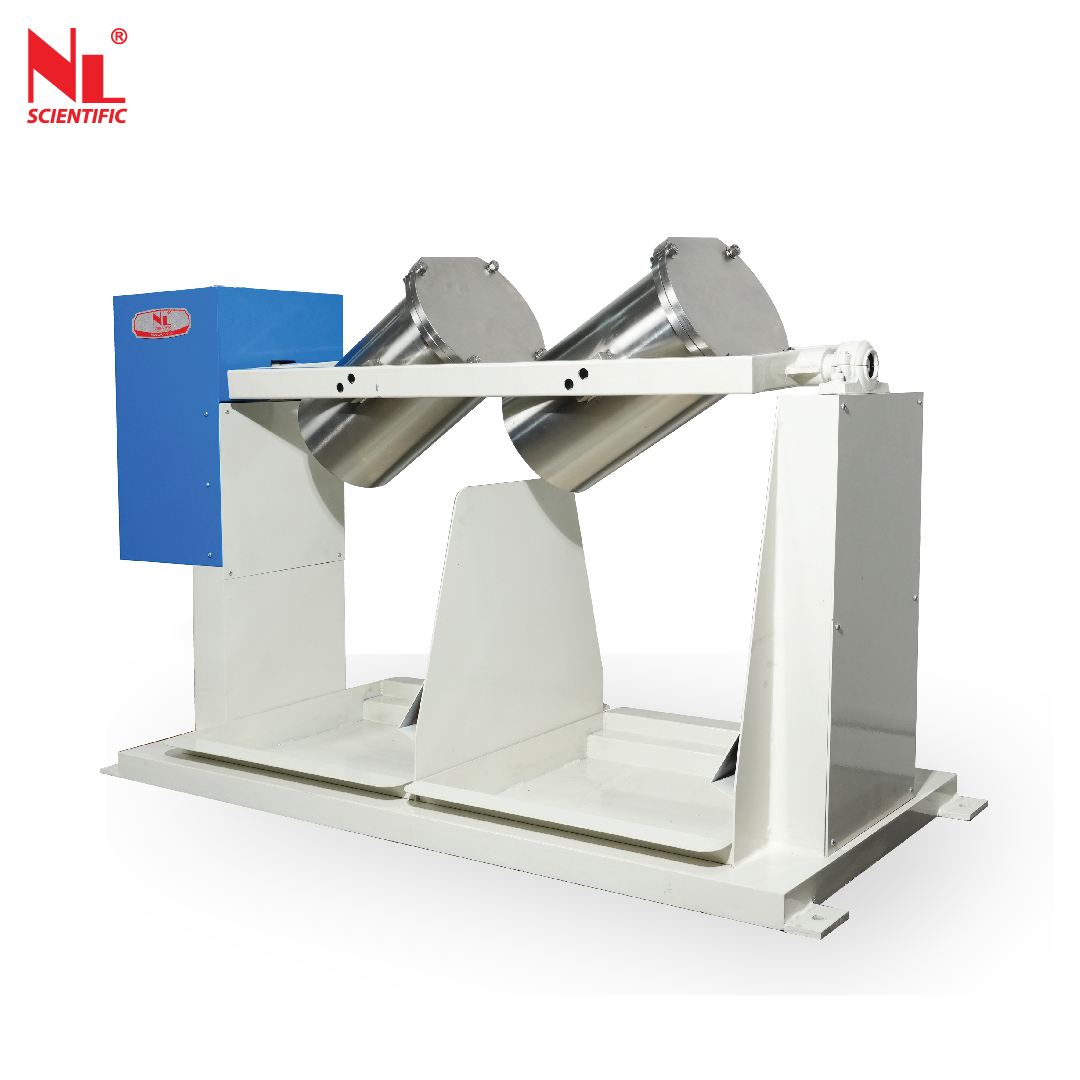

Deval Abrasion Testing Machine
NL 1026 X / 003

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: NF P18-577

Deval Abrasion Testing Machine is used to determine the abrasion resistance of aggregates under both dry and wet conditions. It features a rotating frame that supports two steel cylinders, complete with covers and a locking mechanism. The frame is motor-driven with an automatic revolution counter.

Features:
• Equipped with a cooling fan to ensure stable operation during testing

Technical Specifications:

Model Number	NL 1026 X / 003
Speed Rotation	30-33 r.p.m
Rotation	10,000 rotations
Cylinder Angle	32° with the axis of rotation
Depth of Cylinder	340 mm
Internal Diameter of Cylinder	Ø 200 mm
Product Dimension (mm)	1500 (L) x 600 (W) x 900 (H)
Approx. Product Weight (kg)	175
Packing Dimension (mm)	1700 (L) x 700 (W) x 1200 (H)
Approx. Packing Weight (kg)	200
Power	220~240 V, 370 W, 5 A , 1 Ph, 50/60 Hz, 0.5 HP
