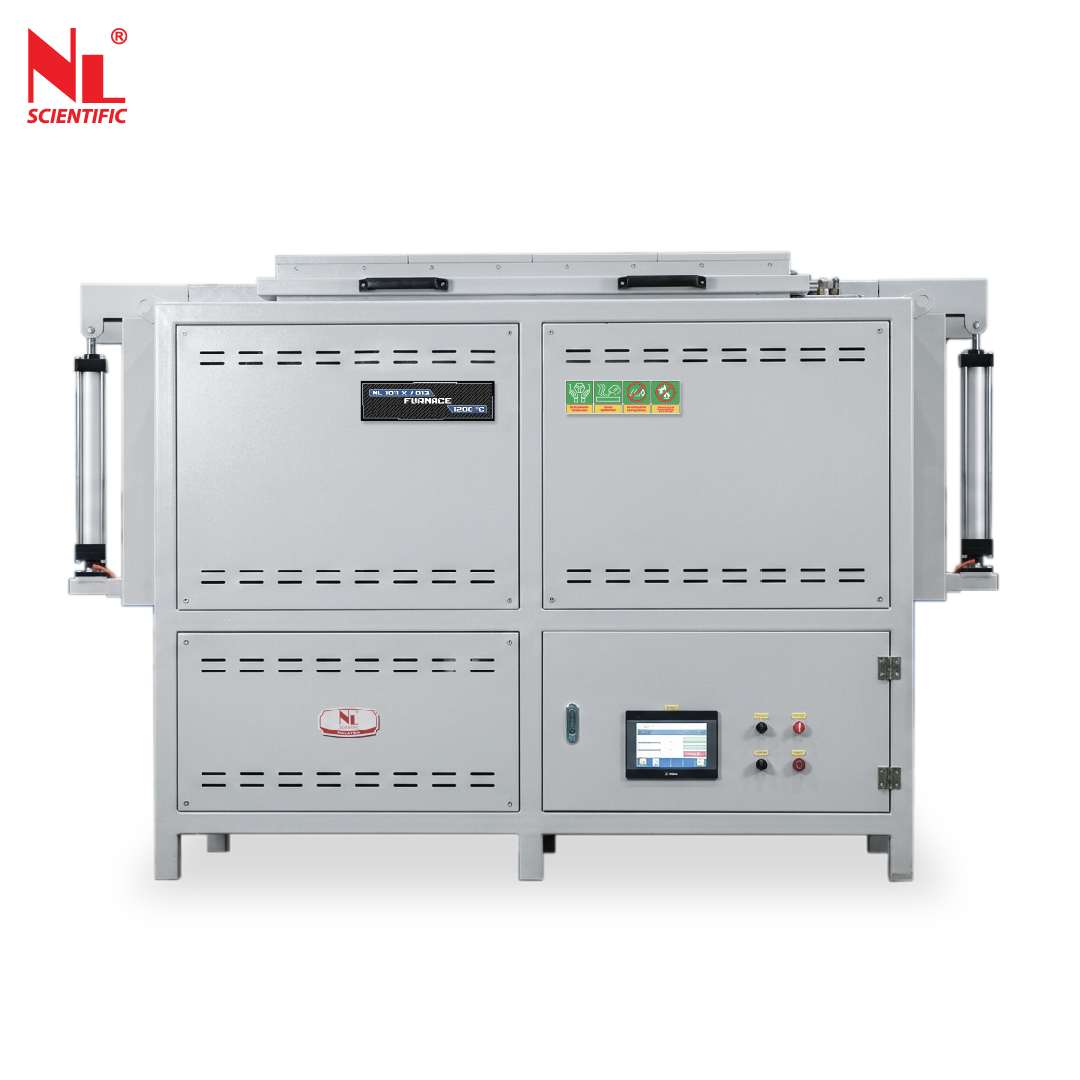

Top Loading Furnace 240L
NL 1011 TL / 013

  • Description

This high-performance Top Loading Furnace is engineered for precision heat treatment, material testing, and industrial production. Designed for heavy-duty applications requiring temperatures up to 1200°C, its vertical loading configuration makes it ideal for handling bulky or heavy samples that are best managed with overhead lifting equipment.

Technical Specifications:

 Model Number  NL 1011 TL / 013
 Max. Temperature  1200˚C
 Capacity  240 litres
 Internal Chamber Dimension  1000 (L) x 600 (W) x 400 (D) mm
 External Dimension  1660 (L) x 1260 (W) x 1410 (D) mm
 Power  380~415 V, 14.5 kW, 3 Ph, 50/60 Hz, 35 A
 Approx. Weight  998 kg
 Air Compressor
 Maximum Pressure  115 psi
 Maximum Air Delivery  6.3 CFM (5.2 CFM / 40 psi, 4.0 CFM / 90 psi)
 Power  220~240 V, 1 Ph, 50 Hz, 7.5 A, 3 Hp
