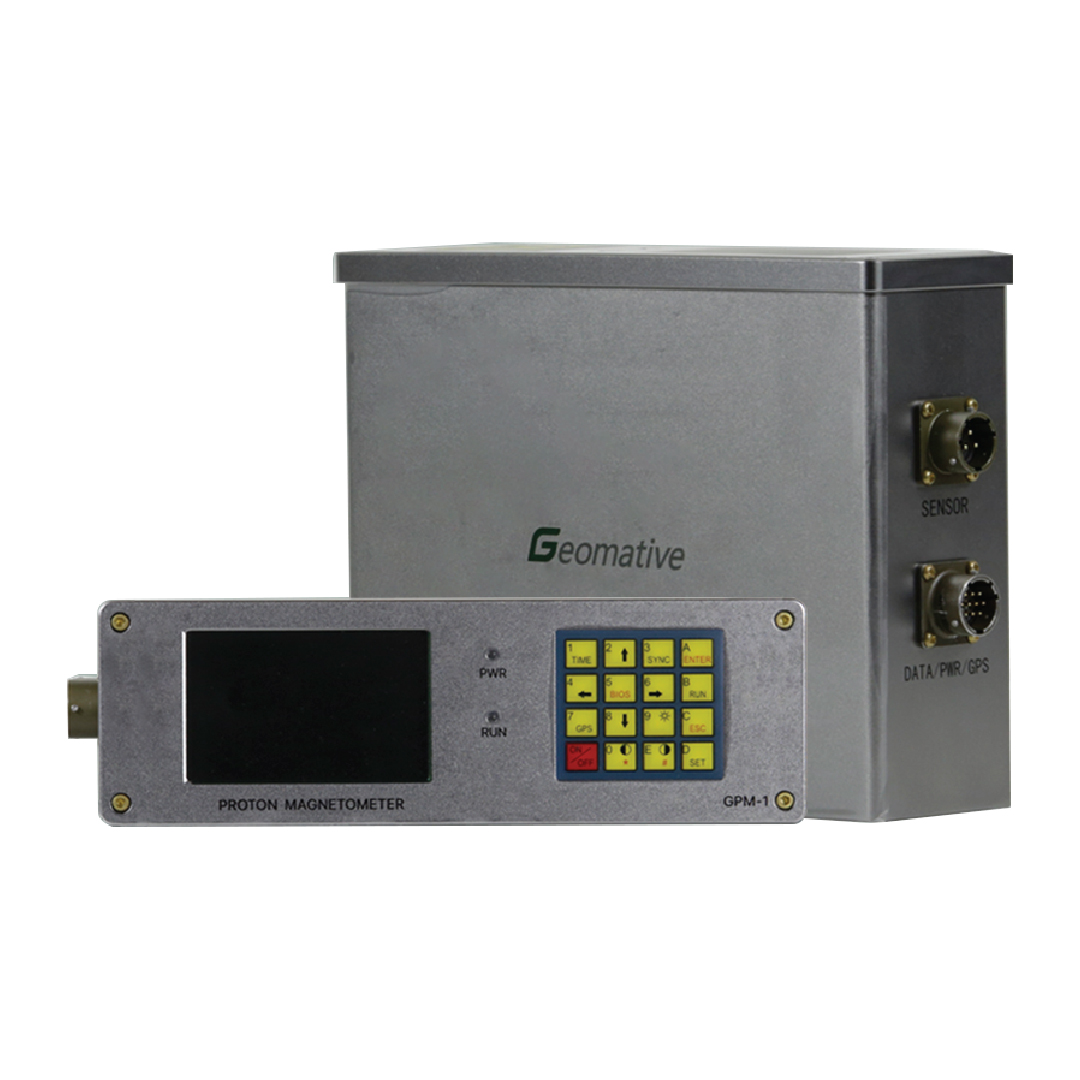

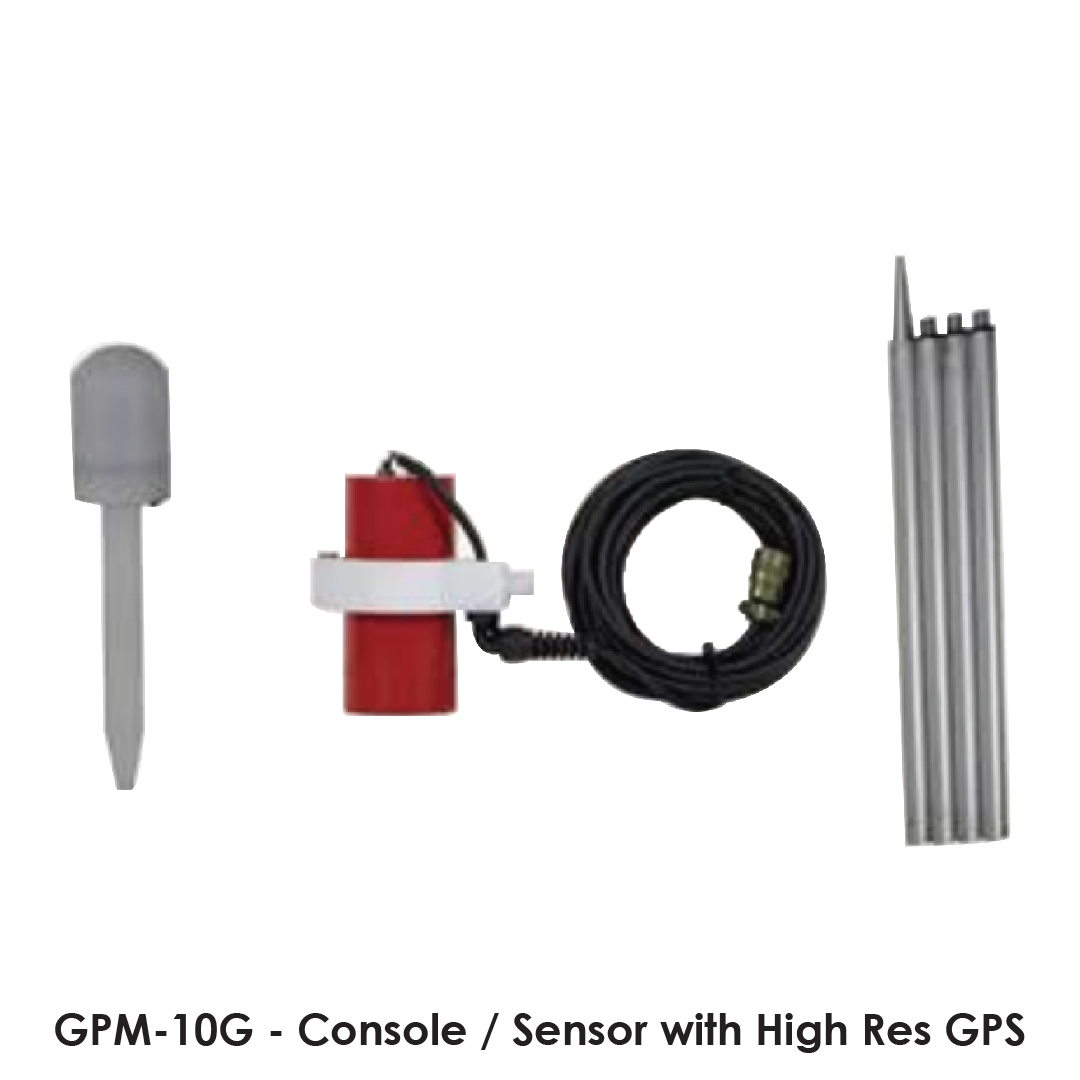

Proton Magnetometer
The magnetism of rocks, ores and geological structures in nature is uneven. Under the geomagnetic field, the magnetic inhomogeneity will cause the spatial distribution of the geomagnetic field to change. The magnetic field of magnetic bodies is superimposed on the normal geomagnetic field, and this superimposed magnetic field is called magnetic anomaly. By detecting magnetic anomalies with proton precession magnetometer, the distribution of magnetic ore bodies and geological structures can be inferred.
After compaired with other proton magnetometers, Geomative has spent two years developing a new generation proton magnetometer. It’s light and portable. It uses a thermostatic crystal oscillator(OCXO) with high accuracy and stability to make it more stable.
Standard GPS supports GNSS, GPS, Beidou and GLONASS systems, which provides location and accurate time synchronzation. The time synchronization accuracy reachs 30 ms, which is more convenient to use.
It supports mobile, walk or base station mode. It is mainly applied in minerals exploration (such as iron ore, lead-zinc ore,copper ore, etc.), geophysical exploration in geological structures, archaeology, earthquake, volcanic activity research and long-term geomagnetic measurement stations.
Features:

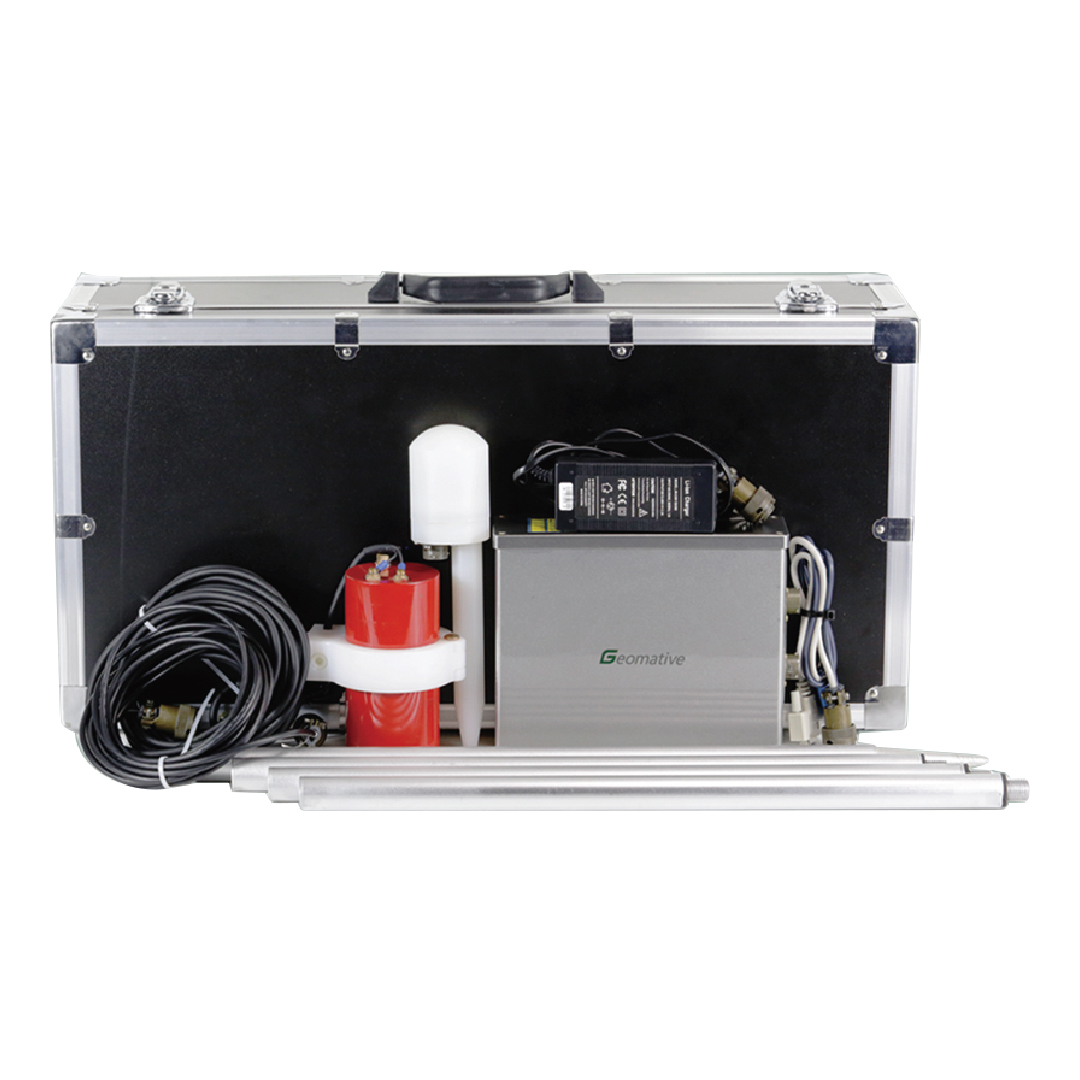

1 - Light and portable, the whole system uses a backpack strap, and one person can complete all measurement tasks
2 - With USB flash disk transmission and RS-232 transmission, two data transmission mode
3 - Professional geological software can draw contour maps, profiles maps, etc.
4 - 32MB memory,support modifying
Functions:
1.It can measure the total field of the geomagnetic field or the gradient measurement (horizontal gradient or vertical gradient, need to add probe and probe holder)
2.Using walking MAG acquisition mode can collect mag netic field data while walking in the field, so as to obtain continuous observation profiles
3.External GNSS, no need to configure baudrate. It can be used to store the coordinate values of the measuring points, and at the same time, the proton magnetometer is time synchronized, and the time synchronization accur acy reaches 30 microseconds
4.Built-in high-precision constant temperature crystal oscillator not only ensures measurement accuracy, but also ensures measurement stability
5.It can display the magnetic field strength curve, easy to operate and intuitive data
6.Can move single point measurement and move continuous measurement
Technical Specifications:
| Model Number |
GS8000 |
| Radar technology |
Stepped-frequency Continuous-Wave GPR |
| Modulated frequency range |
40 – 3440 MHz |
| Effective bandwidth |
3200 MHz |
| Min. detectable target size |
1 cm | 0.4 in ² |
| Max. time window |
200 ns |
| Scan rate |
500 Hz |
| Spatial interval |
Up to 100 scans/m |
| Acquisition speed |
Up to 80 Km/h | 50 mph ³ |
| GNSS receiver |
Multiband GPS + Glonass + Galileo + Beidou
SSR augmentation / NRTK-compatible ⁴
Dimensions: 145 x 145 x 70 mm
Weight: 0.7 Kg, 4x AA-batteries included |
| GNSS real-time 3D accuracy |
Typ. 1 - 5 cm | 0.5 - 2 in ⁵ |
| GNSS initialization time |
Typ. 5 - 30 s |
| Wheel encoders |
2 |
| Configurations |
Proceq GS8000 Lite
Proceq GS8000 Pro ⁶ |
| Weight |
24 Kg ⁷ |
| Dimensions |
61 x 57 x 38 cm ⁸ |
| Antenna positions |
Ground-coupled with dual-axis floating
Air-coupled with 25 mm clearance ⁹ |
| Ingress protection (IP) / sealing |
IP65 |
| Power supply |
Removable flight-safe battery pack ¹⁰
| Off-the-shelf power bank ¹¹ |
| Autonomy |
3.5 hours | Full working day ¹² |
| Operating temperature |
-10° to 50°C | 14° to 122° F |
| Operating humidity |
<95% RH, non-condensing |
| Connectivity |
WiFi, Ethernet, USB-A, USB-B, USB-C, Lemo ¹³ |
1. Running an up-to-date iOS version; recommended models: iPad Pro® WiFi + Cellular 11” or 12.9”
2. Metallic object buried at 0.3 m / 1 ft, in average soil conditions
3. At 50 mm scan interval
4. Needs an active Internet connection on the iPad; SSR service available in Europe, USA, southern Canada, southeastern Australia and South Korea / NRTK corrections via NTRIP in RTCM3 format
5. Via NTRIP RTK or SSR corrections; the achieved accuracy is subject to atmospheric conditions, satellite geometry, observation time, etc.
6. GS8000 Pro includes additionally: off-road wheels and underbody, GNSS pole fixation kit, tablet cover for sun and rain, hard transportation case
7. For GS8000 Pro configuration: 27 Kg
8. For GS8000 Pro configuration: 68 x 60 x 42 cm
9. For GS8000 Pro configuration: 40 mm
10. Contains 8x rechargeable C-Type NiMH batteries
11. USB-C PD power bank with max. dimensions: W 85mm x H 28mm (recommended power: 12V/>=1.25A or 15V/>=1A)
12. Recommended battery capacity: >4500 mAh | Recommended power bank capacity: >20000 mAh
13. For terrestrial positioning systems, an intermediate serial adapter to DB9 might be needed to output Pseudo NMEA GGA positions
