Standard: BS EN ISO 15630-1 / 7438, ASTM A615, A615M
Cold Test Bending

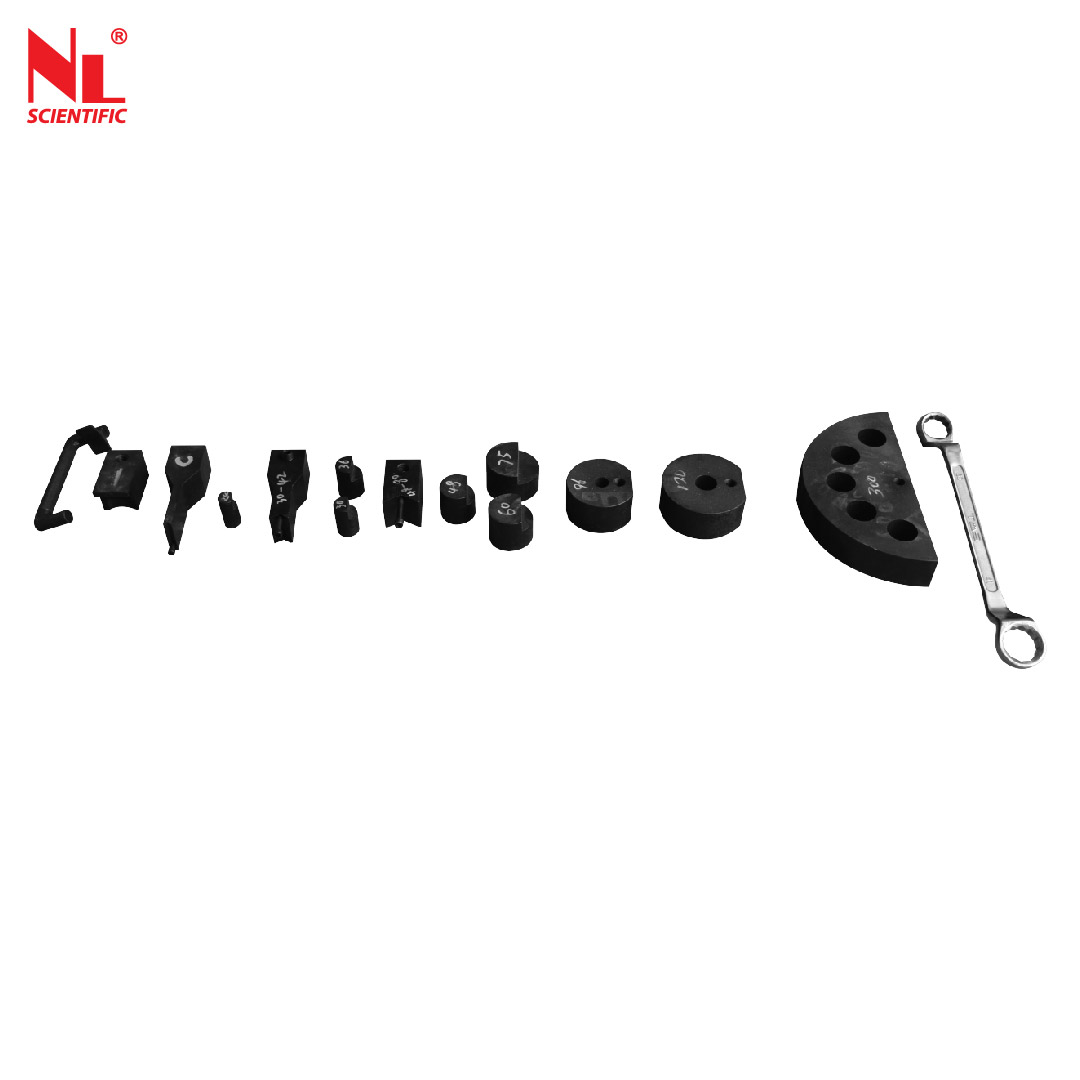

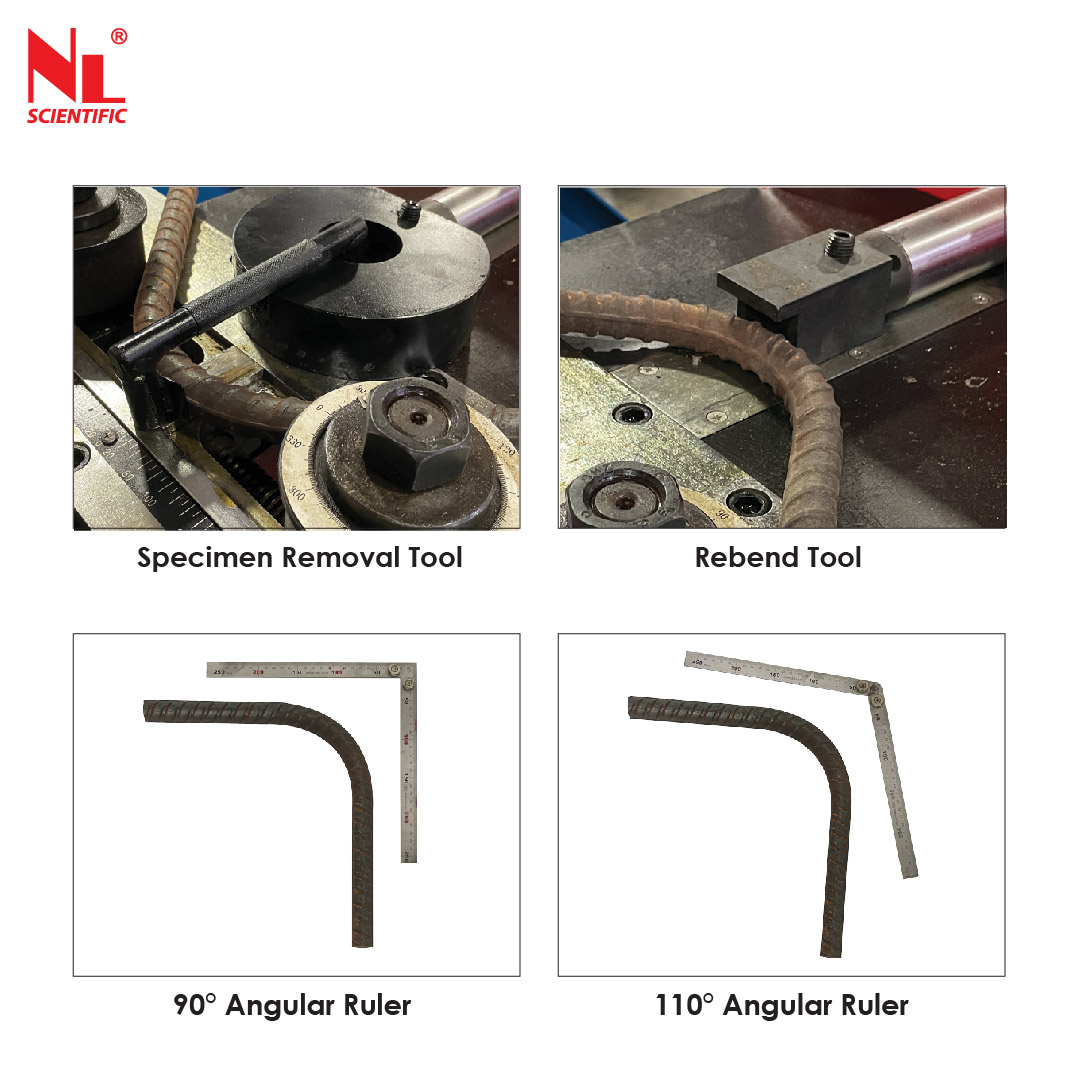

Used for bending & re-bending reinforced concrete bar, the machine is mainly composed of transmission parts, racks, table & screw adjustment device, equipped with protective enclosures. Supplied with bar puller and tool kit set.
Technical Specifications :
Model Number |
NL 6001 X / 004 |
Specimen Diameter |
6 - 40 mm |
Max. Force |
160 kN |
Max.Specimen Length |
800 mm |
Max. Bending Angle |
0° - 180° |
Max. Re-Bending Angle |
30°- 0° |
Piston Speed |
90/108 mm/min |
Max. Piston Stroke |
400 mm |
Dimension |
1495 (L) x 970 (W) x 1070 (H) mm |
Approx. Weight |
640 kg |
Power |
415 V, 3 ph, 0.75 KW 50/60 Hz, 1.99A |
