Digimatic Compression Machine 2000kN
NL 4000 X / 032G

  • Description

Standard: EN 12390-3/772-1/12390-5/12390-6 ASTM C39/C293, AASHTO T 22

Compression & Flexural

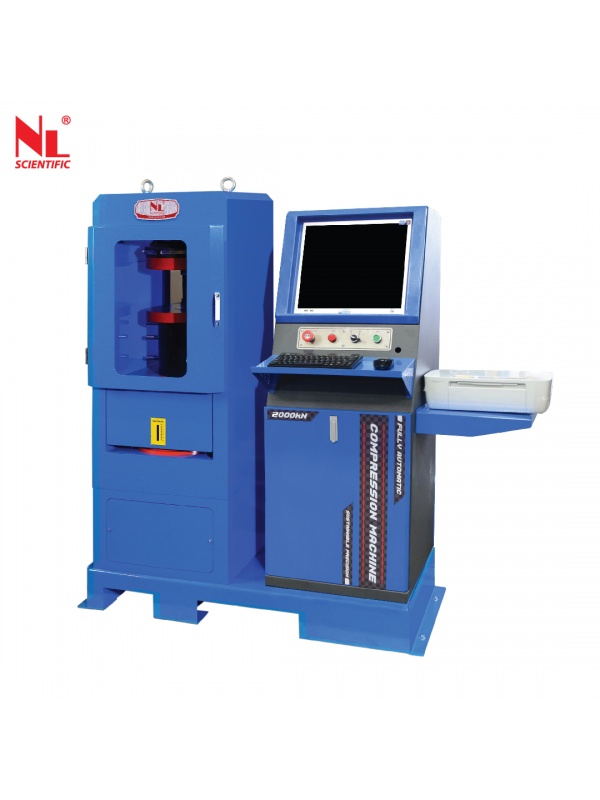

Digimatic Compression Machine 2000kN

The Digimatic Compression Machine 2000kN is designed for meticulous evaluation of material properties through compression testing. Its digital interface, comprising displays, controls, and data logging features, ensures enhanced accuracy and ease of operation compared to traditional analog machines. Specializing in compression testing, it subjects materials to compressive forces until deformation or failure, providing insights into crucial mechanical properties such as strength and elasticity. With a formidable maximum force capacity of 2000 kilonewtons (kN), this machine accommodates a wide range of materials, from metals to concrete and composites, making it an indispensable tool for quality assessment, research, and development endeavors across various industries. NL Digimatic Compression Machine are special designed extremely strong and oversized to grant high rigidity and stability during testing. With a fixed upper head carring a ball-seated platen and base platen with 150 mm cube centering guide pin. Equipped with analogue loading speed indication knob.

Unique Feature of Digimatic Compression Machine 2000kN:

  • Front and side safety enclosed
  • Rapid approach system for time saving
  • Grade 1.0 compression accuracy
  • Piston anti-over travel limit switch

Digimatic multi function controller of Digimatic Compression Machine 2000kN:

  • Force value in kN & Mpa
  • Max. force hold facility with real time force vs time graft display
  • Multiple testing program can be selected
  • Auto result saving up to 500 specimen
  • RS 232 port for instand result printing (Mini printer c/w cable NEED order separately)
  • 115 x 65 mm high resolution LED screen

Standard: EN 12390-3/772-1/12390-5/12390-6 ASTM C39/C293, AASHTO T 22

  1. EN 12390-3: European standard for testing hardened concrete's compression strength. It covers how to prepare and test concrete samples to measure their ability to withstand compression forces. This includes steps like specimen preparation, curing, and using compression testing machines.
  2. EN 772-1: Part of the EN 772 series, this standard focuses on testing the compression strength of masonry units like bricks and blocks. It provides guidelines for conducting compression tests on individual units to evaluate their load-bearing capacity and structural performance.
  3. EN 12390-5: Another part of the EN 12390 series, this standard outlines the procedure for testing the flexural strength of hardened concrete. It explains how to prepare and test concrete beams or prismatic specimens to measure their ability to resist bending forces.
  4. EN 12390-6: This standard, also part of the EN 12390 series, details how to test the compression strength of concrete specimens cured in conditions simulating real-world scenarios. It provides guidelines for testing concrete cured in water tanks to mimic conditions encountered in construction projects.
  5. ASTM C39: American standard for testing the compression strength of cylindrical concrete specimens. It describes how to prepare, cure, and test concrete cylinders using compression testing machines. Widely used for quality control and acceptance testing of concrete.
  6. ASTM C293: ASTM standard for testing the flexural strength of concrete beams using a third-point loading method. It provides guidelines for determining the ability of concrete beams to withstand bending forces by applying loads at two points.
  7. AASHTO T 22: Standard published by AASHTO for testing the compression strength of cylindrical concrete specimens. It explains how to prepare, cure, and test concrete cylinders to evaluate their strength characteristics, commonly used in highway and transportation projects in the United States.

Test Procedre of Digimatic Compression Machine 2000kN:

  1. Preparation: Cast cylindrical concrete specimens according to applicable standards and ensure proper curing.
  2. Setup: Configure the Digimatic Compression Machine 2000kN to the required testing parameters, including load rate and target displacement.
  3. Loading: Place the concrete specimen onto the compression platen of the machine, ensuring it is centered and aligned correctly.
  4. Testing: Initiate the compression test using the machine's digital interface, gradually applying a compressive force until the specimen fails or reaches the desired endpoint.
  5. Data Acquisition: Continuously monitor and record load and displacement data throughout the test process using the machine's digital display and data logging features.
  6. Completion: Conclude the test once the specimen fails or meets the predetermined endpoint criteria, then carefully release the load and remove the specimen from the machine.
  7. Analysis: Analyze the collected data to determine the compressive strength and other relevant mechanical properties of the concrete specimen.
  8. Maintenance: Perform routine maintenance tasks on the Digimatic Compression Machine 2000kN as per manufacturer recommendations to ensure its continued accuracy and reliability for future testing.

Technical Specifications of Digimatic Compression Machine 2000kN:

 Model Number  NL 4000 X / 032G
 Max. Vertical Clearance  400 mm
 Max. Horizontal Clearance  285 mm
 Capacity  2000 kN
 Low Range Sensitivity  0 - 999 x 0.01kN
 High Range Sensitivity  1000 - 2000 x 0.1kN
 Compression Platen Diameter  216 mm
 Piston Ram Diameter  250 mm
 Piston Ram Travel  50 mm
 Column Diameter  65 mm
 Product Dimension (mm)  1010 (L) x 430 (W) x 1480 (H)
 Approx. Product Weight  625 kg
 Power  AC220 V, 1Ph, 6A, 50/60 Hz,

Set Consists Of:

 Model Number  Accessories   Description  Qty
 NL 4000 X / 032 –   P001  Distance Piece   Ø158  x 50 mm  1 no.
 NL 4000 X / 032 –   P002  Distance Piece   Ø158  x 100 mm  1 no.
 NL 4000 X / 032 –   P003  Distance Piece   Ø158  x 85 mm  1 no.

Optional Accessories:

 Model Number  Accessories Description
 NL 4000 X / 002 – A 005  100 mm Cube Lower   Platen Piece
 SP-TL1610PC  Portable Micro Printer   (Parallel)
 NL HWPR - 44  High White Paper Roll   44mm x 33mm Dia.   (5rolls/pack)
 NL ERC - 05  Seamless Ribbon (Black)
 NL DTSS  Data Tranfer Software   c/w   Cable Set
 Can perform test result transfer to computer in excel   format   and touch screen also can collect data by using pen drive
