Universal Testing Machines

Universal Testing Machine

NL Scientific is a global leader in providing comprehensive solutions for universal testing machines. Our material testing systems, renowned for their high quality, are exported and remotely supported across Asia, North America, Europe, and the Middle East. Our commitment to excellence is demonstrated through strict adherence to ISO 9001:2008 quality control processes during manufacturing. Our dedicated team, along with OEM partners, manages installation, calibration, training, and support for customers worldwide, ensuring seamless functionality and performance.

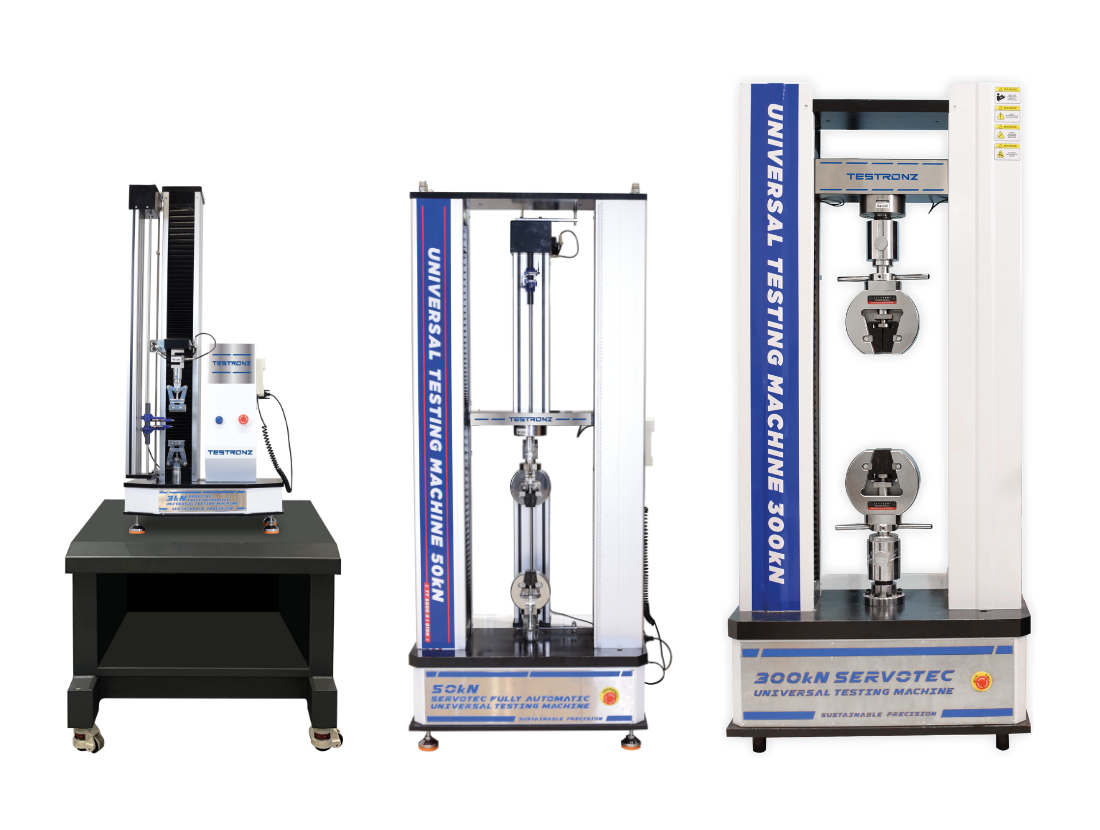

universal testing machine low force
Benchtop Universal
Testing Machines

Choose our available tensile machines with
load capacities of 3kN, 10kN, 20kN, 50kN,
100kN, 200kN, and 300kN.

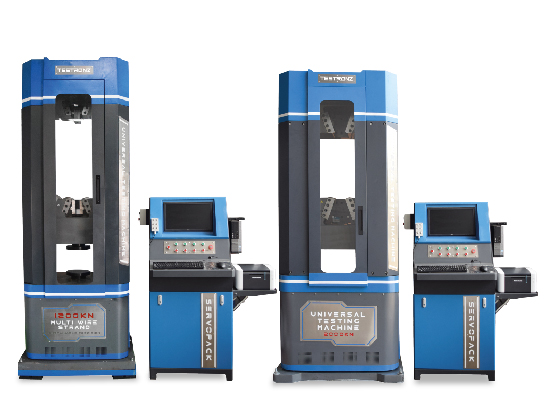

universal testing machine high force
Floor Standing Universal
Testing Machines


Choose our available tensile machines with
load capacities of 300kN, 600kN, 1000kN, 1200kN,
1500kN, and 2000kN.

Precision is paramount in our systems, achieved through top-notch hardware sourced from reputable suppliers. In addition to hardware, NL Scientific develops and maintains its control and analysis software in-house. Our electro-mechanical material testing machines are competitively priced, easy to maintain, and engineered for longevity. Each machine undergoes rigorous quality control and is accompanied by an expertly trained support team, offering global remote assistance for operation, service, and repairs.

NL Scientific stands out as the ultimate UTM partner, focusing on quality and high functionality. Our precision systems are crafted with the highest quality hardware, and our commitment to customer satisfaction extends to providing a full solution for universal testing machines worldwide. From installation to calibration, training, and ongoing support, NL Scientific ensures a seamless experience for customers across Asia, North America, Europe, and the Middle East.



Discover the NL Scientific Difference


NL Scientific sets itself apart in the ownership experience of its testing machines through a thoughtful approach to reliability, serviceability, and calibration. Understanding the critical need for both high reliability and ease of troubleshooting, our machines are supported by our dedicated staff and global OEM partners. The NL Scientific line is uniquely designed with an open architecture, facilitating on-site replacement of electronic components.

Instances requiring the shipment of a Universal Testing Machine (UTM) back to the manufacturer are almost exclusive to rare mechanical failures in the frame and twin ball-screw system. Notably, the last recorded mechanical failure of an NL Scientific UTM drive system underscores the exceptional durability of our machines.

Calibrating and certifying the NL Scientific universal testing machine is a straightforward process. Specifically designed for certification by local force calibration professionals, our machines adhere to international standards such as ASTM E4, ISO 17025, and others. No password restrictions exist, and NL Scientific offers a Calibration Verification Guide upon request to any local calibrator house. Additionally, we can recommend a trusted calibrator and boast dedicated partners within your local country region.

The installation of NL Scientific machines is simple. Contact our customer support or explore our installation guide for valuable tips on uncrating, moving, and hoisting your new universal testing machine into its designated location.

NL Scientific machines not only meet but surpass global standards including BS EN 10002-1, ISO 7500-1, ASTM A370, ensuring compliance with the highest benchmarks in materials testing systems. Choose NL Scientific for a seamless, reliable, and internationally supported testing experience.

ASIA LEADER IN
MATERIAL TESTING EQUIPMENT

Benchtop Universal Testing Machines

Model Number

TT6000 X / 032N

TT6000 X /   020N

TT6000 X / 019N

TT6000 X / 018N

TT6000 X / 024N

TT6000 X / 023N

Max Test Force

10kN

20kN

50kN

100kN

200kN

300kN



1000kgf

2000kgf

5000kgf

10000kgf

20000kgf

30000kgf

Structure Type

Twin Rigid Column with Twin High Precision Ball Screw

Trailing Space

950 mm (exclude fixtures)

Width Space

350 mm

350 mm

400 mm

440 mm

440 mm

440 mm

Test Force Accuracy

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Test Speed Range

0.01 - 500 mm/min

0.01 - 500 mm/min

0.01 - 500 mm/min

0.1 - 250 mm/min

0.1 - 250 mm/min

0.1 - 500 mm/min

Load Resolution

1/100 000

1/100 000

1/100 000

1/100 000

1/100 000

1/100 000

Displacement Resolution

1/1000

1/1000

1/1000

1/1000

1/1000

1/1000

Displacement Accuracy

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

Resolution of Metal Extenders

1/1000

1/1000

1/1000

1/1000

1/1000

1/1000

Accuracy of Metal Extenders

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

Accuracy of Extenders

±1 mm

±1 mm

±1 mm

±1 mm

±1 mm

±1 mm

Measuring Range

0.5% - 100% Full Scale

Load Unit

Gf, kgf, N, kN, Lbf, etc.

Curve Display

Selectable Axial Parameters:

 Y-axis - time, load, displacement, deformation, stress, strain.

 X-axis - time, load, displacement, deformation, stress, strain.

Data Display

Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm)

Main Drive Unit

Precision Servo Drive & Servo Motor

Safety Feature

Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat

Power Source

220 ~ 240V, 600W, 4A, 1Ph, 50/60Hz, 0.8Hp

220 ~ 240V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp

380 ~ 415V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp

Product Dimension

660(L) x 450(W) x 1700(H) mm

606 x 405 x 1625 mm

490 x 795 x 1750 mm

910 x 480 x 2000 mm

910 x 480 x 2000 mm

910 x 480 x 2000 mm

Approx. Weight

186 kg

220 kg

250 kg

500 kg

500 kg

500 kg

Floorstanding Universal Testing Machines

Model Number

TT6000 X / 032N

TT6000 X /   020N

TT6000 X / 019N

TT6000 X / 018N

TT6000 X / 024N

TT6000 X / 023N

Max Test Force

10kN

20kN

50kN

100kN

200kN

300kN



1000kgf

2000kgf

5000kgf

10000kgf

20000kgf

30000kgf

Structure Type

Twin Rigid Column with Twin High Precision Ball Screw

Trailing Space

950 mm (exclude fixtures)

Width Space

350 mm

350 mm

400 mm

440 mm

440 mm

440 mm

Test Force Accuracy

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Test Speed Range

0.01 - 500 mm/min

0.01 - 500 mm/min

0.01 - 500 mm/min

0.1 - 250 mm/min

0.1 - 250 mm/min

0.1 - 500 mm/min

Load Resolution

1/100 000

1/100 000

1/100 000

1/100 000

1/100 000

1/100 000

Displacement Resolution

1/1000

1/1000

1/1000

1/1000

1/1000

1/1000

Displacement Accuracy

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

Resolution of Metal Extenders

1/1000

1/1000

1/1000

1/1000

1/1000

1/1000

Accuracy of Metal Extenders

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

≤0.5%

Accuracy of Extenders

±1 mm

±1 mm

±1 mm

±1 mm

±1 mm

±1 mm

Measuring Range

0.5% - 100% Full Scale

Load Unit

Gf, kgf, N, kN, Lbf, etc.

Curve Display

Selectable Axial Parameters:

 Y-axis - time, load, displacement, deformation, stress, strain.

 X-axis - time, load, displacement, deformation, stress, strain.

Data Display

Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm)

Main Drive Unit

Precision Servo Drive & Servo Motor

Safety Feature

Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat

Power Source

220 ~ 240V, 600W, 4A, 1Ph, 50/60Hz, 0.8Hp

220 ~ 240V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp

380 ~ 415V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp

Product Dimension

660(L) x 450(W) x 1700(H) mm

606 x 405 x 1625 mm

490 x 795 x 1750 mm

910 x 480 x 2000 mm

910 x 480 x 2000 mm

910 x 480 x 2000 mm

Approx. Weight

186 kg

220 kg

250 kg

500 kg

500 kg

500 kg
