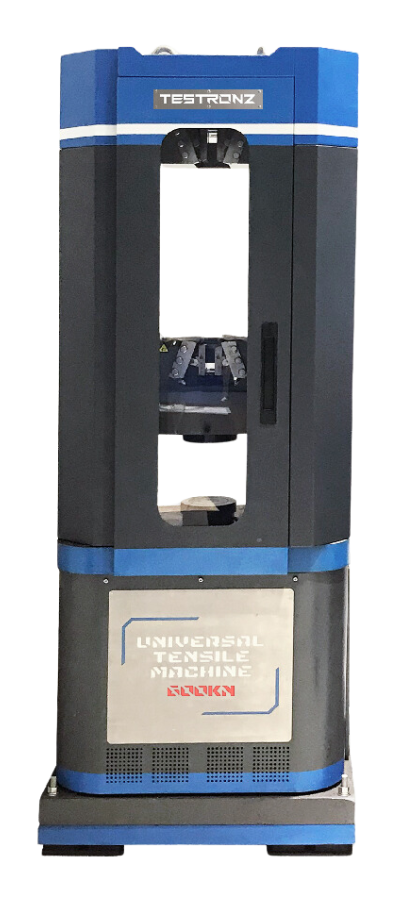

The Electro-Hydraulic Servo Control 600kn Universal Testing Machine have a force capacity range of up to 600 kN and used for the mechanics property test such as tensile, compression, bend, peel, shear, tear, creep, and cyclic tests on all raw materials and finished goods. These electro-hydraulic floor model universal testing machines feature a heavy-duty frame used for testing high-strength metals alloys, advanced composites, aerospace and automotive structures, bolts, fasteners, plate steels, and crystalline polymers.

The Hydraulic 600kn Universal Testing Machine use the micro-computer automatic data collection and processing, real time display of the test data and curves. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc. With features such as automatic test result processing for statistical purposes, customizable test reports, unlimited storage of test results, and a network interface for enhanced connectivity, the Hydraulic 600kn Universal Testing Machine offers high precision, outstanding performance, and convenient operation, making it a reliable choice for a wide range of material testing applications.

Quality and Standard Compliance: ISO 7500-1, BSEN 10002-1 and ASTM A370

The Electro Hydraulic Servo Control 600kN Universal Testing Machines provide comprehensive closed-loop testing for force, displacement, or deformation in tension, compression, flexure, shear, tear, and peel. Designed for the measurement and testing of mechanical properties and analytical studies, they cover a wide range of applications in various industries such as aviation, petrochemical, machinery manufacture, rubber, fibres, plastics, ceramics, foils, films, textiles, adhesives, wood, paper, foods, foams, timber, wires, cable, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, and more. The Electro Hydraulic Servo Control 600kN Universal Testing Machines is adaptable to metallic or non-metallic specimens, making it suitable for applications in medical, electronic, and other diverse fields.

• Tensile stress
• Tensile strength
• Any point force value
• Compression test
• Pulling strength

• Tear off elongation
• Any point elongation
• Bending test
• Stable tensile stress
• Constant stress elongation

• Extraction
• Adhesive force stripping force test
• Constant stress force value
• Extraction force piercing force test
• Computation of adhesion and peak value

1. Hydraulic servo-controlled system regulating the load rate, grants accurate force measurement
2. Hydraulic jaws, for stronger clamping of specimens
3. Over size prestressed 4 column with twin screw
4. Two different work spaces, the upper one for tension and the lower one for compression, bending and shearing, for a comfortable test execution
5. High toughness fragment safety guard with transparence sliding door
6. High precision load cell ram, class 1 according to ISO 376 standard grants accurate force measurement
7. Built-in shock absorbing system on base mounting
8. Console Control Unit
9. Thousands of accessories to meet test requirements in almost any application or industry: biomedical, automotive, electronics, plastics, metals, composites, elastomers, aerospace, textiles, and many more.

1. Elastic coefficient is the elastic Young's modulus Definition: The ratio of normal stress components to normal strain in the same phase. In order to determine the coefficient of stiffness of the material, the higher the value, the stronger the material.

2. Proportional Limit: The relationship between load and elongation can be maintained in certain range, and maximum stress is the specific limit.

3. Elasticity Limit: Maximum stress for material to withstand pull-out force puncture test without permanent deformation.

4. Elastic Deformation: When the load is removed, the deformation of the material disappears completely.

5. Permanent Deformation: After removing the load, the material remains deformed.

6. Yield Point: When a material is stretched, the deformation increases, and the stress remains unchanged. This point is the yield point. The yield point is divided into upper and lower yield points, and the above yield points are generally regarded as yield points. Yield: When the load exceeds the proportional limit, it is no longer proportional to the elongation. The load will drop suddenly. Then, over a period, it will fluctuate up and down, and the elongation will change greatly. This phenomenon is called yield.

7. Yield Strength: The quotient obtained by dividing the permanent elongation to a specified load by the original cross-section area of the parallel part in tension.

8. Spring K Value: Ratio of Force Component in Phase with Deformation to Deformation.

9. Effective Elasticity and Lag Loss: On a tension machine, when the specimen is stretched to a certain elongation or to a specified load at a certain speed, the percentage of the work recovered during shrinkage and the work consumed during stretching is determined as effective elasticity; and the percentage of the work lost during elongation and shrinkage to the work consumed during elongation is determined as hysteresis loss.

1. Operation interface - User friendly & easily due to clear and brief operation

2. Automatically save the test conditions & results

3. User define test curves including : Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
4. Individual or combine display test curves on the same screen to compare with other several data at the same time
5. Compatible with Microsoft Excel by import or export function
6. Base of testing with digital sample break detection, auto ranging, auto calibration, quick tare & auto return facilities
7. Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
8. Tension, Compression, Shear, Cycling & Creep Test facilities
9. User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
10. Advanced protection features with software setting or / & hardware switch upper & lower limit setting
11. Operation fully control by computer
12. USB communication system & ethernet
13. Grips & fixtures for tension, compression, flexural, shear & products testing available
14. Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
15. Report sheet consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
16. Force display unit : kN,N,tons, & mN
17. Stress display unit : GPa,Mpa,Pa,psi,N/sq.mm,Kg/sq.mm & Tons/sq.inch
18. User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc

1. Test force display
2. Break detection
3. Full auto test range switching function
4. Auto return function
5. Peak / Break value display function
6. Test conditions

1. Emergency stop switch

2. Overload limit

3. Ram-stroke limit

4. Hydraulic pump motor over-current & over heating protection

5. Leak / over current protection

6. Automatic stop control

7. Safety Guard

• ASTM E8: Standard Test Methods for Tension Testing of Metallic Materials
• ISO 6892: Metallic materials - Tensile testing
• BS EN 10002-1: Tensile testing of metallic materials
• ASTM E21: Elevated Temperature Tensile Testing
• ISO 783: Metallic materials - Compression test
• EN ISO 7438: Metallic materials - Bend test
• ISO 14589: Metallic materials - Instrumented indentation test
• ASTM F606: Standard Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners, Washers, Direct Tension Indicators, and Rivets

• ASTM D638: Tensile Properties of Plastics
• EN ISO 6259: Plastics - Compression molding test specimens of thermoplastic materials
• EN ISO 527-1: Determination of tensile properties
• ISO 604: Plastics - Determination of compressive properties
• ASTM D695: Compressive Properties of Rigid Plastics
• ASTM D3846: In-Plane Shear Strength of Reinforced Plastics
• EN ISO 844: Rigid cellular plastics - Compression properties
• EN ISO 13968: Geosynthetics - Determination of Tensile Properties
• EN ISO 9969: Plastics - Polyethylene (PE) molding and extrusion materials - Designation system and basis for specifications

• ASTM D3950: Standard Specification for Strapping, Flat Steel and Seals
• ASTM D6775-02: Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape, and Braided Material
• BS EN ISO 10319: Geosynthetics - Wide-width tensile test

• ISO 37: Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties
• ASTM D41: Standard Specification for Asphalt Primer Used in Roofing, Dampproofing, and Waterproofing
• ASTM A370, ASTM E4, ASTM E8, ASTM E9: Various standards related to the mechanical testing of materials
