Low Force Universal Testing Machine

Low Force Universal Testing Machine up to 600kN

Low Force Universal Testing Machine UP TO 600kN

Universal Testing Machines (UTMs) serve as indispensable tools in civil engineering, offering a versatile array of mechanical tests crucial for evaluating the structural integrity of materials and components. Designed to meet the rigorous standards set by ASTM, ISO, and industry benchmarks, these systems perform tests such as tensile, compression, bend, peel, tear, friction, and shear testing. With compatibility for numerous accessories, UTMs cater to a wide range of applications in Research and Development (R&D), Quality Control (QC), and other mechanical testing scenarios, supporting forces up to 300 kN. Their adaptability and diverse configurations make them essential in ensuring the safety and durability of civil engineering structures, providing precise data across various testing parameters.

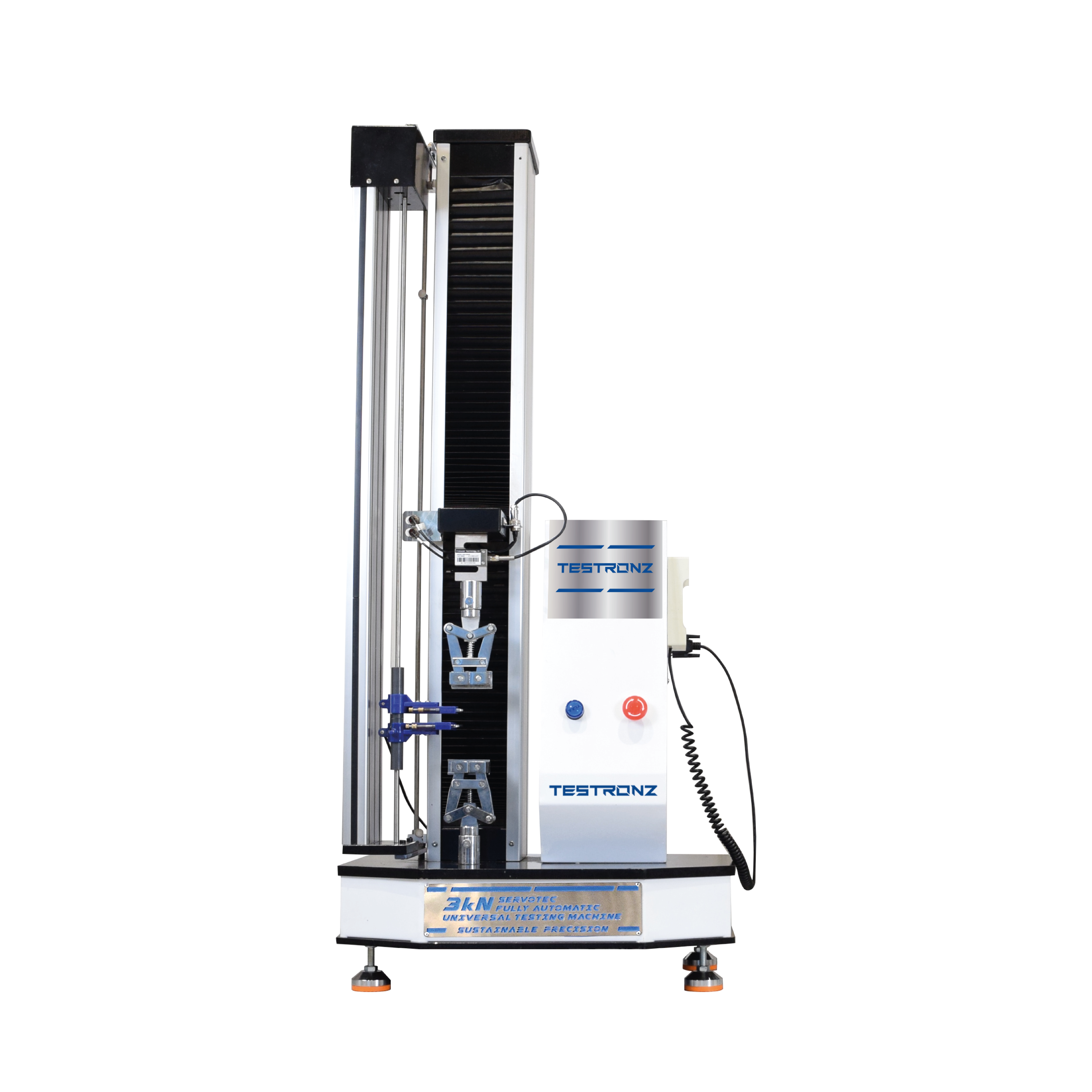

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 3 kN

The Servotec 3kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, single-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

More Info

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 10 kN

The Servotec 10kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, double-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

More Info

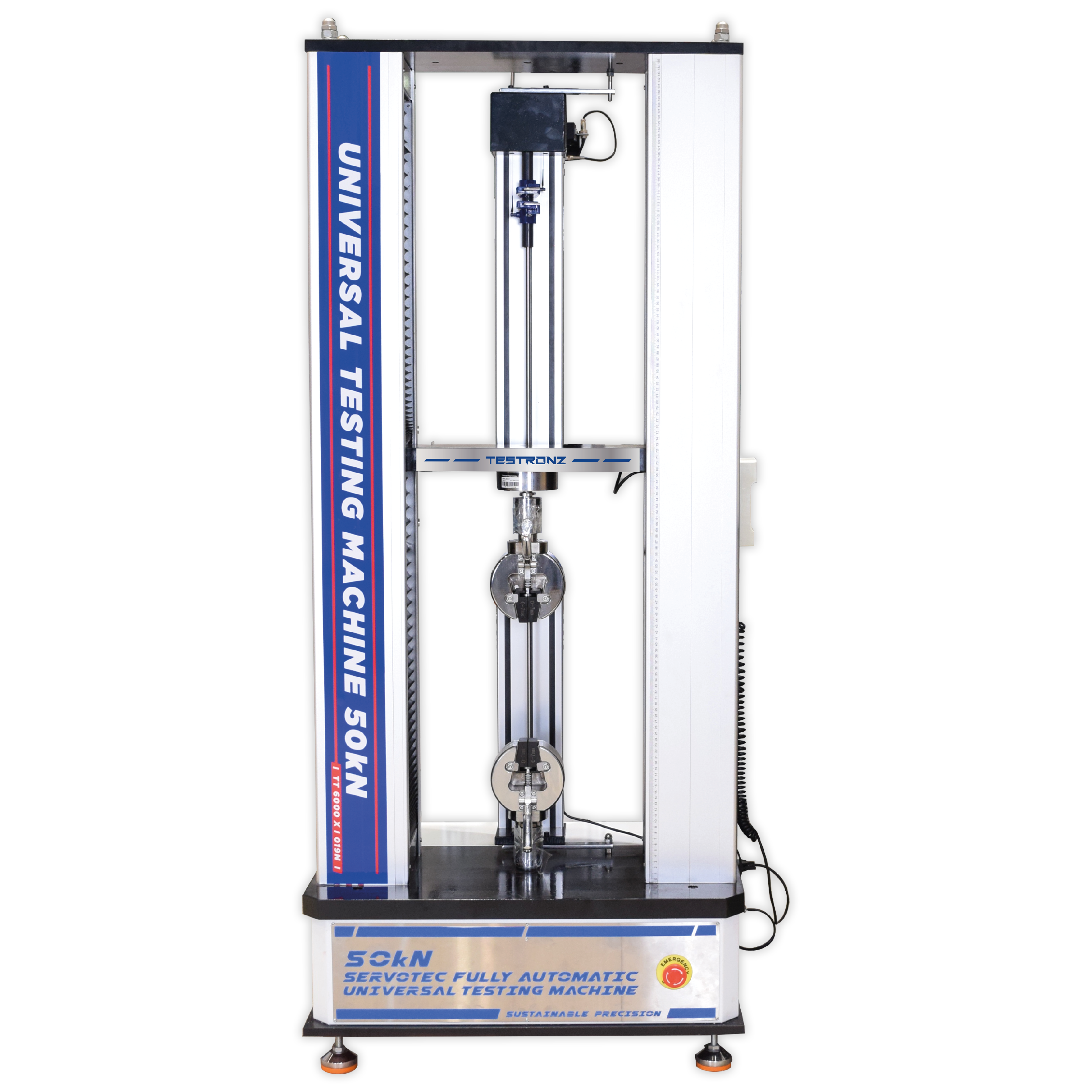

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 50 kN

The Servotec 50kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, double-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

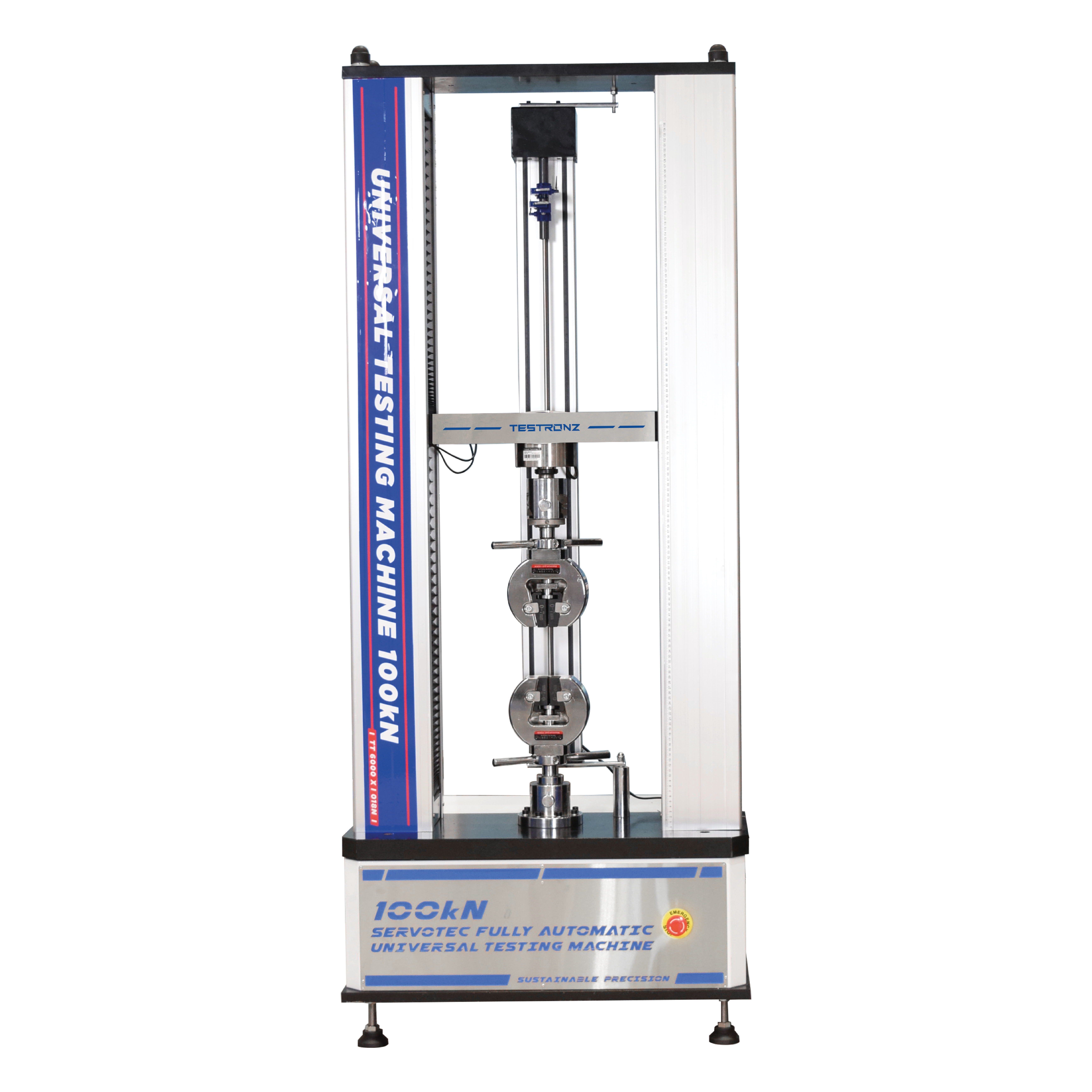

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 100 kN

The Servotec 100kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, double-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 300 kN

The Servotec 300kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, double-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

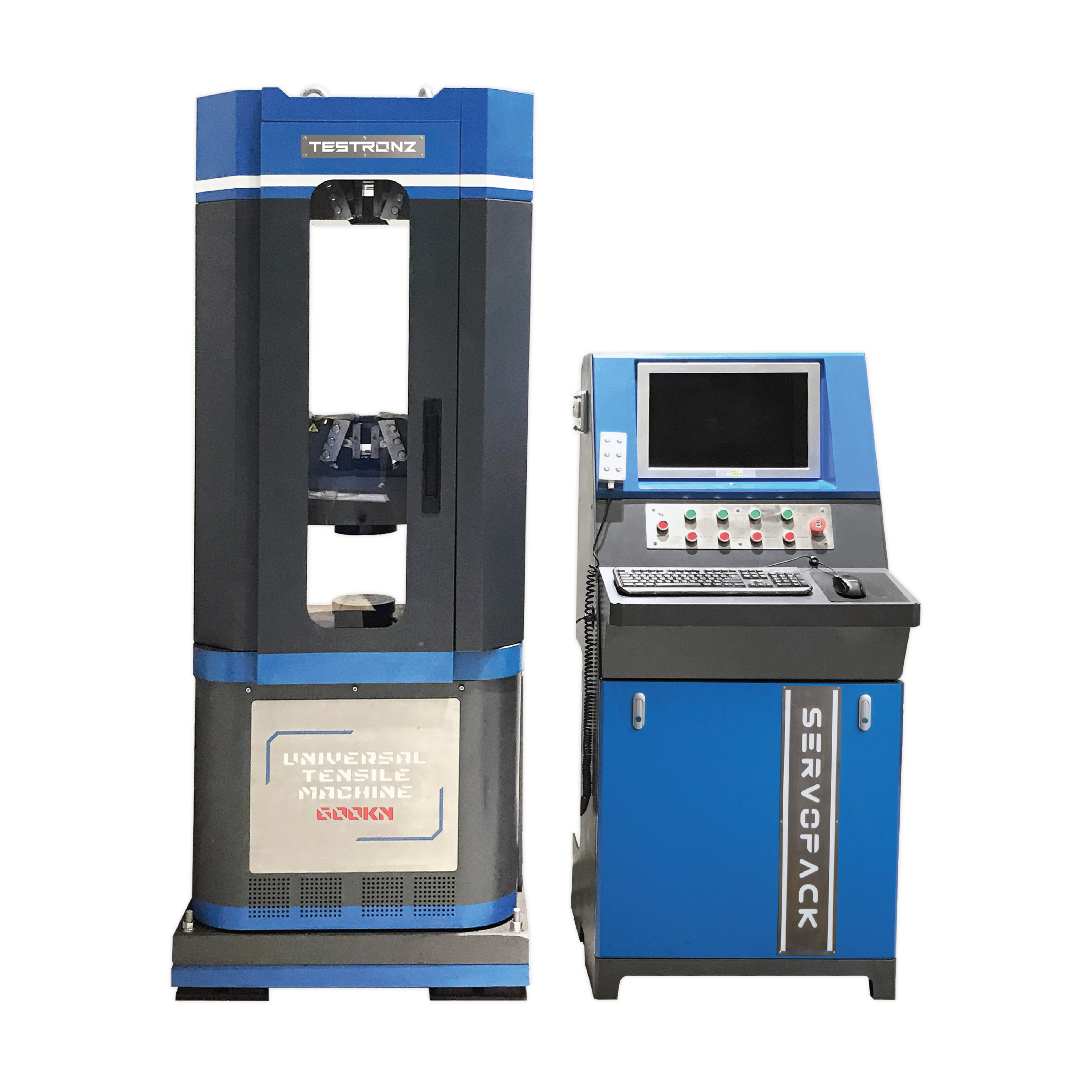

servotec fully automatic universal testing machine 600kn

Electro-Hydraulic Servo Control Universal Testing Machine 600kN

The Servotec 600kN machine can accurately test the characteristics of metal, plastic, wires, paper, films, rubber, small automobile parts, electronic equipment, aerospace components, fibres, and more. It is designed to be robust and compact, four-column electro-mechanical testing equipment. The sturdy structure of the frame ensures sustainablity and reliability of the machine despite precise and accurate test results.

Model Number	TT6000 X / 032N	TT6000 X / 020N	TT6000 X / 019N	TT6000 X / 018N	TT6000 X / 024N	TT6000 X / 023N
Max Test Force	10kN	20kN	50kN	100kN	200kN	300kN
	1000kgf	2000kgf	5000kgf	10000kgf	20000kgf	30000kgf
Structure Type	Twin Rigid Column with Twin High Precision Ball Screw
Trailing Space	950 mm (exclude fixtures)
Width Space	350 mm	350 mm	400 mm	440 mm	440 mm	440 mm
Test Force Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Test Speed Range	0.01 - 500 mm/min	0.01 - 500 mm/min	0.01 - 500 mm/min	0.1 - 250 mm/min	0.1 - 250 mm/min	0.1 - 500 mm/min
Load Resolution	1/100 000	1/100 000	1/100 000	1/100 000	1/100 000	1/100 000
Displacement Resolution	1/1000	1/1000	1/1000	1/1000	1/1000	1/1000
Displacement Accuracy	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Resolution of Metal Extenders	1/1000	1/1000	1/1000	1/1000	1/1000	1/1000
Accuracy of Metal Extenders	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Accuracy of Extenders	±1 mm	±1 mm	±1 mm	±1 mm	±1 mm	±1 mm
Measuring Range	0.5% - 100% Full Scale
Load Unit	Gf, kgf, N, kN, Lbf, etc.
Curve Display	Selectable Axial Parameters: Y-axis - time, load, displacement, deformation, stress, strain. X-axis - time, load, displacement, deformation, stress, strain.
Data Display	Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm)
Main Drive Unit	Precision Servo Drive & Servo Motor
Safety Feature	Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat
Power Source	220 ~ 240V, 600W, 4A, 1Ph, 50/60Hz, 0.8Hp		220 ~ 240V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp		380 ~ 415V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp
Product Dimension	660(L) x 450(W) x 1700(H) mm	606 x 405 x 1625 mm	490 x 795 x 1750 mm	910 x 480 x 2000 mm	910 x 480 x 2000 mm	910 x 480 x 2000 mm
Approx. Weight	186 kg	220 kg	250 kg	500 kg	500 kg	500 kg

Order A Universal Testing Machine

Each test can help businesses to better understand the performance and quality of materials, components, or products. And this is an essential aspect of product design and development. With the results of a tensile, compression or flexure test, can better adapt, optimize or redesign a product.

With the advanced features and capabilities, these machines are perfect for businesses of all sizes that need high-quality testing equipment for material and engineering tests. For more information on universal testing machines, please contact our team today!
