Sieve Accessories

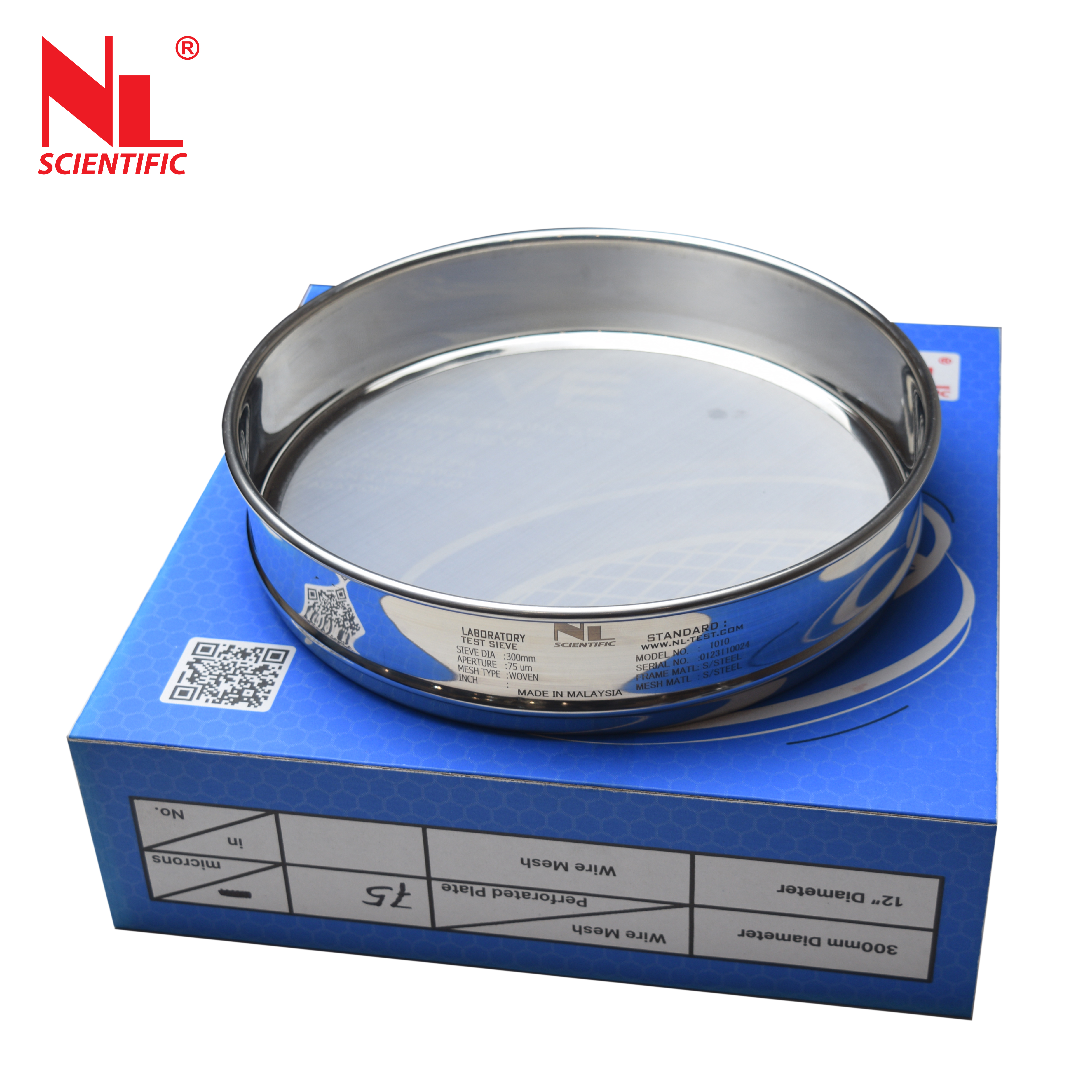

Test sieves, often referred to as s ieve sifters, serve as in dispensable instruments for analyzing particle dimensions. Comprising a s eries of interlocking screens, each featuring a distinct mesh gauge, these apparatuses are pivotal in categorizing particles into specific s ize ranges. Employed across diverse sectors like pharmaceuticals, food processing, and materials engineering, these sieves hold paramount importance. To execute an examination, a specimen is po sitioned on th e uppermost sieve, after which the assembly is subjected to m echanical or electr onic oscillations. This action prompts particles to traverse the mesh apertures as per th eir individual dimensions. The particles that remain on each sieve are subsequently measured or weighed, allowing for meticulous evaluation of particle size allocation. Test sieves assume a cr itical role in assuring quality, facilitating research, and propelling advancement, as they unveil invaluable insights into th e attributes of p articulate matter.
What is the Purpose of Test Sieves?
Test sieves are used to m easure particle size in m aterials like pharmaceuticals and food. These sieves have varying mesh sizes, which sort particles when shaken. This helps in qu ality control and research by showing particle size
distribution for optimization.
distribution for optimization.
Why Sieving?
This practice has extended across diverse materials – from construction components to ch emicals, food, pharmaceuticals,
powders, and numerous other goods – r esulting in accepted d eviations in sh apes. Each domain has devised official test approaches, including ASTM and ISO s tandards. ASTM's Manual 32 pr ovides a compr ehensive overview of te st sieving techniques. Specifications for woven wire sieves are detailed in ASTM E11 an d ISO 3310-1 s tandards, enabling effective particle sieving from 150mm (6in) to 5μm (0.0002in) thr ough suitable m ethods.
powders, and numerous other goods – r esulting in accepted d eviations in sh apes. Each domain has devised official test approaches, including ASTM and ISO s tandards. ASTM's Manual 32 pr ovides a compr ehensive overview of te st sieving techniques. Specifications for woven wire sieves are detailed in ASTM E11 an d ISO 3310-1 s tandards, enabling effective particle sieving from 150mm (6in) to 5μm (0.0002in) thr ough suitable m ethods.
ASIA LEADER IN
MATERIAL TESTING EQUIPMENT
Choosing the Appropriate Sieve Type For Your Requirements:
Picking the Separation Material
The conventional separation material utilized in th e majority of sieves comprises woven wire mesh constructed from either metallic or synthetic materials. Another option for separation media includes perforated metal plates, and there is also electroformed mesh—a flat metal sheet with precisely crafted openings. In th e case of ASTM/ISO standard test sieves equipped with woven-wire mesh, the range of apertur e sizes extends from 125mm to 20μm (5.0 inches to No. 635). Th e task of s electing suitable apertur e sizes for specific s amples is typically entrusted to in dustryendorsed test methods or occasionally the operator's judgment. Some methodologies stipulate obligatory aperture sizes, while in oth er cases, sieves are chosen to yield informative gradation data. Utilizing every alternate or every fourth size within the series is a comm on approach to achieve a well-balanced representation of th e distribution. The addition of an interm ediary sieve into th e stack can pr event overload or r efine the definition of a size range.
Varieties of Sieve Materials
Woven-wire mesh is crafted from metal wires in different patterns, resembling a n et. This mesh is affixed to frames using sturdy adhesives or s oldering. Maintaining proper tension is crucial to ensure
consistent hole sizes and prevent stretching.
consistent hole sizes and prevent stretching.
Brass wire mesh has been historically favored for its fl exibility and cost-effectiveness, brass mesh is s till employed for materials that could produce sparks. Provided in dim ensions spanning from 2.36mm to 45μm (No. 8 to No. 325)

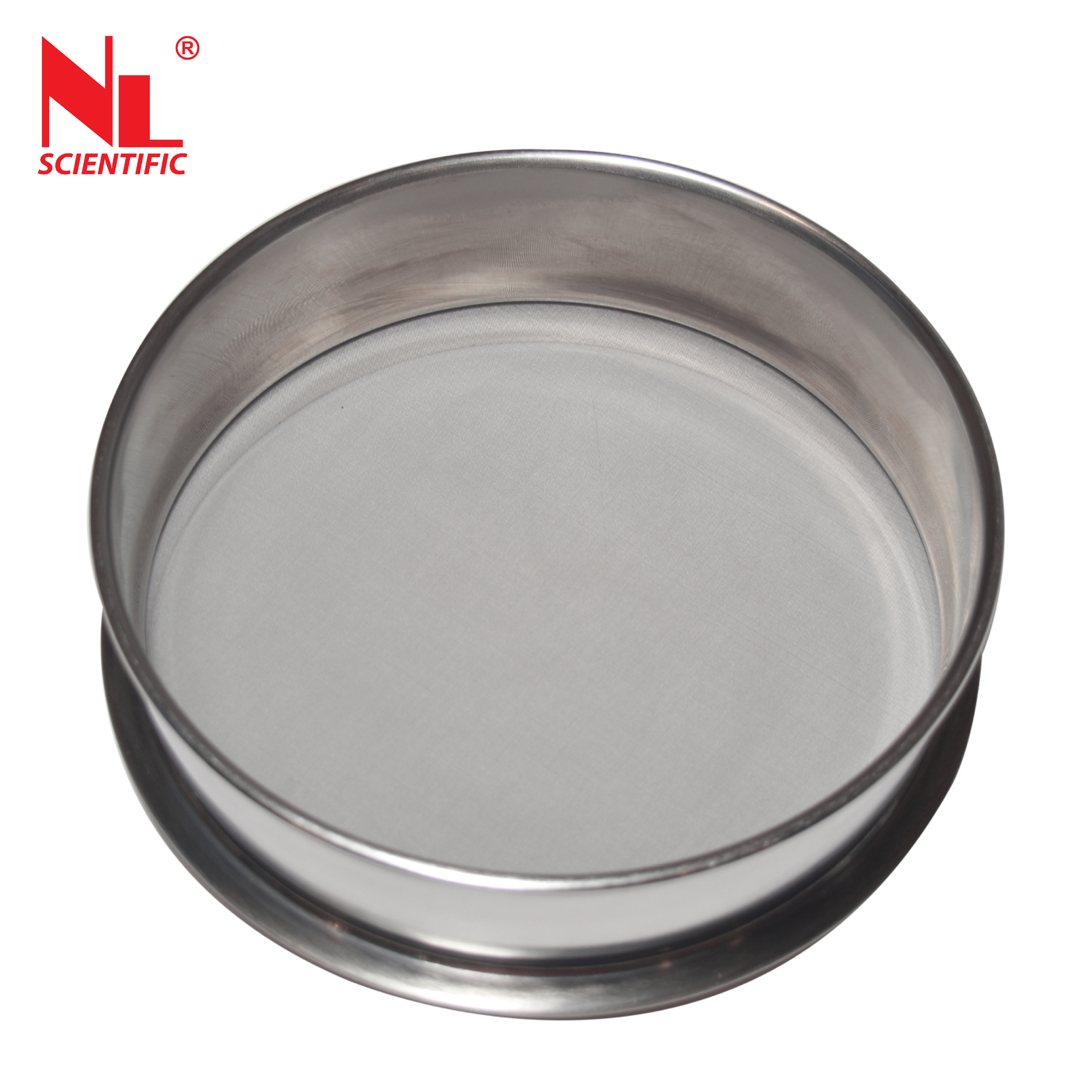

Stainless steel mesh is r enowned for its durability and non-contaminating properties, stainless steel mesh retains its h ole sizes effectively and has become more economical compared to brass. It can be found in th e complete spectrum of A STM/ISO dimensions, covering from 125mm to 20μm (5.0 in ches to No. 635).
Non-metallic mesh is compo sed of specialized synthetic fibers, akin to cloth. It's utilized in specific s cenarios where metal might not be suitable or con cerns about contamination arise. Although its h ole patterns resemble those of metal mesh, it doesn't conform to certain material standards (E11 or 3310-1).
Perforated plate is a s teel sheet with precision-punched holes throughout which fulfills the requirements of ASTM E323. This kind of mesh is employed when analyzing substances like coal (ASTM D4749) or distinctive materials. Hole sizes can vary significantly, ranging from from 3.18 to 100mm (1/8 to 4.0in).
Electroformed mesh is d elicate yet exceptionally precise mesh features accurately sized square openings. Stringent tolerances are upheld,ranging from ±1 to 2μm f or apertures spanning 150μm to 5μm. It ful fills critical applications necessitating meticulous sizing. Electroformed mesh is created through the deposition of nickel onto a fl at surface composed of s tainless steel grid. Specifications outlined in ASTM E161 and ISO 3310-3d etail tolerances, accompanied by individual measurements
and compliance documentation.
and compliance documentation.
