Mastering Coarse Aggregate Gradation Testing
Have you ever been in a situation where you were demanded to come out with accurate graduation curves for all the samples while ensuring the best accuracy? This blog will reveal the tips to manage an unexpected surge in particle size analysis samples with expertise.
Coarse Aggregate Gradation Testing
Analyzing particle size distribution, a process accomplished via sieving, is the fundamental examination for construction aggregate samples. Whether you're examining field samples to evaluate a new aggregate source or performing routine quality control during production, comprehending particle size distribution is of paramount importance. Inefficient processing and sieving can lead to bottle necks, disrupted schedules, heaps of bags and buckets, and, most critically, unsatisfied clients. Discover the methods below to ensure an efficient and timely execution of your tasks.
1. Efficient Drying
Frequently, bulk aggregate samples reach the laboratory with moisture content levels that exceed the suitable range for immediate handling and testing. The quicker you spread them into flat, shallow trays for initial drying, the faster the process begins. Though high-capacity laboratory ovens are optimal for quick drying, materials can alternatively be positioned in adequately ventilated spaces or exposed to sunlight under appropriate circumstances. Partially drying bulk samples before reducing them to te sting size is often a faster approach.
2. Divide and Conquer
As previously mentioned, it is vital to promptly divide bulk aggregate samples into smaller, representative portions. Smaller samples facilitate quicker drying and are more manageable. ASTM C702 permits the mechanical splitting of fine aggregates, provided they are drier than the saturated surface-dry (SSD) condition. In the case of certain free flowing aggregates with minimal fines content, it's even feasible to split them while they are still wet, though this may result in some mess. Coarse aggregate samples can be di vided at any moisture level. Our strong recommendation is to utilize mechanical sample splitters for a more precise and efficient process. These splitters employ chute riffling, yielding a representative sample that is up to five times more accurate than manual methods

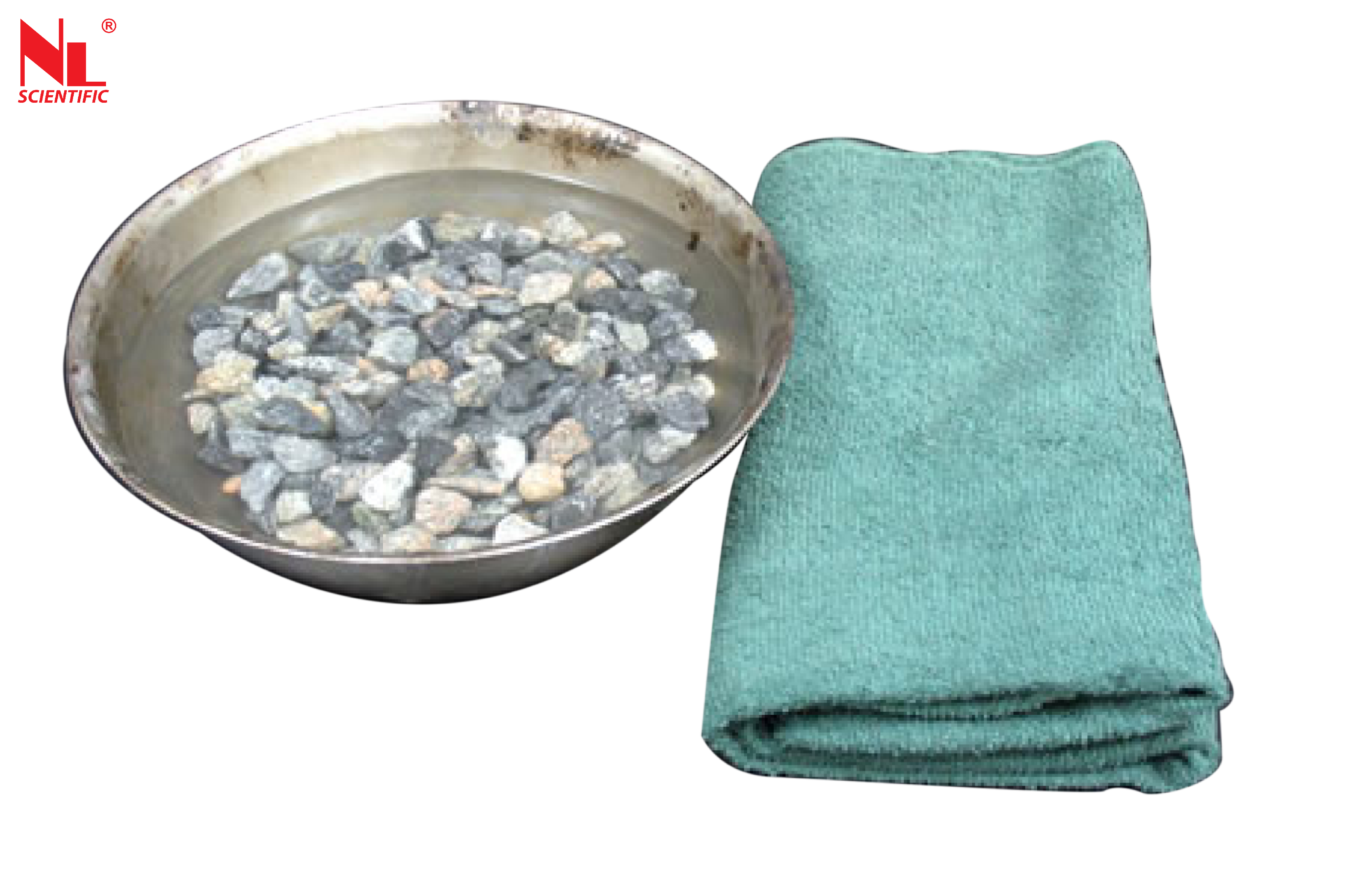

3. Wet-Washing Expertise
The process of wet-washing aggregate specimens, as outlined in ASTM C117, removes particles finer than 75μm (No. 200) from the sample. This particular fraction, commonly known as P200, comprises the portion that traverses through No. 200 s ieves. Although wet-washing can be t ime-consuming, there are compelling reasons for employing this method:
- This is crucial when managing fine aggregate samples or unprocessed materials of mixed sizes from natural deposits that contain as ignificant amount of fines.
- In the case of fine aggregate specimens, an accurate P200 value is in dispensable for concrete and asphalt mix designs.
4. Optimal Sieve Selection

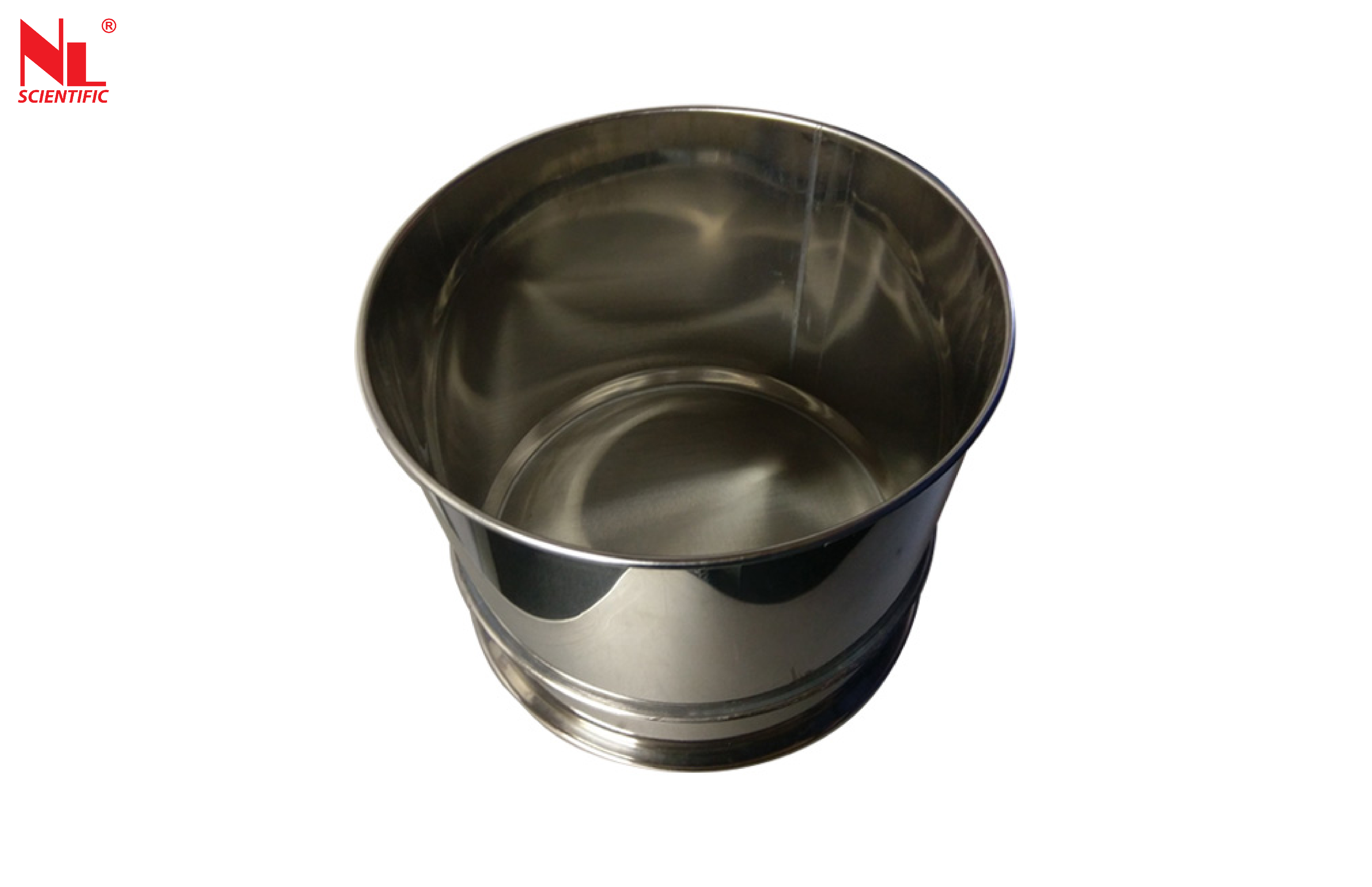

For the majority of gradation tests on construction aggregates, standard-grade test sieves are adequate. These commercially available sieves conform to th e fundamental manufacturing standards outlined in ASTM E11, al - though the precise measurement of in dividual sieve openings is not conducted. Using two or more sets of these sieves simultaneously is an economical strategy to accelerate the sieving procedure. While one set is in use within the sieve shaker, the fractions from the other set are weighed and documented.
5. Thorough Cleaning and Precise Weighing
Cleaning separated fractions from each sieve is a repetitive yet vital task that must be consistently carried out to ensure accurate results. Picking the right accessories can enhance efficiency and result in repeatability.
- Clean-N-Stor or Cle an-N-Weigh: Both apparatuses incorporate a funn el-shaped surface where sieves or screen trays can be upturned, discharged, and cleaned. The collected material gathers in a pan or scoop underneath for weighing purposes. Certain variants of these devices can be conveniently placed directly over an electronic balance for immediate weight measurements, significantly boosting operational efficiency.

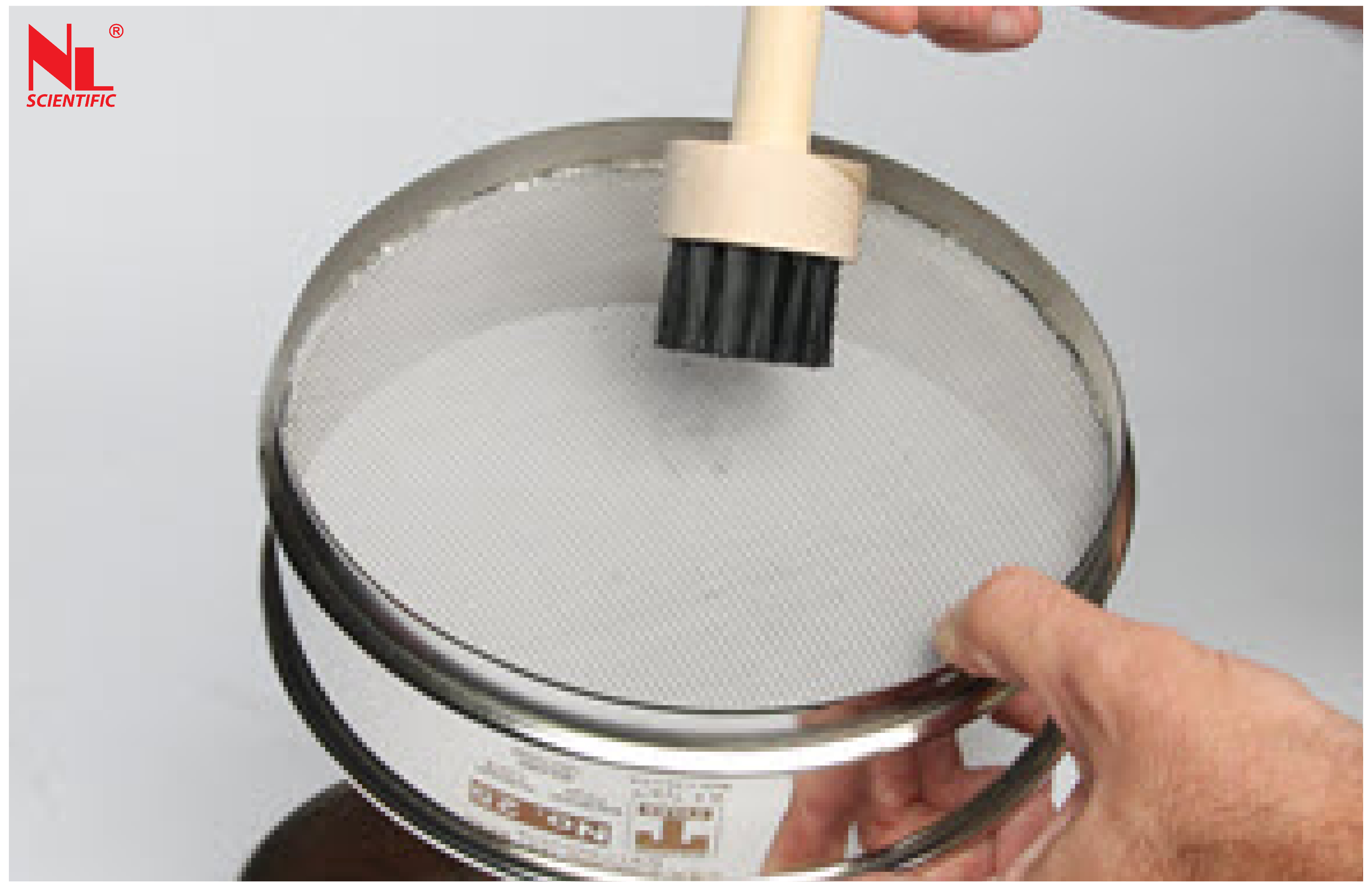

- Appropriate Sieve Brushes: The right brush selection makes a notable difference. Fine bristles are suitable for fine sieves, preventing wire cloth damage, while coarse bristles efficiently dislodge larger particles. It's crucial to refrain from using screwdrivers or ice picks for cleaning sieves.
- Digital Scales and Balances: These instruments are widely used internationally for weighing samples and fractions. They enhance productivity and reduce the potential for operator mistakes. The direct acquisition of data from an electronic balance, followed by recording and computation within software applications, greatly enhances the pace of operations. Nevertheless, effective testing can also be conducted through manual input of d ata into spreadsheet tools. Basic formulas can be effortlessly integrated into spreadsheet programs such as Excel to compute and visualize sieving outcomes.
ASIA LEADER IN
MATERIAL TESTING EQUIPMENT

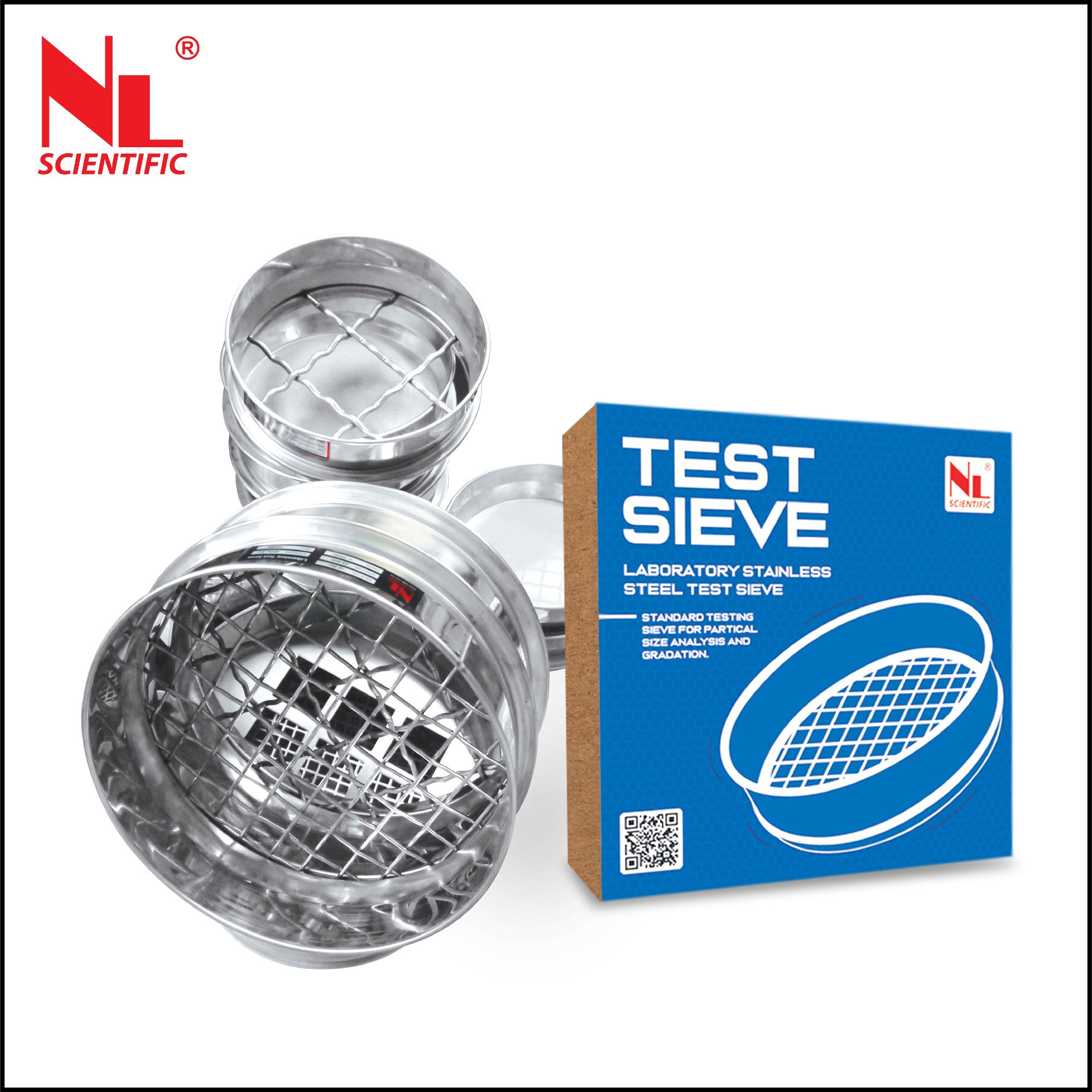

Order an International Standard Test Sieves
