Standard: BS EN 10002-1, ISO 7500-1, ASTM A370
Tensile & Compression
Universal testing Machine 200kN is used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry & etc.
It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kind of strength value manually. The RA232 connector can do the function of communicating with computer to do the data work. It is an essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purpose.

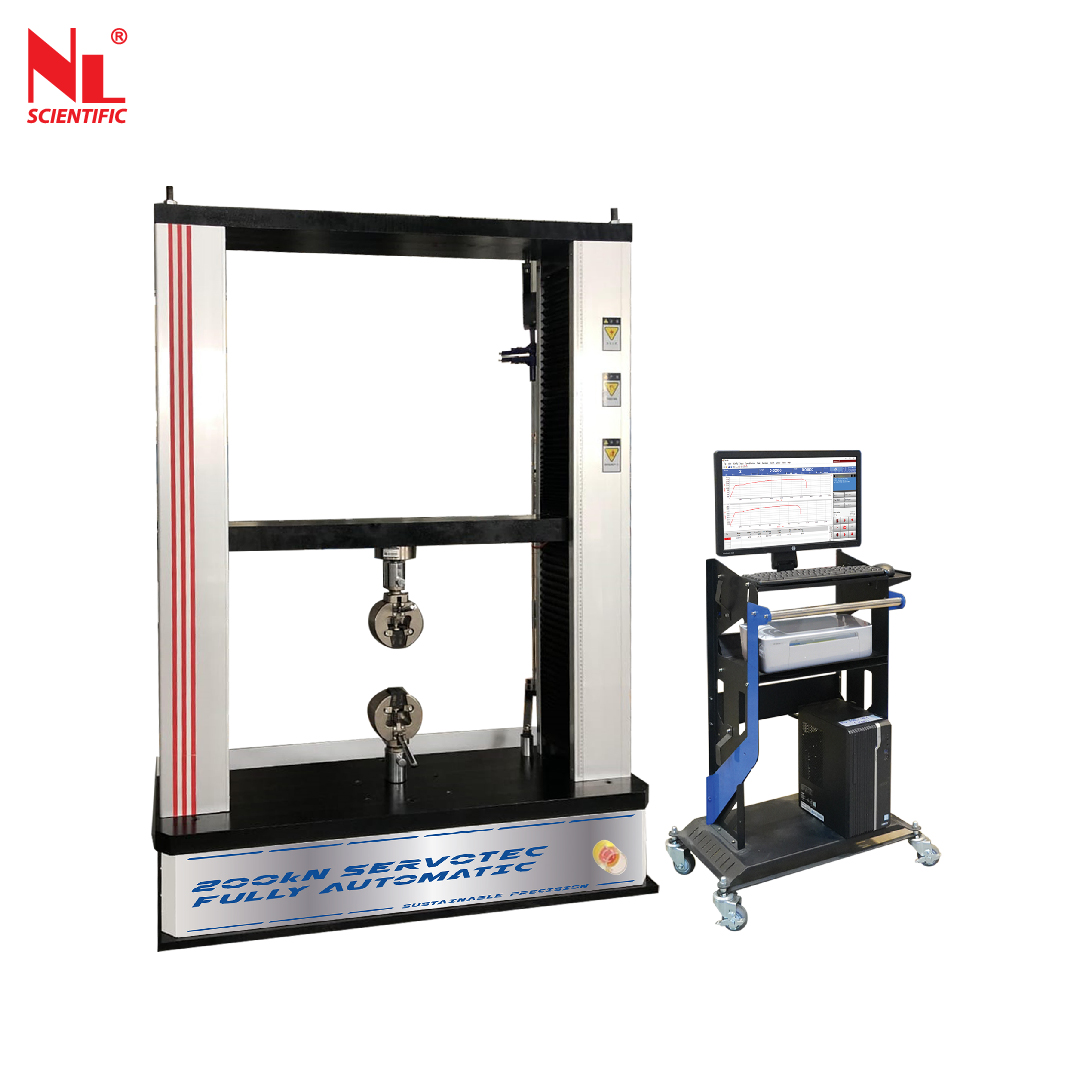

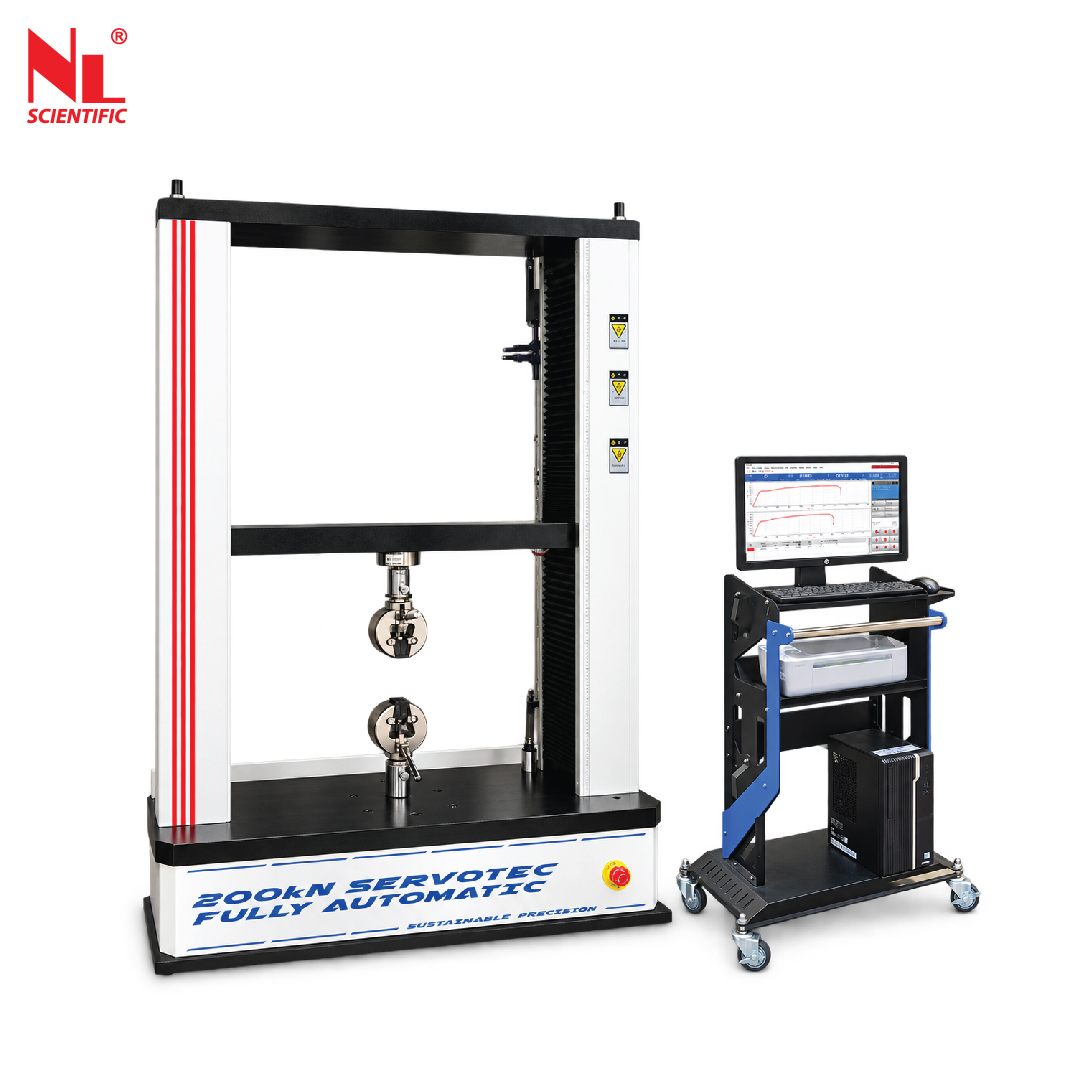

TT Servotec Fully Automatic Universal Testing Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. Its real time displays test data & test status with LCD module. Professional designed servo control system realizes the PWM pulse width modulation control mode. It really comes up to with test speed closed loop control mode. It is controlled by single chip automatically control.
Features of Universal Testing Machine 200kN:
Testable Items
General test item: (General display value and calculated value)
- Tensile stress
- Tensile strength
- Pulling strength
- Stable tensile stresS
- Constant stress force value
- Tear off the elongation
- Constant stress elongation
- Tear strength
- Any point force value
- Any point elongation
- Extraction
- Computation of adhesion and peak value
- Pressure test
- Bending test
- Adhesive force stripping force test
- Extraction force piercing force test
- Cycle test
Special test items
1. Elastic coefficient is the elastic Young's modulus Definition: The ratio of normal stress components to normal strain in the same phase. In order to determine the coefficient of stiffness of the material, the higher the value, the stronger the material.
2. Proportional Limit: The relationship between load and elongation can be maintained in a certain range, and the maximum stress is the specific limit.
3. Elasticity Limit: Maximum stress for material to withstand pull-out force puncture test without permanent deformation.
4. Elastic Deformation: When the load is removed, the deformation of the material disappears completely.
5. Permanent Deformation: After removing the load, the material remains deformed.
6. Yield point: When a material is stretched, the deformation increases, and the stress remains unchanged. This point is the yield point. The yield point is divided into upper and lower yield points, and the above yield points are generally regarded as yield points. Yield: When the load exceeds the proportional limit, it is no longer proportional to the elongation. The load will drop suddenly. Then, over a period, it will fluctuate up and down, and the elongation will change greatly. This phenomenon is called yield.
7. Yield Strength: The quotient obtained by dividing the permanent elongation to a specified load by the original cross-section area of the parallel part in tension.
8. Spring K Value: Ratio of Force Component in Phase with Deformation to Deformation.
9. Effective Elasticity and Lag Loss: On a tension machine, when the specimen is stretched to a certain elongation or to a specified load at a certain speed, the percentage of the work recovered during shrinkage and the work consumed during stretching is determined as effective elasticity; and the percentage of the work lost during elongation and shrinkage to the work consumed during elongation is determined as hysteresis loss.
Standard: BS EN 10002-1, ISO 7500-1, ASTM A370
- BS EN 10002-1: This standard outlines procedures for tensile testing of metallic materials, ensuring accurate measurement of properties like tensile strength and elongation.
- ISO 7500-1: ISO 7500-1 specifies calibration procedures for tension/compression testing machines, ensuring reliable force measurement in material testing.
- ASTM A370: ASTM A370 provides guidelines for mechanical testing of steel products, covering various tests to ensure products meet specified mechanical property requirements.
Test Procedure of Universal Testing Machine 200kN
- Specimen Preparation: Prepare the specimen according to testing standards or specific requirements, ensuring proper dimensions and geometry.
- Machine Calibration: Calibrate the UTM according to manufacturer instructions, verifying the accuracy of the load cell and displacement measurement system.
- Testing Parameter Setup: Set up testing parameters such as mode (tension, compression), speed, and limits on the control panel.
- Mounting Specimen: Securely mount the specimen onto grips or fixtures, ensuring proper alignment.
- Test Initiation: Start the test through the control panel or software interface and monitor progress.
- Data Collection: Collect data during the test, including force applied and displacement.
- Test Completion: Terminate the test upon reaching completion criteria and remove the specimen.
- Results Analysis: Analyze collected data for material properties and compare against standards.
- Reporting: Prepare a report summarizing the test procedure, specimen details, parameters, results, and conclusions.
- Maintenance: Perform necessary maintenance post-test to ensure proper machine functioning.
Main Technical Parameter of Universal Testing Machine 200kN:
| Model Number |
TT 6000 X / 024EW |
| Max Test Force |
200 kN |
| Structure Type |
Twin Rigid Column With Twin High Precision Ball Screw |
| Traveling Space |
950 mm (exclude fixtures) |
| Width Space |
600 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 - 500 mm/min |
| Load Resolution |
1/100 000 |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5%
|
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5%
|
Accuracy of Extenders
|
±1 mm
|
| Measuring Range |
0.5% - 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Curve Display |
Selectable Axial Parameters:
Y-axis - time, load, displacement, deformation, stress, strain.
X-axis - time, load, displacement, deformation, stress, strain. |
| Data Display |
Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm ) |
| Main Drive Unit |
Precision Servo Drive & Servo Motor |
| Safety Feature |
Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat |
| Power Source |
380 ~ 415V, 1500W, 5A, 3Ph, 50/60Hz, 2Hp |
| Product Dimension |
1100(L) x 550(W) x 2200(H) mm |
| Packing Dimension |
1250(L) x 650(W) x 2450(H) mm |
| Approx. Weight |
600 kg |
| Packing Weight |
700 kg |
Unit Consists Of:
| Model Number |
Parts Description |
Qty |
| TT LC – 200kNC |
200kN High Precision Load Cell (Cell Type) |
1 Unit. |
| TT 6ST – G05 |
Mechanical Wedge Clamp (0-9mm/300kN) |
1 Unit. |
| TT 6ST – HC1 |
Handheld Magnetic Control Unit |
1 Unit. |
| TT 6ST – DSV1 |

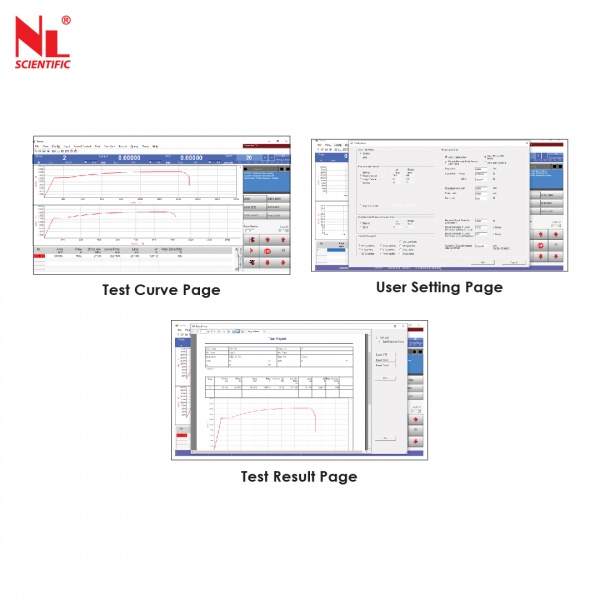

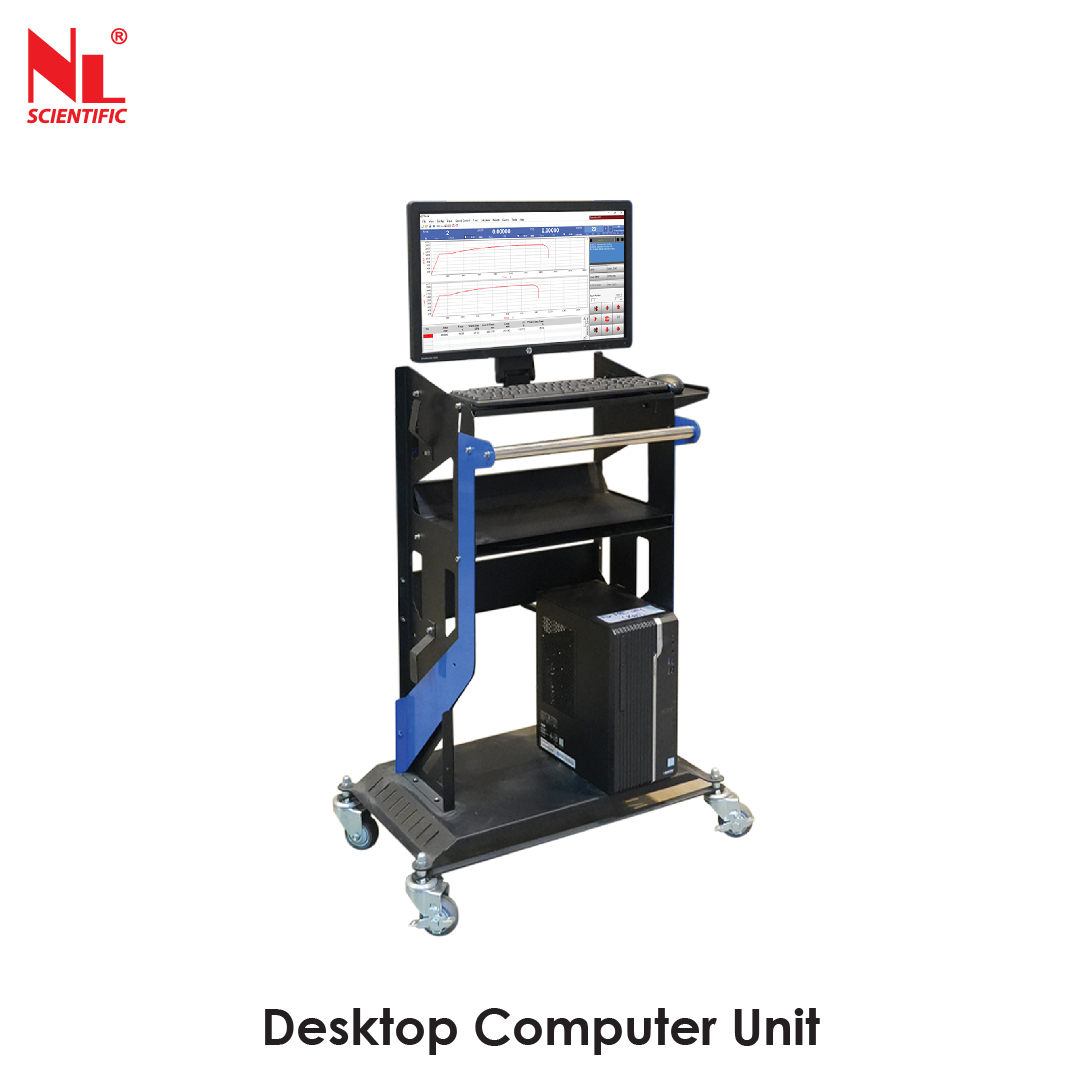

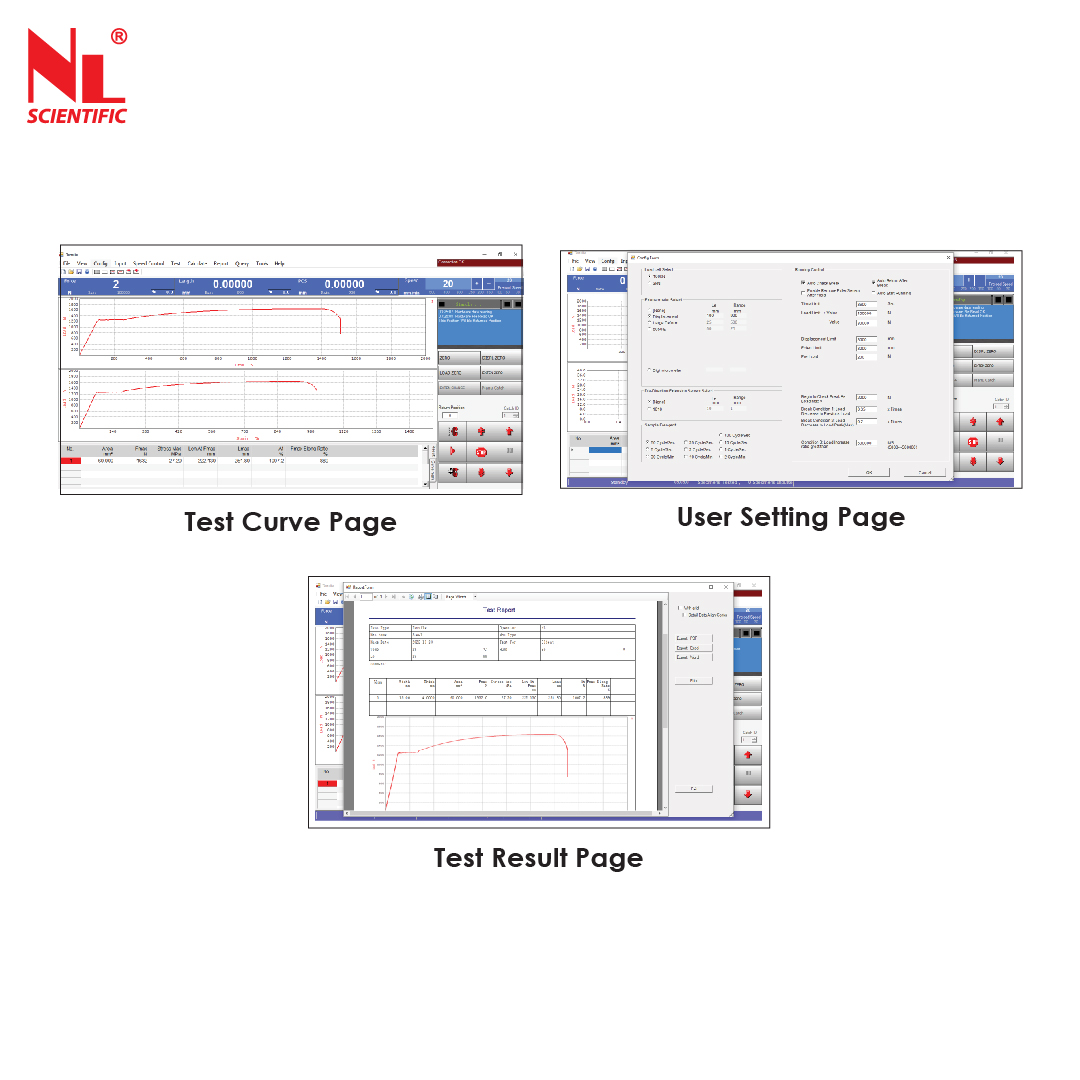

Laptop Unit c/w Operation Software (TESTRONZ TUS-1.0) |
1 Unit. |
Optional Accessories:
| Model Number |
Parts Description |
Qty |
| TT CDT1 |
Console Desk T1 |
1 Set. |
| TT 6ST – CTS |
Cycle Test Software |
1 No. |
| TT AEX – 25/10 |

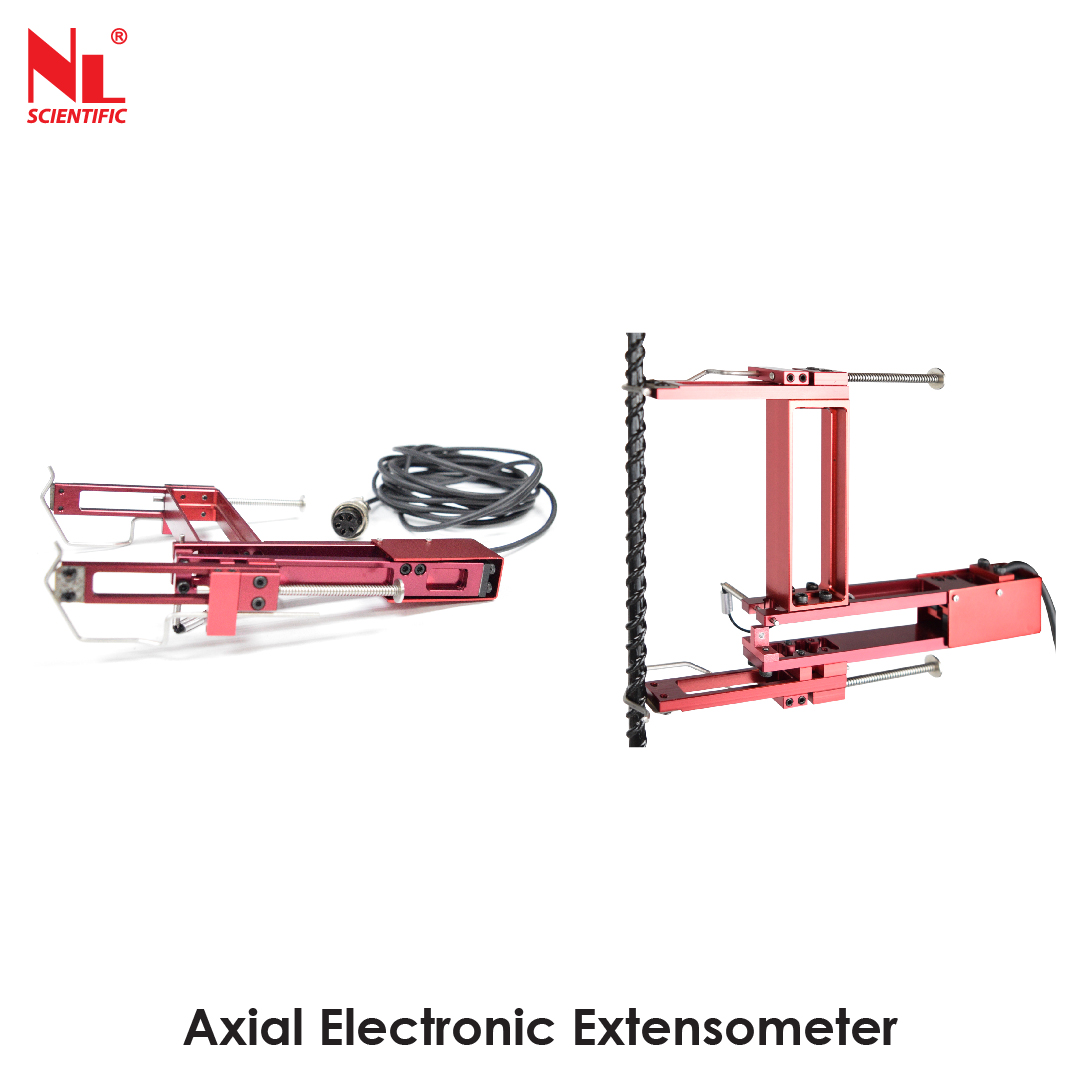

Axial Electronic Extensometer (GL25/D10) |
1 No. |
| TT AEX – 50/25 |
Axial Electronic Extensometer (GL50/D25) |
1 No. |
| TT AEX – 100/25 |
Axial Electronic Extensometer (GL100/D25) |
1 No. |
| TT 6ST – LTX-2 |

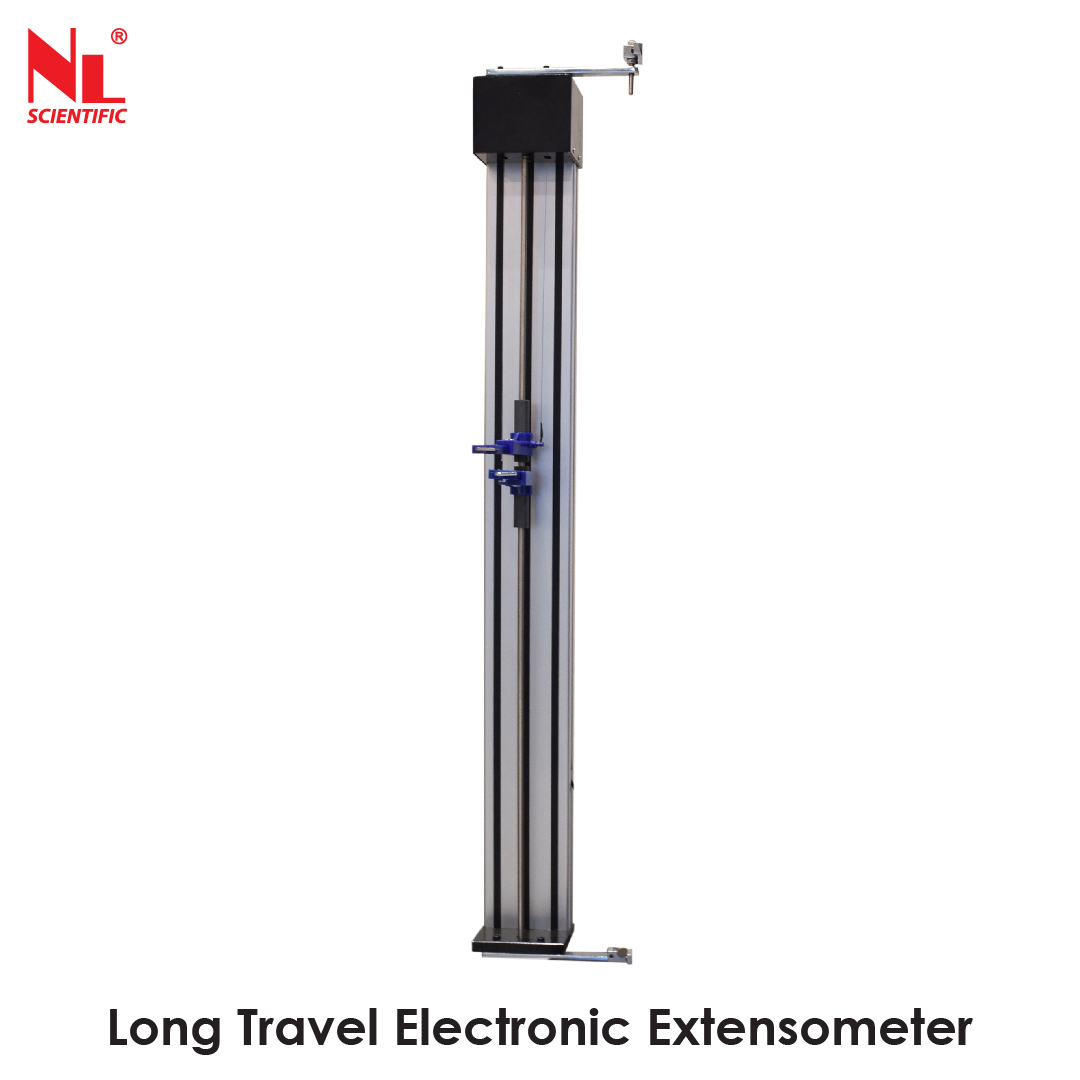

Long Travel Electronic Extensometer (LTX- 2) |
1 No. |
| TT CP – 200 |

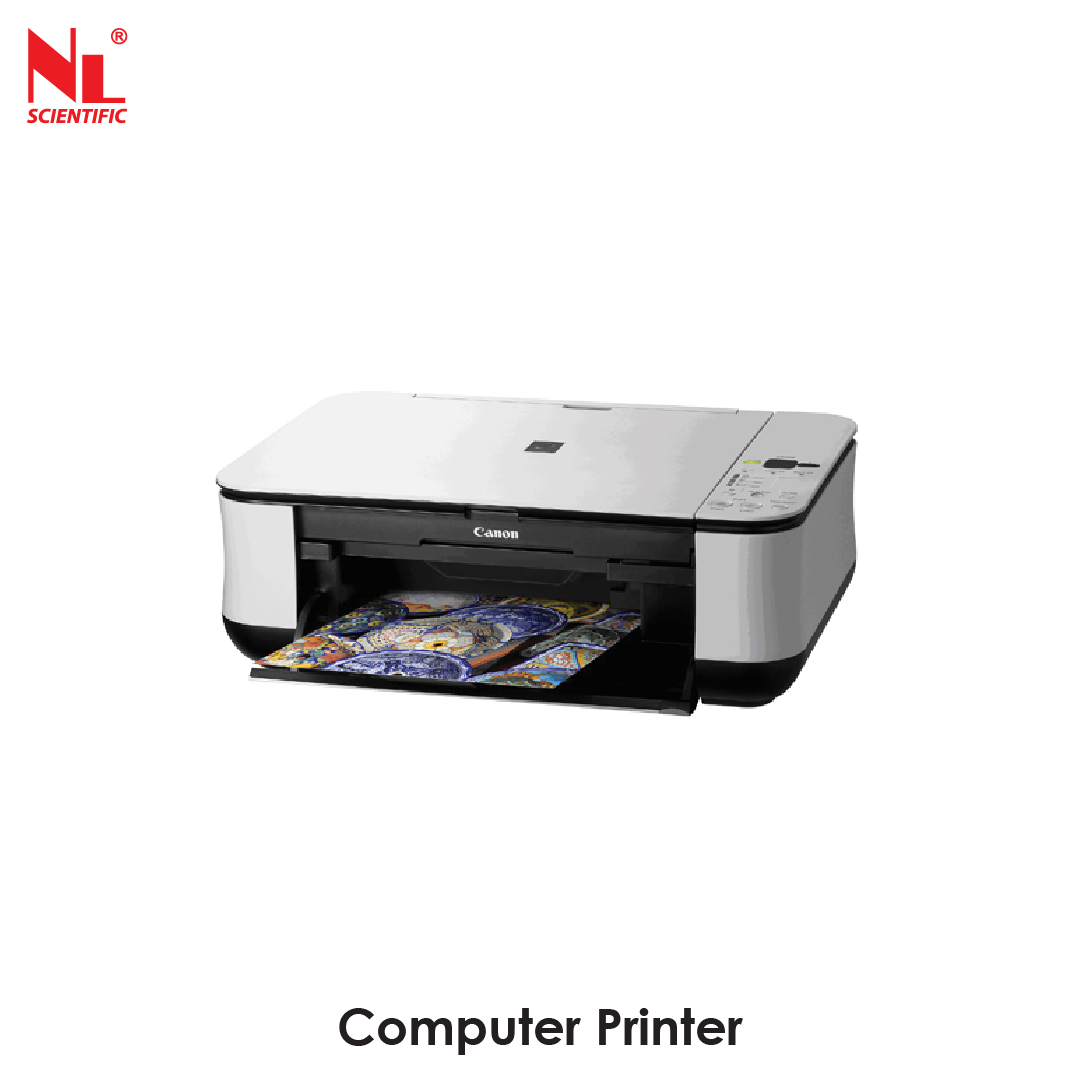

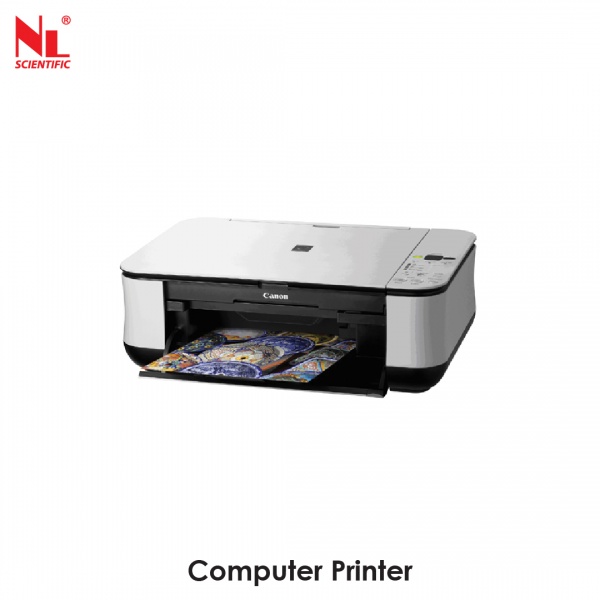

Computer Printer |
1 No. |
| TT 6ST – PBU |
Portable Bench Unit |
1 No. |
