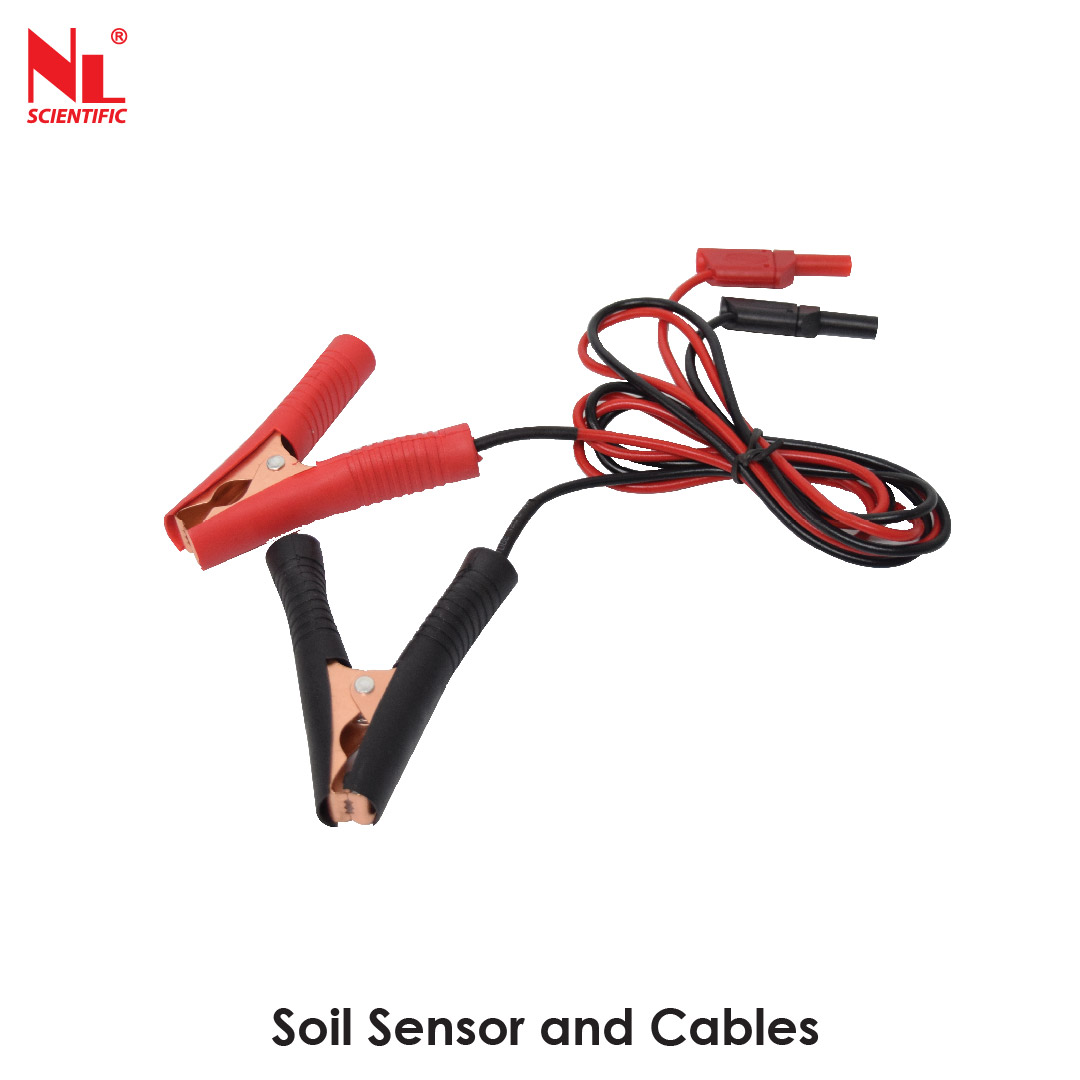

Electrical Density Gauge (EDG)Electrical Density Gauge (EDG)Touch Screen Control DeviceSoil Sensor and Cables6” Darts (4 pcs/set)Dart TemplateTemperature Probenl5032x001-p008
ASTM D7698 Electrical Density Gauge (EDG) The Electrical Density Gauge (EDG) is a portable and nuclear-free alternative device for determining the moisture and density content of compacted soils used in road beds and foundations directly in place. The testing involves placing the gauge on the mate ...Read more

Electrical Density Gauge (EDG) with GPS
NL 5032 X / 002


  • Description

ASTM D7698

Electrical Density Gauge (EDG)

The Electrical Density Gauge (EDG) is a portable and nuclear-free alternative device for determining the moisture and density content of compacted soils used in road beds and foundations directly in place. The testing involves placing the gauge on the material being tested, and the radioactive source emits gamma radiation which passes through the material and is detected by the sensor on the opposite side. The amount of radiation detected is proportional to the density of the material. By comparing the detected radiation to a calibration curve, the density of the material can be determined including the percentages of compaction, moisture, and wet & dry density.

Additionally, the gauge evaluates moisture content by analyzing the attenuation of gamma radiation caused by water presence. This comprehensive analysis ensures the quality and compaction of construction materials, crucial for the durability and performance of infrastructure projects.

The EDG is a portable, battery-powered instrument capable of being used anywhere without the concerns and regulations associated with nuclear safety. Its user-friendly, step-by-step menu guides the user through each step of the testing procedure and cautions the user when values do not correspond to established curves for the material being tested.

Features of Electrical Density Gauge (EDG)

  • Simultaneously measures both density and moisture content of compacted materials, providing comprehensive information in a single test by analyzing the attenuation of gamma radiation caused by water presence.

  • Designed for portability with battery-powered, allowing for its use anywhere without the need for external power sources.

  • Operates on a non-destructive testing principle.

  • Equipped with data logging features for recording and storing measurement data.

  • Designed for user-friendly interface operation with step-by-step menus that guide users through the testing procedure ensuring that construction teams can easily integrate the EDG into their workflow. It also alerts users when values deviate from established curves for the tested material, ensuring accurate results.

  • Gamma Radiation Detection: Utilizing gamma radiation, the gauge measures the density of the material, providing accurate data for compaction assessment.

  • Comprehensive Analysis: The EDG provides a comprehensive analysis, including percentages of compaction, moisture content, and wet & dry density. This information is crucial for ensuring the quality and durability of construction projects.



Technical Specifications

 Model  NL 5032 X / 002
 Soil Compaction Range  Standard field compaction range
 Test Range Depth  30 cm
 Control Device  Compact steel case with touchscreen
 Soil Sensor Probe  Internal Built-In
 Data Transfer  USB Port or Bluetooth (Optional)
 GPS Accuracy  3 meters
 Wet Density Range  Typical Compacted Earth Sites Range
 Dry Density Range  Within 3% of standard tests
 Moisture Content-Range  Typical Compacted Earth Sites Range
 Moisture Content Accuracy  Within 2 % of standard tests
 Operating Temperature  0 - 50 ˚C
 Ambient Operating Humidity  5 - 90 %, non-condensing
 Power  Li Ion Battery 12V, 2600mAh; 31 Wh
 Battery Life  Approx. 20 Hours
 Battery Charger  240V 50/60Hz
 Case Dimensions  420(L) x 330(W) x 220(H) mm
 Weight  5.5 kg

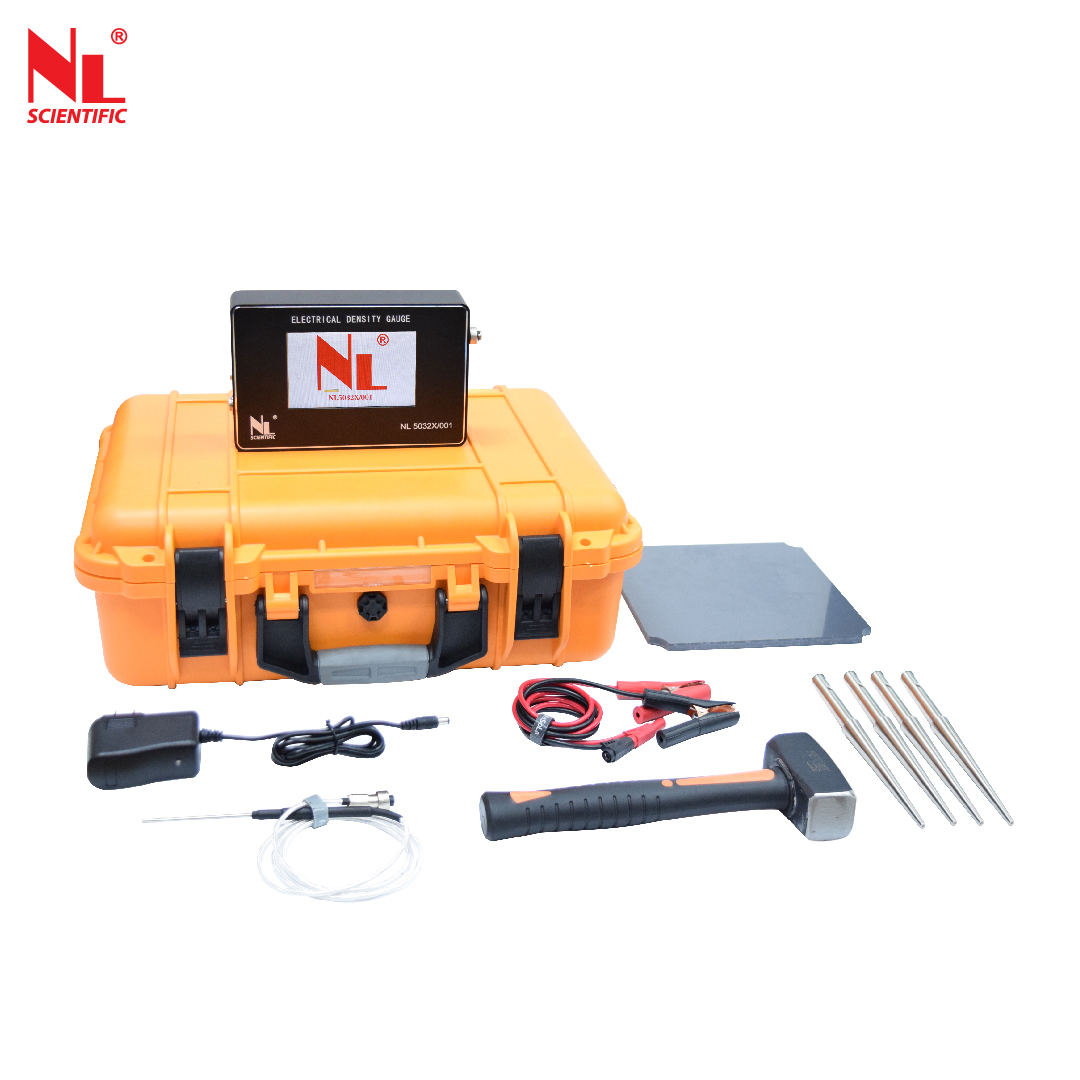

Unit Consist Of:

 Model Number  Description

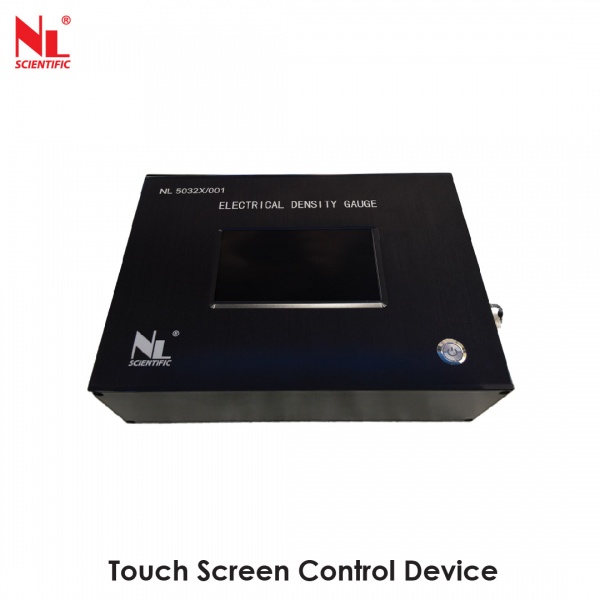

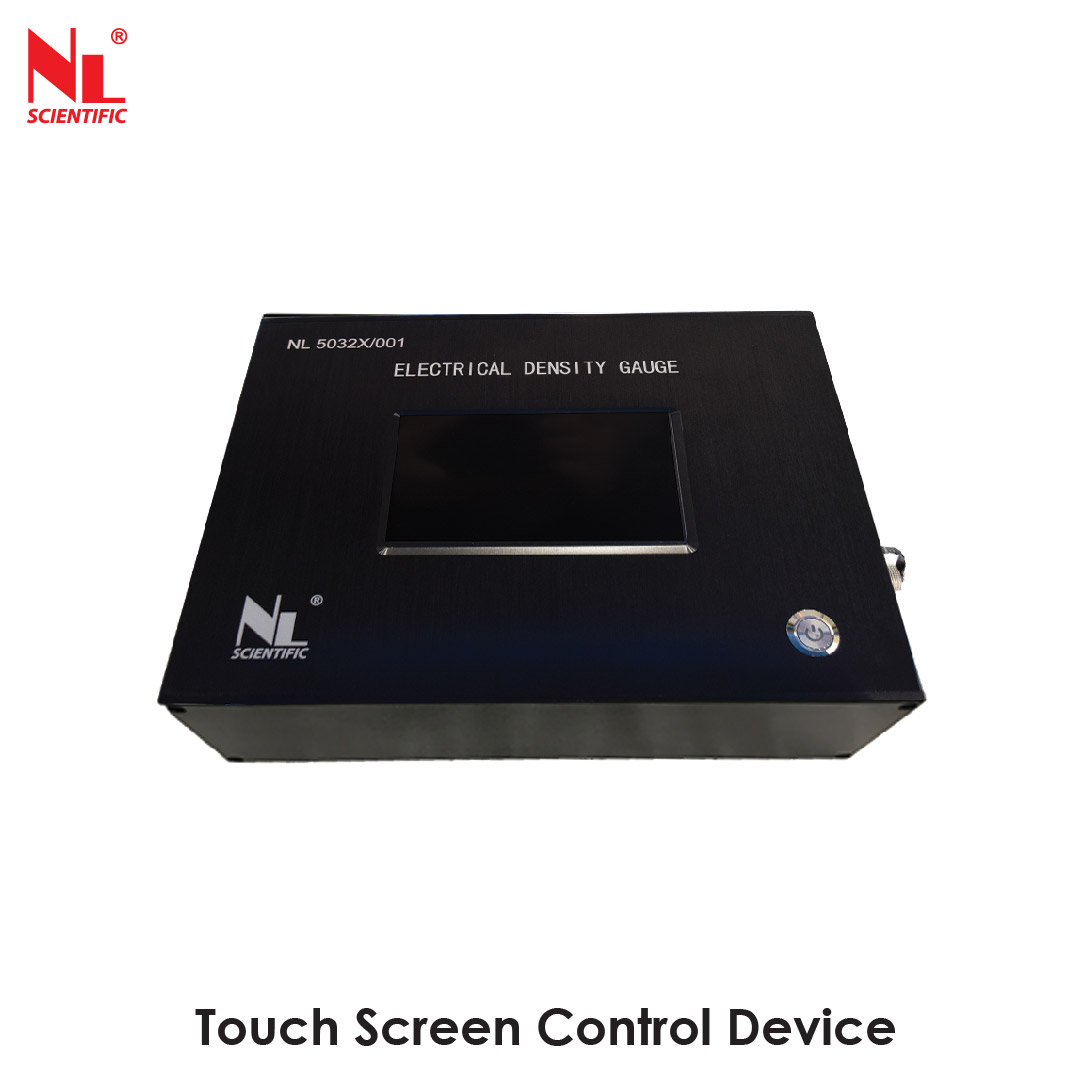

 NL 5032 X / 001 - P001  Touch Screen Control Device

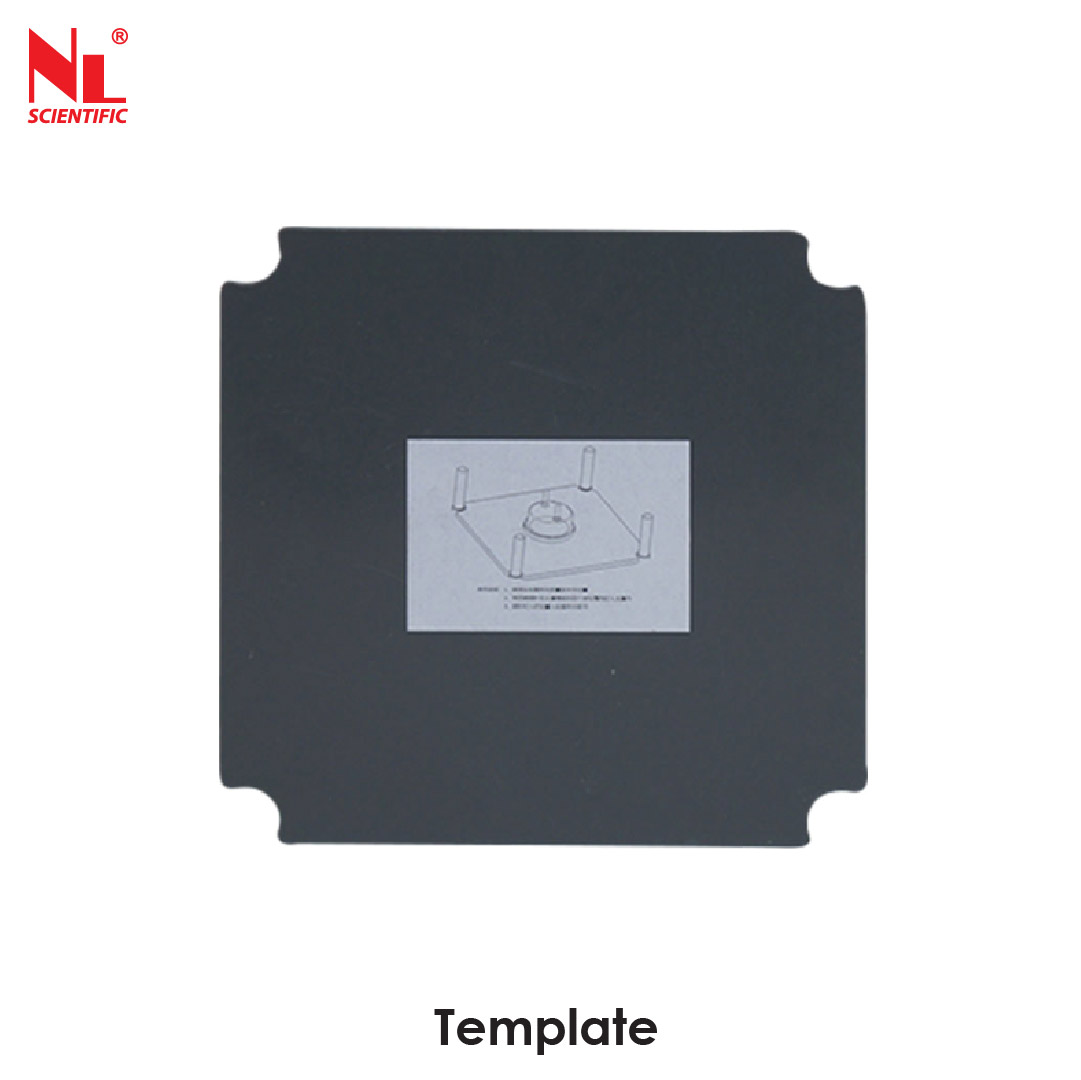

 NL 5032 X / 001 - P002  Dart Template

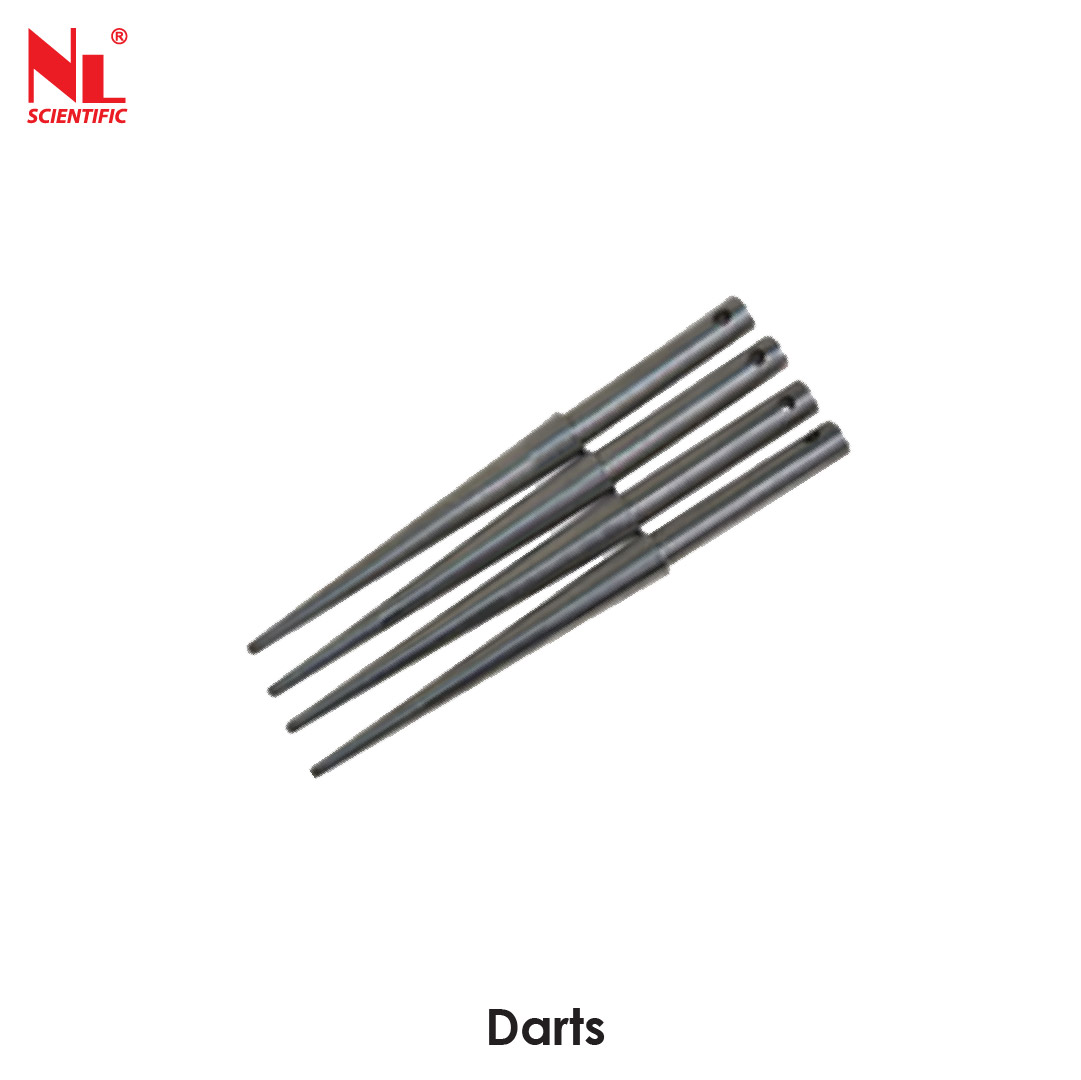

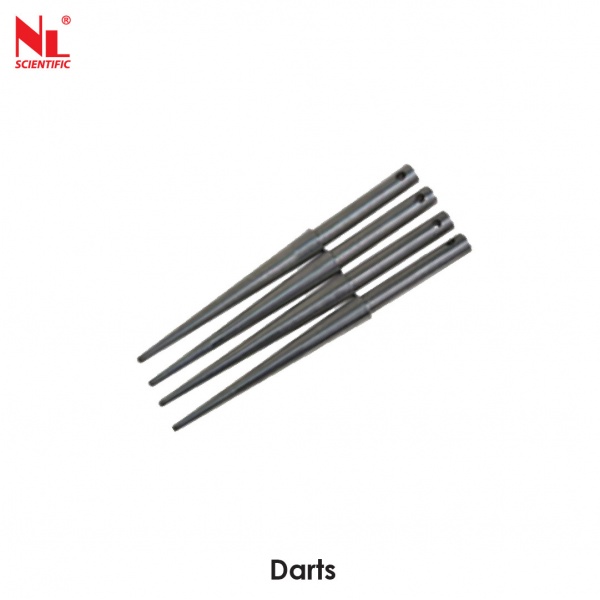

 NL 5032 X / 001 - P003  6” Darts (4 pcs/set)

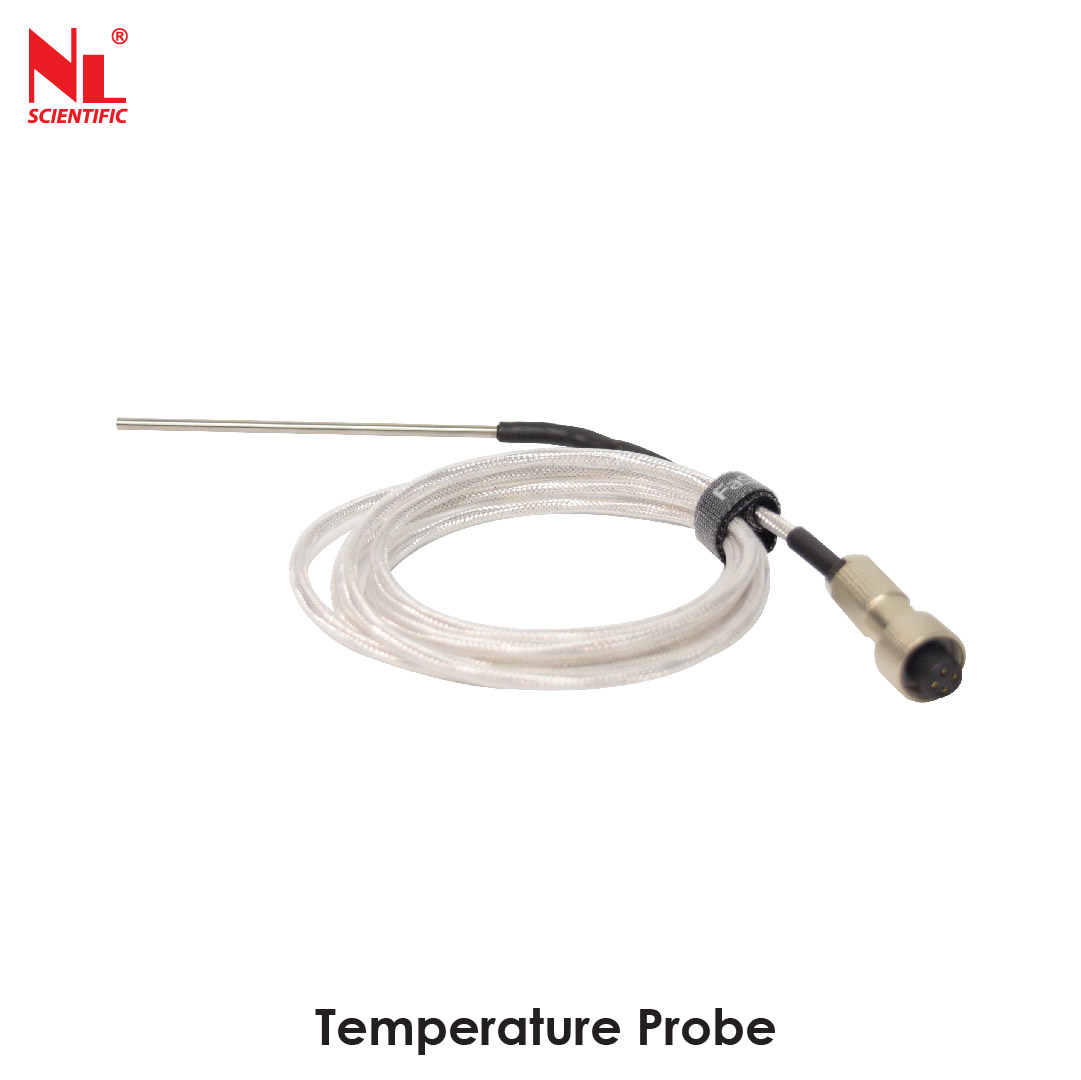

 NL 5032 X / 001 - P004  Temperature Probe
 NL 5032 X / 001 - P005  Hammer
 NL 5032 X / 001 - P006  Soil Sensor and Cables

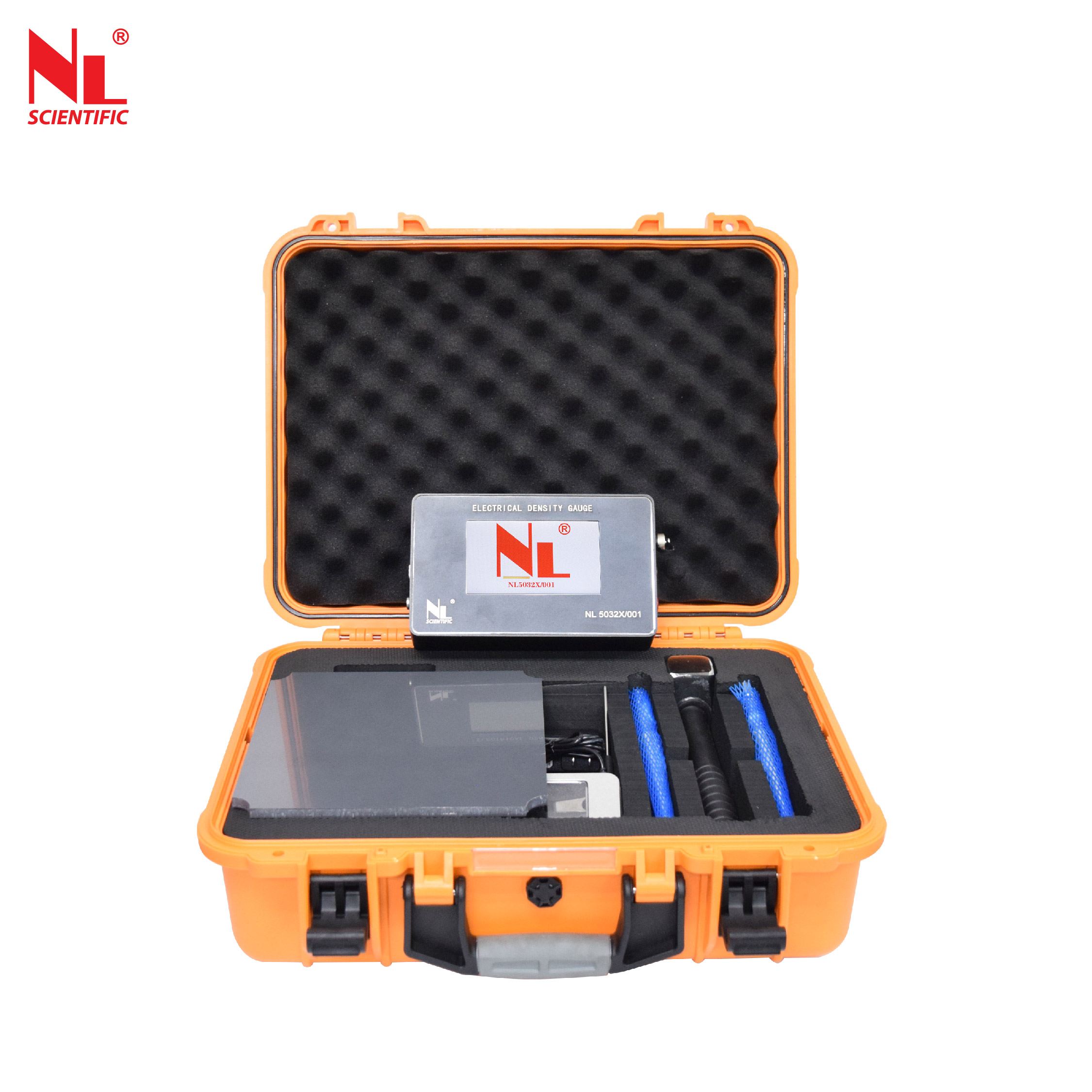

 NL 5032 X / 001 - P007  Solid Waterproof Carry Case

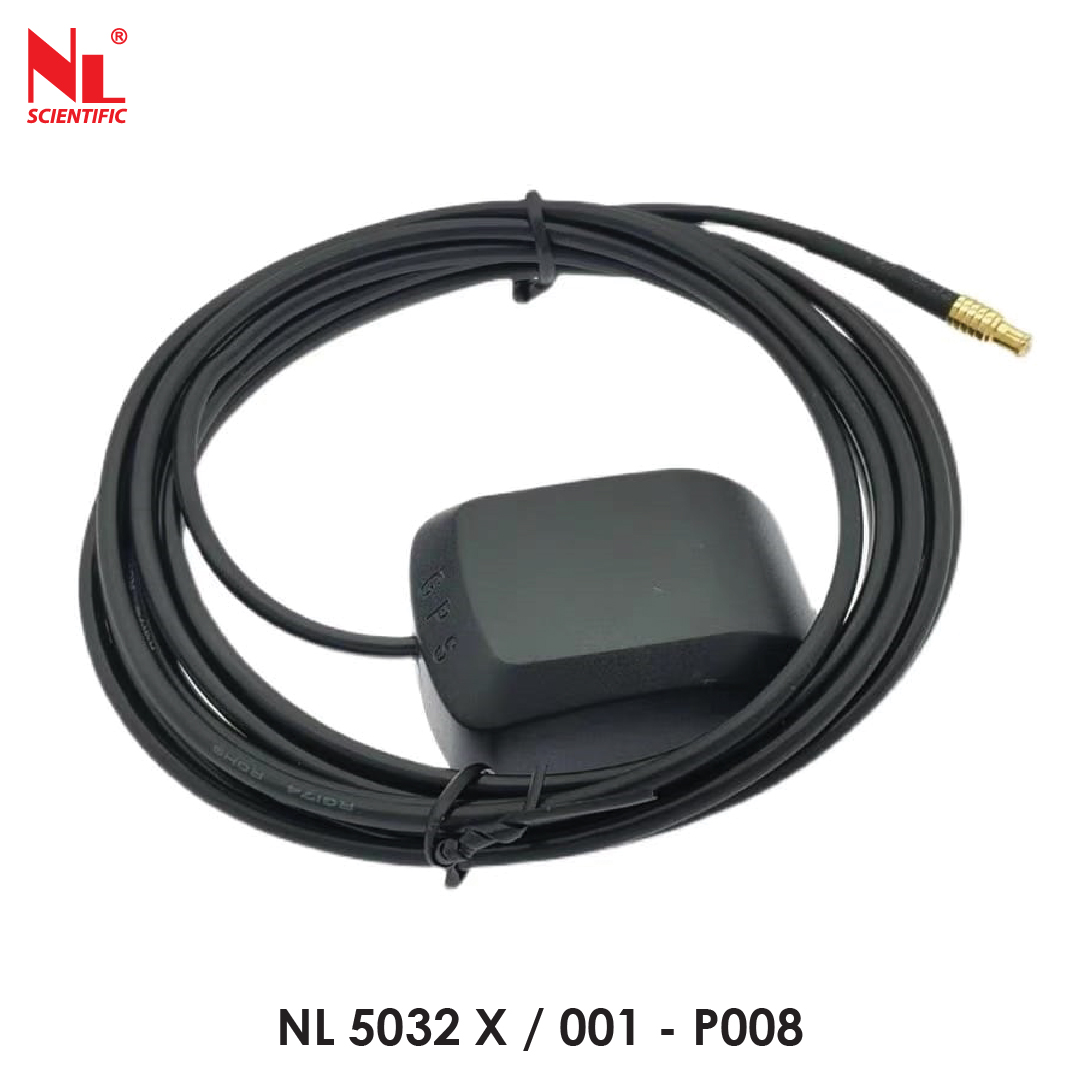

 NL 5032 X / 001 - P008  GPS Device

*1 copy of manual instruction
