Pull Out Tester 50KN

The Pull Out Tester 50KN is used to measure the force needed to extract fasteners from materials like concrete. It also determines the bond strength between the anchored reinforcing steel bar (rebar) and concrete and checks anchorage performance in situ. It has electronic sensors and a digital interface for real-time readings and data logging. The equipment utilizes a calibrated load cell to ensure precise force measurement.

Equipped with a fixture for secure material and fastener holding, it minimizes slippage. Controls allow parameter setting, while data acquisition records force data. Some models offer analysis software for interpreting results. Crucial for assessing bond strength, it's vital in structural engineering, construction, and material research. This item available in Digital Load Gauge, has 5 tons capacity hydraulic hollow cylinder and hand pump. Supplied complete with six different specimen wedges (6 mm,8 mm, 10 mm, & 12 mm) which allows the user to test anchorage rebar with different diameters made of high-strength steel. It is suitable for up to 12 mm samples. It’s a portable anchor rod, steel rod, expansion bolt, and other anchoring device.

Features of Pull-Out Tester 50KN

  • Digital Interface which allows for real-time readings, data logging, and analysis.
  • Calibrated Load Cell ensures accurate measurement of the force required for extraction.

  • Data Acquisition System records force data throughout the test for analysis.

  • Robust Construction built to withstand the forces involved in pull-out testing.

  • Safety Features Ensures safe operation during testing procedures.

Test Procedure of Pull-Out Tester 50KN

  1. Setup: Prepare the material and fastener according to standards. Attach grips securely.

  2. Parameters: Set test parameters like pulling speed and displacement rate.

  3. Test: Apply tension to the fastener until it's fully extracted, monitoring force readings.

  4. Data Recording: Record force-displacement data throughout the test.

  5. Analysis: Analyze results for metrics like ultimate pull-out force.

  6. Interpretation: Interpret results in context and assess bond strength.

  7. Documentation: Document test procedure, results, and observations.

  8. Reporting: Generate a test report with findings and relevant data.

  9. Maintenance: Clean and maintain the tester, and recalibrate if needed.

Technical Specifications of Pull-Out Tester 50KN:

 Model Number  NL 4016 X / 010
 Max. Capacity & Resolution    50 X 0.001 kN
 Piston Travel  50 mm
 Piston Hollow Dia.  18 mm
 Data Storage  500 Group
 D.Display Duration   200 Hours
 Case Dimension (mm)  430 (L) x 350 (W) x 155 (H)
 Appx. Weight  25 kg

Set Consists Of:

 Model Number   Parts Description  Qty

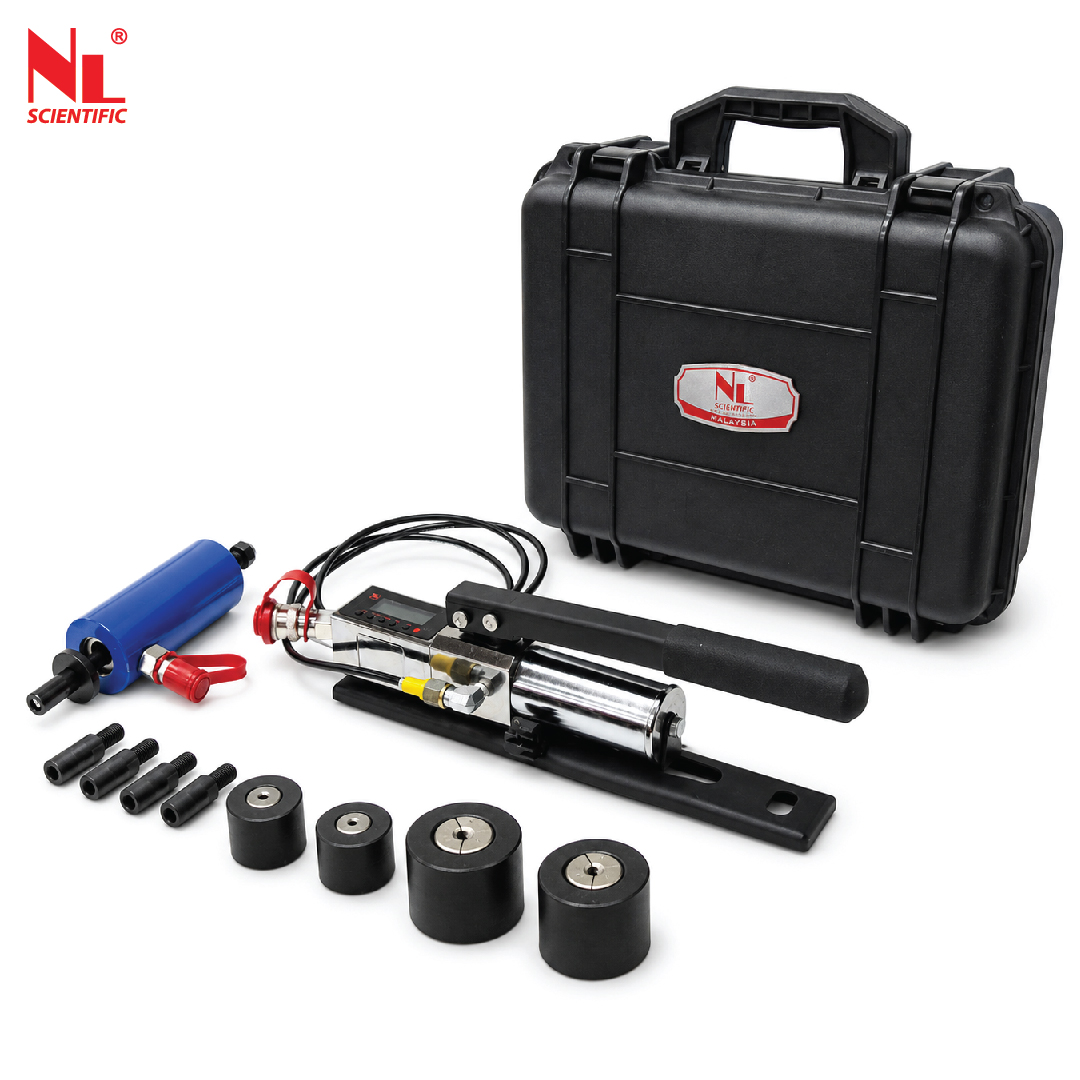

 NL 4016 X / 010 – P 001 5  50 kN (5 tons) Single Acting Hydraulic Cylinder  1set
 NL 4016 X / 010 – P 002  Digital Hand Pump c/w 2 Meter Hose  1set
 NL 4016 X / 010 – P 003  Extraction Rod c/w Washer  1no.
 NL 4016 X / SW6  Anchorage Wedge 6 mm Dia.  1no.
 NL 4016 X / SW8  Anchorage Wedge 8 mm Dia.  1no.
 NL 4016 X / SW10  Anchorage Wedge 10 mm Dia.  1no.
 NL 4016 X / SW12  Anchorage Wedge 12 mm Dia.  1no.
 NL 4016 X / 010 - P 008  Pull Rod & Connector M6  1no.
 NL 4016 X / 010 - P 009  Pull Rod & Connector M8  1no.
 NL 4016 X / 010 - P 010  Pull Rod & Connector M10  1no.
 NL 4016 X / 010 - P 011  Pull Rod & Connector M12  1no.
 NL 4016 X / 010 - P 012  Charging Cable  1set
 NL 4016 X / 010 - P 013  Carry Case  1no.
 NL 4016 - PCA  Power Charger Adaptor  1 Unit
