Digital Pull Out Tester

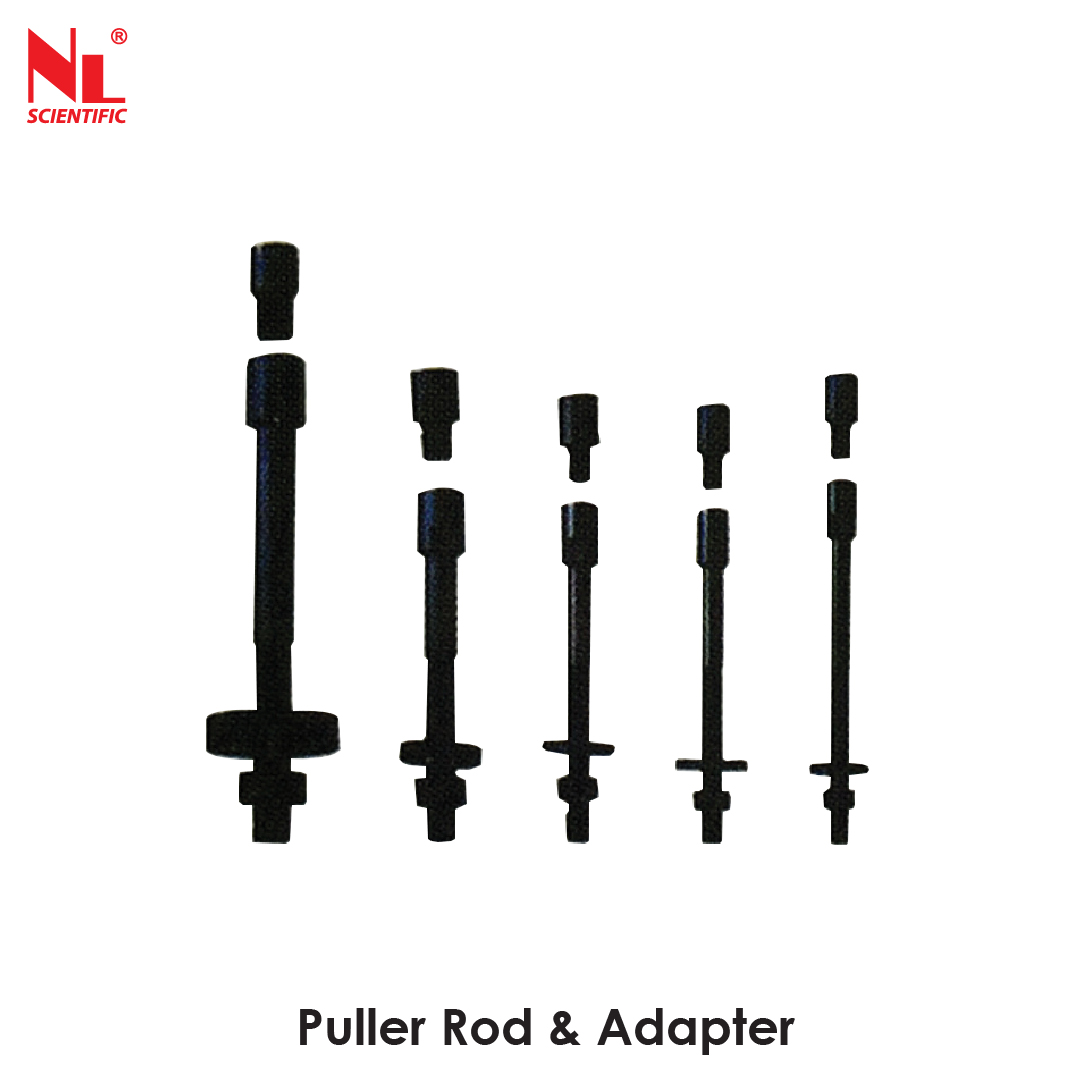

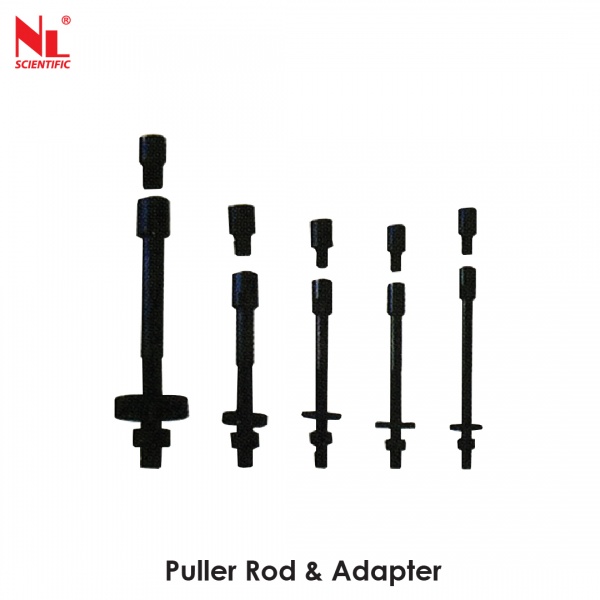

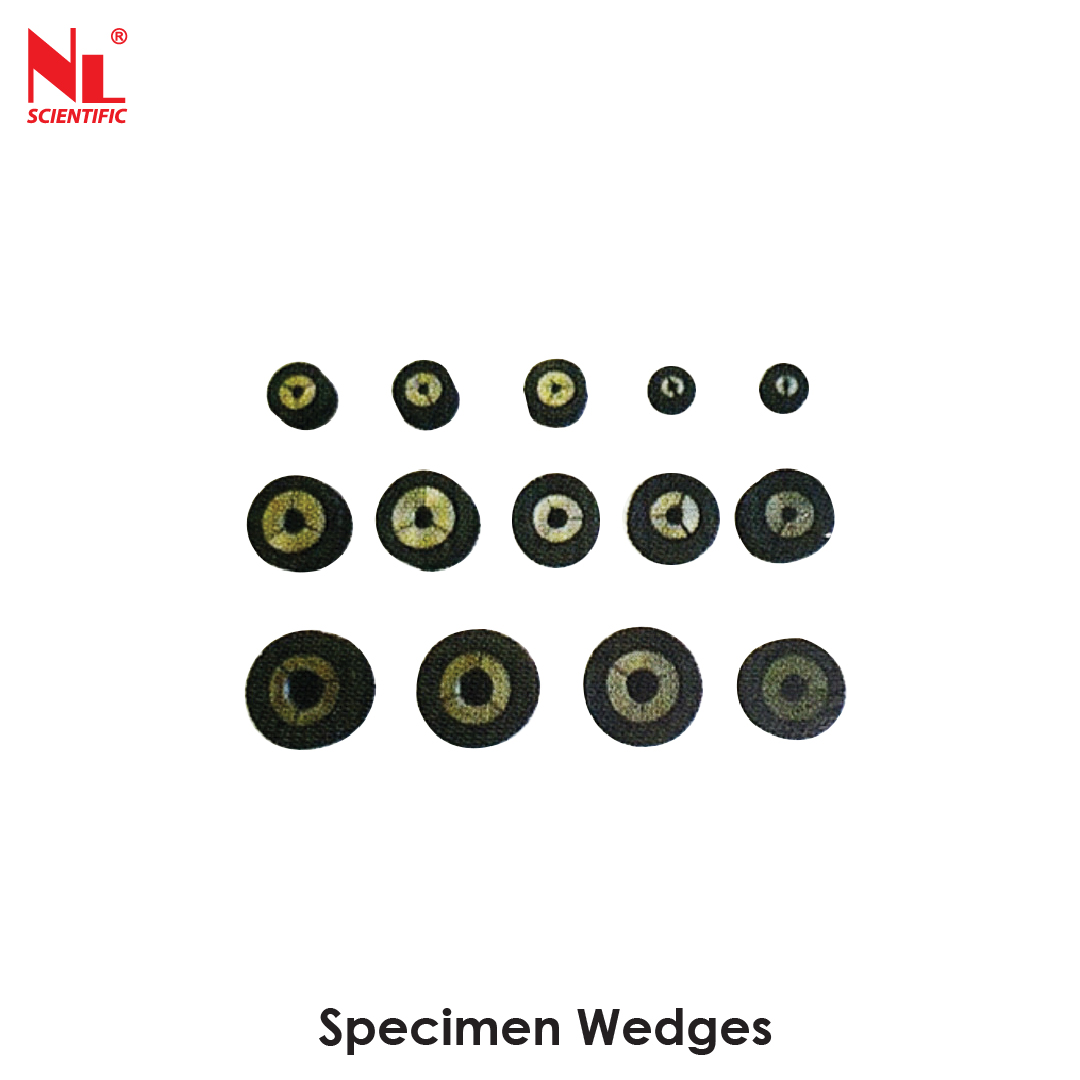

Digital Pull Out TesterSpecimen WedgesPuller Rod & Adapter
Standard: ASTM C 900, BS 1881-207 Pull-Out Tester, Digital A Digital Pull-Out Tester is used to evaluate the pull-out strength of materials such as concrete, anchors, bolts, and fasteners. It operates by inserting a probe or anchor into the material, applying tension gradually until failure occurs ...Read more

Pull Out Tester, Digital
NL 4016 X / 005, 006, 007, 008 & 009


  • Description

Standard: ASTM C 900, BS 1881-207

Pull-Out Tester, Digital

A Digital Pull-Out Tester is used to evaluate the pull-out strength of materials such as concrete, anchors, bolts, and fasteners. It operates by inserting a probe or anchor into the material, applying tension gradually until failure occurs, and measuring the maximum force digitally. This data is then analyzed to determine the material's fitness for construction, ensuring structures meet safety standards. Digital Pull-Out Testers offer advantages such as accuracy, repeatability, and digital data recording capabilities, enabling thorough analysis and documentation of test results for quality control purposes. The Pull Out Test Apparatus is available in a variety of capacities and sizes of wedges & adapters for selection. Specimen wedges are sold separately and users have to select the desired size (refer to Optional Accessories).

Features of Digital Pull-Out Tester

  • Data Acquisition features advanced data acquisition systems that capture and record force data in real-time. This data can be analyzed to assess material performance and ensure compliance with industry standards.

  • Graphical Display Interface, allowing users to visualize force-time curves and other test parameters directly on the device.

  • Compact and Portable Design is a key feature of digital pull-out testers, allowing them to be easily transported to various job sites. Compact designs and lightweight construction make them convenient for field use.

  • Adjustable Test Parameters such as test speed, hold time, and maximum force limits to suit specific testing requirements and standards.

  • Compatibility with Computer Software: Many digital pull-out testers can interface with computer software for further analysis and reporting. This feature enables users to generate detailed test reports and conduct in-depth analysis of test data.

Standard: ASTM C 900, BS 1881-207

  •  ASTM C 900

ASTM C900 is a standard specification established by the American Society for Testing and Materials (ASTM) that outlines the procedure for determining the pullout strength of hardened concrete. This standard provides guidelines for conducting pullout tests, which involve applying tensile forces to a hardened concrete sample to determine its resistance to pulling out or breaking under load. Pullout strength is an essential parameter in assessing the quality and structural integrity of concrete elements in construction projects,  such as anchors, dowels, and reinforcement bars. Compliance with ASTM C900 ensures standardized testing procedures and accurate measurement of concrete pullout strength.

  •   BS 1881-207

This British Standard focuses on testing concrete structures, particularly regarding the pullout resistance of embedded reinforcing steel bars or other items within concrete. This standard provides detailed procedures for conducting pullout tests, which involve applying tension to an embedded element in a concrete sample to measure its bond strength. These tests are crucial for evaluating the connection between concrete and reinforcement, ensuring the structural integrity and safety of concrete structures. Adhering to BS 1881-207 guarantees that pullout tests are performed using standardized methods, enabling accurate and reliable assessments of concrete bond strength in construction projects.

Test Procedure of Digital Pull-Out Tester

  1. Prepare the Surface: Clean and prep the concrete surface where the test will be conducted.

  2. Insert Anchor or Probe: Place the anchor or probe into the concrete at the specified depth.

  3. Set Up the Tester: Follow the manufacturer's instructions to set up the digital pull-out tester, ensuring it's calibrated correctly.

  4. Apply Tension: Activate the tester to gradually apply tension to the anchor or probe, monitoring the force displayed on the digital screen.

  5. Record Data: Note the maximum force applied before the anchor or probe fails to hold.

  6. Analyse Results: Compare the recorded force with standards to assess the concrete's strength and integrity.

  7. Document the Test: Keep a record of the test procedure, including details like test conditions and results.

  8. Ensure Safety: Maintain safety measures throughout the test to prevent accidents.

  9. Clean Up: Clean the tester and testing area according to manufacturer guidelines for future use.

Technical Specifications of Digital Pull-Out Tester:

 Model Number  Capacity  Cylinder
 (Hollow Ø)
 Plunger
 Travel
 Cylinder
 Weight
 Hand Pump
 Display
 Resolution
 Specimen
 Wedges
 Puller
 Rod
 Threaded
 Wedges
 NL 4016 X / 005  100 kN  27 mm  60 mm  5.5 kg  Single Acting  0.01 kN  Ø6 - Ø20  M18  M6 - 20
 NL 4016 X / 006  200 kN  35 mm  80 mm  13 kg  Ø6 - Ø25  M24  M6 - 24
 NL 4016 X / 007  300 kN  45 mm  80 mm  15 kg  Ø6 - Ø32  M30  M6 - 30
 NL 4016 X / 008  500 kN  60 mm  120 mm  25 kg  Double Acting  Ø6 - Ø40  M39  M6 - 36
 NL 4016 X / 009  1000 kN  85 mm  150 mm  58 kg  Ø25 - Ø40  M45  M20 - 39



 Digital Pull-Out Tester 100 kN

Set Consists Of:

 Model Number  Parts Description  Qty
 NL 4016 X / 005 – P 001  100 kN (10 Tons) Single Acting   Hydraulic Cylinder  1set
 NL 4016 X / 005 – P 002  Single Acting Hand Operated Pump,   Digital Display unit c/w 2m Hydraulic   Hose & Carry Case  1set

Optional Accessories:

 Model Number  Parts Description
 NL 4016 X / SW6  Specimen Wedge 6 mm Dia.
 NL 4016 X / SW8  Specimen Wedge 8 mm Dia.
 NL 4016 X / SW10  Specimen Wedge 10 mm Dia.
 NL 4016 X / SW12  Specimen Wedge 12 mm Dia.
 NL 4016 X / SW14  Specimen Wedge 14 mm Dia.
 NL 4016 X / SW16  Specimen Wedge 16 mm Dia.
 NL 4016 X / SW18  Specimen Wedge 18 mm Dia.
 NL 4016 X / SW20  Specimen Wedge 20 mm Dia.
 NL 4016 X / PR – M18  M18 Puller Rod c/w Washer
 NL 4016 X / PR18 – S  Puller Adaptor Set (M6 - 20, 8 pcs)
 NL 4016 X / PR18 – 6  M18 Puller Rod Adaptor M6
 NL 4016 X / PR18 – 8  M18 Puller Rod Adaptor M8
 NL 4016 X / PR18 – 10  M18 Puller Rod Adaptor M10
 NL 4016 X / PR18 – 12  M18 Puller Rod Adaptor M12
 NL 4016 X / PR18 – 14  M18 Puller Rod Adaptor M14
 NL 4016 X / PR18 – 16  M18 Puller Rod Adaptor M16
 NL 4016 X / PR18 – 18  M18 Puller Rod Adaptor M18
 NL 4016 X / PR18 – 20  M18 Puller Rod Adaptor M20



 Digital Pull-Out Tester 200 kN

Set Consists Of:

 Model Number  Parts Description  Qty
 NL 4016 X / 006 – P 001  200 kN (20 Tons) Single Acting   Hydraulic Cylinder  1set
 NL 4016 X / 006 – P 002  Single Acting Hand Operated Pump,   Digital Display unit c/w 2m Hydraulic   Hose & Carry Case  1set

Optional Accessories:

 Model Number  Parts Description
 NL 4016 X / SW6  Specimen Wedge 6 mm Dia.
 NL 4016 X / SW8  Specimen Wedge 8 mm Dia.
 NL 4016 X / SW10  Specimen Wedge 10 mm Dia.
 NL 4016 X / SW12  Specimen Wedge 12 mm Dia.
 NL 4016 X / SW14  Specimen Wedge 14 mm Dia.
 NL 4016 X / SW16  Specimen Wedge 16 mm Dia.
 NL 4016 X / SW18  Specimen Wedge 18 mm Dia.
 NL 4016 X / SW20  Specimen Wedge 20 mm Dia.
 NL 4016 X / SW22  pecimen Wedge 22 mm Dia.
 NL 4016 X / SW25  Specimen Wedge 25 mm Dia.
 NL 4016 X / PR – M24  M24 Puller Rod c/w Washer
 NL 4016 X / PR24 – S  Puller Adaptor Set (M6 - 24, 10 pcs)
 NL 4016 X / PR24 – 6  M24 Puller Rod Adaptor M6
 NL 4016 X / PR24 – 8  M24 Puller Rod Adaptor M8
 NL 4016 X / PR24 – 10  M24 Puller Rod Adaptor M10
 NL 4016 X / PR24 – 12  M24 Puller Rod Adaptor M12
 NL 4016 X / PR24 – 14  M24 Puller Rod Adaptor M14
 NL 4016 X / PR24 – 16  M24 Puller Rod Adaptor M16
 NL 4016 X / PR24 – 18  M24 Puller Rod Adaptor M18
 NL 4016 X / PR24 – 20  M24 Puller Rod Adaptor M20
 NL 4016 X / PR24 – 22  M24 Puller Rod Adaptor M22
 NL 4016 X / PR24 – 24  M24 Puller Rod Adaptor M24



 Digital Pull-Out Tester 300 kN

Set Consists Of:

 Model Number

 Parts Description

 Qty

 NL 4016 X / 007 – P 001

 300 kN (30 Tons) Single Acting     Hydraulic Cylinder

 1set

 NL 4016 X / 007 – P 002

 Single Acting Hand Operated Pump,   Digital Display unit c/w 2m Hydraulic   Hose & Carry Case

 1set

Optional Accessories:

 Model Number   Parts Description
 NL 4016 X / SW6  Specimen Wedge 6 mm Dia.
 NL 4016 X / SW8  Specimen Wedge 8 mm Dia.
 NL 4016 X / SW10  Specimen Wedge 10 mm Dia.
 NL 4016 X / SW12  Specimen Wedge 12 mm Dia.
 NL 4016 X / SW14  Specimen Wedge 14 mm Dia.
 NL 4016 X / SW16  Specimen Wedge 16 mm Dia.
 NL 4016 X / SW18  Specimen Wedge 18 mm Dia.
 NL 4016 X / SW20  Specimen Wedge 20 mm Dia.
 NL 4016 X / SW22  Specimen Wedge 22 mm Dia.
 NL 4016 X / SW25  Specimen Wedge 25 mm Dia
 NL 4016 X / SW28  Specimen Wedge 28 mm Dia.
 NL 4016 X / SW32  Specimen Wedge 32 mm Dia.
 NL 4016 X / PR – M30  M30 Puller Rod c/w Washer
 NL 4016 X / PR30 – S  M30 Puller Rod Adaptor Set (M6 - 30 ,12 pcs)
 NL 4016 X / PR30 – 6  M30 Puller Rod Adaptor M6
 NL 4016 X / PR30 – 8  M30 Puller Rod Adaptor M8
 NL 4016 X / PR30 – 10  M30 Puller Rod Adaptor M10
 NL 4016 X / PR30 – 12  M30 Puller Rod Adaptor M12
 NL 4016 X / PR30 – 14  M30 Puller Rod Adaptor M14
 NL 4016 X / PR30 – 16  M30 Puller Rod Adaptor M16
 NL 4016 X / PR30 – 18  M30 Puller Rod Adaptor M18
 NL 4016 X / PR30 – 20  M30 Puller Rod Adaptor M20
 NL 4016 X / PR30 – 22  M30 Puller Rod Adaptor M22
 NL 4016 X / PR30 – 24  M30 Puller Rod Adaptor M24
 NL 4016 X / PR30 – 27  M30 Puller Rod Adaptor M27
 NL 4016 X / PR30 – 30  M30 Puller Rod Adaptor M30



 Digital Pull-Out Tester 500 kN

Set Consists Of:

Model Number Parts Description Qty
 NL 4016 X / 008 – P 001  500 kN (50 Tons) Double Acting Hydraulic Cylinder  1set
 NL 4016 X / 008 – P 002  Double Acting Hand Operated Pump, Digital Display unit c/w 2m Hydraulic Hose & Carry Case  1set

Optional Accessories:

 Model Number  Parts Description
 NL 4016 X / SW6  Specimen Wedge 6 mm Dia.
 NL 4016 X / SW8  Specimen Wedge 8 mm Dia.
 NL 4016 X / SW10  Specimen Wedge 10 mm Dia.
 NL 4016 X / SW12  Specimen Wedge 12 mm Dia.
 NL 4016 X / SW14  Specimen Wedge 14 mm Dia.
 NL 4016 X / SW16  Specimen Wedge 16 mm Dia
 NL 4016 X / SW18  Specimen Wedge 18 mm Dia.
 NL 4016 X / SW20  Specimen Wedge 20 mm Dia.
 NL 4016 X / SW22  Specimen Wedge 22 mm Dia.
 NL 4016 X / SW25  Specimen Wedge 25 mm Dia.
 NL 4016 X / SW28  Specimen Wedge 28 mm Dia.
 NL 4016 X / SW32  Specimen Wedge 32 mm Dia.
 NL 4016 X / SW36  Specimen Wedge 36 mm Dia.
 NL 4016 X / SW38  Specimen Wedge 38 mm Dia.
 NL 4016 X / SW40  Specimen Wedge 40 mm Dia.
 NL 4016 X / PR – M39  M39 Puller Rod c/w Washer
 NL 4016 X / PR50 – S  M39 Puller Rod Adaptor Set (M6 - 36 ,14 pcs)
 NL 4016 X / PR50 – 6  M39 Puller Rod Adaptor M6
 NL 4016 X / PR50 – 8  M39 Puller Rod Adaptor M8
 NL 4016 X / PR50 – 10  M39 Puller Rod Adaptor M10
 NL 4016 X / PR50 – 12  M39 Puller Rod Adaptor M12
 NL 4016 X / PR50 – 14  M39 Puller Rod Adaptor M14
 NL 4016 X / PR50 – 16  M39 Puller Rod Adaptor M16
 NL 4016 X / PR50 – 18  M39 Puller Rod Adaptor M18
 NL 4016 X / PR50 – 20  M39 Puller Rod Adaptor M20
 NL 4016 X / PR50 – 22  M39 Puller Rod Adaptor M22
 NL 4016 X / PR50 – 24  M39 Puller Rod Adaptor M24
 NL 4016 X / PR50 – 27  M39 Puller Rod Adaptor M27
 M39 Puller Rod Adaptor M30  M39 Puller Rod Adaptor M30
 M39 Puller Rod Adaptor M33  M39 Puller Rod Adaptor M33
 M39 Puller Rod Adaptor M36  M39 Puller Rod Adaptor M36



 Digital Pull-Out Tester 1000 kN

Set Consists Of:

 Model Number

 Parts Description

 Qty

 NL 4016 X / 009 – P 001

 1000 kN (100 Tons) Double Acting Hydraulic Cylinder

 1set

 NL 4016 X / 009 – P 002

 Double Acting Hand Operated Pump,     Digital Display unit c/w 2m Hydraulic   Hose & Carry Case

 1set

Optional Accessories:

 Model Number  Parts Description
 NL 4016 X / SW20  Specimen Wedge 20 mm Dia.
 NL 4016 X / SW22  Specimen Wedge 22 mm Dia.
 NL 4016 X / SW25  Specimen Wedge 25 mm Dia.
 NL 4016 X / SW28  Specimen Wedge 28 mm Dia.
 NL 4016 X / SW32  Specimen Wedge 32 mm Dia.
 NL 4016 X / SW36  Specimen Wedge 36 mm Dia.
 NL 4016 X / SW38  Specimen Wedge 38 mm Dia.
 NL 4016 X / SW40  Specimen Wedge 40 mm Dia.
 NL 4016 X / PR – M45  M45 Puller Rod c/w Washer
 NL 4016 X / PR100 – S  M45 Puller Rod Adaptor Set (M20 - 39, 8 pcs)
 NL 4016 X / PR100 – 20  M45 Puller Rod Adaptor M20
 NL 4016 X / PR100 – 22  M45 Puller Rod Adaptor M22
 NL 4016 X / PR100 – 24  M45 Puller Rod Adaptor M24
 NL 4016 X / PR100 – 27  M45 Puller Rod Adaptor M27
 NL 4016 X / PR100 – 30  M45 Puller Rod Adaptor M30
 NL 4016 X / PR100 – 33  M45 Puller Rod Adaptor M33
 NL 4016 X / PR100 – 36  M45 Puller Rod Adaptor M36
 NL 4016 X / PR100 – 39  M45 Puller Rod Adaptor M39
