Types of Drying Ovens and their Application
Convection Drying Oven
- Key Feature: Uses a fan to circulate air and speed up drying time.
- Application: Ideal for pre-heating, baking, aging, sterilization, and thermal storage.
- Advantages: Ensures uniform heat distribution, leading to quicker and consistent drying results.
Rotary Drying Oven
- Key Feature: Uses rotating drums to evenly distribute heat and dry materials.
- Application: Widely employed in the metal manufacturing industry for rapid and uniform drying.
- Advantages: Prevents uneven drying and minimizes the risk of oxidation, making it energy-efficient.
Conveyor Drying Furnace
- Key Feature: Uses a conveyor belt for continuous material movement through the oven.
- Application: Ideal for factories involved in automated mass production, such as screen-printing T-shirts.
- Advantages: Ensures a constant flow of products, contributing to efficiency and uniform drying.
Vacuum Drying Oven
- Key Feature: Uses reduced pressure to lower the boiling point of water and speed up drying.
- Application: Essential in research and engineering industries requiring precise low-pressure environments.
- Advantages: Expedites drying, minimizes instances of oxidation, preserving material integrity.
Flotation and Roll Support Web Dryer
- Key Feature: Used for drying continuous web materials, such as paper or fabric.
- Application: Commonly employed in packaging, fabric, and textile manufacturing.
- Advantages: Features stable airflow, exact temperature control, and energy efficiency for quality drying processes.
Vertical Tower Dryer
- Key Feature: Uses a vertical design to save floor space and increase drying efficiency.
- Application: Beneficial for factories with limited space, reducing costs over time.
- Advantages: Compact footprint addresses space limitations, practical for space optimization.
Types of Drying Ovens and their Application
How Drying Oven Works and Used for Measuring Moisture Content
- The material is placed on a tray or rack and then placed inside the oven.
- The oven is heated to the desired temperature, and the material is left to dry for a specified amount of time. The drying time can vary depending on the material and the oven temperature.
- During the drying process, moisture is removed from the material as a result of the heat.
- After the drying time is complete, the material is removed from the oven and allowed to cool.
- A precisely weighed sample is then exposed to a defined drying time and temperature to measure the moisture content using thermogravimetric analysis.
- The resulting drying loss is found by weighing the sample again.
- The moisture content is calculated as a percentage value by comparing the weight before and after drying.
Understanding Gravity and Forced Convection

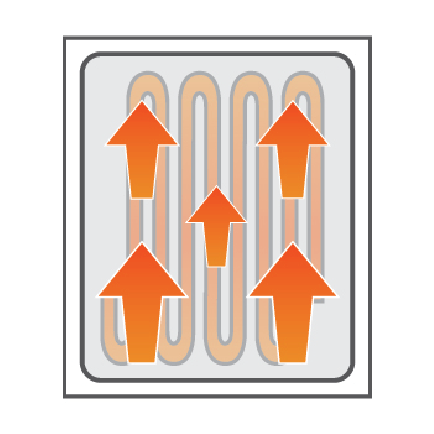

How Gravity Convection works
Gravity convection uses natural convection to circulate air within the oven. Hot air rises, and cool air sinks, creating a natural flow of air within the oven. Gravity convection is slower than mechanical convection, but it is quieter and has lower energy requirements.
How Mechanical Forced works
Mechanical convection uses a fan to circulate air within the oven. This creates a more uniform and consistent temperature within the oven, which speeds up drying times. Mechanical convection is faster than gravity convection but is louder and uses more energy.
