Bend and Flexural Testing
An Introduction to Bending and Flexural Testing
Bend testing, also known as flexure testing or transverse beam testing, is a crucial method for assessing material behavior under simple beam loading, particularly relevant for flexible materials like polymers, wood, and composites. This testing procedure involves bending a specimen through applied force on one or two loading anvils on a universal testing machine. Engineers and material scientists in the construction materials industry extensively use bend and flexural testing to evaluate the mechanical properties of materials. This fundamental method subjects material specimens to bending or flexural stress to gain insights into their strength, durability, and flexibility, contributing significantly to understanding how different materials respond to realistic loading scenarios.
Why Perform a Bend/Flex Test?
Bend and flex tests are essential for evaluating a material's response to bending stress, a critical consideration in designing structures and products subject to bending or flexural loads. These tests serve several key objectives:
- Mechanical Property Evaluation: Bend and flex tests reveal crucial mechanical properties such as flexural strength, modulus of rupture, and toughness. These properties are vital for assessing a material's ability to withstand bending forces without structural failure.
- Quality Assurance: Manufacturers utilize bend and flexural testing as part of quality assurance protocols to ensure materials meet specified standards. Identifying potential weaknesses or variations in material properties is essential for preventing defects in finished products.
- Product Design Optimization: Data from bend and flex tests informs product designers, aiding in informed decisions about material selection and application. Understanding how materials behave under bending stress enables the design of structures and components that meet performance requirements.
While uniaxial tensile or compression tests provide valuable insights into material behavior, they may fall short in capturing the complex forces that materials experience in real-world scenarios. Bend testing addresses this limitation by subjecting a specimen to a combination of tension, compression, and shear forces. This makes it a preferred method for evaluating materials intended for use as support structures, where the ability to withstand flexural forces is crucial. Bend testing ensures that a material can not only hold expected loads but also return to its original shape after bending, a critical requirement for products experiencing flexural stresses.
Types of Bend/Flex Tests
An Introduction to the Basic Principles of Tensile Testing

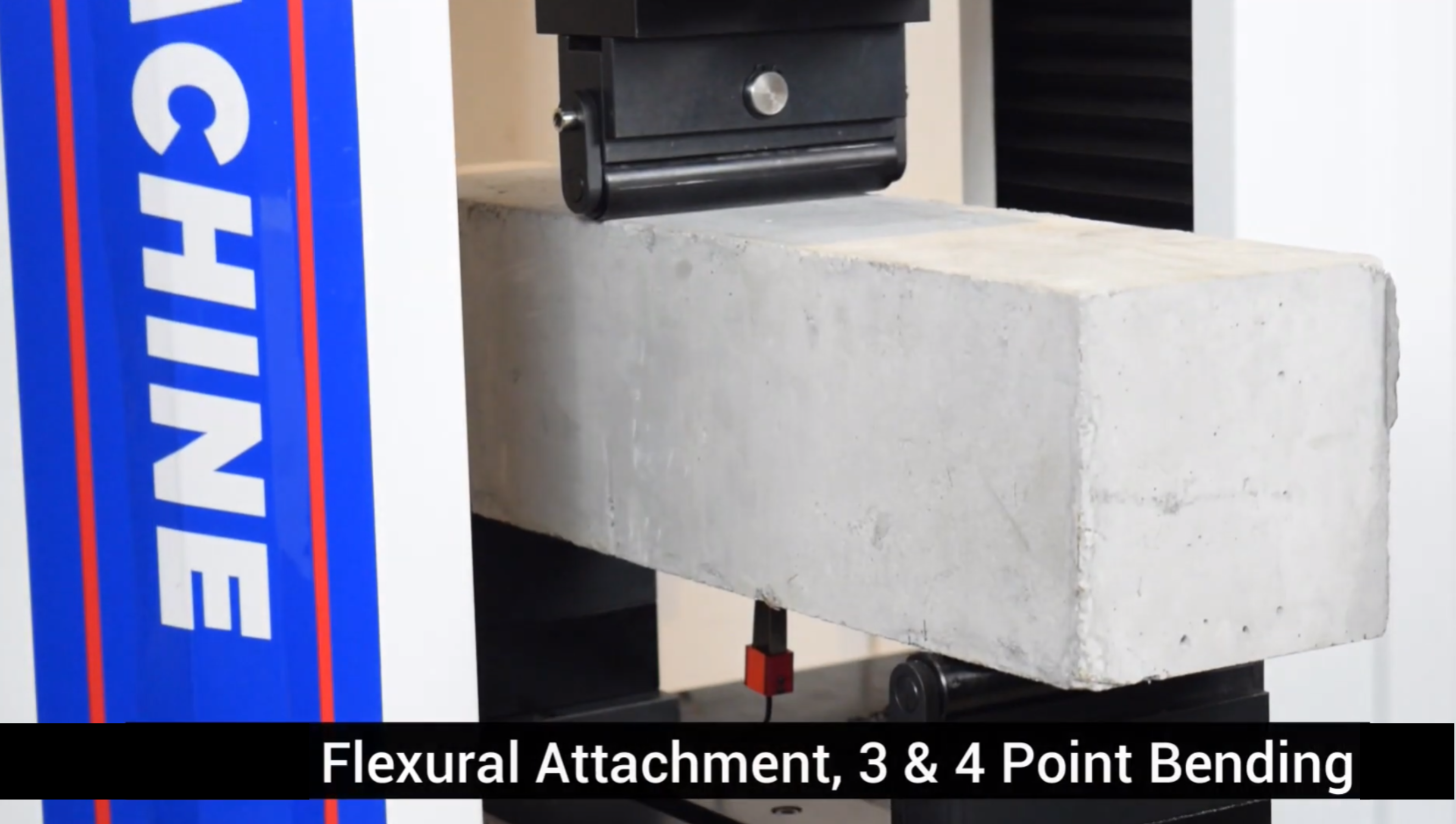

3-Point Bend Test
In the 3-point bend test, a specimen is placed on two supports, and a force is applied at the center. This configuration is commonly used for materials with low to moderate flexibility. The specimen is balanced between two lower anvils, and force is applied from a single upper anvil centered at the midpoint. This concentrates stress under the center loading point, making it suitable for materials with low to moderate flexibility.
4-Point Bend Test
The 4-point bend test involves applying a force at two points on the specimen, creating two areas of stress concentration. This test is often employed for materials with higher flexibility and is more representative of real-world bending scenarios. The 4-point flex test introduces two upper anvils equidistant from the specimen's center. This design creates an area of uniform stress between the inner span loading points, typically employed for materials with higher flexibility and used to measure the modulus of elasticity in bending for brittle materials.
ASIA LEADER IN
MATERIAL TESTING EQUIPMENT
Flex/Bend Testing Machine

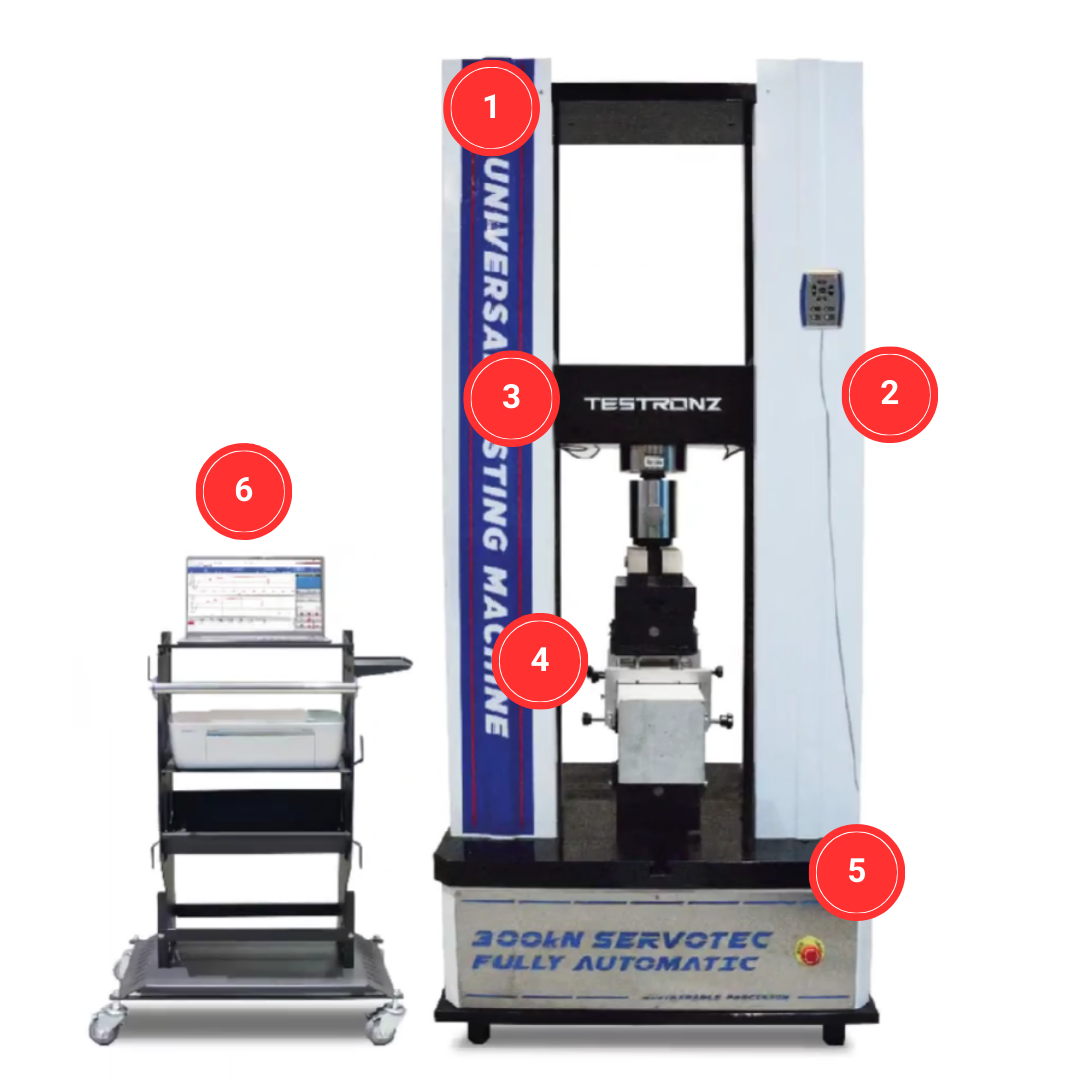

Components and Parts to conduct accurate bend and flexural tests
|
|
Universal testing machine load frames, available in single or dual-column configurations, support a range of force capacities. Tensile grips, along with other accessories, ensure adaptability to different materials and provide a reliable grip to prevent slippage or misalignment during the bending test. |
|
The Magnetic Control Unit is responsible for controlling and adjusting the speed and movement of the crosshead. It is a magnetic particle brake system that provides precise control over the loading and unloading phases during a test. |
|
The load cell is a crucial component that measures the force or load applied to the specimen during a test. It converts the mechanical force into an electrical signal that can be interpreted and recorded by the testing machine. |
|
Flex testing requires upper and lower anvils to hold the specimen securely in place and imparts the bending or flexural stress, with various specimen sizes and shapes. These components collectively enable the machine to conduct reliable and consistent bend and flexural tests across different materials and applications. |
|
The emergency stop is a safety feature that allows the immediate cessation of the testing procedure in case of any unexpected or dangerous situations. It is crucial for preventing damage to the testing machine, and specimens, or ensuring the safety of operators. |
|
6. Software The software is the interface that controls the UTM, allowing users to set up, monitor, and analyze tests. It provides a user-friendly platform to input test parameters, start and stop tests, and collect data. |
Choose our available tensile machines with load capacities of 3kN, 10kN, 20kN, 50kN, 100kN, 200kN, and 300kN.
Choose our available tensile machines with load capacities
of 300kN, 600kN, 1000kN, 1200kN, 1500kN, and 2000kN.
Universal Testing Machine Accessories
Tensile Fixtures and Grips
For Testing Plastics, Metals, Composites, Elastomers, Textiles, and Components
Winding Grip
3 & 4 Point Bending Jig
Twin Adjustable Aluminium Vise Grip
Wrap Grip
Flat Adjustable Grip
One Touch Wedge Grip
Briquette Holding Grip
Wire & Cable Winding Grip
Metallic Wedge Grip
Easy Clamp & Release Grip
Flexural Testing Data Analysis
Understanding the Mechanical Properties of Materials
Flexural testing plays a crucial role in generating valuable data to comprehend a material's behavior under bending stress. Following recognized standards such as ISO or ASTM, these tests provide crucial insights into materials like polymers, wood, metal, and ceramics. The testing procedure involves calculating tensile stress in the convex side of the specimen and compression stress in the concave side, creating an area of shear stress along the midline.
Key mechanical properties assessed through data analysis include:
Flexural Strength
Flexural strength is the maximum stress a material can withstand during the bending test. It is a crucial parameter for determining a material's ability to resist bending forces without failure.
Modulus of Rupture
The modulus of rupture measures the material's ability to withstand bending stress and is calculated as the maximum bending stress just before fracture.
Flexural Toughness
Flexural toughness represents the material's capacity to absorb energy during bending without fracturing. It is a vital indicator of a material's durability under bending loads.

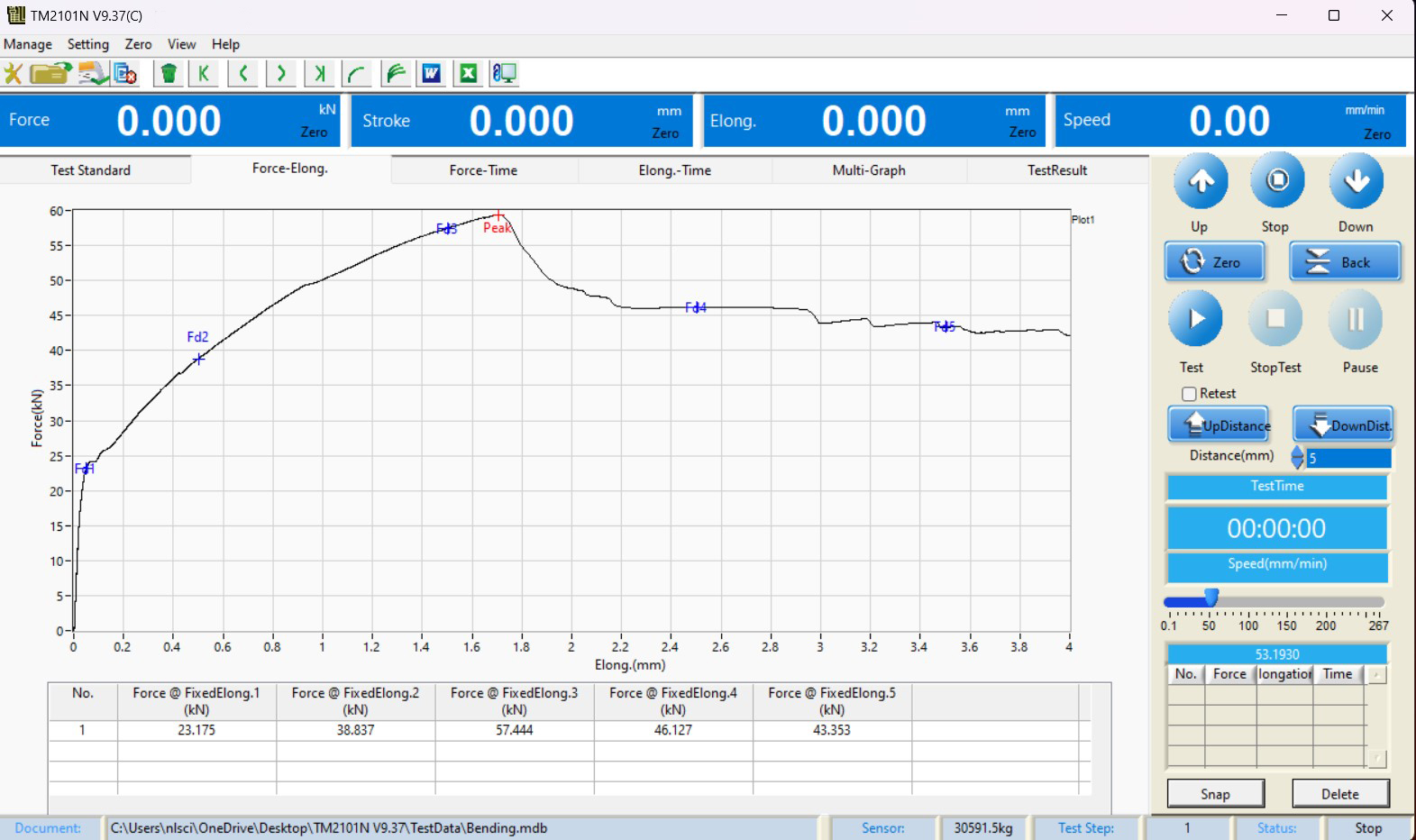

Analysis involves calculating maximum fiber stress and maximum strain for load increments. Results are plotted on a stress-strain diagram, defining flexural strength as the maximum stress on the outermost fiber. Flexural modulus is determined from the slope of the stress vs. deflection curve, offering insights into the material's stiffness.
Typical Materials
Bend and flexural testing are versatile methods applicable to a diverse range of materials, providing valuable insights into their mechanical properties. Here are some examples:
Key mechanical properties assessed through data analysis include:
Polymers
Polymer materials undergo bend and flex tests to assess their flexibility, strength, and resilience. These tests are crucial for applications in industries such as automotive and packaging. Commonly, 3-point bend tests are employed for polymers, measuring properties like flexural strength and flexural modulus.
Wood and Composites
Wood and composite materials are subjected to bend and flex tests to determine their suitability for construction and engineering applications. Understanding how these materials respond to bending stress is essential for structural design. Frequently, 4-point bend tests are employed for wood and composites, providing data on flexural strength and flexural modulus.
Brittle Materials
Despite their inherently low flexibility, brittle materials undergo bend and flexural testing to identify fracture points and understand their behavior under bending loads. For brittle materials like ceramics or concrete, 3-point bend tests often determine modulus of rupture (MOR), offering flex strength data without assessing stiffness.
ASIA LEADER IN
MATERIAL TESTING EQUIPMENT
Bend/Flex Testing Standards
Various standards organizations provide guidelines for conducting bend and flexural tests on different materials. Adhering to these standards ensures consistency and reliability in test results.
-
ASTM C1550 | Flexural Toughness of Fiber Reinforced Concrete:
- This ASTM standard outlines the procedure for determining the flexural toughness of fiber-reinforced concrete. Flexural toughness is crucial for assessing the material's ability to resist cracking and deformation under bending loads.
- This ASTM standard outlines the procedure for determining the flexural toughness of fiber-reinforced concrete. Flexural toughness is crucial for assessing the material's ability to resist cracking and deformation under bending loads.
-
ASTM C1609 | Flex Testing of Fiber Reinforced Concrete:
- ASTM C1609 provides guidelines for conducting flexural performance tests on fiber-reinforced concrete beams. It assesses the material's ability to resist bending and cracking, providing valuable information for structural applications.
- ASTM C1609 provides guidelines for conducting flexural performance tests on fiber-reinforced concrete beams. It assesses the material's ability to resist bending and cracking, providing valuable information for structural applications.
-
ASTM C880 | Flexural Strength of Dimension Stone:
- ASTM C880 outlines the procedure for determining the flexural strength of dimension stone. This standard is essential in evaluating the stone's ability to withstand bending stresses, which is critical in architectural and construction applications.
- ASTM C880 outlines the procedure for determining the flexural strength of dimension stone. This standard is essential in evaluating the stone's ability to withstand bending stresses, which is critical in architectural and construction applications.
-
ASTM C99 | Modulus of Rupture of Dimension Stone:
- This ASTM standard specifies the test method for determining the modulus of rupture of dimension stone. It assesses the stone's ability to withstand bending forces without breaking, providing valuable information for structural applications.
- This ASTM standard specifies the test method for determining the modulus of rupture of dimension stone. It assesses the stone's ability to withstand bending forces without breaking, providing valuable information for structural applications.
-
ASTM D143 | Flexural Properties of Wood:
- ASTM D143 outlines procedures for testing the flexural properties of wood. It includes methods for determining modulus of elasticity, modulus of rupture, and other important parameters related to the material's performance under bending loads.
- ASTM D143 outlines procedures for testing the flexural properties of wood. It includes methods for determining modulus of elasticity, modulus of rupture, and other important parameters related to the material's performance under bending loads.
-
ASTM D6272 | Flexural Properties of Plastics and Electrical Insulating Materials:
- This ASTM standard provides procedures for testing the flexural properties of plastics and electrical insulating materials. It assesses parameters such as modulus of elasticity and flexural strength, essential for applications in various industries.
- This ASTM standard provides procedures for testing the flexural properties of plastics and electrical insulating materials. It assesses parameters such as modulus of elasticity and flexural strength, essential for applications in various industries.
-
ASTM D790 | Flexural Testing of Plastics:
- ASTM D790 outlines procedures for conducting flexural tests on plastics. It provides information on modulus of elasticity, flexural strength, and other parameters, helping characterize the material's behavior under bending loads.
- ASTM D790 outlines procedures for conducting flexural tests on plastics. It provides information on modulus of elasticity, flexural strength, and other parameters, helping characterize the material's behavior under bending loads.
-
ASTM E190 | Guided Bend Testing of Welds:
- ASTM E190 specifies the procedure for guided bend testing of welds. This test assesses the ductility and soundness of welded joints subjected to bending, providing information about the weld's quality and performance.
- ASTM E190 specifies the procedure for guided bend testing of welds. This test assesses the ductility and soundness of welded joints subjected to bending, providing information about the weld's quality and performance.
-
ASTM E290 | Bend Testing of Material for Ductility:
- ASTM E290 outlines procedures for conducting bend tests on materials to assess their ductility. It is applicable to various metallic materials and provides information on the material's ability to deform before rupture.
- ASTM E290 outlines procedures for conducting bend tests on materials to assess their ductility. It is applicable to various metallic materials and provides information on the material's ability to deform before rupture.
-
ASTM F2606 | Three-Point Bending Balloon Expandable Vascular Stents and Stent Systems:
- This ASTM standard provides specifications for testing the flexural properties of balloon-expandable vascular stents and stent systems. It is crucial for evaluating the mechanical performance of these medical devices under bending conditions.
- This ASTM standard provides specifications for testing the flexural properties of balloon-expandable vascular stents and stent systems. It is crucial for evaluating the mechanical performance of these medical devices under bending conditions.
-
ISO 178 | Determining the Flexural Properties of Plastics:
- ISO 178 specifies procedures for determining the flexural properties of plastics. It includes the determination of modulus of elasticity, flexural strength, and other parameters, essential for quality control and material characterization.
- ISO 178 specifies procedures for determining the flexural properties of plastics. It includes the determination of modulus of elasticity, flexural strength, and other parameters, essential for quality control and material characterization.
-
ISO 14125 | Flexural Properties of Fiber Reinforced Plastic Composites:
- This ISO standard outlines methods for determining the flexural properties of fiber-reinforced plastic composites. It provides information on modulus of elasticity, flexural strength, and other parameters crucial for composite material design and evaluation.
- This ISO standard outlines methods for determining the flexural properties of fiber-reinforced plastic composites. It provides information on modulus of elasticity, flexural strength, and other parameters crucial for composite material design and evaluation.
-
ISO 14130 | Determination of Apparent Interlaminar Shear Strength of Fiber Reinforced Composites by the Short Beam Method:
- ISO 14130 specifies the short beam method for determining the apparent interlaminar shear strength of fiber-reinforced composites. This test assesses the material's resistance to shear forces between its layers.
- ISO 14130 specifies the short beam method for determining the apparent interlaminar shear strength of fiber-reinforced composites. This test assesses the material's resistance to shear forces between its layers.
-
ISO 3133 | Flexural Properties of Wood:
- This ISO standard provides procedures for determining the flexural properties of wood. It includes methods for assessing modulus of elasticity, modulus of rupture, and other parameters related to wood's behavior under bending loads.
- This ISO standard provides procedures for determining the flexural properties of wood. It includes methods for assessing modulus of elasticity, modulus of rupture, and other parameters related to wood's behavior under bending loads.
-
EN 12089 | Determining the Bend Behavior of Thermal Insulation Products:
- EN 12089 specifies procedures for determining the bend behavior of thermal insulation products. It is essential for evaluating the flexibility and mechanical performance of these products under specific conditions.
- EN 12089 specifies procedures for determining the bend behavior of thermal insulation products. It is essential for evaluating the flexibility and mechanical performance of these products under specific conditions.
